SSUCPA208A All Stainless Steel Tapped Base Pillow Block Bearings Inch Based Housing
- 19.94 >=10 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Selling Units: | Single item; | Single gross weight: | 2.14 KG; |
| Model Number: | SSUCPA208A; | Bearing Race: | SUS420; |
| Slinger: | SUS304; | Bearing Cage: | SUS304; |
| Type: | Pillow Block; | Grease: | Chevron SRI-2; |
| Housing: | SUS304; | Weight: | 2.09 kg; |
| Bearing Ball: | SUS420; | Set Screw: | SUS304; |
| Brand Name: | C&H; | Single package size: | 12X10.2X5.1 cm; |
| Place of Origin: | Shanghai China; | Seal: | Nitrile Rubber; |
| Grease Nipple: | SUS304; |

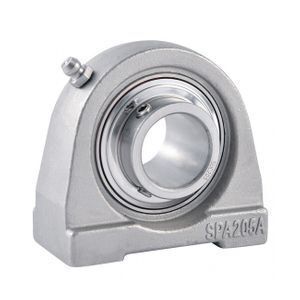

SSUCPA208A All Stainless Steel Tapped Base Pillow Block Bearings
304 Inch Based Housing, 420 Bearing Insert, Set Screw Locking
Features
- Housing: SUS304
- Bearing race and ball: SUS420
- Bearing retainer: SUS304
- Standard Seal: Nitrile Rubber
- Slinger, Grease Nipple, Set Screw: SUS304
- Grease : Chevron SRI-2
- Working Temperature range: -20°C to +90°C ( -4°F to + 248°F )
Specifications
d - bore | 40 mm |
| H | 49.2 mm |
| L | 117 mm |
| J | 88.9 mm |
| H0 | 100 mm |
| A | 48 mm |
| B | 49.2 mm |
| S | 19 mm |
| Bearing No | SUC208 |
| Housing No | SPA208 |
| Weight | 2.09 kg |
SSUCPA200A Stainless Steel Tapped Base Pillow Blocks
| Unit No. | Shaft | Dimensions(mm) | Bolt | Weight | ||||||||
| d | H | L | J | A | G | H1 | Ho | B | s | Size | kg | |
| SSUCPA204A | 20 | 33.3 | 73 | 50.8 | 38 | 13 | 12 | 65 | 31 | 12.7 | 3/8"-16 | 0.69 |
| SSUCPA205A | 25 | 36.5 | 76 | 50.8 | 38 | 13 | 12 | 71 | 34.1 | 14.3 | 3/8"-16 | 0.77 |
| SSUCPA206A | 30 | 42.9 | 102 | 76.2 | 38 | 16 | 12 | 86 | 38.1 | 15.9 | 7/16"-14 | 1.33 |
| SSUCPA207A | 35 | 47.6 | 108 | 82.6 | 48 | 19 | 13 | 95 | 42.9 | 17.5 | 1/2"-13 | 1.72 |
| SSUCPA208A | 40 | 49.2 | 117 | 88.9 | 48 | 19 | 13 | 100 | 49.2 | 19 | 1/2"-13 | 2.09 |
| SSUCPA209A | 45 | 54.2 | 127 | 95.3 | 51 | 19 | 13 | 108 | 49.2 | 19 | 1/2"-13 | 2.5 |
| SSUCPA210A | 50 | 57.2 | 140 | 101.6 | 51 | 22 | 14 | 117 | 51.6 | 19 | 5/8"-11 | 3.1 |
