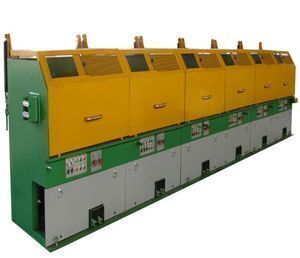

High efficient straight line high carbon steel rod wire drawing machine
-
Supplier: Shijiazhaung Soka Import & Export Co., Ltd. -
Region: Hebei, China -
Contact: Ms Anna wang -
Price: $5500.00 /set -
Min. Order: 1 set
| Website: | sokachina.com; | Brand Name: | SOKA; |
| Voltage: | 380V/220V; | Brand name: | dry type high carbon steel rod drawing machine; |
| Suitable material: | low.medium,high carbon steel wire; | Port: | Xingang port of Tianjin; |
| Weight: | 1000kg; | Dimension(L*W*H): | 2600*1600*1900; |
| Condition: | New; | Our aim: | Make clients the least invest,the highest returns; |
| After-sales Service Provided: | Engineers available to service machinery overseas; | Warranty: | One year warranty; |
| Power(W): | 22-30kw; | After sale service: | One year warranty,lifetime maintenance; |
| Supply Ability: | 10 Set/Sets per Month steel rod wire drawing machine; | Certification: | ISO9001-2008; |
| Payment Terms: | L/C,D/P,T/T,Western Union,MoneyGram; | Inlet Diameter: | 5.5-6.5mm; |
| Outlet Diameter: | 1.1-3.8mm; | Packaging Detail: | Export packing the end of the sleepers fixed machinery to do non-slip, with bubble wrap anti-collision, external plastic packaging waterproof moisture; |
| Certificate: | ISO approving,ISO9001-2008; | Inlet and outlet diameter: | 5.5-6.5mm,1.3-2.5mm; |
| Machine model: | LZ 500 type high carbon steel rod drawing machine; | Machine quality: | Stability,life span more than 20 years; |
| Place of Origin: | Hebei China; | Environment: | reduce 20-30% power consumption; |

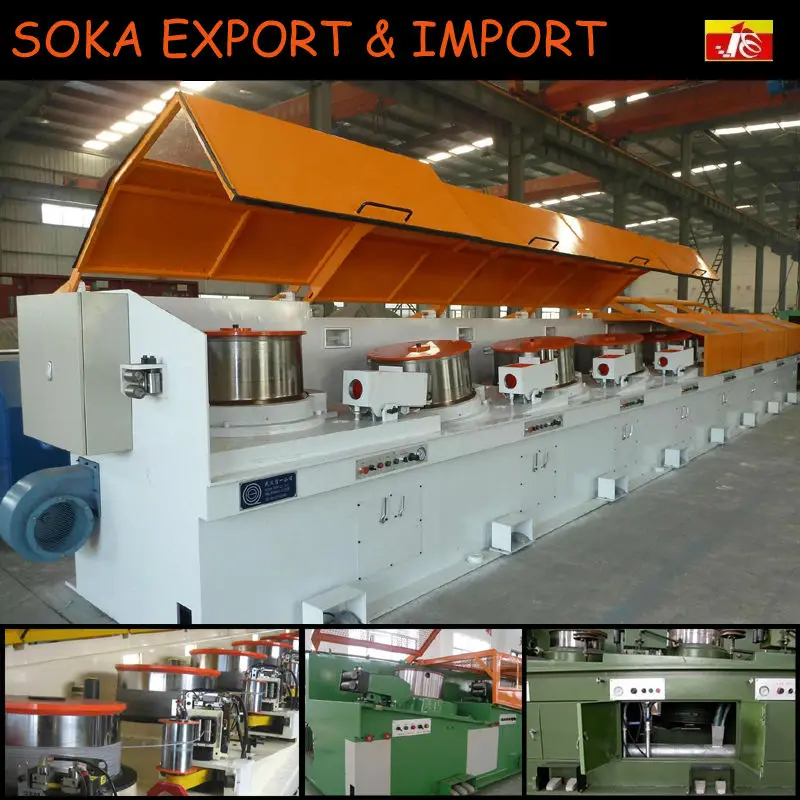

High efficient straight line high carbon steel rod wire drawing machine

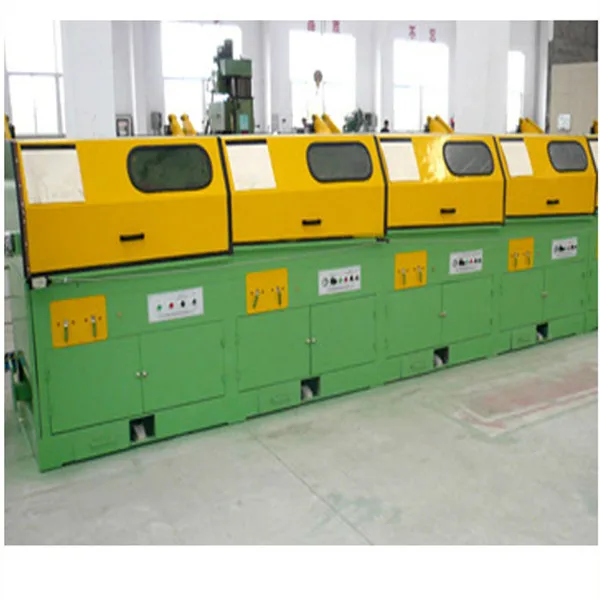

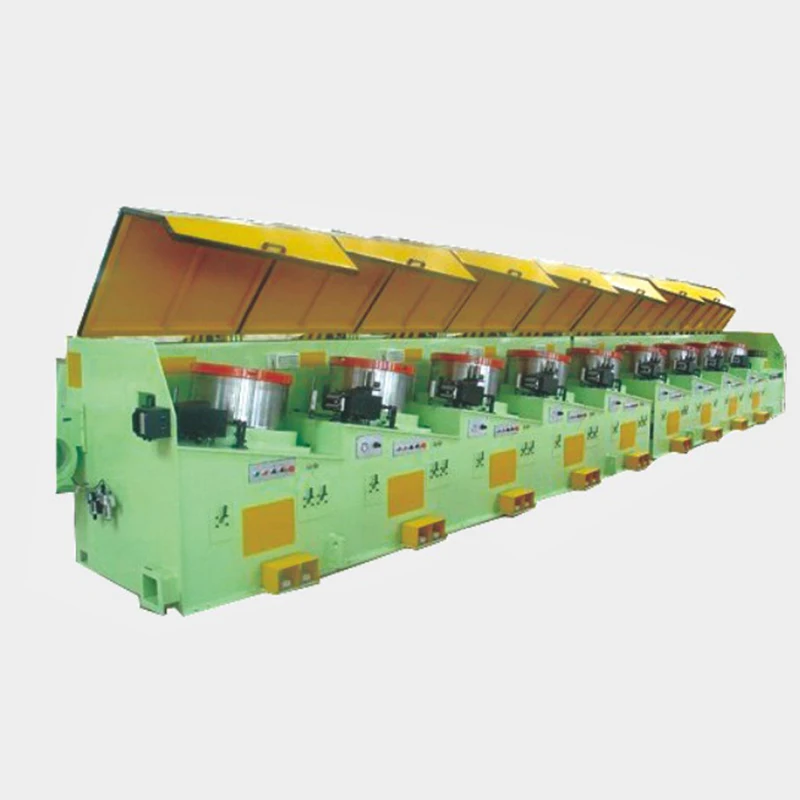

Description: Advanced Straight line wire drawing machine LZ 7/550
Place Of Origin: hengshui heibie China
Business Type: Manufacturer
Number Of Employees: 100-200 people
Package: wooden case
Feature: Applicable for drawing high, medium, low carbon steel wire/ alloy steel wire/ stainless steel wire, with the feature of continuous pass drawing. The machine is controlled by PLC which is driven by frequency converter.
Main technical parameter:
Model: JD-LZ-7/550
Winch diameter: 550mm
Inlet diameter: 6.5mm
Outlet diameter: 2.4mm
Material: low carbon steel
Max Pulling speed: 10-13m / s
The maximum line strength: ≥ 700MPa
Machine main frame: 14 # B-channel welded
Reel: cast steel ZG45, surface coating of tungsten carbide HRC60, reel run time of 26,000 hours. Roll height of 280mm. Tungsten carbide spraying height of 80mm, thickness of 2mm. The surface temperature of the roll itself is lower than 80 ° C. The roughness was less than 0.8 mm. Each roll has an operating button in front of it to adjust the tension. Reel (wire canister) cooling mode: reel inside the slit-type water-cooled, after water and corrosion treatment. Water intake: 6m3 / h, water pressure ≥ 0.25MPa. Intake volume: 1.5m3 / h, air pressure ≥ 0.6MPa
Sales market with reference to FIG
Shijiazhuang Soka Import&Export Co.,ltd is a branch of Hebei Jinda Group, mainly import &export business trade service. Jinda group is a multi-industry, a wide range of large private
enterprise,founded in 2003,registered capital of 30 million.
We Specialize in wire drawing machine, annealing machine, tinning machine, nail making machine
and all kindsof accessories. Supply professional service of design and developing, production,
sales and installation and debugging, in every aspect of product implementation of strict quality
control, OEM and ODM service as per customers’ request.
We has strong technical force, senior engineers and technicians team, introduce the lastet technology at home and abroad, by doing better research, to make mechanical machines of good function,
structure, process, and usability, favored by domestic and foreign customers. With professional team, strict management, superior equipment, well received in India, Egypt, Pakistan, Vietnam, Thailand, Uzbekistan etc. With after sales service offices in more than 20 provinces and cities, supply efficient,
quality and considerateservice for you.
Pre- Sales Free Training :
Make sureour machineries you purchase from us can be fully used, we can train your representatives about the operation and the repair. The training items as follows:
1. the right operating mode. 2.the right maintenance way 3.trouble removing
We will guide you to install and debug the machinery when you visit our factory. But according on the
international practice, you need to pay 50 usd per person for one day.
After-Sales Service Contents
1.We will provide the free maintenance from the export date. 1 year for main mechanical parts and 6 months
for electrical equipments (except wearing parts) 2.We will supply the components and technology. Make sure we can long-term supply the
relevant components of machines and the maintentance service. But after the free period of service,
you need to pay some charge according on the actual situation such as travel expense,standard hour plan and the components cost (factory price).
Our AfterSales Service Commitment:
As soon as we get your machine fault information, our research personel and the maintenance
personel will analyse machine fault and make the solutions.If it need our technicist to go to your factory, we will arrive the destinated place during 24 hours for
domestic clients and 7 working days for international clients.
Why let you choose us?
1.Production experience:Absorbed ,Professional for 13years
2.Each link strict control the quality
3.Our goals are not do the lowest price to do the best quality
4.Life provides you with technical guidance
5. The long-term supply all kinds of spare parts, make sure that you use perennial
6. To offer our customers workshop design
7. Choose a professional supplier will bring you more convenient
01 Q:You product exported to which countries?
We exported to India,Argentina ,Uzbekistan,Tajikistan Russia, Algeria, Thailand,Egypt.,Tanzania,Qatar ,Hungary, Ghana, Turkey, Bangladesh,Trinidad and Tobago,Lithuania
02 Q: If the client no any Production experience, How can help
the client?
A:we provide you with professional team is responsible for equipment installation and debugging
B: training your workers operate the machines,
C: Lifelong provide free technical guidance for our client
D:according to your budget to help you design the ideal investment programs
E: make sure the client with minimum investment and the highest return
03 Q:How about the quality and the service life of the machine ?
Concerning with every detail, every processing procedure of our products, using reliable components. Electrical appliances all adopt international famous brand (Such as Siemens, Schneider )Running test will be carried out before delivery.
The machine at least use 8-20 years, the daily maintenance of equipment and and maintenance is very important ,High configuration equipment use life more longer
04 Q:How long is your machine’s guarantee time?
Whole machine one year, electrical equipment 6 months (except wearing parts)
05 Q.How about the spare parts?
After we finish our deal, we will offer you a spare parts list for your reference.
Make sure we can long-term supply the relevant components of machines and the maintenace service. But after the free period of service, you need to pay some charge according on the actual situation such as travel expense,standard hour plan and the components cost (factory price).
06 Q:How many workers are needed to operate the machine?
1-4 people According to the worker's operation skill level
-
