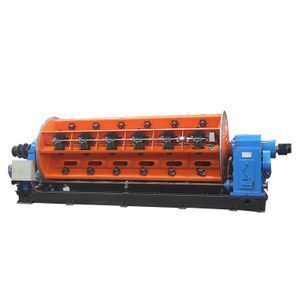

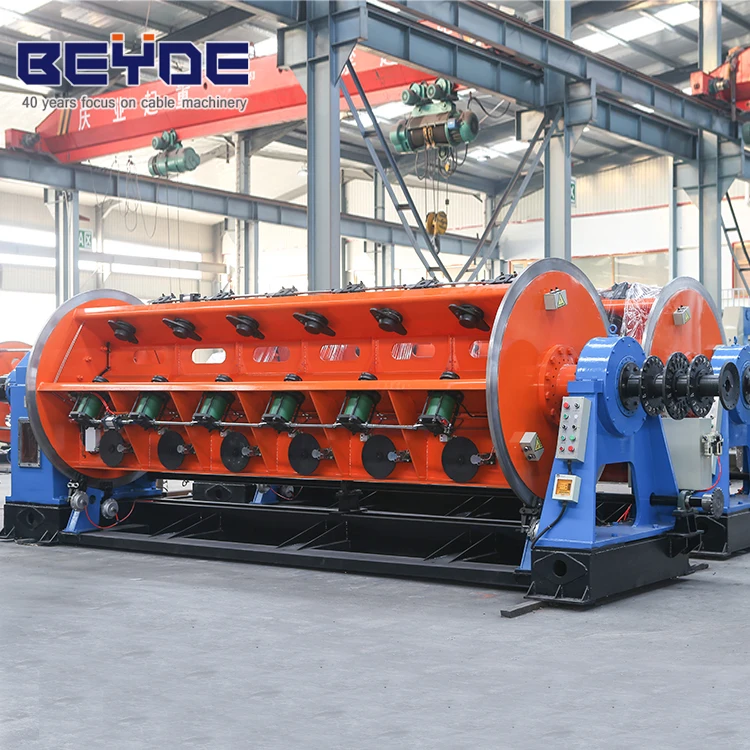

Rigid Stranding Machine Rigid Strander Line 500 / 1+6+12+18+24+30High Speed Rigid Frame Cable Wire Strander

Supplier: Beyde Trading Co., Ltd.
Region: Hebei, China
Contact: Mr lei Chen
Price: $45000.00 / >=2 sets
Min. Order: 2 sets

Click here to contact

Product details

Power supply:	380V;	Brand Name:	Beyde;
Usage:	Stranding;	Packaging Detail:	Container;
Power:	AC motor;	Touch Screen:	PLC/Siemens;
Place of Origin:	China;	Pay-off and Take-up:	Shaftless/Portal type;
After-sales Service Provided:	Engineers available to service machinery overseas;	Motor:	AC;
Warranty:	2 YEARS;	Supply Ability:	120 Set/Sets per Year;
Port:	Tianjin;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Model Number:	630;

Product Description

Main Parameter

Model Number		500	630
Dia. Of Single Wire(mm)	Copper	1.5-5.0
	Aluminum	1.8-5.0
Max.Section Square(mm²)	Cu	500
	Al	630
Max Linear Speed(m/min)		7.32-55.29	7.62-57.93
Pay-off In Cage		PND500
Stranding Pitch(mm)		45-1105	56-1259
Take-up Bobbins(mm)		PN1600-PN2500
Capstan(mm)		2000mm

Features

1.All Cages, Pre-Spiraling Heads, Taping Head, Capstan & Takeup are separately driven.

2.All bobbins can be loaded/unloaded simultaneously by automatic loading equipment, thereby reducing loading/unloading time to Max. 30 minutes.

3.Lay is fed in MMI (Operator touch screen) instead of Gearbox. Any lay value in the range can be set & achieved that ensure easy operation.

4.In Power failure situation, the machine comes to a controlled stop by emergency braking system, enabling the bobbin is held by spring pressure with a secondary positive lock. The release of bobbin is by externally plugged pneumatic compressed Air.

5.Constant Bobbin back tension achieved by Electronic pneumatic valve & Single bobbin rotation is electronically sensed for maintaining consistent tension by positive motor control system or passive mechanical equipment.

6.Multiple bobbin size available(400,500,630.etc)

7.Mutiple host with mutiple cage number((6.12.18.24.30)) optional
