Dual Fuel!!! 65dB!!! POWERGEN Water-cooled Enermol Type Stationary NG/LPG Super Silent Natural Gas Generator 30KW

Product details
Speed:3000/3600;Payment Terms:L/C,T/T,Western Union;
Model Number:BNL30SE;Fuel type:Natrual Gas/ LPG;
Brand Name:POWERGEN;Color:Customized;
Rated Voltage:220/380V; 208/120V; 220/127V;Place of Origin:Fujian China (Mainland);
Packaging Detail:Wooden Crate;Output Type:AC Three Phase;
Supply Ability:3000 Set/Sets per Month;Frequency:50/60HZ;
Rated Power:30KW;Delivery Detail:20 working days;
Port:FuZhou/Shanghai/Ningbo;Rated Current:Depends on voltage;
Product Description

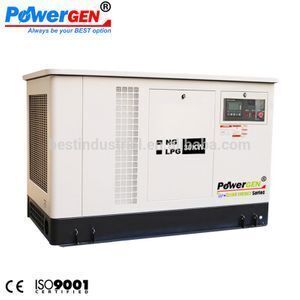

POWERGEN Best Selling model BNL30SE is a SUPER SILENT type 3-Phase DUAL FUEL (NG/LPG) Generator. It is driven by high quality Lifan water-cooled automobile grade gas engine LF481. With a rated output of 30KW/33KW 50/60Hz, it can provide automatic whole-house power for mid-sized homes, or essential circuit protection for small and medium businesses such as convenience stores and offices.
Specifications
SPECIFICATIONS OF GASOLINE GENERATOR
MODEL NO.:
BNL30SE
Frequency
Hz
50
60
Voltage
V
380/220; 208/127, 220, 120
Alternator type
Three phase, 2-pole, Self-excited, Brushless with AVR,  Insulation class H, IP23
Rated Output
KW/KVA
30/37
33/40
Max. Output
KW/KVA
33/40
36/45
Power Factor
0.8
Engine Type
Water-cooled, 4-cylinder, 1587cc, Natural aspired
Engine Model
LF481
Bore x Stroke
mm
81 x 77
Compression Ratio
9.5:1
Ignition
ECM electronic
Cranking motor
Model: QDY1205; 12V 1.2KW
Charging alternator
14V 90Amp
Engine Speed
RPM
3000
3600
Fuel Consumption
NG: 10 m3/hour
LPG: 16 Liter/Hour
4- Protections
Yes
Starting Method
Electric Starter with Battery
Emergency Stop
Emergency Stop Button
Battery Capacity
V/AH
2pcs x 12/45
Battery cold cranking
CCA
525
Dimensions
LxWxH
1560 x 890x 970
N.W./ G.W
Kgs
520/550
Loading Quantity
PCS
20'GP:  12
40'GP: 28
Features

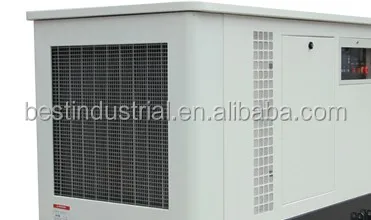

Canopy of Super Silent

- Sound/Noise Proof & Rain Proof
The noise level is much lower than any common gasoline generators. 65 dB @7meters.


- Efficient heat radiation

The canopy is designed of high efficienty on heat radiation to prevent auto shut-down due to overheat inside.

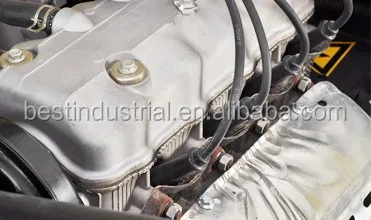

Water-cooled Gas Engine

Engine Model: LF481

Brand: LIFAN

Type: Water cooled, natural aspired

Starting system: Electric Starter with battery

Charging alternator: 12V 90Amp

Battery: 2x12V45AH

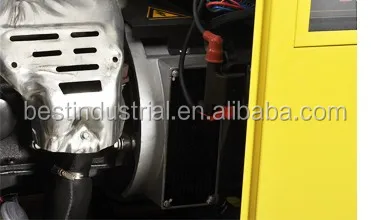

Full Copper Brushless Alternator

Model: PG-30

Brand: POWERGEN

Power: 30KW/37KVA

Power factor: 0.8

Type: Brushless, 2-pole, with AVR(+-1%), Self-excited, IP23

Speed governor: Electronic

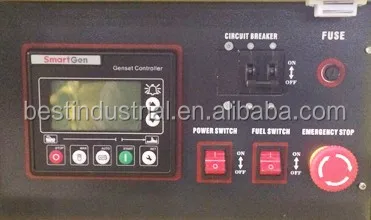

Control Panel

- Emergency stop button

- Smartgen HSC940 Digital LCD Controller: Voltage (V),

   Frequency(Hz), Working Hours, Fuel level etc.

- Fuel Switch, Power Switch

- Main Circuit Breaker

- Socket Circuit Breaker

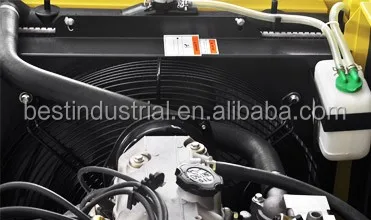

Industrial Grade Radiator

- The radiator is specially designed for the Water cooled Lifan engine LF481

- Largely cooling down the temperature of the running engine.

- Compact and easy for maintenance



Optional

ATS

With an ATS, the generator will be auto started or auto shut down while the city power is cut or recovered.

Tri-fuel: NG/LPG/Gasoline

The NG/LPG generator can be made with a gasoline fuel tank to run gasoline as well, to be a tri-fuel generator.

Wheels

The generator can be equipped with 4xwheel for easier transportation.

Packaging
Packaging
Size (mm)
1640 (L) * 970 (W) * 1100 (H)
Gross Weight (Kgs)
550



Packaging Details

1) Inner Packaging: Polybag

2) Outer Packaging: Fumigation free Wooden crate

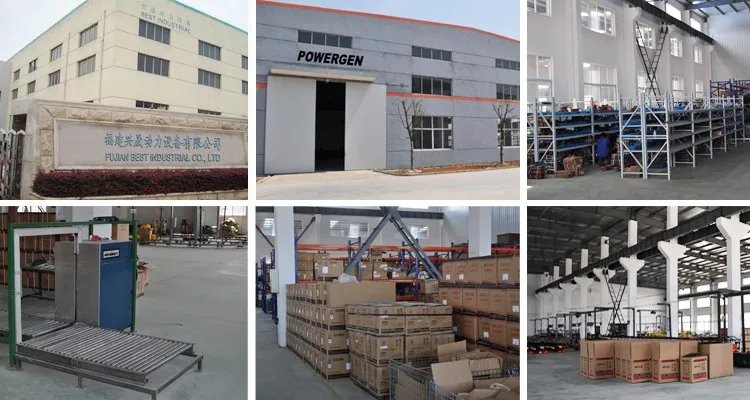

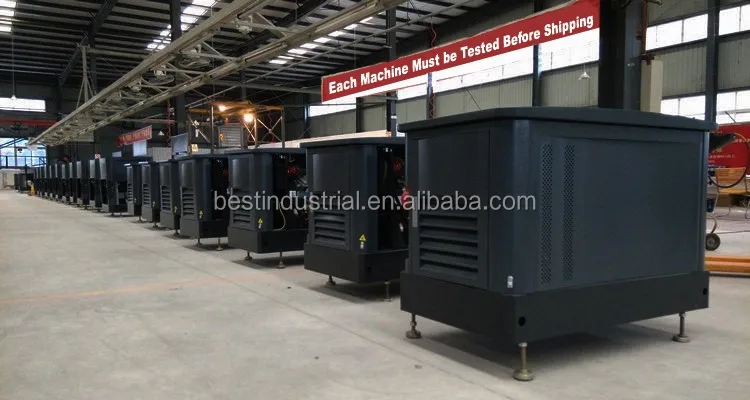

Assembly Line
Certifications
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
