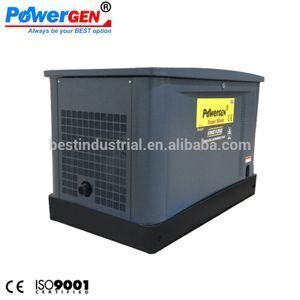

Dual Fuel !!! 60dB!!! POWERGEN Home use LPG/NG Super Silent ARVEK Type Liquid Propane/Natural Gas Generator 10KVA

Supplier: Fujian Best Industrial Co., Ltd.
Region: Fujian, China
Contact: Mr Jie Huang
Price: $2000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Starting Method:	Electric Start;	Model Number:	BNG10SE;
NG Consumption:	3.2 CBM/Hour;	Packaging Detail:	Export Standard Seaworthy Carton;
Control Panel:	Smartgen HSC940;	Brand Name:	Powergen;
Rated Voltage:	110-240V,110/220V,120/240V;	Delivery Detail:	20-30 days;
Place of Origin:	Fujian China;	Noise level @7m:	60 dB;
Fuel type:	Natural Gas or LPG;	Rated Power:	10KW/11KW;
Frequency:	50/60HZ;	Output Type:	AC Single Phase;
Payment Terms:	L/C,T/T,Western Union;	Rated Current:	Depends on voltage;
Color:	Customized available;	Supply Ability:	3000 Set/Sets per Month;
Port:	FuZhou/Shanghai/Ningbo;	Speed:	3000/3600 RPM;

Product Description

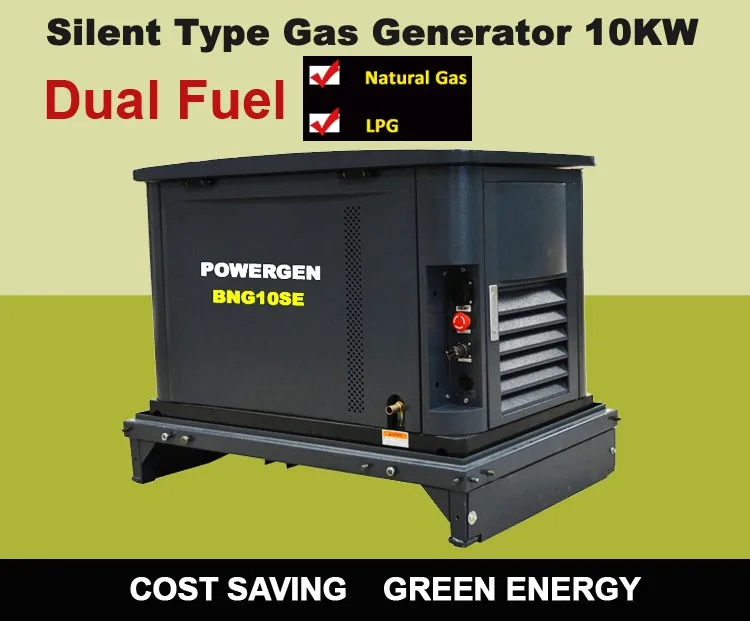

POWERGEN Green Energy and Cost Saving series Best Selling model BNG10SE is a Super SILENT (60dB) type dual fuel generator. It can run on either NG (Natual Gas) or LPG (Liquid Propane). It is driven by high quality Loncin air-cooled gas engine 20HP with electric starter and battery.With a rated output of 10KW/11KW 50/60Hz, it can provide automatic whole-house power for mid-sized homes, or essential circuit protection for small and medium businesses such as convenience stores, restaurants and offices.

Specifications

SPECIFICATIONS OF NG/LPG GENERATOR
MODEL NO.:		BNG10SE
Frequency	Hz	50	60
Voltage	V	110/220/230//240	110/115/120/240
Alternator type		Single phase, 2-pole, Self-excited, Brush with AVR, Insulation class F
Rated Output	KW	10	11
Max. Output	KW	11	12
Power Factor		1
Engine Type		Air-cooled, V2-cylinder, OHV, 4-stroke, 678cc
Engine Model		2V78FD
Engine Power	HP	20
Bore x Stroke	mm	78 x 62
Engine Speed	RPM	3000	3600
Gas Consumption @ Full load	NG	3.2 M³/Hour
Gas Consumption @ Full load	LPG	5.2 Liter/Hour
Starting Method		Electric Starter with Battery
Emergency Stop		Emergency Stop Button
Battery Capacity		12V 45AH
Packing Dimensions	LxWxH	1040 x 650x 710
N.W./ G.W	Kgs	185/190

Features

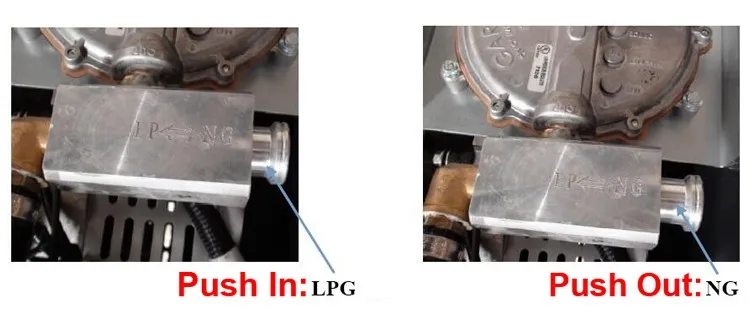

Easy NG (Natural Gas) and LPG (Liquid Propane) Conversion

- Use a pressure reducing valve to reduce LPG pressure supply
- Pushing the button as attached pictures to the natural gas or LP vapor per the fuel which you want to use.

- Push in for LPG and out for NG

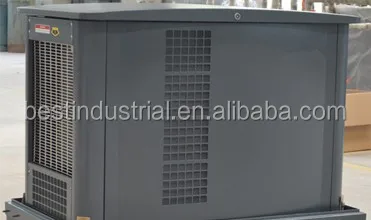

Canopy of Super Silent

- Sound/Noise Proof & Rain Proof
The noise level is much lower than any common gas generators. 60dB @ 7meters.

- Efficient heat radiation

The canopy is designed of high efficienty on heat radiation to prevent auto shut-down due to overheat inside.

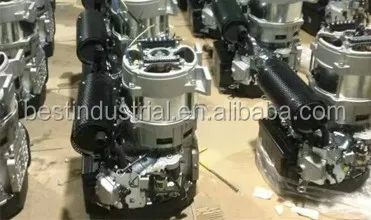

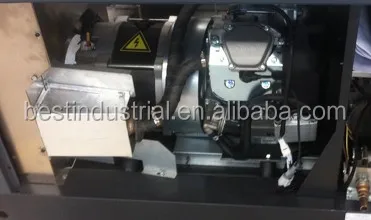

Gas Engine with Battery

Engine Model: 2V78FD

Brand: POWERGEN

Power: 20HP

Type: Air-cooled, V2 Cylinder, 678cc

Start method: Electric Start

Charging alternator: 12V 0.8KW

Battery: 12V45AH

Full Copper Durable Alternator

Model: PG-10

Brand: POWERGEN

Power: 10KW

Power factor: 1

Type: Brush, with AVR, Self-excited, Single phase

Full 100% copper coil, robust alternator can withstand a long time of coninuous working.

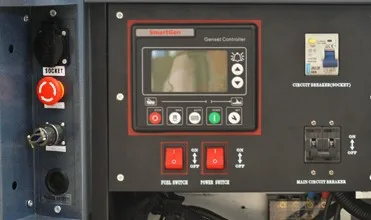

Electrical Panel

- Power Outlet/Socket (customized available)

- Emergency stop button

- Smartgen HSC940 Digital LCD Controller: Voltage (V),

Frequency(Hz), Working Hours, Fuel level etc.

- Fuel Switch, Power Switch

- Main Circuit Breaker

- Socket Circuit Breaker

- ATS connection portal (optional)

NG/LPG Connector

- High gas power efficiency

- Easy to connect with the gas hose/tube

- Sealed and safe

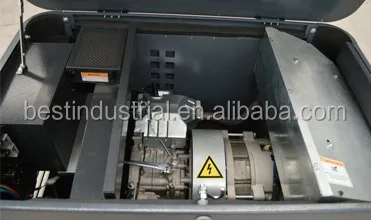

Easier Access & Maintenance

- The design of "open from the top" for easier access and maintenance.

- Lockable top-cover and insulated canopy to keep children and pets aways from any possible electrical harzard.

Optional

ATS

With an ATS, the generator will be auto started or auto shut down while the city power is cut or recovered.

Water-cooled Gas Engine

The water-cooled gas engine is orginally designed for car, higher cost but stronger than the air-cooled gas engine.

Wheels

The generator can be equipped with 4xwheel for easier transportation.

Packaging

Packaging
Size (mm)	1040 (L) * 650 (W) * 710 (H)
Gross Weight (Kgs)	190
Packaging Details	1) Inner Packaging: Polybag 2) Outer Packaging: Thick Carton with small wooden pallet at the bottom. 3) Wrapping tape
