clean energy! ! ! POWERGEN HYDRAULIC SOUND 25KVA NG Natural Gas/LPG Liquid Propane Generator 20KW

Product details
Delivery Details:20 working daysoutput type:AC three-phase
Rated voltage:110-440Vpayment terms:L/C,T/T,Western Union
frequency:50/60HZplace of origin; place of origin:Fujian China
Rated current:depends on voltagePackaging Details:wooden box
rated power:20KWcolor:custom made
speed:3000/3600port:Fuzhou/Shanghai/Ningbo
Supply capacity:3000 sets per monthmodel:BNL20SE
Optional:automatic transfer switchType of gasoline:Natural Gas/LPG
brand:power
Product Description

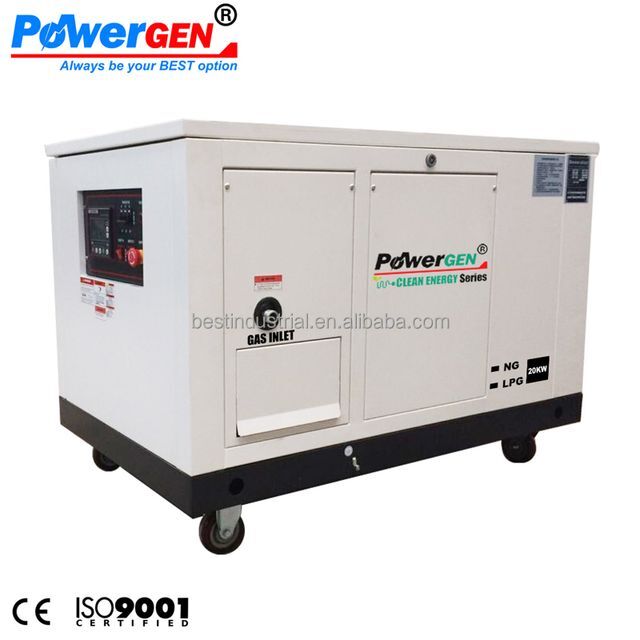

POWERGEN's best-selling model BNL20SE isSuper sound-offType 3 phase dual fuel (NG/LPG) generator. Powered by high-quality Lifanwater coolingAutomotive grade gas engine 465QR. The rated output is 20KW/22KW 50/60Hz, which can provide fully automatic whole-house power supply for medium-sized families, or provide necessary circuit protection for small and medium-sized enterprises such as convenience stores and offices.
Specification
Specifications of Gasoline Generators
model. :
BNL20SE
frequency
hertz
50
60
Voltage
five
110-400
alternator type
Three-phase, 2-pole, self-excited, brushless, with AVR, insulation class H, IP23
Rated output
kW/kVA
20/25
maximum. output
kW/kVA
22/27
power factor
0.8
engine type
Water-cooled, 4-cylinder, 998cc, naturally aspirated
engine model
465QR
Bore x Stroke
mm
65.5 x 74
Compression ratio
9.5:1
ignition
ECM
start the motor
Model: QDY112; 12V 0.8KW
Charging the alternator
14V 350W
engine speed
Rotating speed
3000
3600
Fuel consumption
m3/hour
Exception: 6.3
LPG: 6.1
Intake pressure
kPa
NG: 1.3-2.7
LPG: 1.7-2.7
4- Protection
Yes
Start method
Electric starter with battery
emergency stop
emergency stop button
battery capacity
V/AH
2 pieces x 12/45
battery cold start
CCA
525
aspect
LxWxH
1200×740×826
Net weight/GW
Kilogram
325/345
Load quantity
piece
20'GP: 22
40'GP: 46
feature

Ultra-quiet canopy

- Soundproofing/soundproofing and rainproofing
The noise level is much lower than any common gasoline generator. 65dB @ 7m.


- Efficient heat dissipation

The canopy is designed with efficient heat dissipation to prevent automatic shutdown due to internal overheating.

Water-cooled gas engine

Engine Model: 465QR

Brand: Suzuki

Type: 4-cylinder, water-cooled, naturally aspirated, 998cc

Starting system: Electric starter with battery

Charging alternator: 14V 350W

Battery: 2x12V45AH

All copper brush alternator

Model: PG-20

Brand: POWERGEN

Power: 20KW/25KVA

Power factor: 0.8

Type: Brushless, 2-pole, with AVR(+-1%), self-excited, IP23

Governor: Electronic

control panel

- emergency stop button

- Smartgen HSC940 Digital LCD Controller: Voltage (V),

Frequency (Hz), working time, oil level, etc.

- Fuel switch, power switch

- main circuit breaker

- Outlet circuit breaker

Industrial Grade Radiator

- The radiator is specially designed for the Suzuki water-cooled engine 465QR

- Greatly reduces the temperature of a running engine.

- compact and easy to maintain



optional

ATS

With ATS, the generator will automatically start or automatically shut down when utility power is cut or restored.

Three fuels: NG/LPG/gasoline

NG/LPG generators can be made with gasoline fuel tanks or run on gasoline as tri-fuel generators.

wheel

The generator can be equipped with 4xwheels for easy transport.

Bale
Bale
Dimensions (mm)
1290(L)*800(W)*900(H)
Gross weight (kg)
345



Packaging Details

1) Inner packing: plastic bag

2) Outer packaging: fumigation-free wooden box
assembly line
Certification
our service

pre-sale service

* Inquiry and consultation support.

* Sample test support.

* View our factory.

After-sales service

* Training how to install the machine, training how to use the machine.

* Engineers can repair machinery overseas.
