Clean Energy!!! POWERGEN Water Cooled Silent NG Natural Gas/LPG Liquid Propane Generator 15KW

Supplier: Fujian Best Industrial Co., Ltd.
Region: Fujian, China
Contact: Mr Jie Huang
Price: $2000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Optional:	Auto Transfer Switch, Wheels;	Supply Ability:	3000 Set/Sets per Month;
Brand Name:	POWERGEN;	Rated Power:	15KW;
Payment Terms:	L/C,T/T,Western Union;	Color:	Customized;
Output Type:	AC Three Phase;	Delivery Detail:	20 working days;
Place of Origin:	Fujian China;	Packaging Detail:	Wooden Crate;
Model Number:	BNL15SE;	Fuel type:	Natrual Gas/ LPG;
Frequency:	50/60HZ;	Rated Voltage:	110-440V;
Rated Current:	Depends on voltage;	Port:	Shanghai;
Speed:	3000/3600;

Product Description

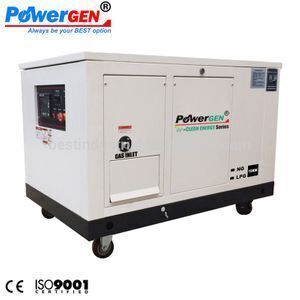

POWERGEN Best Selling model BNL15SE is a SUPER SILENT type 3-Phase DUAL FUEL (NG/LPG) Generator. It is driven by high quality Lifan water-cooled automobile grade gas engine 465QR. With a rated output of 15KW 50/60Hz, it can provide automatic whole-house power for mid-sized homes, or essential circuit protection for small and medium businesses such as convenience stores and offices.

Specifications

SPECIFICATIONS OF GASOLINE GENERATOR
MODEL NO.:		BNL15SE
Frequency	Hz	50	60
Voltage	V	110-400
Alternator type		Three phase, 2-pole, Self-excited, Brushless with AVR, Insulation class H, IP23
Rated Output	KW/KVA	15/19
Max. Output	KW/KVA	17/21
Power Factor		0.8
Engine Type		Water-cooled, 4-cylinder, 998cc, Natural aspired
Engine Model		465QR
Bore x Stroke	mm	65.5 x 74
Compression Ratio		9.5:1
Ignition		ECM
Cranking motor		Model: QDY112; 12V 0.8KW
Charging alternator		14V 350W
Engine Speed	RPM	3000	3600
Fuel Consumption		NG: 5.9 M3/Hr	LPG: 10 Liter/Hour
Gas inlet pressure	kPa	NG: 1.3-2.7	LPG: 1.7-2.7
4- Protections		Yes
Starting Method		Electric Starter with Battery
Emergency Stop		Emergency Stop Button
Battery Capacity	V/AH	2pcs x 12/45
Battery cold cranking	CCA	525
Dimensions	LxWxH	1200 x 740x 826
N.W./ G.W	Kgs	295/315
Loading Quantity	PCS	20'GP: 22	40'GP: 46

Features

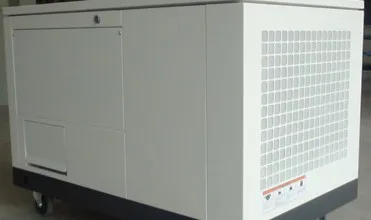

Canopy of Super Silent

- Sound/Noise Proof & Rain Proof
The noise level is much lower than any common gasoline generators. 65 dB @7meters.

- Efficient heat radiation

The canopy is designed of high efficienty on heat radiation to prevent auto shut-down due to overheat inside.

Water-cooled Gas Engine

Engine Model: 465QR

Brand: Suzuki

Type: 4-Cylinder, Water cooled, natural aspired, 998cc

Starting system: Electric Starter with battery

Charging alternator: 14V 350W

Battery: 2x12V45AH

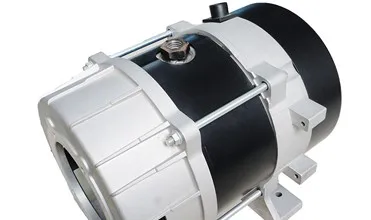

Full Copper Brush Alternator

Model: PG-12

Brand: POWERGEN

Power: 12KW/15KVA

Power factor: 0.8

Type: Brushless, 2-pole, with AVR(+-1%), Self-excited, IP23

Speed governor: Electronic

Control Panel

- Emergency stop button

- Smartgen HSC940 Digital LCD Controller: Voltage (V),

Frequency(Hz), Working Hours, Fuel level etc.

- Fuel Switch, Power Switch

- Main Circuit Breaker

- Socket Circuit Breaker

Gas Inlet

- Easy to connect

- Reliable and Safe

- Gas Inlet Pressure:

NG:1.3-2.7 kPa

LPG: 1.7-2.7 kPa

Optional

ATS

With an ATS, the generator will be auto started or auto shut down while the city power is cut or recovered.

Tri-fuel: NG/LPG/Gasoline

The NG/LPG generator can be made with a gasoline fuel tank to run gasoline as well, to be a tri-fuel generator.

Wheels

The generator can be equipped with 4xwheel for easier transportation.

Packaging

Packaging
Size (mm)	1290 (L) * 800 (W) * 900 (H)
Gross Weight (Kgs)	315
Packaging Details	1) Inner Packaging: Polybag 2) Outer Packaging: Fumigation free Wooden crate
