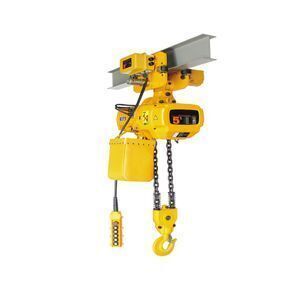

Monorail electric chain hoist 5 ton
-
Supplier: Shanghai Hugong Crane Machinery Co., Ltd. -
Region: Shanghai, China -
Contact: Mr. Jack Slovakia -
Price: $488.00 /set -
Min. Order: 1 set
| Sling type: | G80 chain; | Running speed: | 10/20m/min; |
| Lifting height: | Customized; | Port: | Shanghai; |
| Voltage: | 220V-440V; | Supply Ability: | 1000 Set/Sets per Month; |
| Lift speed: | 2.7m/min; | Model Number: | SY-A; |
| Packaging Detail: | Normal standard exporting package with chain hoist,wooden box. or accroding customer demand; | Certification: | ISO9001/CE; |
| Load Capacity: | 5t; | Warranty: | 1 year; |
| Product name: | Monorail electric chain hoist 5 ton; | Place of Origin: | Shanghai; |
| Brand: | HUGONG; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; |
| Usage: | Construction hoist; | Power source: | Electric; |
Electric chain hoist consists of the motor, transmission and sprocket composition.

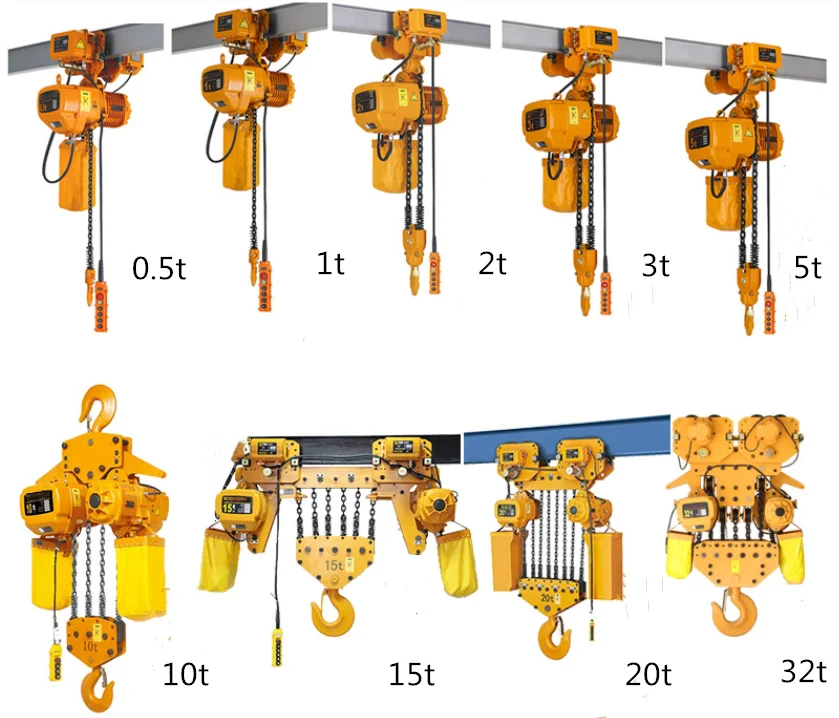

From the weight of 0.5-32 tons, lifting height of 3 to 120 meters.
Our electric hoist can apply in a wide range, in workshops, warehouses, wind power, logistics, terminals, construction and other occasions. This electric hoist and single and double beam crane, jib crane, gantry crane which can be used for lifting or loading and unloading cargo, can also be used for precision molds installation and maintenance. Operators use the button to follow the manipulation of the ground, can also be manipulated in the control room or the use of wired (wireless) remote control. This electric hoist can be used in a fixed suspension, but also with electric monorail car and hand push / hand monorail car walk to use.
| Model | Lifting capacity(t) | Lifting speed(m/min) | Running speed(m/min) | Lifting motor | Running motor | I-beam(mm) | Power supply | ||
| Power(kw) | R.P.M | Power(kw) | R.P.M | ||||||
| SY-A5-2 | 5 | 2.7 | 10/20 | 3.0 | 1440 | 0.75 | 1440 | 110-180 | 220v-440v 50/60HZ |
Monorail electric chain hoist 5 ton Send an inquiry

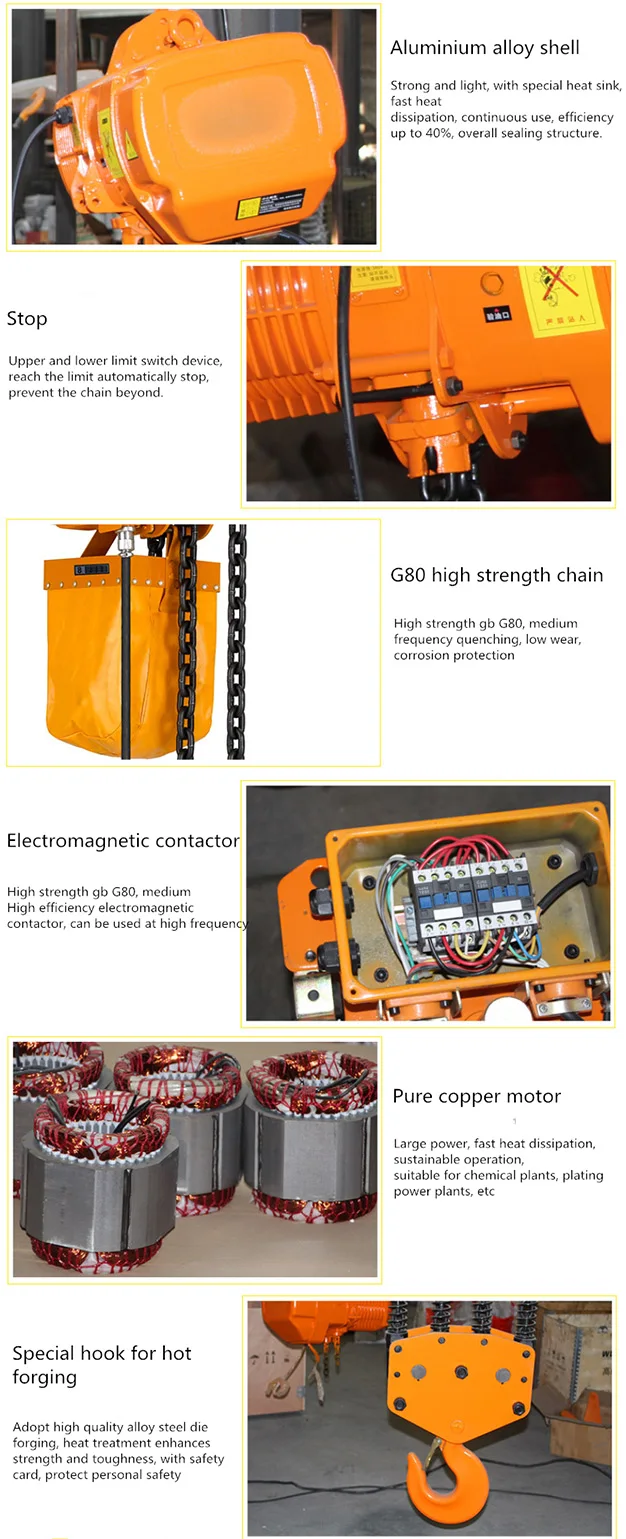

Main Feature
Monorail electric chain hoist 5 ton
1. FEC G80 ultra heat-treated alloy steeel chain which is suitablt for rain, sea water and chemical environments.

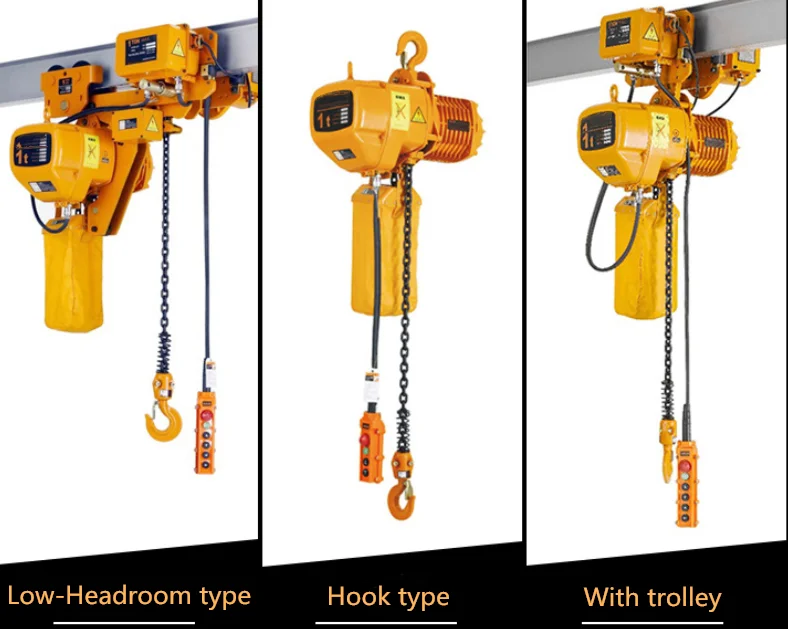

2. Choices of lug mounted push / pull, hand geared or motorized trolley drives geared limit switches for both upper and lower hook travel.
3. Standard voltage is 200-440volt, 3 phase.
4. Capacities from 0.5ton through 35tons.
5. Sturdy steel construction.
6. Direct acting motor brakes.
Pre-sales
1. Before place the order, confirm the detail of products;
2. Generally speaking, the production period rang from 10days to 30days;
3. After the production is finished, will contact with clients paying the final payment;
4. Our logistic department will arrange the delivery details with your forwarder.
After-sales
1. 12 months warranty.
2. Exclusive engineer support at any time.
3. Providing free quick- wear part.
4. Low charge for continue maintenance when warranty is expired.
-
