High Quality box forming machine, Factory Automatic custom box machine, Cheap Prices carton box making machine

Supplier: Qingdao Aopack On Demand Packaging Co., Ltd.
Region: Shandong, China
Contact: Ms. Anna Qin
Price: $86000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Place of Origin:	Shandong China;	Certification:	CE;
After-sales Service Provided:	Engineers available to service machinery overseas;	Keywords:	Box making machine;
Dimension(LWH):	3440(W) * 2050(L)* 1510mm(H);	Power(W):	Max.5 kw;
Voltage:	230V±10%;	Product name:	Automatic short run cardboard box making machine;
Port:	Qingdao Qian Wan Port;	Name:	AOPACK BoxMaker;
Production Capacity:	400pcs/hour;	After-sales Service Provided:	Free spare parts;
Processing Type:	Creasing, slitting, cutting;	Product Type:	Box Making Machine;
Payment Terms:	L/C,T/T;	Application:	Corrugated carton making;
Function:	Cardboard rigid box making;	Warranty:	1 Year;
Type:	Carton forming;	Brand Name:	AOPACK;
Weight:	Appr.3000Kg;	Supply Ability:	3 Set/Sets per Month;

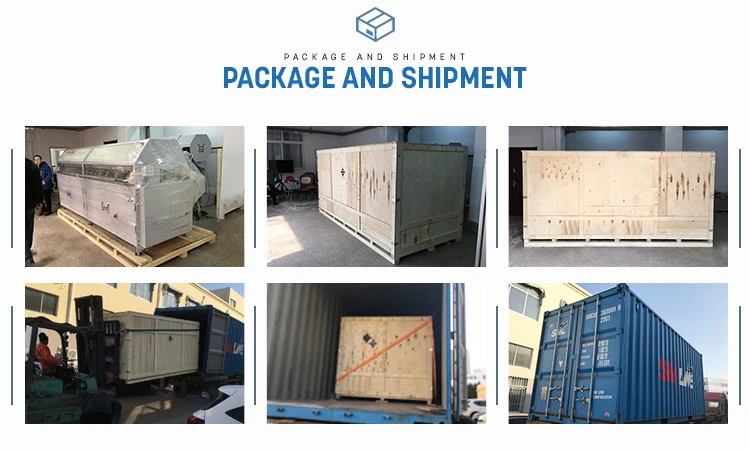

Packaging Detail:	seaworthy or as required.Usually before the machine is packed in a wooden box, we will apply oil to the machine and wrap the protective film to avoid moisture and rust during the transportation of the machine and to ensure that the machine is in the best condition when it reaches the customer. We will use the fumigation-free glued wood board to make the most suitable packaging for the product, preventing the machine from rusting and unnecessary collision during transportation.;	Condition:	New;

High Quality box forming machine, Factory Automatic custom box machine, Cheap Prices carton box making machine

Product Description

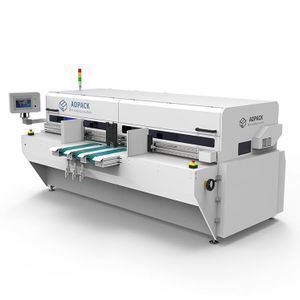

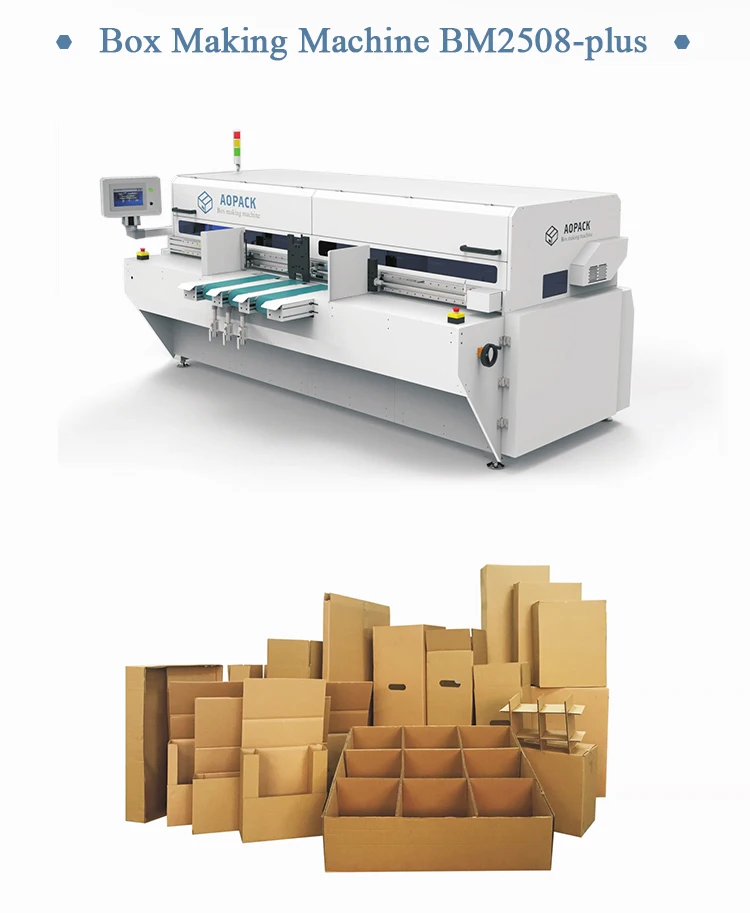

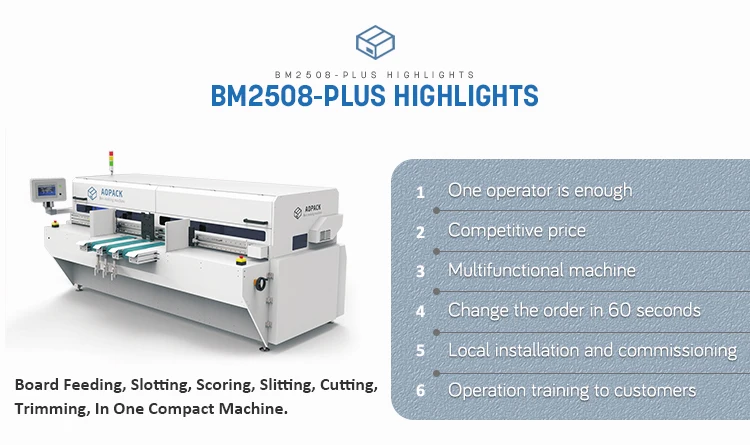

BM2508-Plus is a multifunctional machine of horizontal slotting and scoring, vertical slitting and creasing, horizontal cutting.

It adds the function of die-cutting handle holes on both sides of the carton box.

It is now the most advanced and multifunctional box making machine(box maker), providing all kinds of customized packaging solutions for end users as well as box plants.

BM2508-Plus is available for a wide range of many areas, such as furniture, hardware accessories, e-commerce logistics, many other industries, and so on.

BM2508-PLUS TECHNICAL SPECIFICATION
Model No.	BM2508-Plus
Corrugated board type	Sheets (Single , Double wall)
Cardboard thickness	2-8mm
Cardboard density range	< 1100g/m²
Max.board size	2500mm width x unlimited length
Min.board size	200mm width x 650mm length
Production Capacity	Appr.400Pcs/H Depends on size and box style.
Slotting Knives	2 pcs *500mm Length
Vertical Cutting knives	4
Scoring/Creasing wheels	4
Horizontal Cutting knife	1
Power supply	230V±10%,Max.5kW, 50/60 Hz
Air Pressure	6-7Bar
Dimension	3440(W) * 2050(L)* 1510mm(H)
Gross Weight	Appr.3000Kg
Automatic paper feeding	Available
Hand hole on box sides	Available
All the above specifications are for reference only. The final interpretation right belongs to Qingdao Aopack On Demand Packaging co., Ltd.

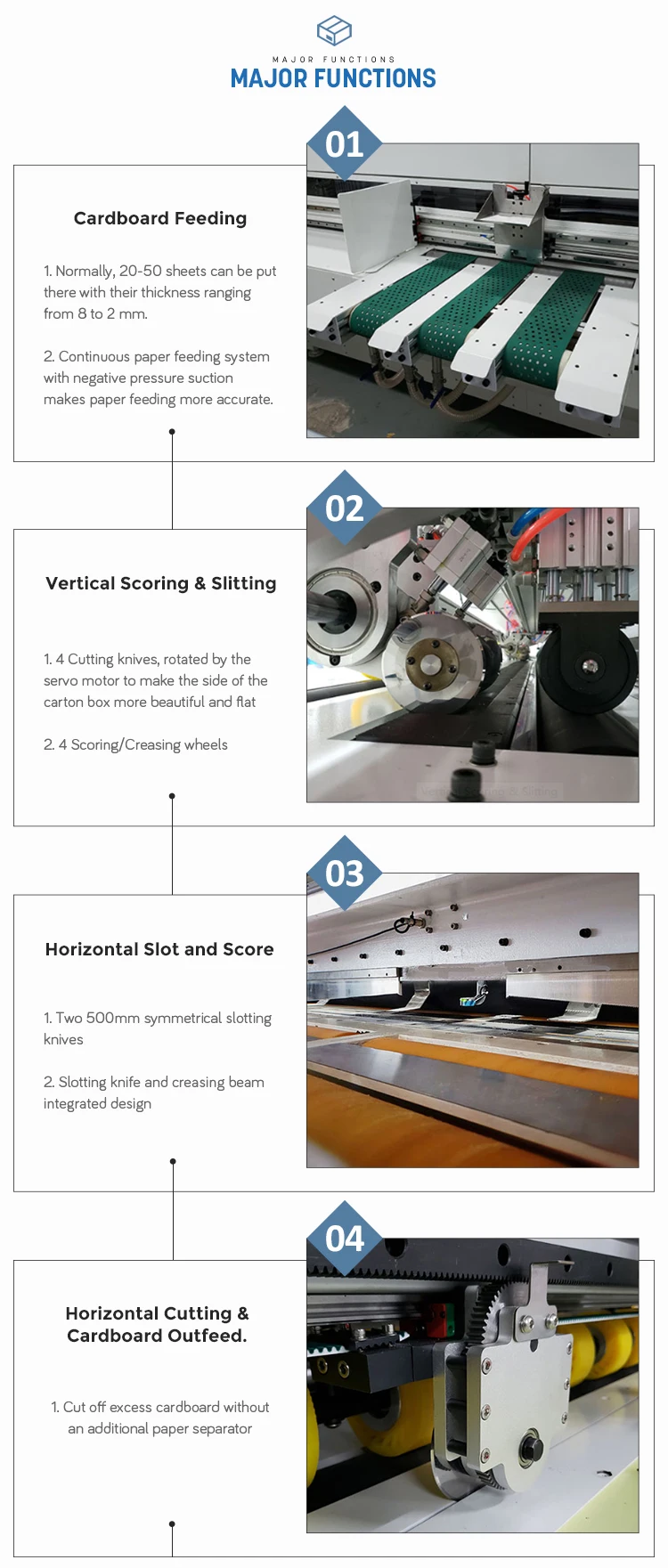

Major Functions

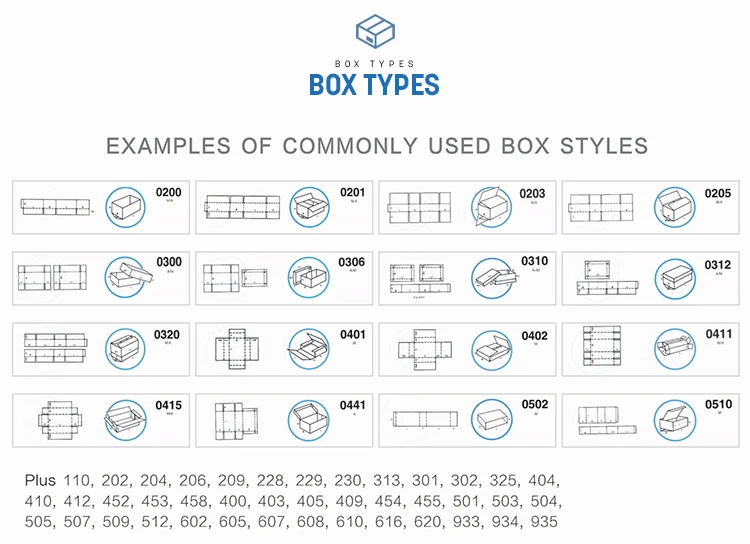

Box Types

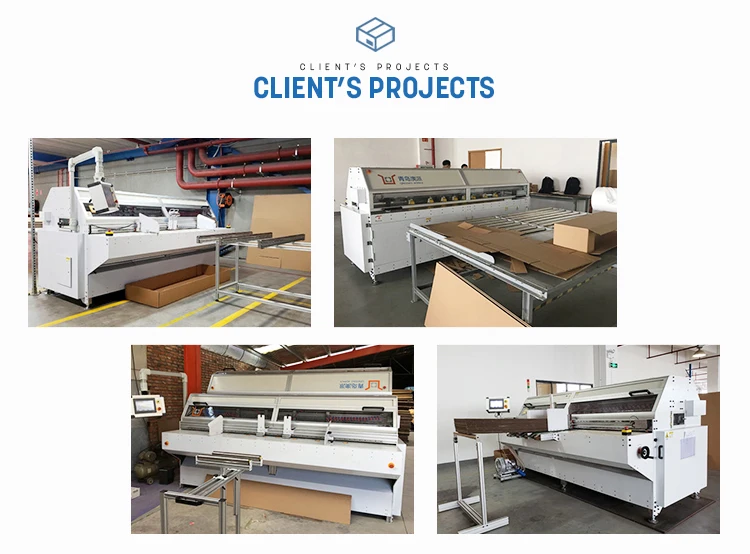

Client's Projects

Our Advantages

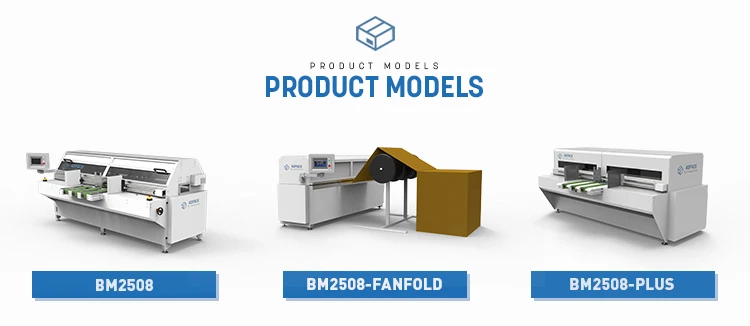

Product Models

Company Information

OCELL BUSINESS ENTERPRISE is a high-tech enterprise group which aims at creating value in society. It has been more than 20 years since its establishment. Under the OCELL BUSINESS ENTERPRISE, there are 10 companies and a R & D center.

They are Aopack, Aobo, Aubon, Add Value, Alptec, Allsave, Allred, AutoDisp, Augreener, Qingdao Youmeng, and OCELL BUSINESS ENTERPRISE R & D center. Every company has its own field of expertise and its products leading the market.

Aopack is one of the ten companies under the OCELL BUSINESS ENTERPRISE. We focus on the field of intelligent packaging and have developed a series of ON DEMAND PACKAGING machines. We will keep going to be the best box making machine manufacturer in China.

FAQ

1.Q:Your BM2508Plus support print function ?

A:Sorry, our machine don’t support this function at present.

We recommend that you use a digital or flexographic printer.

2.Q:Is it possible to cut handle holes on both sides of the outer carton?

A:Yes, our BM2508 Plus machine can provide optional hand hole punching module.

3.Q:What FEFCO types of box can your machine make ?

Can you add some more cartons according to our requirements .

A:Please contact us to get the Aopack box style file for reference .

Yes, we can add the box style as your demand.

4.Q:Is there any certificate you have ?

A:We have the CE certification, and the third-party inspection company SGS

provides inspection services.

5.Q:Does the touch screen operating system software provides free updates ?

A:Yes, when there is a program update, we will inform our customer for the programing

update.

6.Q:Is there any video that we can see more details about the machine ?

A:Yes, please contact us to get the machine working video .

7.Q:What is your terms of payment?

A:T/T 60% as deposit, and 40% before delivery.

We'll show you the video of the products and packages before you pay the balance.

Or you can come to our factory to have an inspection to test the performance of the

equipment. Other payment terms can also be negotiated.

8.Q:How about your delivery time?

A:Generally,it’ll take around 45 days to prepare the machine after receiving the deposit .
The specific lead time depends on your order and requirement.

9.Q:How do you make our business long-term and good relationship?

A: 1.We keep good quality and competitive price to ensure our customers benefit ;

2.We respect every customer as our friend and we sincerely do business and

make friends with them, no matter where they come from.
