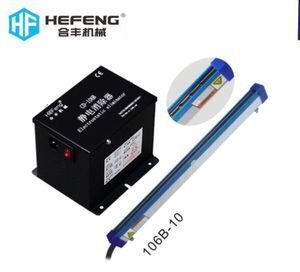

SIBM/Strengthened Structure non-air ESD Remove ion bar/Shockless Electrostatic neutralizer/Wat

Supplier: Shenzhen Hefengjiada Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms Grace Guo
Price: $200.00 /set
Min. Order: 1 set

Click here to contact

Product details

Payment Terms:	L/C,T/T,Western Union;	Certification:	MTI110106001CE;
Power:	50W;	Input frequency:	50/60HZ;
Packaging Detail:	wooden case;	Delivery Detail:	15 working days;
Supply Ability:	1000 Set/Sets per Month;	input Voltage:	220V10%;
effective distance:	10-80mm;	Port:	Shenzhen;
warranty:	2 years;	Dimension(LWH):	155140130mm;
Output voltage:	7.5-10KV;	Brand Name:	HeFeng;
Place of Origin:	Guangdong China;	After-sales Service Provided:	Engineers available to service machinery overseas;

Product Description

Features:

1.Safe, shockless and touchable
2.Fast, thorough and effective static eliminating performance which can be applied on high speed production line.
prevent electric shock and fire hazard during production.
3.CE recognition

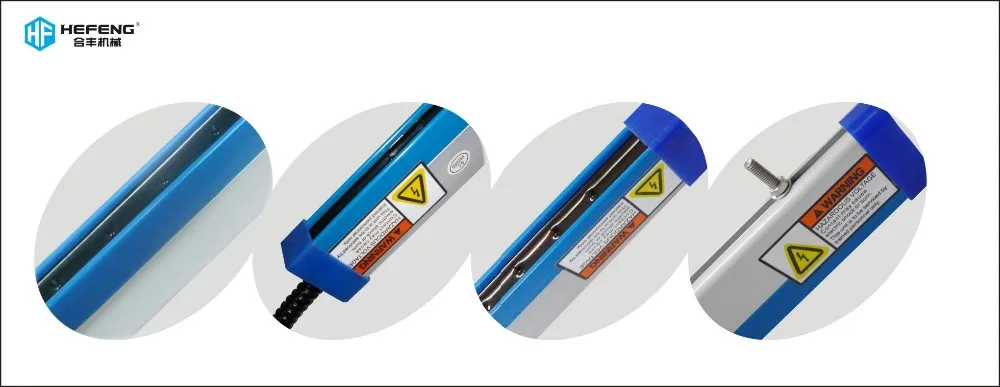

4.Length: each bar4M max
5.configuration: Alumiunm crust airproof dampproof, dustproof and easy fixed

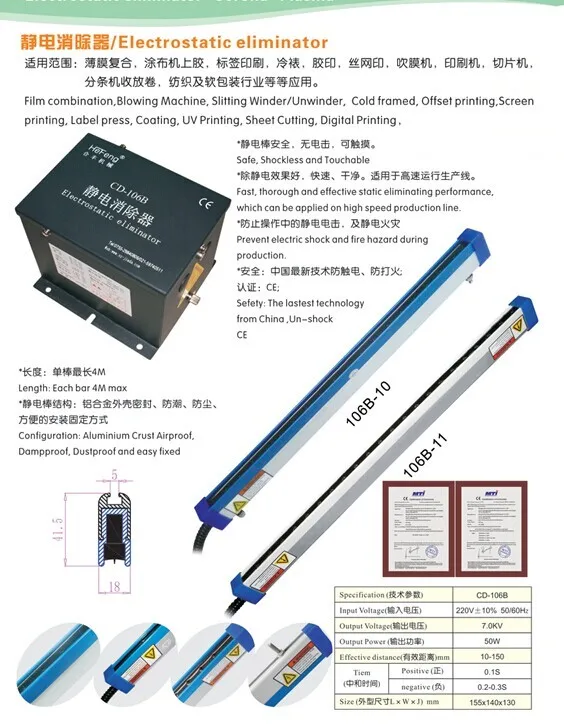

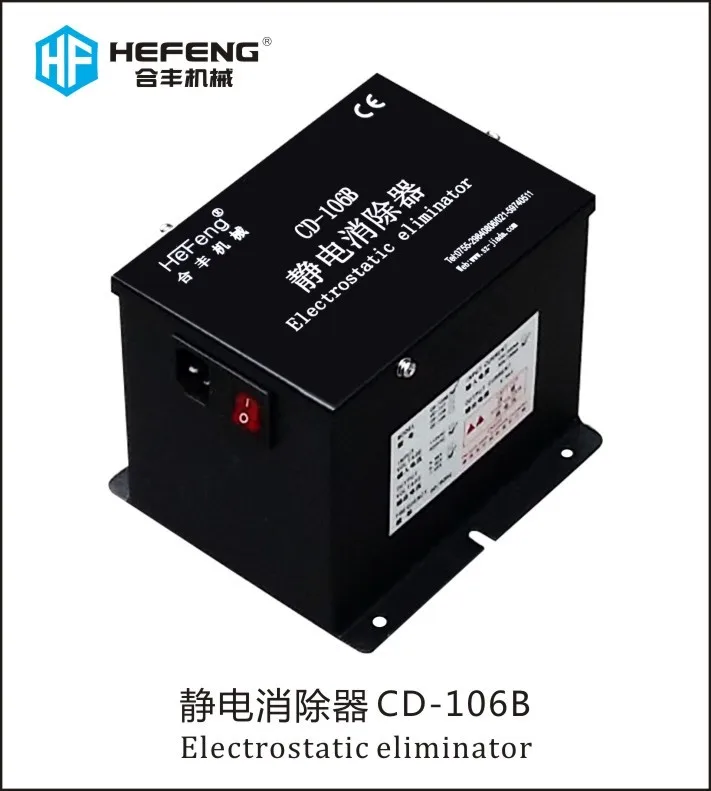

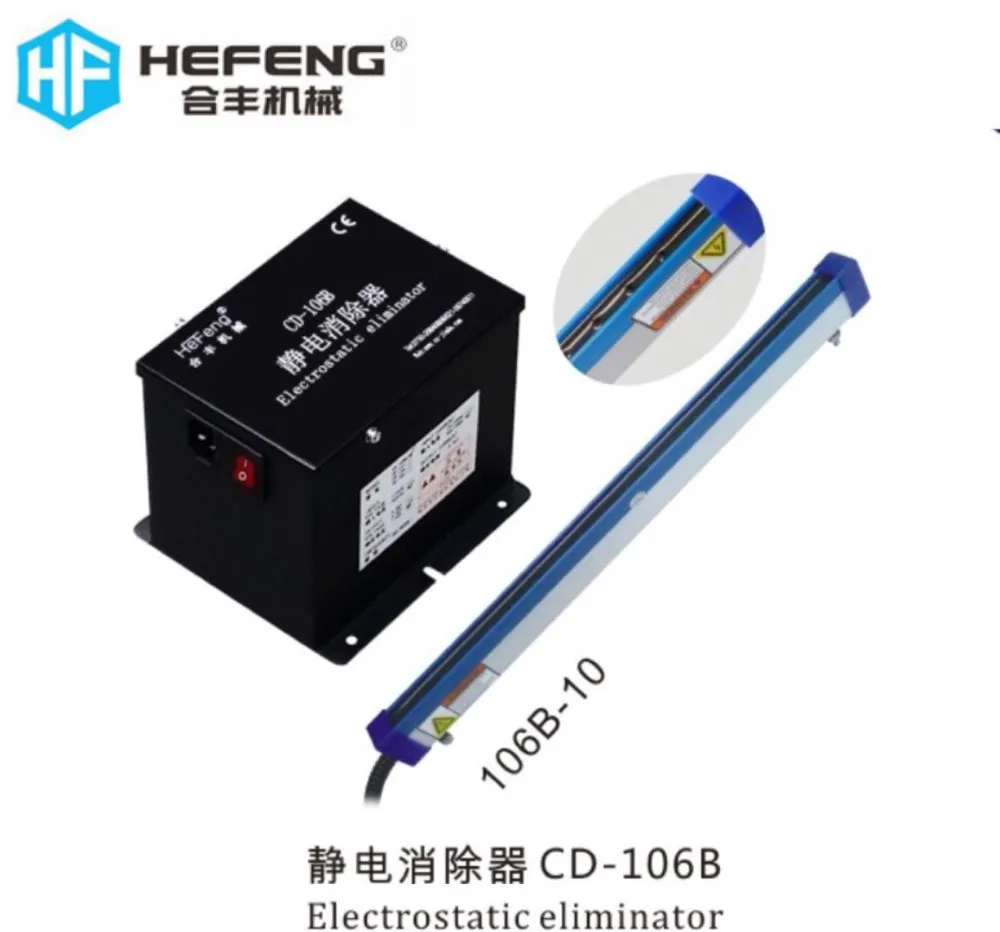

SPECIFICATIONS FOR CD-106B-10 ELECTROSTATIC ELIMINATOR
Input Voltage	220V±10%
Input frequency	50/60HZ
Output Voltage	7.5-10KV
Output Power	7w
effective distance	10-80mm
dimensions	155140130mm
CE recognition	MTI110106001CE
warranty period	2years
trading term	EXWORK /FOB/CIF
Product Keywords	electrostatic eliminator with good quality,electrostatic eliminator generator and bar for offset printing machine,electrostatic eliminator bar

What cause static:

the most common cause are friction,pressure and separation, examples range from the unwinding of plastic fims to the everyday occurences of shocks from cars and door knobs. other causes include induction,whereby an insulator materials can become charged if itis brought into an electrical field temperature changr can also generate a static charge: a godd example is the generation of static charges on injection moulding as they cool.

AC static elimination:

a normal mains 110/220V,50/60HZ AC supply is increased by a special transformer to typically 7KV AC. This high voltage is carried by a sheild HV cable to the static eliminator,where it is connected to an array of emitter pins that are stressed by the elevated voltage in proximity to an eartyed surfacr. this creates a high energy"corona" or "ion cloud".in which a very large number of positive and negative ions are generated. as the AC cycle changes,either positiveor negative ions are produced in approximately equal quantities, A staticallycharged of either polarity passing close to this ion cloud wil be quickly neutralized
