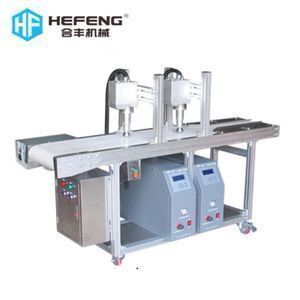

3D corona treater machine / Plasma plastic treatment / film laminating machine

Supplier: Shenzhen Hefengjiada Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms Grace Guo
Price: $2500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Brand Name:	HeFeng;	input frequency:	50/60Hz;
gas:	0.4mpa no water;	output Power:	0.6KW/1KW;
Supply Ability:	50 Set/Sets per Month;	Packaging Detail:	wooden case;
weight:	22-29KG;	Place of Origin:	Guangdong China;
Port:	Shenzhen;	warranty period:	1 year;
size:	480180435mm;	effective treating width:	80-50mm;
Model Number:	FR50B;	After-sales Service Provided:	Engineers available to service machinery overseas;
input voltage:	AC220/230V +_10%;	package:	wooden case;
Delivery Detail:	15 working days;	Pulse frequency:	15-40khz;
Payment Terms:	L/C,T/T,Western Union;

Product Description

model	input voltage/frequency	woring frequency	output power	treating width	air source
FR50BR	AC220/230V±10% 50/60Hz	22.5KHz	300-600W	30-50mm	0.4Mpa no water

FR50BR Plasma treatment equipment advantages

1. Increase the bonding strength: after plasma treatment can increase the material's surface tension and makes water-based glue more permeable, enhance box bond strength from the surface to improve the quality of products.
2. Wide application: can be used to paste box gluing machine, auto lamp shell glue, glue car seal, etc
3. Efficient: online processing per minute up to 300 m/min, and pasting box machines, wire can be used, greatly improve production efficiency;
4. Enhance transparency: compared with the traditional grinding wheel, don't leave any traces in the material surface after treatment, and does not produce dust, enhance the aesthetic surface, at the same time to strengthen the printing process;Safety and health, suitable for food, medicine and other packaging industry.
5. Use time and long service life: can online more than a month in a row, guarantee the need of the high strength work, at the same time, through the ISO9001 certification, CE to ensure the quality of use.
6. The use of low cost: electrical work continuously around only once every day, effectively reduce the production cost;

What is plasma application?

1. The printing and packaging industry:
Specifically for UV, laminating, glazing, such as all kinds of high polymer materials surface treatment;solve packing boxe
glue problems (such as toothpaste box, cosmetic box, cigarette case, wine box, electronic toy product box).Improve the work
efficiency, reduce the pollution of polishing and eliminate the paper pasting box machines powder pollution, save material,
save the cost of glue (using ordinary water-based environmental protection glue).
2. Digital industry:
Mobile phones, laptops and other digital products shell spraying, LOGO and decoration of the adhesive, screen of adhesive,
Increase the surface adhesion, prevent digital products shell to take off the paint and the keyboard words fade;
3. The car manufacturing industry:
For all kinds of rubber seals for car doors and Windows, interior trim, light, air conditioning wind device of local coating;Was
also used to increase the automobile brake block, wiper, oil seal, dashboard, the engine of the adhesive sealing, improve the
technology such as waterproof, sound insulation and prevent fall offa lot.
4. Hardware industry:

Metal spraying pretreatment of various steel by plasma surface treatment, to enhance the surface adhesion.After spraying of
metals, prolong the service life, its wear resistance compare without plasma treated increase more than 20 times.
5. Plastic industry:
Is mainly used in coating and adhesive pretreatment , the treated product surface not to drop paint, words don't fall off and fade.

Installation Case

Certifications

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

Packaging
Size	depends on the plasma size
Weight	30-100KG
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Packaging
Size	73(L) * 38 (W) * 49(D)CM
Weight	23
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
