Excavator Mounted Hydraulic Vibro Hammer/Vibratory Sheet Pile Driver

Supplier: Jining Luheng Machinery Equipment Co., Ltd.
Region: Shandong, China
Contact: Ms Amelia Yin
Price: $22000.00 /set
Min. Order: 1 set

Click here to contact

Product details

UNIQUE SELLING POINT:	High load Moment;	Dimension(LWH):	437020104290;
min ground interspace:	380mm;	Piling Speed(m/min):	1-2m/min;
Single package size:	615X215X270 cm;	Single gross weight:	6,500 KG;
Condition:	New;	Warranty:	1 Year;
After-sales Service Provided:	Video technical support;	Efficiency:	Day;
climb angle:	35;	rod rotation speed:	71r/min;
Package Type:	NO PACKAGE;	Drilling diameter:	130-800mm;
starting voltage:	24v;	Certification:	ISO;
main valve flow:	100l/min;	Brand Name:	HW;
rated speed:	2400r/min;	rated power:	85kw;
Weight:	7200kg;	max drill depth:	3600mm;
Applicable Industries:	Construction works ;	Place of Origin:	Shandong China;
Selling Units:	Single item;	max travel speed:	5km/h;

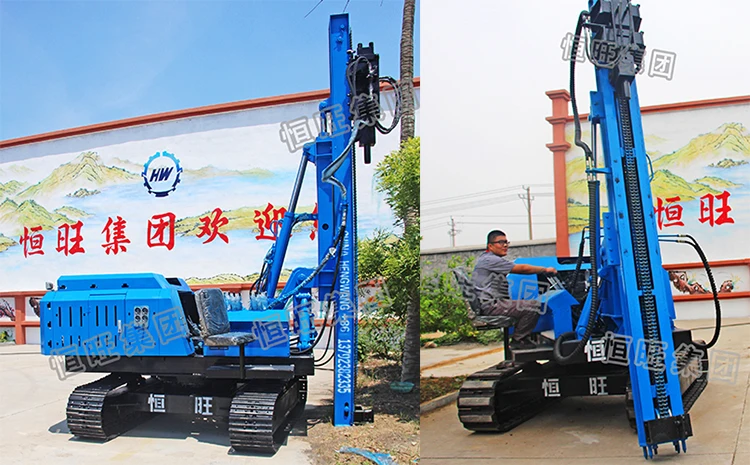

Excavator Mounted Hydraulic Vibro Hammer/Vibratory Sheet Pile Driver

Excavator Mounted Hydraulic Vibro Hammer/Vibratory Sheet Pile Driver

Product Application

The hydraulic pile driver is a kind of multifunctional highway guardrail pile construction machinery, with different configuration it can accomplish many functions, such as piling, pile extracting, and drilling on the stable layer of road before piling

Crawler walking,high walking and climbing ability .The frame can be moved back and forth,bit can be adjusted,high piling position accuracy.

Main Features

1) Pile Driver is composed of the chassis, guide rail, hydraulic arm, hydraulic system, hydraulic hammer, diesel engine, electrical, cooling and control systems, pile extracting equipment and pile drilling equipment. Its characteristics include quick and exact positioning, compact size, lightweight, self-propelled, agile, ergonomic design, easy operation, high efficiency .

2).Oil province,is a common driver uses around half of a year can be a driver left money for you.

3).Bit using manganese steel manufacturing,through processing,are suitable for all kinds of geological environment.

4).Crawler walking,high walking and climbing ability

5).The frame can be moved back and forth,bit can be adjusted,high piling position accuracy.

Technology Parameter

Excavator Mounted Hydraulic Vibro Hammer/Vibratory Sheet Pile Driver

Model	HWL300	HWL300R	HWL500R	HWL600R
Hammer Model	390	390	390	390
stroke m	3m	3m	5m	6m
Duplex gear pump pressure(mpa)	20	20	20	20
Rod Diameter /mm	0-400	0-400	0-400	0-400
Duplex gear pump displacement(ml/r)	40	40	40	40
Hydraulic system pressure(mpa)	20	20	20	20
Overall Machine weight /T	5.8	6.2	6.5	6.6
Rotation angle /°	NO	360	360	360
Diesel engine (kw)	80	80	80	80
Dimension(LXWXH)/mm	465021502700	465021502700	515021502700	615021502700
Track shoe (mm)	350	350	350	350
Walking motor total emissions(ml/n)	1575	1575	1575	1575
Walking motor rotation (r/min)	50	50	50	50
