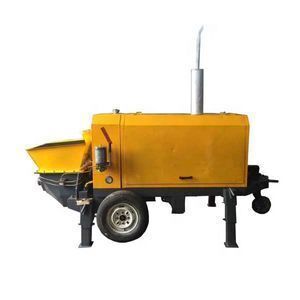

small Trailer Mounted Diesel Concrete Pump (50~60m3/h) for sale

Product details
Brand Name:LH;Warranty:one year;
Concrete slump:80-230MM;UNIQUE SELLING POINT:high efficency;
Dimension(L*W*H):3400*1320*1480;Package Type:wooden case;
Applicable Industries:Construction works ;Place of Origin:Shandong China;
Motor power:2*90KW;Power Type:Electric;
model:concrete pump;Single package size:123X90X60 cm;
color:as your request;Selling Units:Single item;
Theory direction change times:26/17times/min;Weight:600 KG;
Certification:ISO;Condition:New;
After-sales Service Provided:Video technical support;Main oil pump discharge:2*190 ml/r;
Hopper volume:0.7m3;technical support:long time;
Single gross weight:500 KG;High / low pressure switch:yes;
Theory Concrete Output:90m3/h;

Factory Price!!Small Concrete Pump for sale,used concrete pump truck,putzmeister concrete pumps and hose

 Factory Price!!Small Concrete Pump for sale,used concrete pump truck,putzmeister concrete pumps and hose

Related Products

Factory Price!!Small Concrete Pump for sale,used concrete pump truck,putzmeister concrete pumps and hose

Product Description

 Factory Price!!Small Concrete Pump for sale,used concrete pump truck,putzmeister concrete pumps and hose

1.HW high-floor cement mortar pump is a small fluid mixture conveying equipment, not only widely used for wet-mixed mortar pumping and wall plastering in high floor buildings construction, but also for support lining construction in ground heating project, tunnels, mines and other underground engineering.

2.HW could pump less than 25mm fine aggregate concrete with lower

 investment cost and operating cost, it is first choice ideal equipment for engineering construction. It adopts S tube as distributing valve to meet large aggregate concrete pumping.

3.The hydraulic-driven mixing device can play the good role of secondary mixing conducive to pumping. The glasses plate and cutting ring adopt hard alloy material inlay manufacturing with wear resistant and long service life.

4.The hydraulic system adopts independent three circuit electro-hydraulic control with high reliability. The electrical system control is fully functional with returning pressure control function eliminating pipe blocking failure.

5.Its elegant appearance and light weight is easy to transport;

Working with batching mixing equipment can achieve continuous pumping construction to improve construction schedule.

Technology Parameter

 Factory Price!!Small Concrete Pump for sale,used concrete pump truck,putzmeister concrete pumps and hose

Model

      --

HW10-22

  (piston)

HW15-30

 (piston)

HW-11

Motor power

kw

22

30

11



Maximum theoretical working pressure

Mpa

5.3

8

3



Theoretical displacement

m³/h

8

10

3.5



Maximum horizontal delivery distance

m

80

150

30



Maximum vertical delivery distance

m

30

60

15



Maximum grain size

mm

≤20

≤25

≤15



Cylinder diameter and stroke

mm

Φ140×800

Φ140×800

Φ50×1400



Delivery hose diameter

mm

Φ80, Φ50

Φ100,Φ80

Φ38



Net weight

kg

1580

2000

500



Dimension (L×W×H)

mm

3400×1320×1480

4000×1500×1550

800×1100×1300
