Marine Boat Outboard Hydraulic Mechanical Steering/hydraulic steering gear system Cylinder reach up to 150HP
- 300.00 piece
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Type: | Hydraulic Mechanical Steering; | Packing: | Standard Package; |
| Usage: | marine outboard engines up to 150hp; | Supply Ability: | 1000 Set/Sets per Month; |
| Material: | Zinc Alloy; | Features: | corrosion resistant/ergonomically designed; |
| Part: | Steering System; | Cable: | with cable 8m/or any length is available; |
| Accessory: | Helm/Plastic cover/Cable/Steering Wheel for your choice; | Port: | NINGBO; |
| Payment Terms: | L/C,T/T,Western Union; | Application: | Marinas; |
| Place of Origin: | Zhejiang China (Mainland); | Packaging Detail: | export standard packing; |
| Brand Name: | SUNFINE; | Name: | Rotaing Mechanical Steering; |
| Product Name: | Steering System; |
Product Description
Marine Boat Outboardhydraulic steering gear system reach up to 150HP

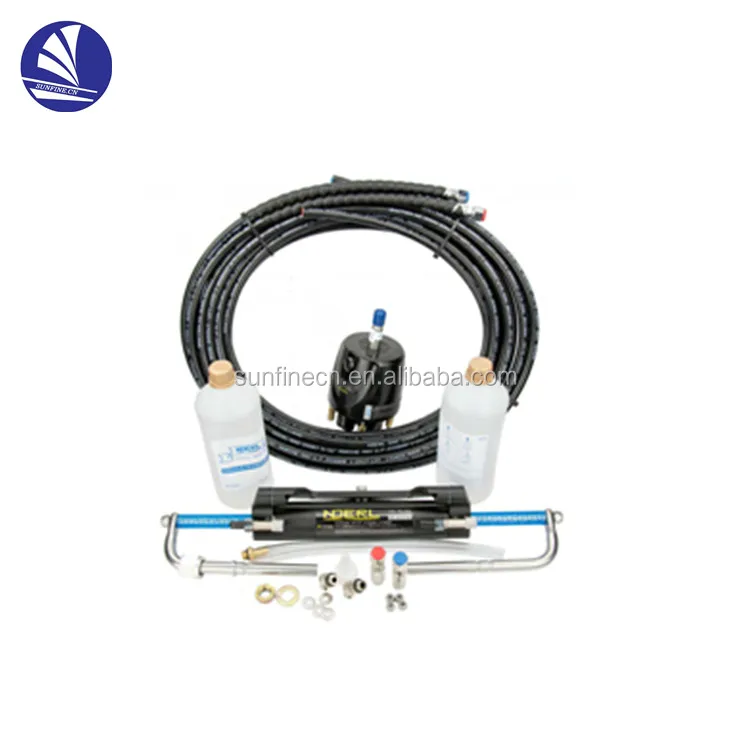

The Whole Set of Hydraulic Mechanical Steering
SF80722
| USAGE | *Designed and developed especially for marine use; |
| Application | *Mainly applied in mechanical/manual steering for yachts,fishing boats and other waterborne vehicles; |
| Accessory | *Combined with steering cable series 160,end C,all stainless steel cable output ends; |
| Features | *Made in zinc alloy,corrosion resistant,ergonomically designed,easy to install,compact for mounting; |
| Cable Length | *With cable 8m;Oil |
| Enfine (HP) | *For use with marine ourboard engines up tp 150hp |
More Details
*Hydraulic Steering Gear System

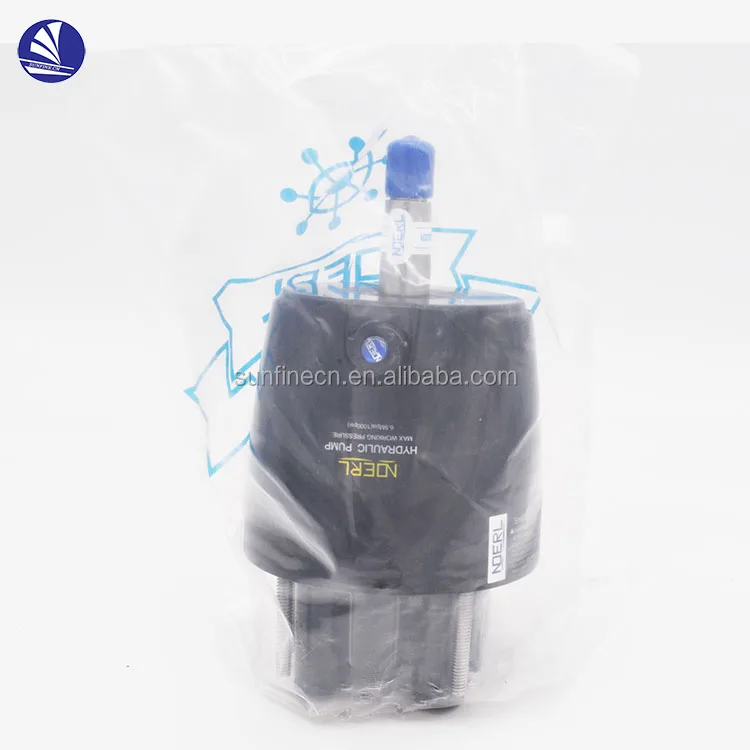

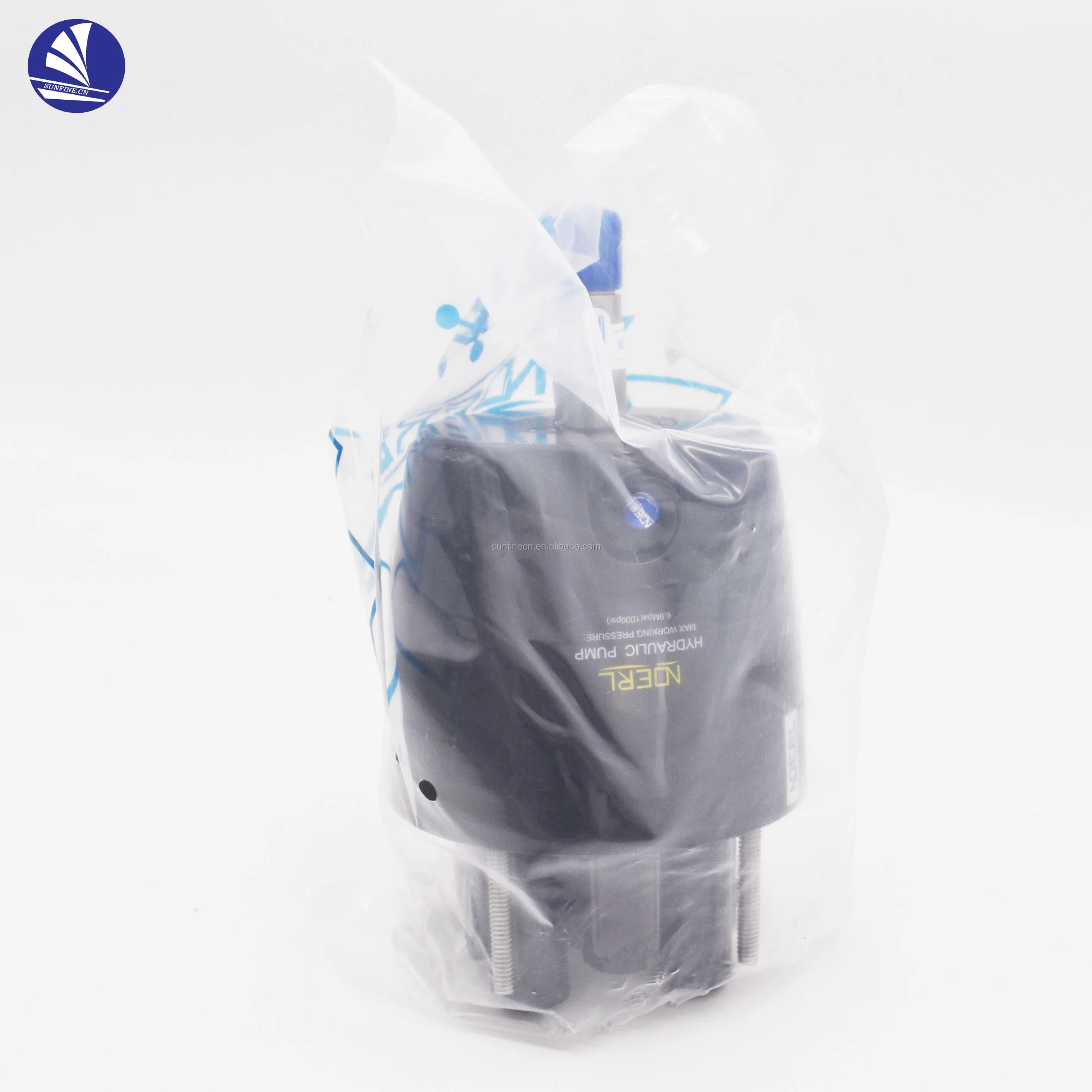

*Hydraulic Steering Wheel
*Compact design
*Front Mounting
*Ball bearing piston race, 7 pistions
*In Built lock valve (70bar) for positive rudder lock
*3/4 tapered stainless steel shaft, solid stainless steel helm shaft for optimum strength and durability;
*Cast iron cylinder rotor for greater durability and longer life.
*1/4NPT fitting for 3/8 tube
*Wheel size within 500mm is available for this model
*Displacement size 33cc-2.0cu.in
*Hydraulic Steering Wheel
*Compact design
*Front Mounting
*Ball bearing piston race, 7 pistions
*In Built lock valve (70bar) for positive rudder lock
*3/4 tapered stainless steel shaft, solid stainless steel helm shaft for optimum strength and durability;
*Cast iron cylinder rotor for greater durability and longer life.
*1/4NPT fitting for 3/8 tube
*Wheel size within 500mm is available for this model
*Displacement size 33cc-2.0cu.in

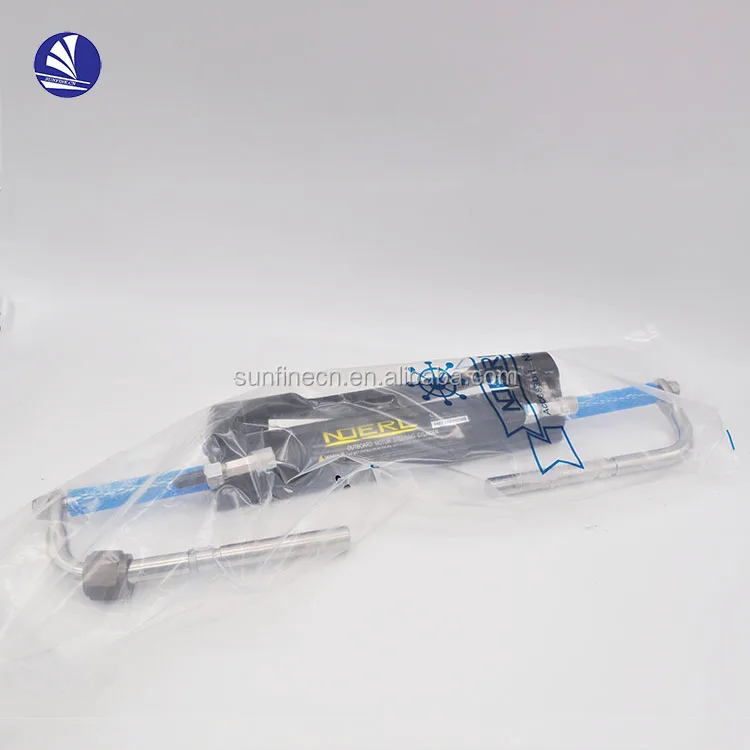

Cylinder Specification:
*Volume: 137cc / 8.4cu.in
*Output force: 470kg / 1036lbs
*Inside diameter: 35mm / 1-3/8''
*Bore shaft length: 550mm / 21.6''
*Stroke: 204mm / 8''
*3/8''(9.5mm) Fittings for highpressure Flex nylon hose
*Output force: 470kg / 1036lbs
*Inside diameter: 35mm / 1-3/8''
*Bore shaft length: 550mm / 21.6''
*Stroke: 204mm / 8''
*3/8''(9.5mm) Fittings for highpressure Flex nylon hose
*Other Model and Motor ph are available to provide according to your require.

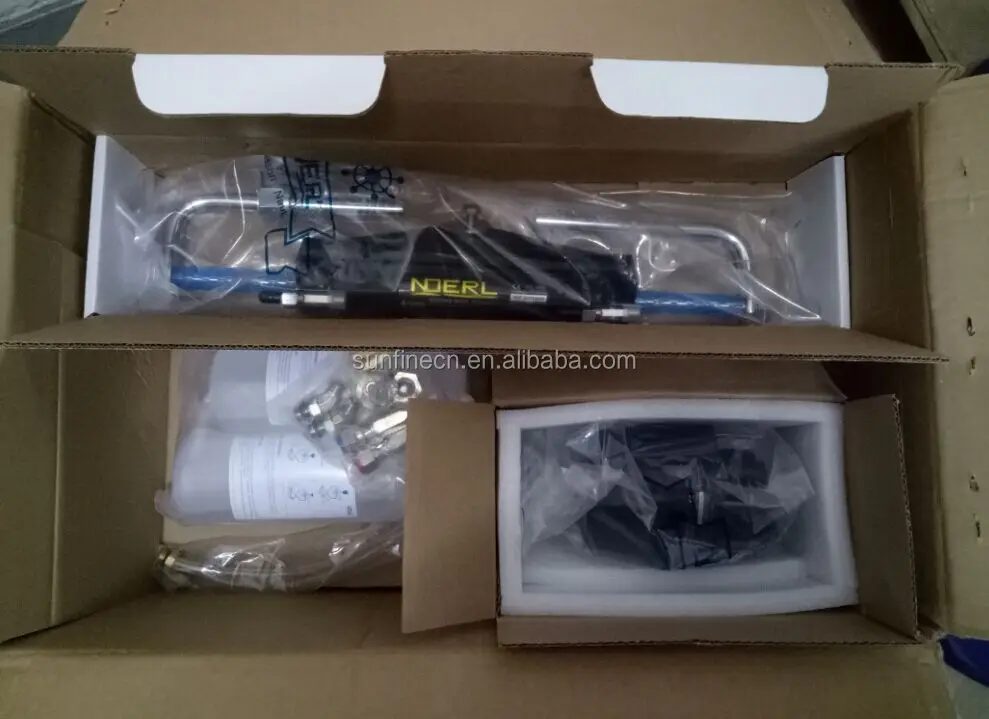

Packaging & Shipping
Detailed Images
