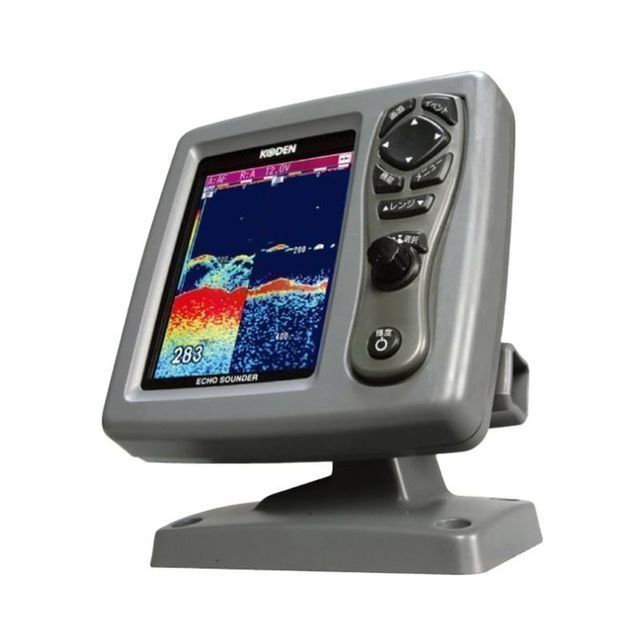

Marine Electronic Maritime Navigation Communication KODEN CVS-126 600W 5.7inch Digital Depth Sounder Fish Finder with Transducer
- 5.00 1 - 4 sets
- 4.00 >=5 sets
| port: | any port in China | Original new product: | yes |
| Supply capacity: | 50 sets per month | payment terms: | wire transfer |
| frequency: | Dual 50/200 kHz | size: | 208(H) x 182(W) x 130(D) mm |
| Packaging Details: | carton | strength: | 600W |
| place of origin; place of origin: | Japan | part: | fish finder |
| brand: | corden |
Please contact me to know the shipping and actual product price and detailed configuration before purchasing.
If you want to buy in bulk or become our agent, please contact us.
A digital depth sounder that always shows a clear image!
feature
use digital signal processing
Koden's advanced digital signal processing technology provides higher resolution in shallow areas and high gain in deeper areas.
store image
You can store up to 10 images. Connecting an optional GPS sensor also allows you to display the location on stored images.
Sonata
This feature uses sound to notify the user when a fish or school of fish is found.
Automatic functions make operation easy
Fully equipped with automatic functions. (gain, range, offset)
High-performance 5.7-inch LCD provides excellent visibility
CVS-126 is also highly water resistant.
High visibility and drip resistance (IPX5) mean the CVS-126 can be installed in open bridges.
energy-saving design
This is an energy-saving model that uses white LEDs to achieve low power consumption.
main specifications
| The main function | Zoom, Auto, Type A, Display Colors: 64, 16, 8 Colors, Store Images, Fishing Hotspot, Sona-Tone |
| basic scope | 2.5 to 800 meters/fathom/Italian fathom 10 to 2800 feet |
| Output power (effective value) | 600 watts |
| Output frequency | Dual 50/200 kHz |
| water protection | IPX5 |
| aspect | 208(H) x 182(W) x 130(D) mm |
| weight | 1.3 kg |
| power supply | 10.8 to 31.2 VDC |
