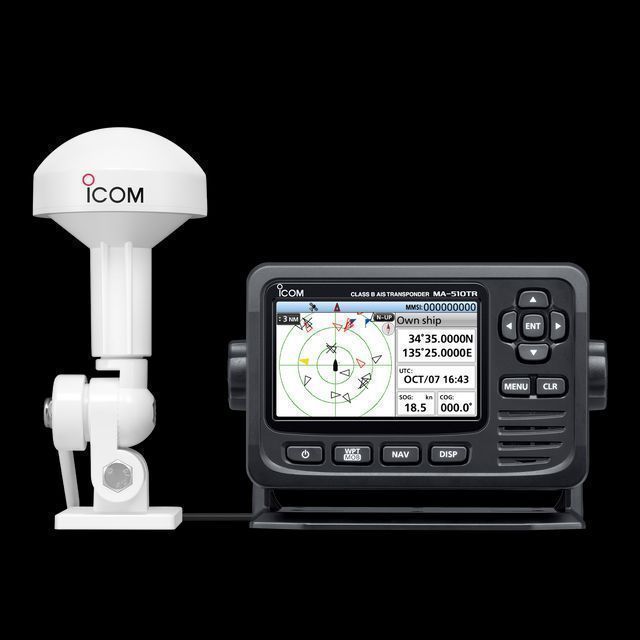

Marine Electronic Navigation Navigation Communication ICOM MA-510TR Automatic Identification System Class B Ship AIS Transponder
- 5.00 1 - 4 sets
- 4.00 >=5 sets
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Type Approval: | CCS | Original new product: | Yes |
| brand: | International Association of Museums | payment terms: | wire transfer |
| place of origin; place of origin: | Japan | frequency: | 161.500 MHz to 162.025 MHz |
| part: | automatic identification system | artificial intelligence: | Class B |
| Packaging Details: | carton | Output Power: | 2W |
| port: | any port in China | Supply capacity: | 50 sets per month |
Please contact me for shipping and price and detailed configuration before purchasing.
If you want to buy in bulk or become our agent, please contact us.

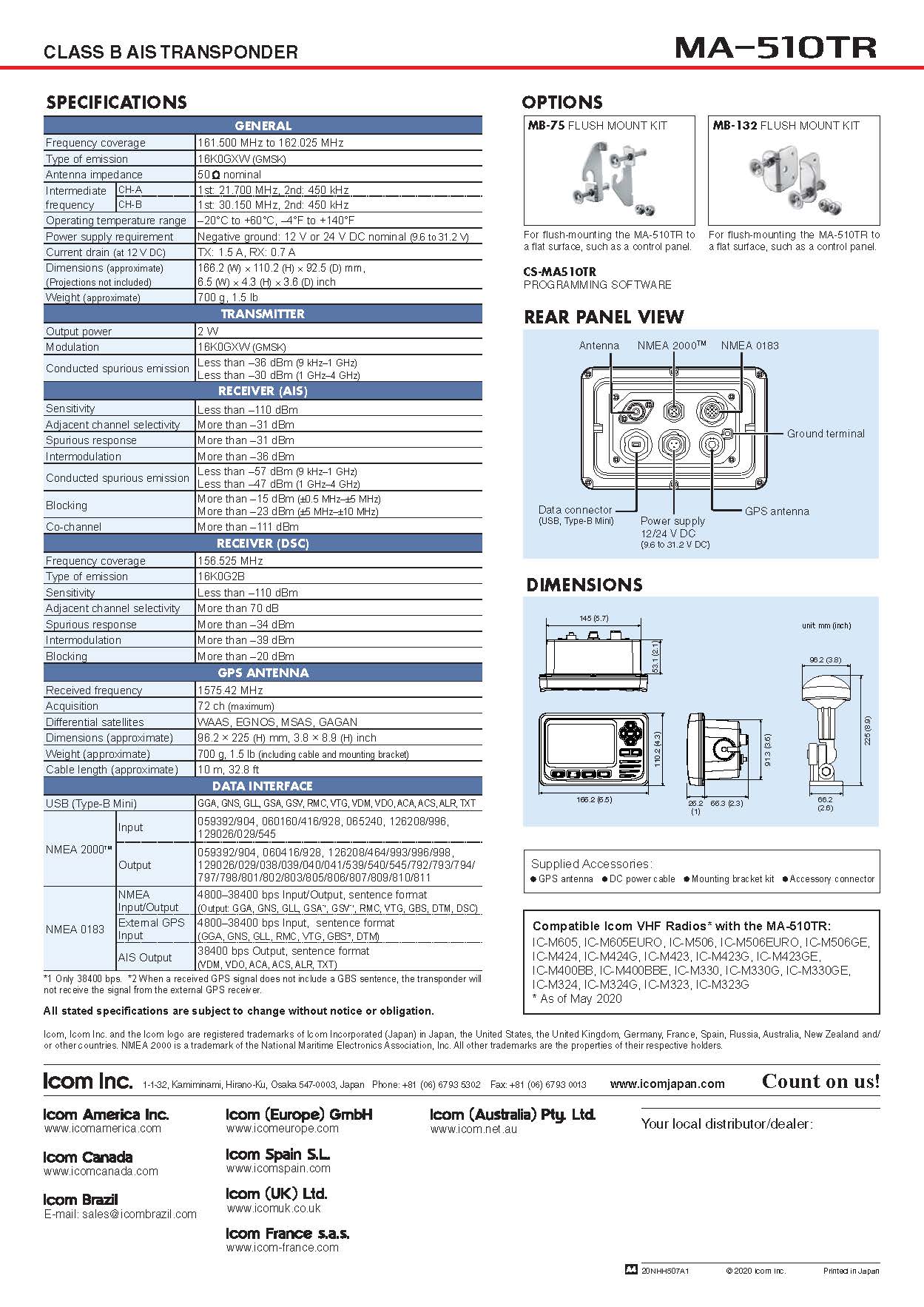

| working frequency |
161.500 MHz to 162.025 MHz |
|
|---|---|---|
| Emission type |
16K0GXW (GMSK) |
|
| Antenna impedance | 50 Ω nominal | |
| IF | CH-A | First: 21.700 MHz, Second: 450 kHz |
| CH-B | First: 30.150 MHz, Second: 450 kHz | |
| range of working temperature | –20°C to +60°C; –4°F to +140°F |
|
| Power requirements | Negative ground: 12 V or 24 V DC nominal (9.6 to 31.2 V) | |
| Current consumption (12 V DC) | TX: 1.5A, RX: 0.7A | |
| Dimensions (approx.)) (excluding forecast) |
166.2(W)×110.2(H)×92.5(D) mm, 6.5 (W) × 4.3 (H) × 3.6 (D) inches |
|
| Weight (approx.)) | 700 g, 1.5 lb |
transmitter
| Output Power | 2 watts |
|---|---|
| modulation | 16K0GXW (GMSK) |
| Conducted Spurious Emissions | Less than –36 dBm (9 kHz–1 GHz) Less than –30 dBm (1 GHz–4 GHz) |
Receiver (AIS)
| Sensitivity | Less than –110 dBm |
|---|---|
| Adjacent channel selectivity | over –31 dBm |
| spurious response | over –31 dBm |
| intermodulation | over –36 dBm |
| Conducted Spurious Emissions | Less than –57 dBm (9 kHz–1 GHz) Less than –47 dBm (1 GHz–4 GHz) |
| block | Over –15 dBm (±0.5 MHz–±5 MHz) Over –23 dBm (±5 MHz–±10 MHz) |
| same channel | over –111 dBm |
Receiver (DSC)
| frequency coverage | 156.525 MHz |
|---|---|
| Emission type | 16K0G2B |
| Sensitivity | Less than –110 dBm |
| Adjacent channel selectivity | over 70 decibels |
| spurious response | over –34 dBm |
| intermodulation | over –39 dBm |
| block | over –20 dBm |
