1500 GPH BILGE PUMP AND SWITCH KIT - Marine/Boat/Water/Mother

submersible bilge pump

• Compact fully submersible electric pump
• Extremely efficient, extremely low current consumption and high capacity output
• Water-cooled long-life motor
• ignition protection
• Water/moisture seal
• stainless steel shaft
• Rust and Corrosion Resistant
• Easy-to-clean snap-lock filter
• Quiet and vibration-free operation
• Anti-airlock protection
• Does not burn out when dry
• Includes comprehensive user manual with installation instructions and wiring diagrams
• Voltage: 12V DC
• Flow: 500 gal/hr (1900 l/hr) - 32 l/min
• maximum. Water head: 3.8 meters (vertical water pipe height)
• Flow is measured in vertical flow (no delivery head). Maximum delivery head no flow
• Current consumption: 2 amps only
• Hose Outlet: Fits 20mm (3/4") diameter hose
• Dimensions: height 108mm x top width 58mm diameter. x Bottom width 66mm diameter.
• Double core wire 750mm long
• approve:Chief Executive
• For pumping clean water only

• Not designed for continuous use. Intermittent use only, duty cycle: 30 minute intervals

Submersible float switch

• Designed to automatically start your bilge pump when there is water
• Turn on the bilge pump when the water level lever reaches 2" (51mm)
• Then turn off the pump when the water level drops below 3/4" (19mm)
• Mercury-free environmental protection switch
• ignition protection
• Heavy duty nylon housing
• Water/Moisture Seal
• Rust and Corrosion Resistant
• Removable snap-on base for easy installation, service and cleaning
• Silent and vibration-free operation

• Tinned twin-core wire tail 710mm long
• Includes instruction manual and wiring diagram
• Voltage: 12V-24V-32V DC
• maximum. Current: 20 amps

• Dimensions: L 130mm x W 44mm x H 54mm

• Tinned twin-core wire tail 710mm long

• approve:Chief Executive,RoHS

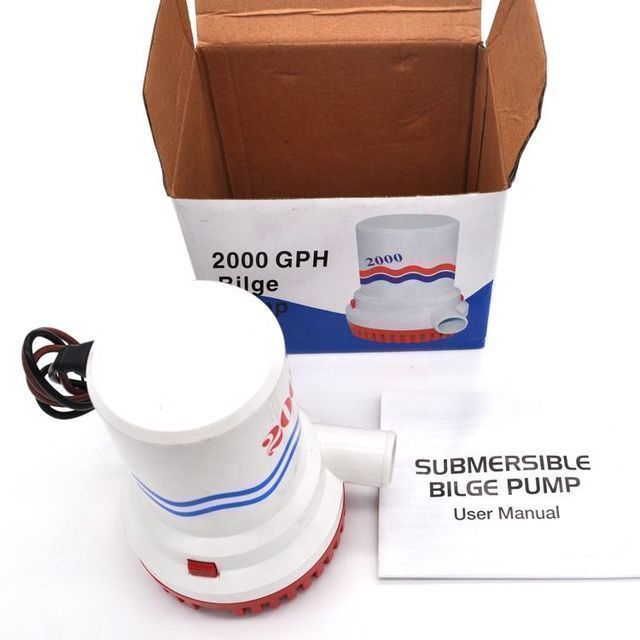

 Bilge Pump 1500GPH
