Aluminum Profile 4 AXIS CNC Machining Center

Supplier: Jinan Parker Machinery Co., Ltd.
Region: Shandong, China
Contact: Mr Peter Ni
Price: $76900.00 /set
Min. Order: 1 set

Click here to contact

Product details

cutter:	8 cutters;	Processing:	Maching Center;
Spindle speed:	18000-24000 Rpm(Electrical Spindle);	Precision:	0.01mm;
Supply Ability:	50 Set/Sets per Month;	Application:	Aluminum Profile;
Weight:	5000kg;	Place of Origin:	Shandong China (Mainland);
Spindle:	ISO30/BT30;	Certification:	ISO CE;
Control type:	Automatic CNC System;	Warranty:	One Year;
TABLE SIZE:	550mm x 300mm x 7300mm;	Condition:	New;
Machine Type:	CNC Machining Center;	Port:	Qingdao;
Dimension(LWH):	10100x2300x2600mm;	Packaging Detail:	as order 3 axis cnc milling machine price with fanuc or siemens controller;
Power(W):	10kw;	Type:	Vertical;
After-sales Service Provided:	Engineers available to service machinery overseas;	Payment Terms:	L/C,T/T;
Brand Name:	PARKER;	Voltage:	380V/50Hz;
Control system:	FANUC PA system;

DMCC6 Aluminum CNC Machining Center

Product Description

Feature:

The machine is suitable for processing installation holes, water slot, shaped holes, and end milling and making screw on curtain walls and aluminum windows and doors.

It adopts high-speed electric principal axis, which is imported from Italy. It is extremely efficient and can swing in±90°

It adopts high-quality computer control system which is used in industry area specially, with good user interface, graphical programming and processing tracking interface, truly realize what you see and what you get.

It adopts high-quality servo motor, ball screw, linear guide pair and bearings and so on to ensure the machine runs with high precision.

Equipped Six cutters positions, the cutter can change quickly and automatically .

The semi-closed guard improved security greatly.

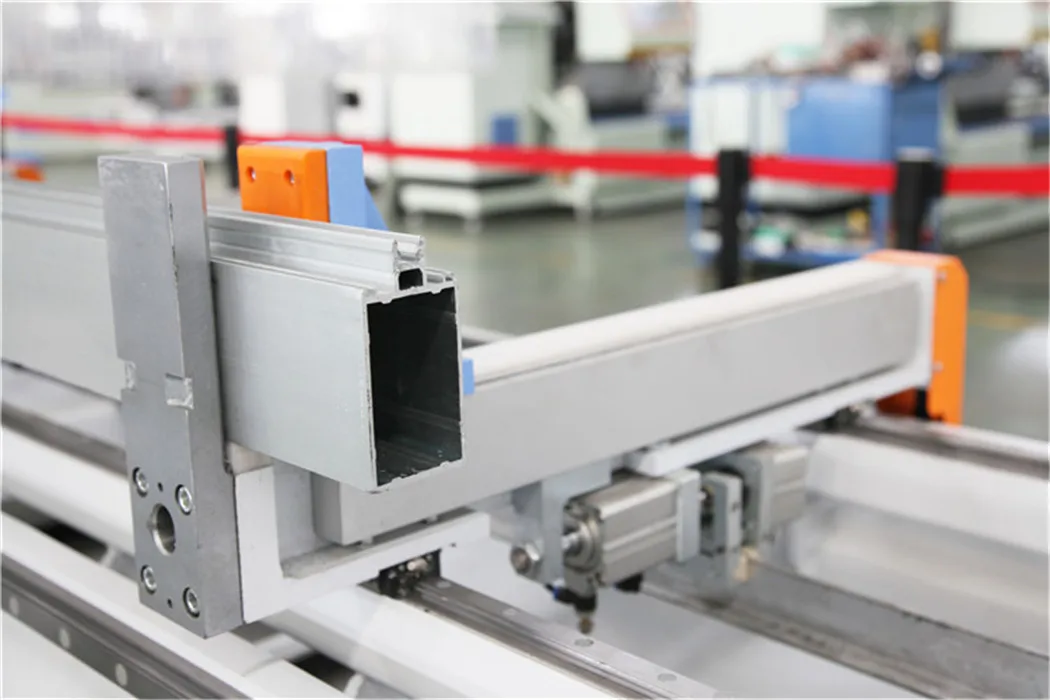

Clamping device position can be optimized and put to right position automatically and freely.

Parameter:

Name: 4 axis CNC machining center

Model: DMCC6

Power: 380V/50Hz/10kw

Air pressure: 0.5-0.8Mpa

X axis stroke: 7600mm

X axis speed: 0-90m/min

Y axis stroke: 960mm

Y axis speed: 0-80m/min

Z axis stroke: 610mm

Z axis speed: 0-75m/min

Max. speed: 18000RPM

Spindle rotation range:-90°- 0°-90°

Tool magazine: 6 tools, automatic changing

Max. length of tool: 165mm

Clamping station: 8

Lubrication and cooling: Automatic lubrication and spray cooling

Max. size of profile(WxHxL): 550mm x 300mm x 7300mm

Overall dimension(LxWxH): 10100x2300x2600mm

Application
CNC automatic drilling and grooving and tapping machine Drilling milling machine bed

Steel machining center Hardware lock handle machining center Rail way processing machining center Rail Transit

Hardware lock handle Rail way Transit machining center

aeronautical and space technologies,auto parts machine,

automobile wheel hub/bearings machine

parts mould machine,Automobile skylight machine

Automobile Sunroof Panoramic sunroof machine

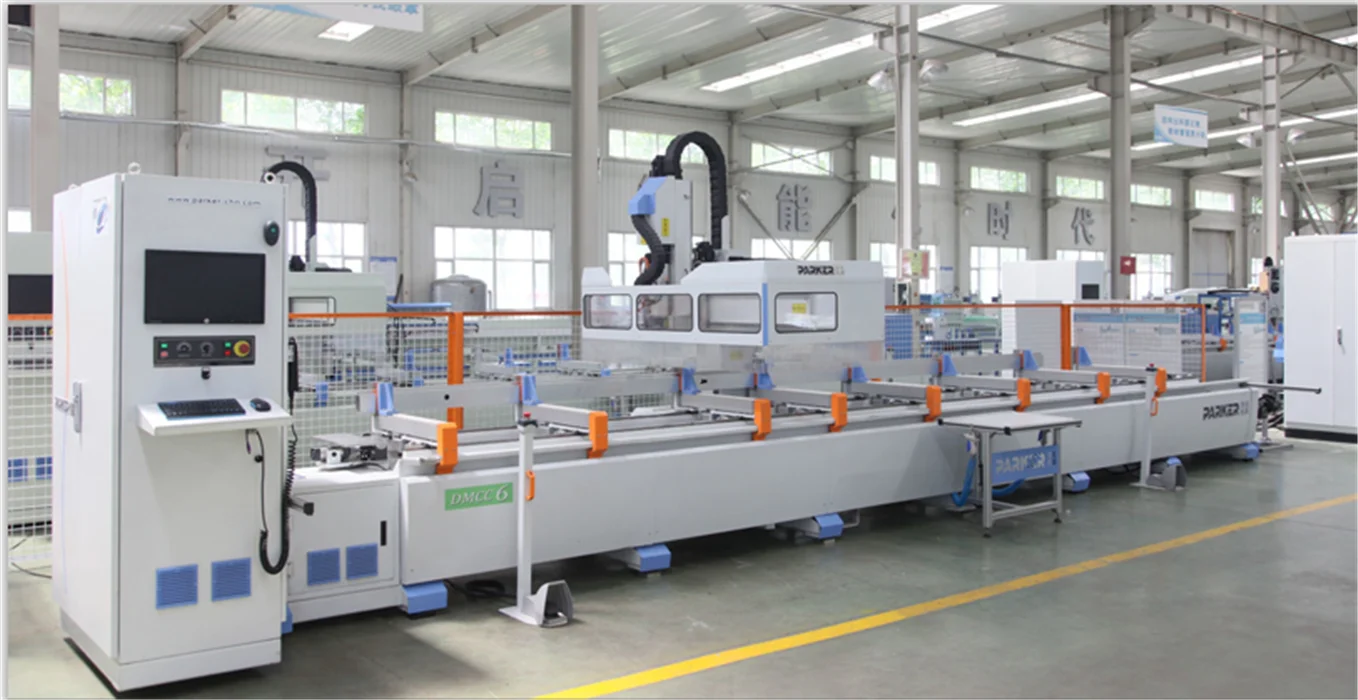

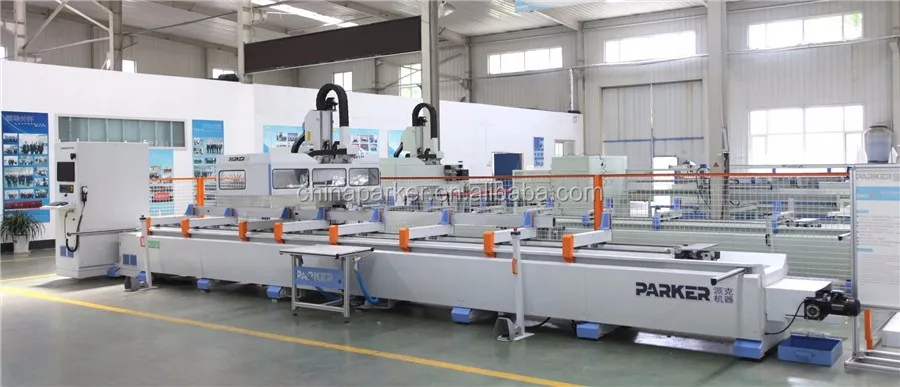

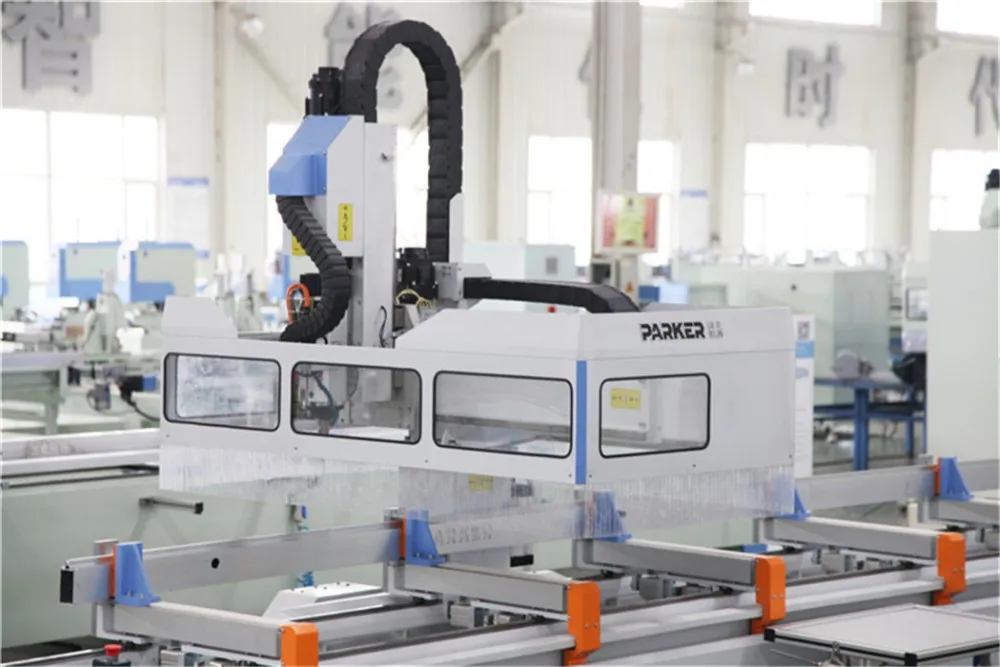

Picture Show

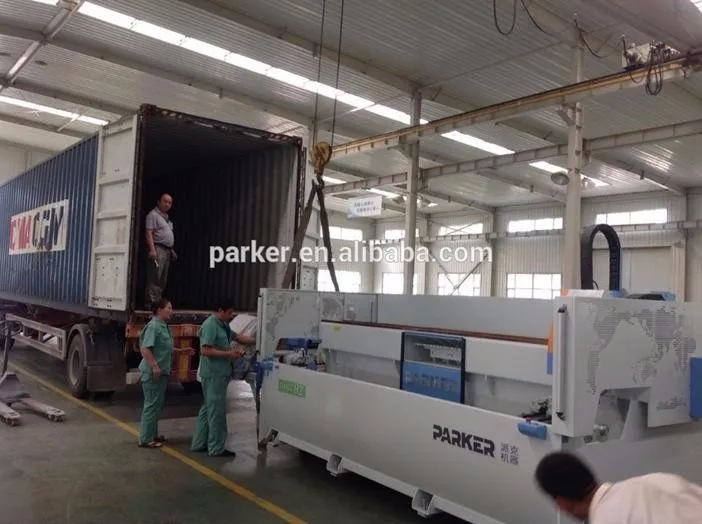

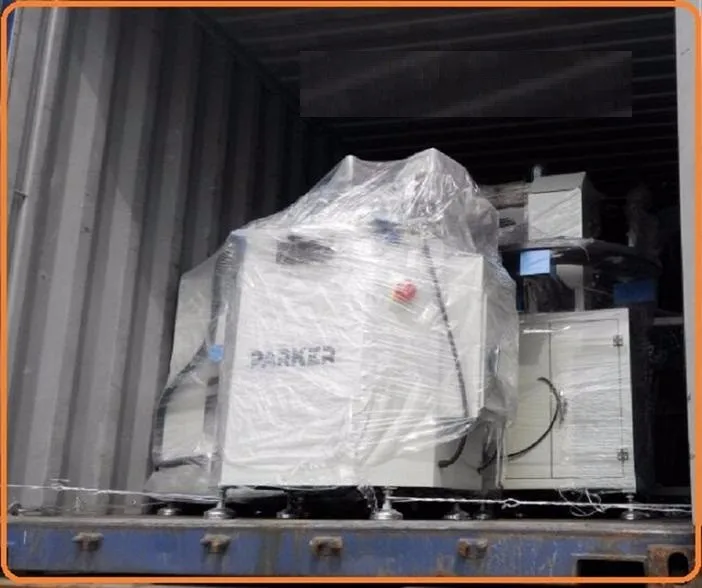

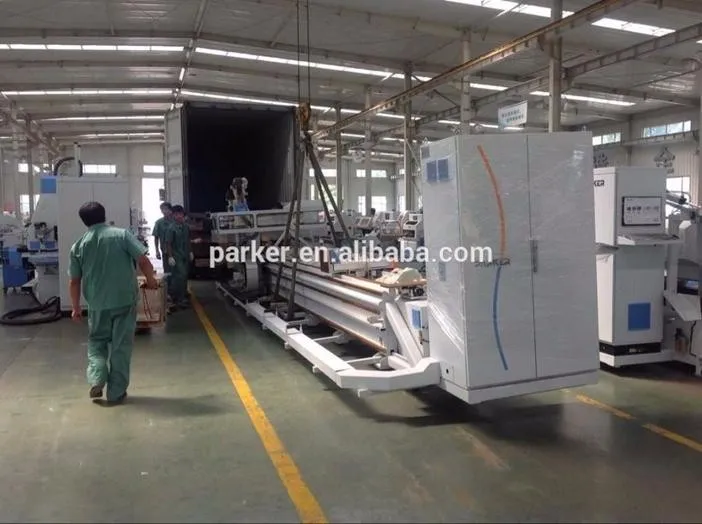

Packaging & Shipping

solar panel frame making machine
---------------------------------------------------------------------
window door profile machine
---------------------------------------------------------------------
curtain wall profile machine
---------------------------------------------------------------------
facade profile machine
---------------------------------------------------------------------
PA or Fanuc systerm control
---------------------------------------------------------------------
Within rotary table
---------------------------------------------------------------------
CNC automatic drilling and grooving and tapping machine
---------------------------------------------------------------------
Drilling and milling machine bed
---------------------------------------------------------------------
5 axis machining center
---------------------------------------------------------------------
4 axis machining center
---------------------------------------------------------------------
3 axis machining center
---------------------------------------------------------------------
Aluminum alloy processing machining center
---------------------------------------------------------------------
Steel machining center
---------------------------------------------------------------------
Hardware lock handle machining center
---------------------------------------------------------------------
Rail way processing machining center
---------------------------------------------------------------------
Rail Transit machine
---------------------------------------------------------------------
aeronautical and space technologies
---------------------------------------------------------------------
steel profile machine
---------------------------------------------------------------------
curtain wall machine
---------------------------------------------------------------------
auto parts machine
---------------------------------------------------------------------
automobile wheel hub/bearings machine
---------------------------------------------------------------------
industrial profile machine Large Span
---------------------------------------------------------------------
parts mould machine
---------------------------------------------------------------------
Automobile skylight machine
---------------------------------------------------------------------
Automobile Sunroof
---------------------------------------------------------------------
Panoramic sunroof
---------------------------------------------------------------------
gantry machining center
---------------------------------------------------------------------
fourth axis 180 degree rotation processing
---------------------------------------------------------------------
Medium cutting aluminum, copper processing,
---------------------------------------------------------------------
drilling,milling,tapping
---------------------------------------------------------------------
thread making
---------------------------------------------------------------------
buffing burnishing machine
---------------------------------------------------------------------
polishing chasing
---------------------------------------------------------------------
Automative lubricating
---------------------------------------------------------------------
Operation system FANUC/MITSUBISH
---------------------------------------------------------------------
automatic line machine
