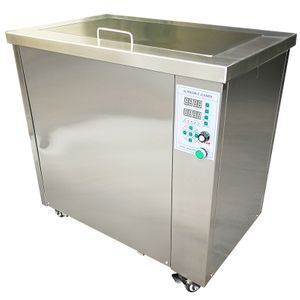

Customize 6600W Industrial Washing Tank Ultrasound Cleaner Ultrasonic Cleaning Machines Ultrasonic Vibration Cleaner

Supplier: Beijing Quanxin Ultrasonic Co., Ltd.
Region: Beijing, China
Contact: Ms Nancy Zhao
Price: $5500.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Brand Name:	QXULTRASONIC;	Tank Size:	1000100650mm Lwh;
Volume:	650L;	Place of Origin:	Beijing China (Mainland);
Warranty:	1 Year;	Selling Units:	Single item;
Fuel:	Electric;	Power(W):	6600W;
Single gross weight:	120 KG;	Certification:	CE,RoHS,UL;
Dimension(LWH):	11801180900MM;	Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;
Material:	Stainless Steel;	Machine Type:	Industrial Ultrasonic Cleaner;
Single package size:	100X90X90 cm;	Ultrasonic Power:	6600W;
Product:	Ultrasonic Washing Machine;	Display:	Digital Display;
Timer:	1-99 mins adjustment;	Frequency:	28k 40k or Required;
Machine Size:	11801180900 Lwh;	Cleaning Process:	Cold Water Cleaning;
After-sales Service Provided:	Video technical support;	Temperature:	20-80 degree;
Cleaning Type:	Industrial Ultrasonic Cleaner;	Heating Power:	12000w;
Use:	Degreasing;	Condition:	New;

Customize 6600W Industrial Washing Tank Ultrasound Cleaner Ultrasonic Cleaning Machines Ultrasonic Vibration Cleaner

Product Description

Note: the price and time of transaction information is for reference only.

Advantage of Ultrasonic Cleaning

Compared to many other cleaning method,ultrasonic cleaning machine have advantages are as follow

Cleaning effect is good, high cleanliness and cleanness of all artifacts;
Cleaning faster, improve production efficiency;
Don’t need hand touching cleaning fluid, safe and reliable;
Deep blind hole, crack, and the product nook can be cleaned;
Save solvent, thermal energy, work place and artificial, etc.

Our Ultrasonic Industrial Cleaner Advantages

Tank Material	304SS or 316SS tank.Open die stamping molding without welds
Tank Thickness	1-2mm Long Life
Working Time	0-90 mins adjustment
Temperature Control	0-80 Degree
Power	Adjustment
Frequency	as required
Cable	Industrial standard, bold power cord heat-resistant, resistant to soften
High precision	Because ultrasonic energy can pass through tiny cracks and holes, so can be applied with any parts or assembled parts cleaning.For precision parts or assembled parts to be cleaned, ultrasonic cleaning often become the only can meet the special technical requirements of cleaning method;
Fast	ltrasonic cleaning is relatively regular cleaning method is much faster in terms of workpiece dusting descaling.Do not need to remove the assembly can be cleaned.The advantage of the ultrasonic cleaning can save labor force tend to make it the most economical way of cleaning;
Consistency	No matter be cleaning piece is big or small, simple or complex, single or batch or on automatic assembly line, the use of ultrasonic cleaning can get manual cleaning incomparable uniformity of cleanliness.
Design	The product design is beautiful and easy, the case is made of high-quality stainless steel embossing. antirust performance is good;Cleaning tank is made of high quality SUS304 stainless steel stamping,no welding,the waterproof performance is good.
Circuit	The power circuit use the new OS oscillators,precise control of vibration frequency and have feedback collection function, ultrasonic output more stable and reliable.

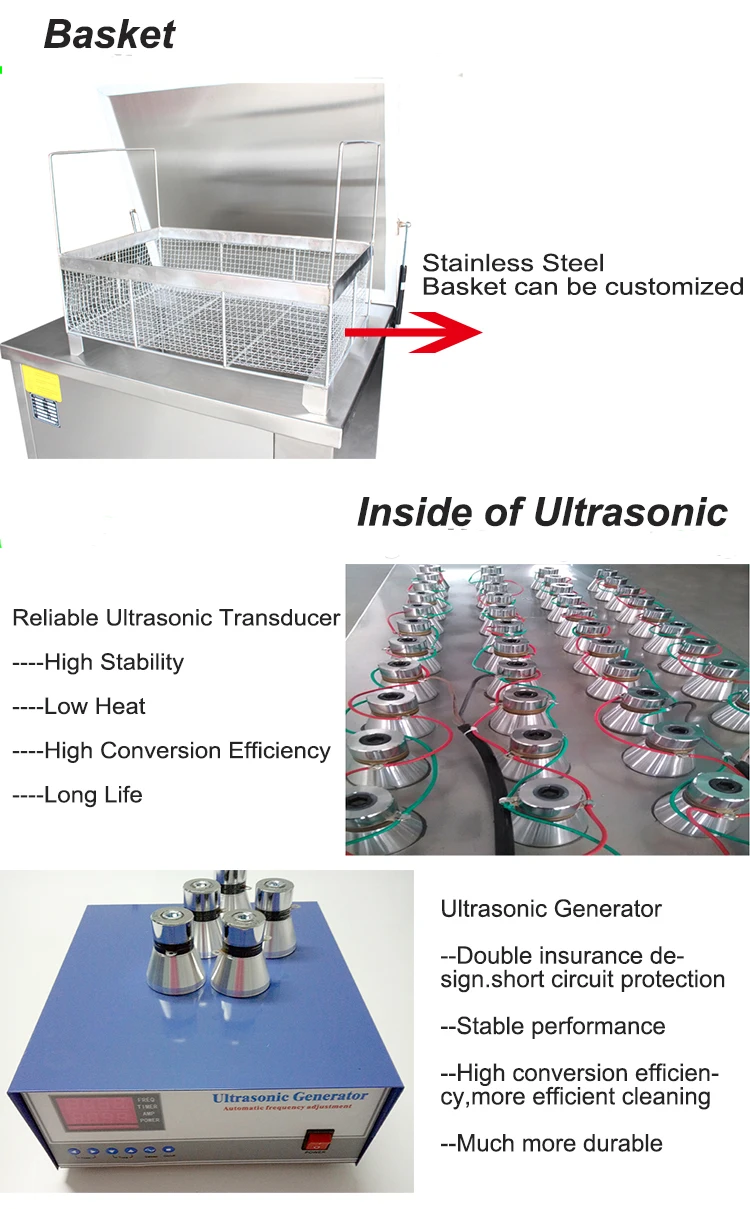

Ultrasonic Transducer	The ultrasonic transducer adopts more long life of the whole aluminum structure,reduce heating,output steady.

Some Specification of Digital Ultrasonic Cleaner

Customize Various Different Size Ultrasonic Cleaning Machine according to the cleaning objects.

Type	Frequency (KHz)	Volume (L)	Ultrasonic Power (W)	Tank Size (LWH MM)	Machine Size (LWH MM)	Heaing Power (W)	Timer (MIN)	Temperature (℃)
QXCE2400	28 or 40k	175	2400	700500500	880680750	4500	0~99(h)	20~95
QXCE3000	28 or 40k	264	3000	800600550	980780800	6000	0~99(h)	20~95
QXCE3600	28 or 40k	330	3600	1000600550	1180780800	6000	0~99(h)	20~95
QXCE4200	28 or 40k	385	0-4200	1000700550	1180880800	9000	0~99(h)	20~95
QXCE4800	28 or 40k	450	0-4800	1000750600	1180930850	9000	0~99(h)	20~95
QXCE5400	28 or 40k	540	0-5400	1000900600	11801080850	10500	0~99(h)	20~95
QXCE6000	28 or 40k	570	0-6000	1000950600	11801130850	10500	0~99(h)	20~95
QXCE6600	28 or 40k	650	0-6600	10001000650	11801180900	12000	0~99(h)	20~95
QXCE7200	28 or 40k	715	0-7200	11001000650	12801180900	12000	0~99(h)	20~95
QXCE10800	28 or 40k	975	0-10800	15001000650	16801180900	12000	0~99(h)	20~95

♥ If you are interested in our product,

♥ Pls just feel free to send us your inquiry.

♥ We wil try our best to quote the competitive price for you!----- Contact Us Now

Some More informations of Customized Ultrasonic Cleaning Equipment

1)Tank: one tank or multiple-tank

2)Tank size: length *width * height (mm).

3)Cleaning tank material:

high quality SUS304 stainless steel of thickness 2 mm;

high-quality SUS316 stainless steel of thickness 2 mm.

Remark: SUS304 stainless steel is prevent from weak acid, weak base and weak corrosive. At present, the SUS304 is an agreed materials by market to used as steel cleaing tank. If you need a strong acid, strong alkali or corrosive solution as a kind of ultrasonic cleaner, you should use SUS316 stainless steel ultrasonic cleaning tank. SUS316 stainless steel is resistant to strong acid, alkali and corrosive liquid.

4)Frequency selection:

Usually,the frequency of industrial ultrasonic cleaner on the market is 40 KHZ or 28 KHZ at present.However,you can choose the frequency according to your cleaning items and the difficulty of cleaning item’s besmirch,then customized cleaners accordingly.

5)Ultrasonic Frequency Range:

Low Frequency :17 KHZ, 20 KHZ, 25 KHZ, 28 KHZ, 40 KHZ

High Frequency: 68 KHZ, 80 KHZ, 120 KHZ, 132 KHZ, 200 KHZ

Reminder: The smaller ultrasonic frequency bring the greater strength of cleaning. For example, 28 KHZ frequency’s cleaning effect is greater than 40 KHZ.

6)Ultrasonic Power Choose:

The Ultrasonic Power is calculated according to your tank size and the quantity of industrial ultrasonic transducer.
Heating power:

Generally, if there is not specified degrees, we will install the heat plate according to the capacity size, and temperature is 20-80 degrees.

7)Time Settings:

At present,1 — 30 minutes is ok. You can fixed the time to be 1-9999 minutes adjustable according to your cleaning items requirements.

8)Design of Ultrasonic.

Vibration plate type, sticky bottom type and hanging type. Till now, all of ultrasonic is the sticky bottom type on market. You can customize vibration plate type or hanging type according to your clean items requirements.

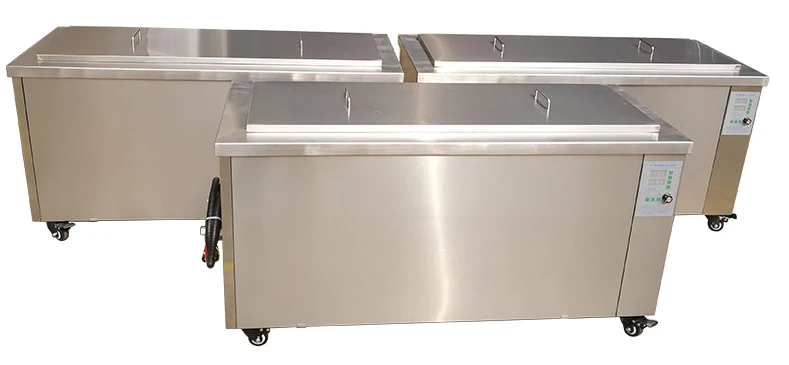

Product Picture

Digital Ultrasonic Cleaner Working Principle
