Stackable Energy Storage 48V 200AH 10kwh 20kwh 30kwh 50kwh 51.2v 100ah 5kwh Inverter Battery Solar Power System Lifepo4 Battery Products from Shenzhen Delong Energy Technology Co., Ltd.

Product Details

Product Description

Stackable lithium iron phosphate battery 48V 51.2V 200Ah 10Kwh, built-in A-grade BYD battery cell and 200A BMS, widely compatible with inverters, very suitable for home energy storage

Product strength	10kWh	20kWh	30kWh	50kWh
Nominal voltage	51.2V	51.2V	51.2V	51.2V
Nominal capacity	200Ah	400Ah	600Ah	1000Ah
model	HS51200-10
cell type	LiFePO4 battery (lithium iron phosphate battery)
Standard charging voltage	57.6V
Maximum charging current	80A (single package)
Discharge cutoff voltage	44.8V
Maximum discharge current	200A
exhibit	LCD screen
Communication interface	RS232/RS485/CAN
cycle life	≥6000 cycles at 80% dod
Charging temperature range	0~55℃
Exhaust temperature range	-20°C to +60°C
Certification	IEC62619, CE, MSDS, UN38.3, maritime cargo transportation identification and classification report, etc.
aspect	690560290mm	690560450mm	690560610mm	690560930mm
gross weight	About 91kg	About 167 kg	About 243 kg	About 395 kg
Optional accessories	Movable base/M8 parallel cable (30cm)/Inverter and parallel RS485 communication network cable

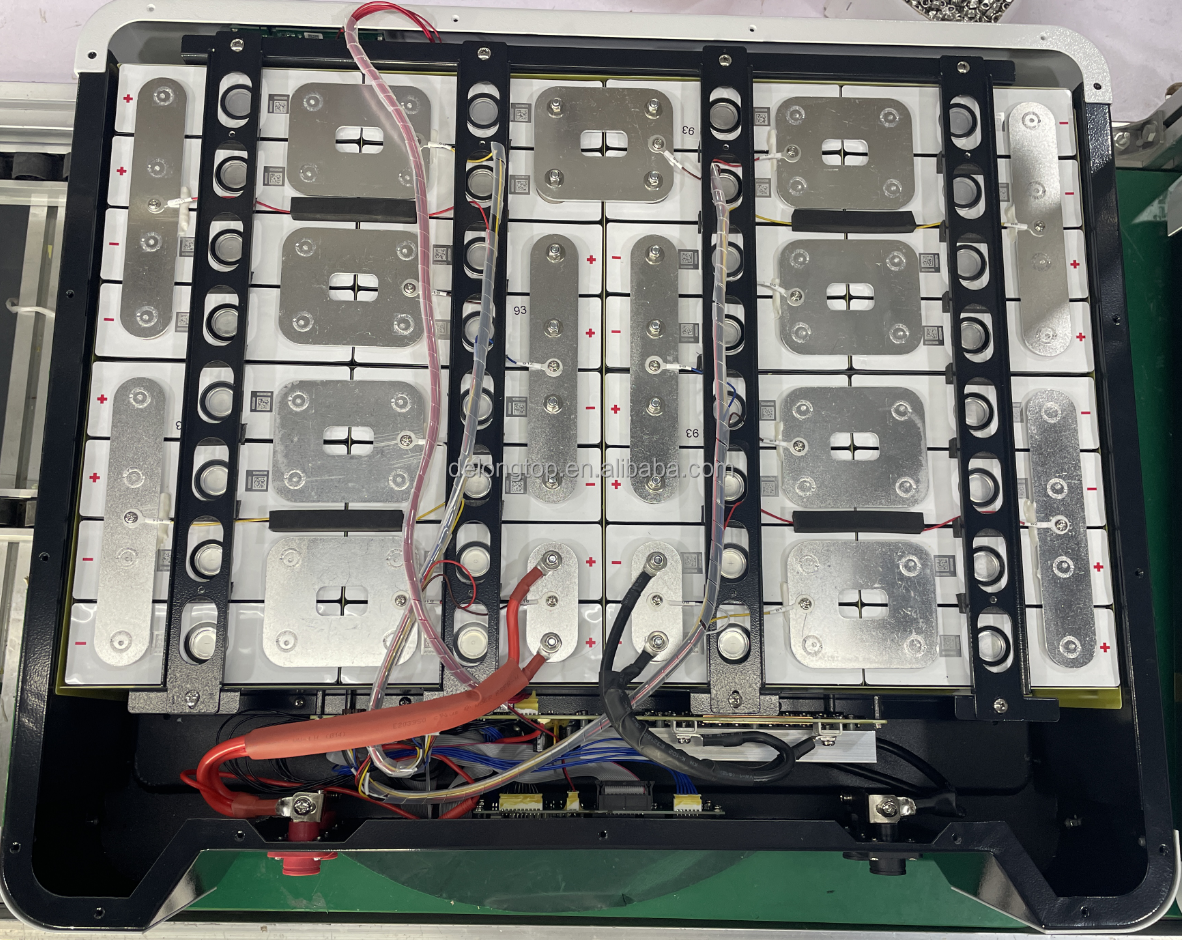

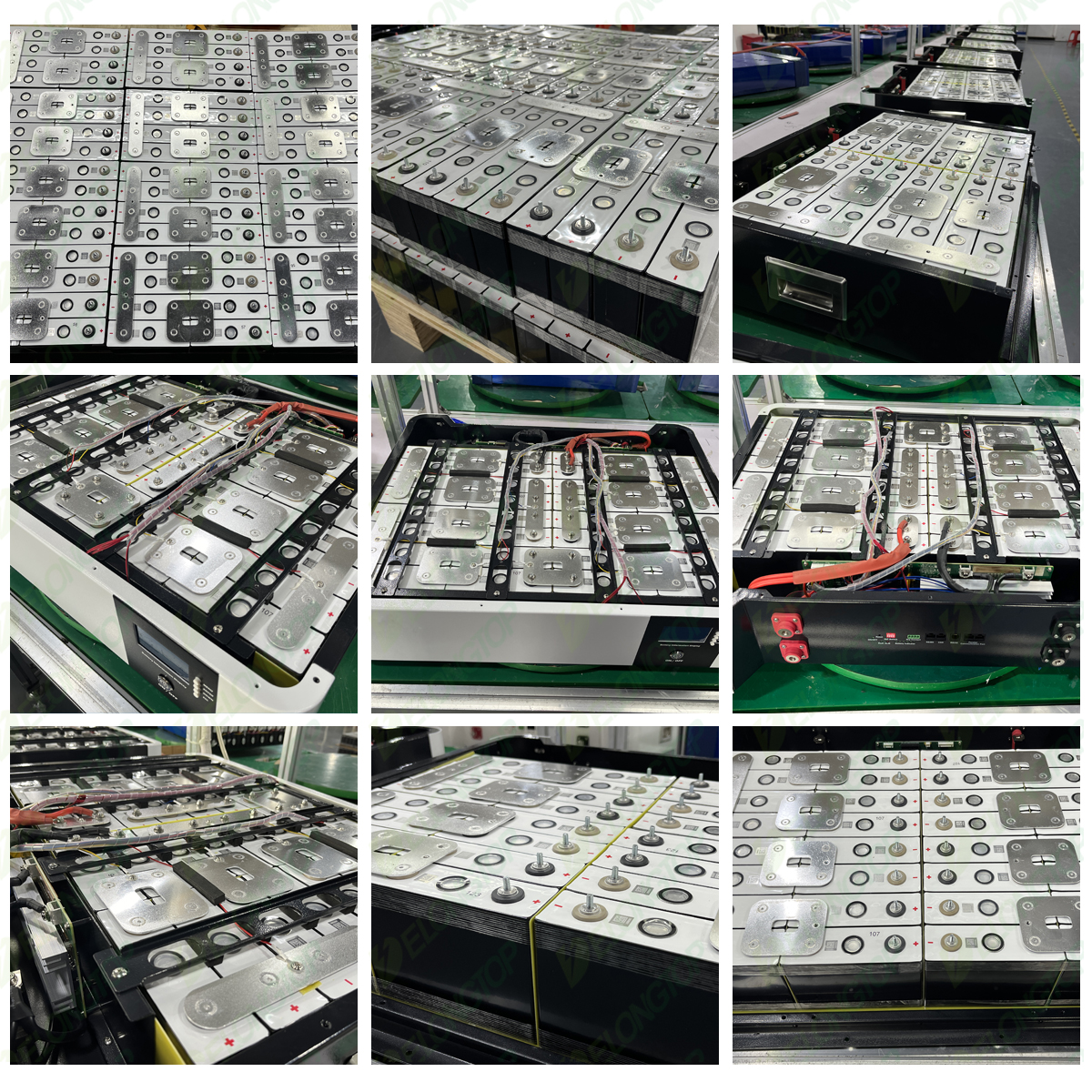

De'Longhi Top 10Kwh stackable battery internal structure

Solar life PO4 battery pack

51.2V 200Ah 10.24kWh

1. Combination: 16S2P

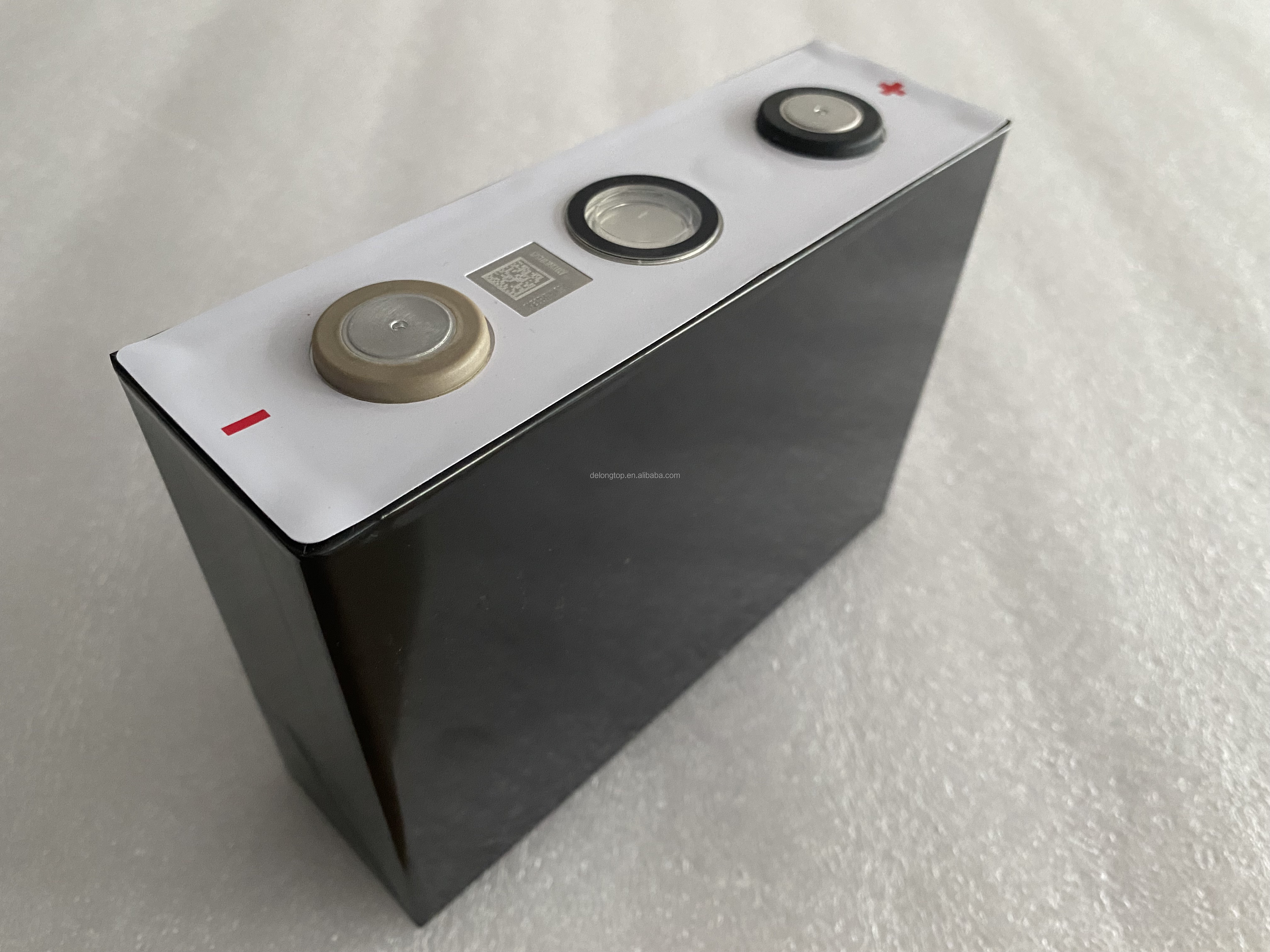

2. Built-in 32 A-grade BYD batteries

3. Built-in smart balance 16S 200A BMS

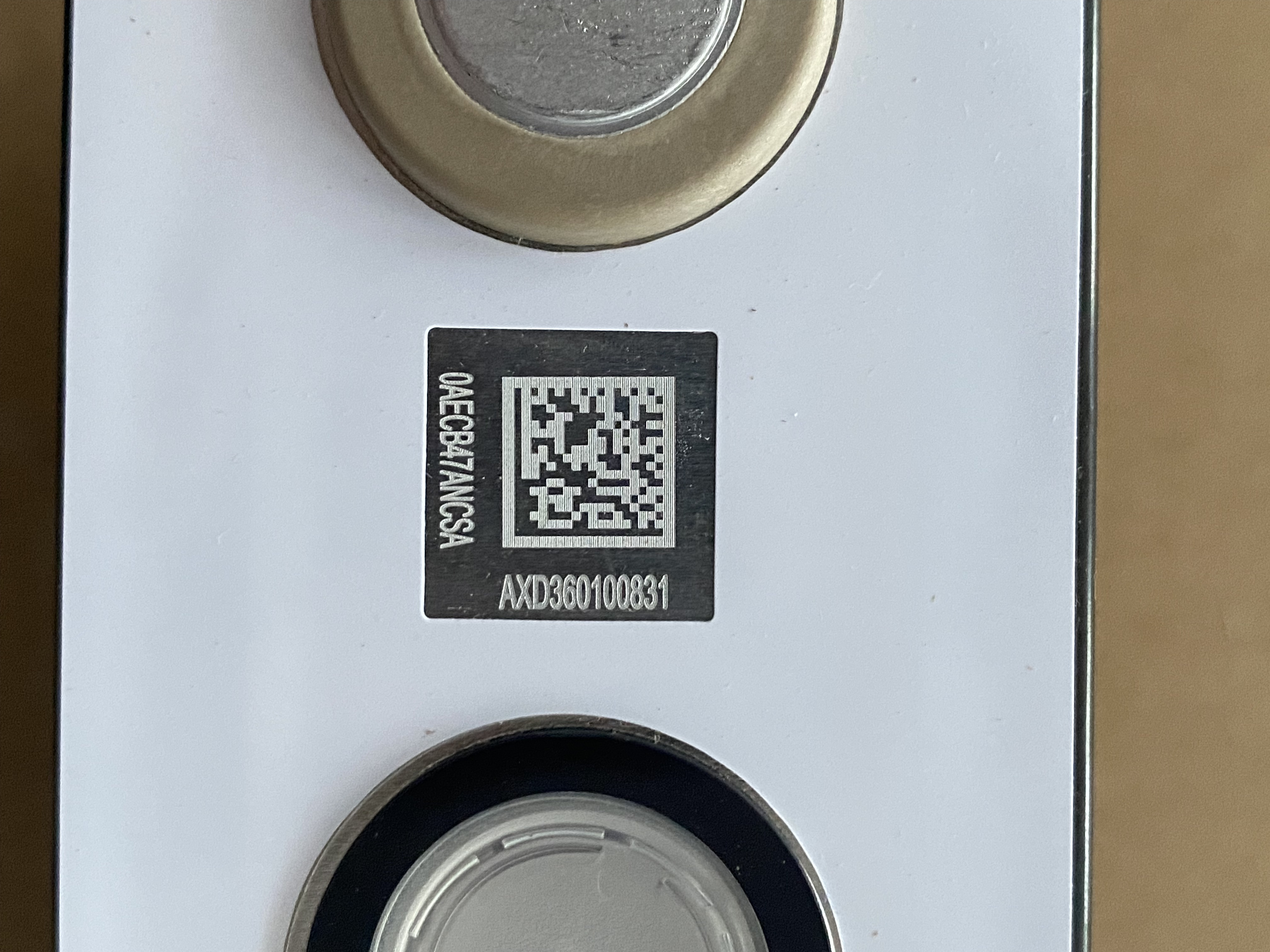

4. Each cell has a new complete QR code

Our quality is guaranteed.

We guarantee that the batteries you receive are the same ones you ordered

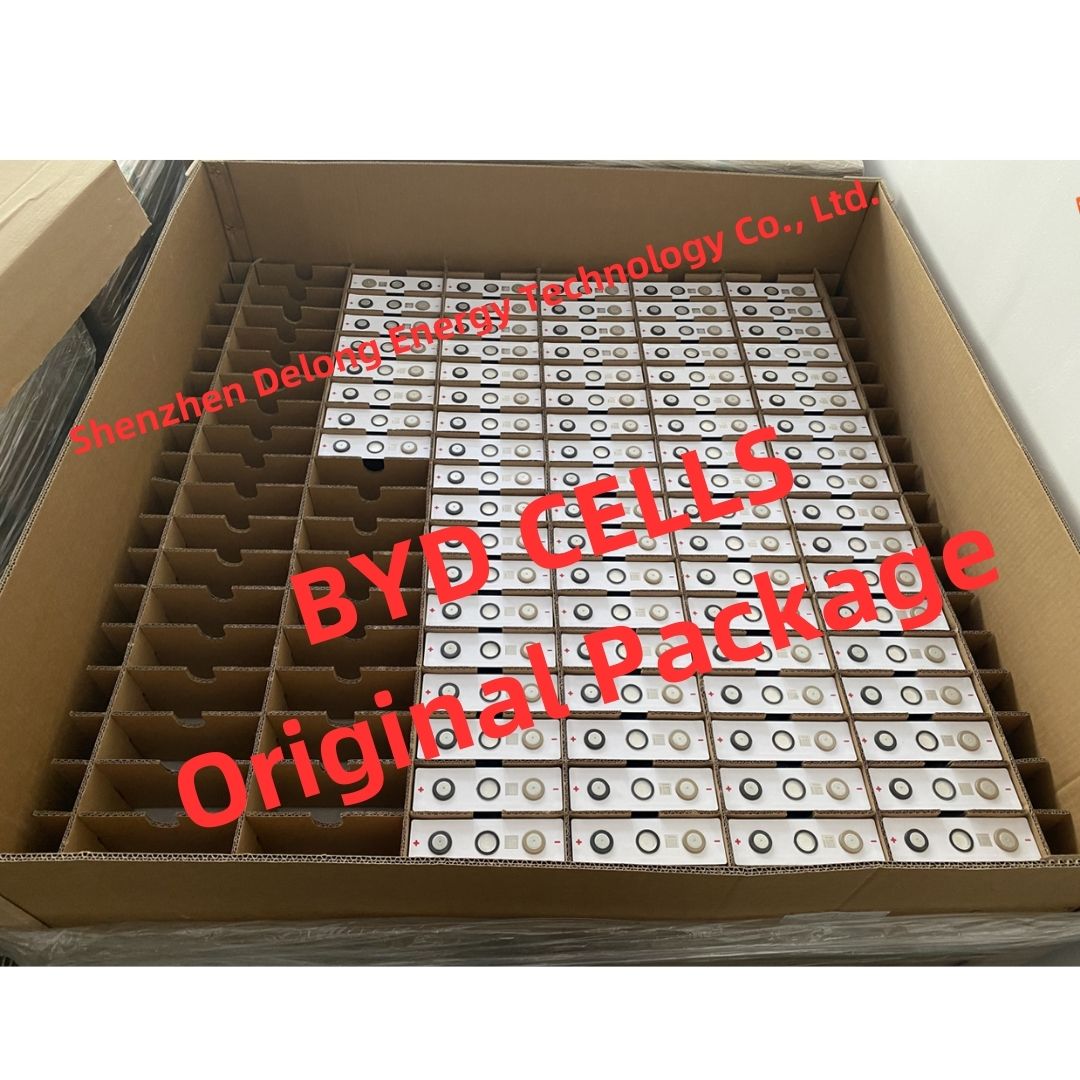

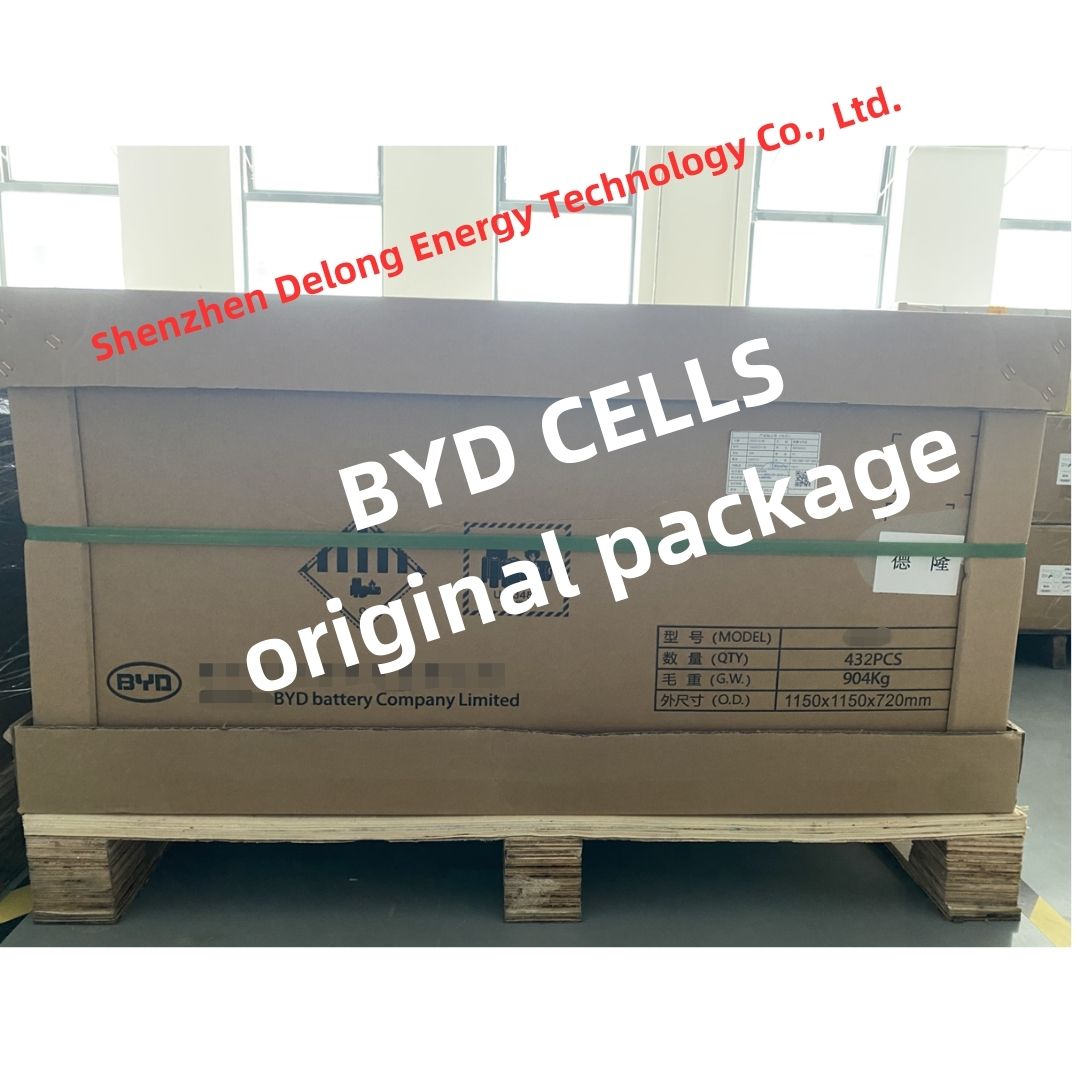

We can assure you that our batteries are made from BYD Class A batteries. We can provide BYD's original data sheets and certificates to support this. You can check the batteries after you receive them, if any of them are not made by BYD, we will give you a full refund without returns.

Installation instructions

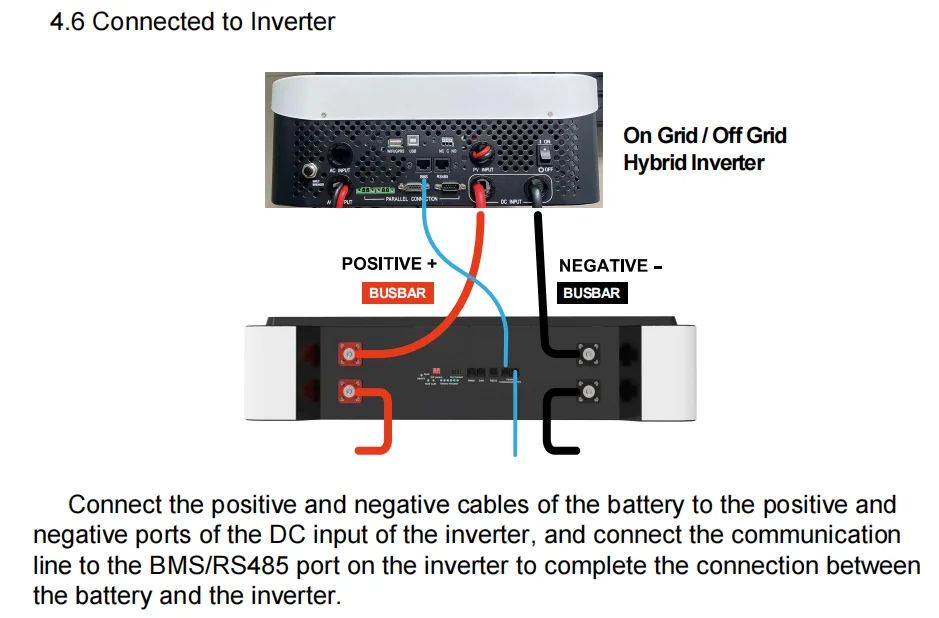

1).Compatible with inverter:

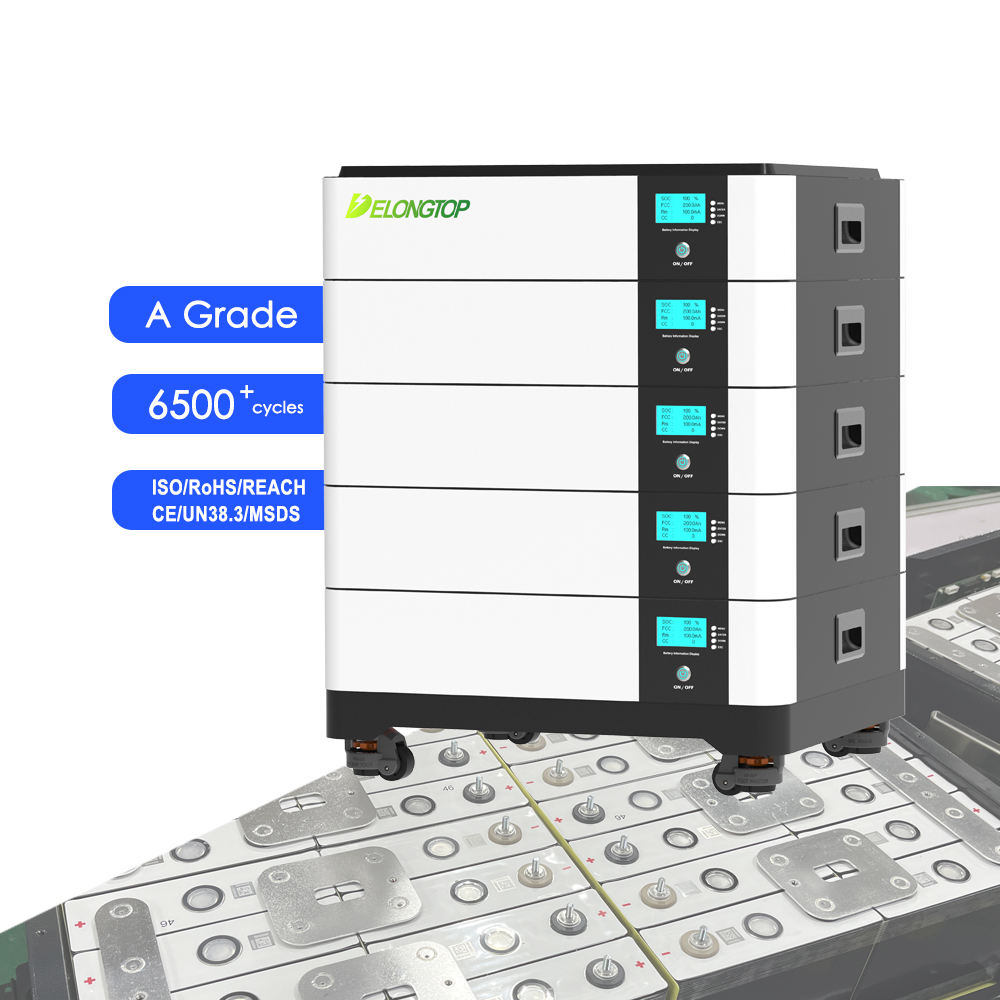

2). Grade A+ brand new lifepo4 battery. Cycle life up to 6000 times at 80% DOD

! These are stackable modular batteries 48V 51.2V 10KWH 20KWH 30KWH 40KWH 50KWH LiFePO4 batteries solar home energy storage batteries

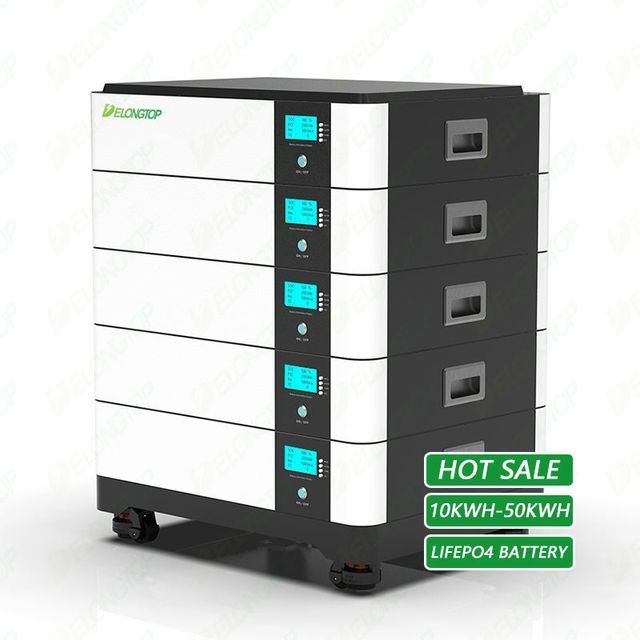

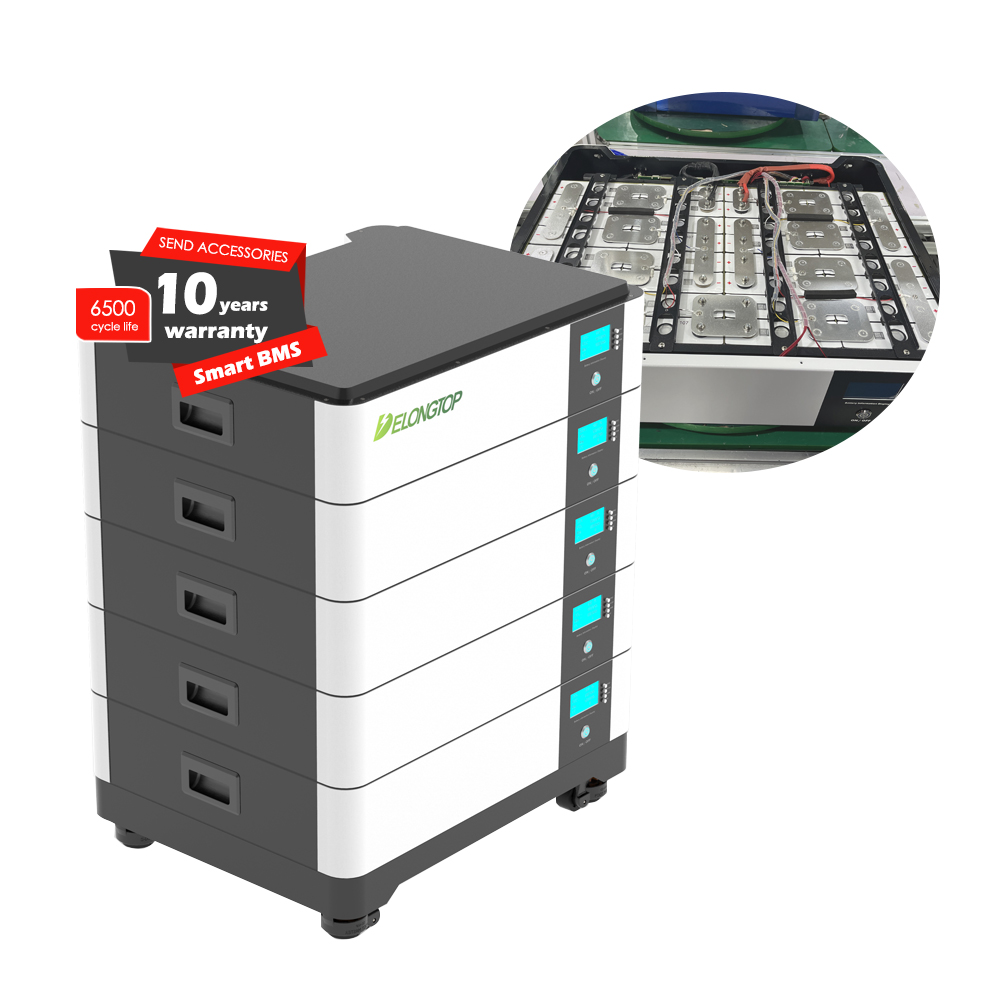

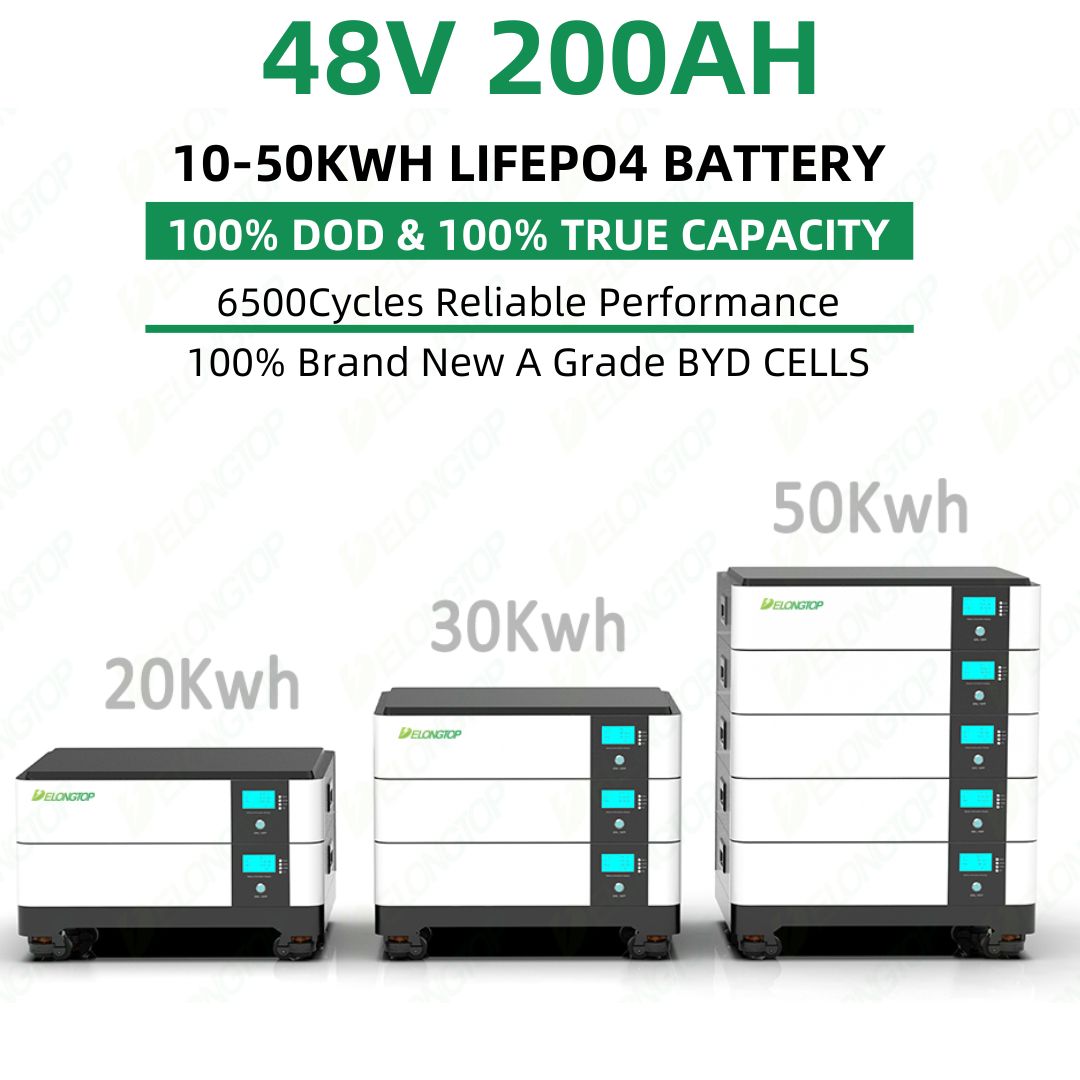

Stackable LiFePO4 10KWH 20KWH 30KWH 40KWH 50KWH battery vertical cabinet:

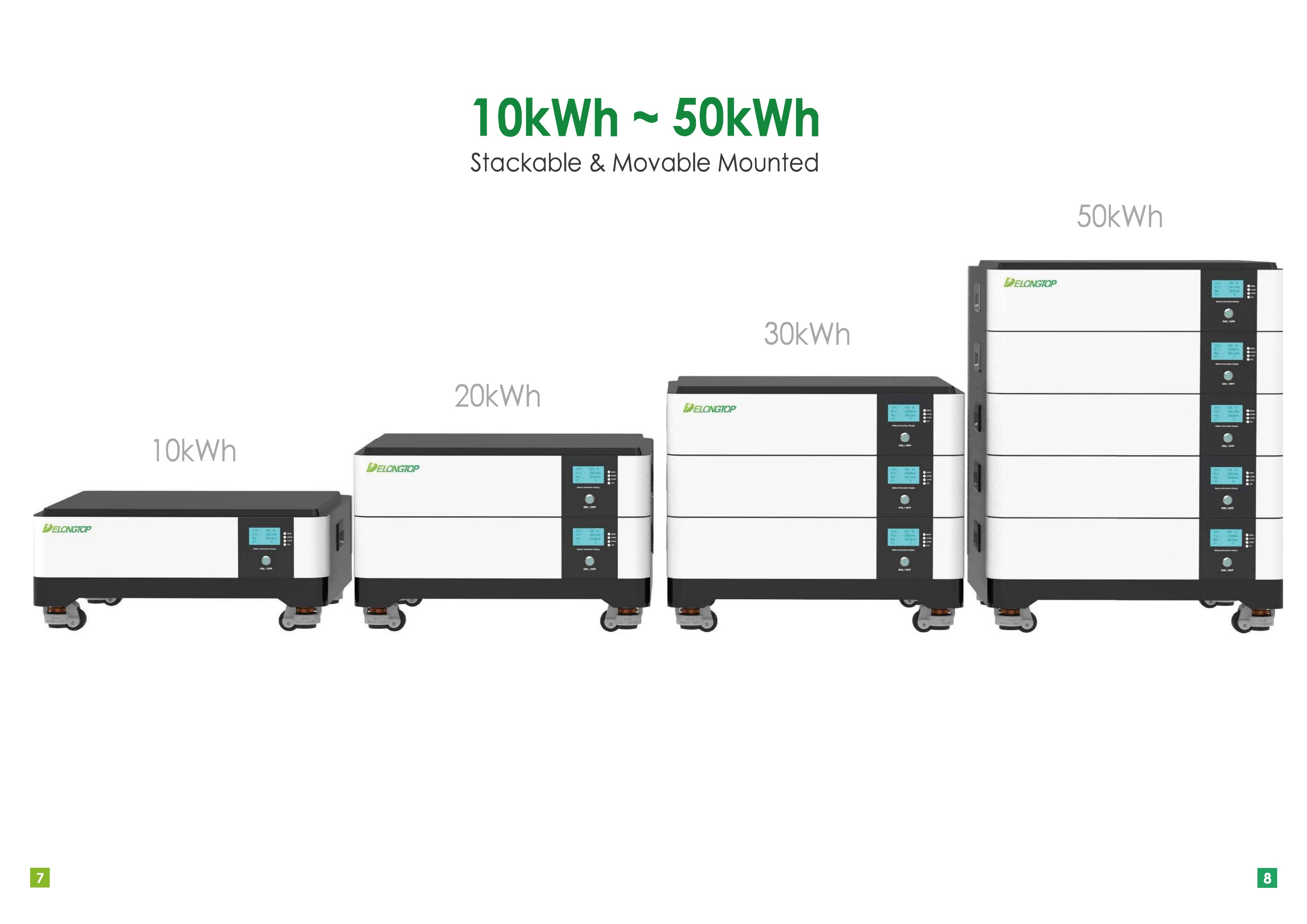

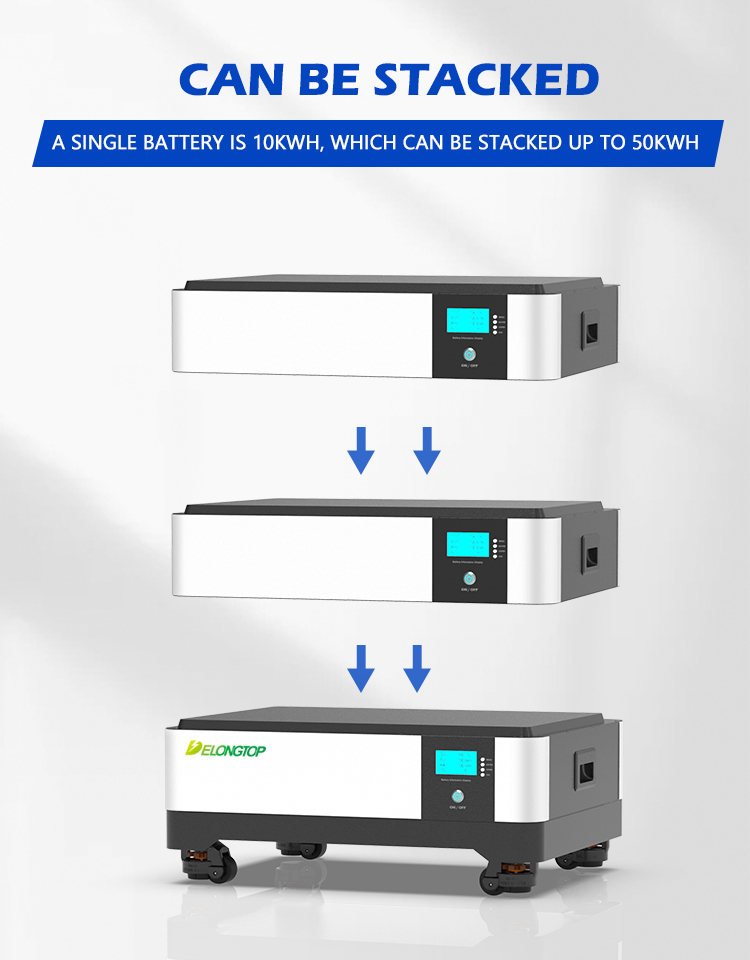

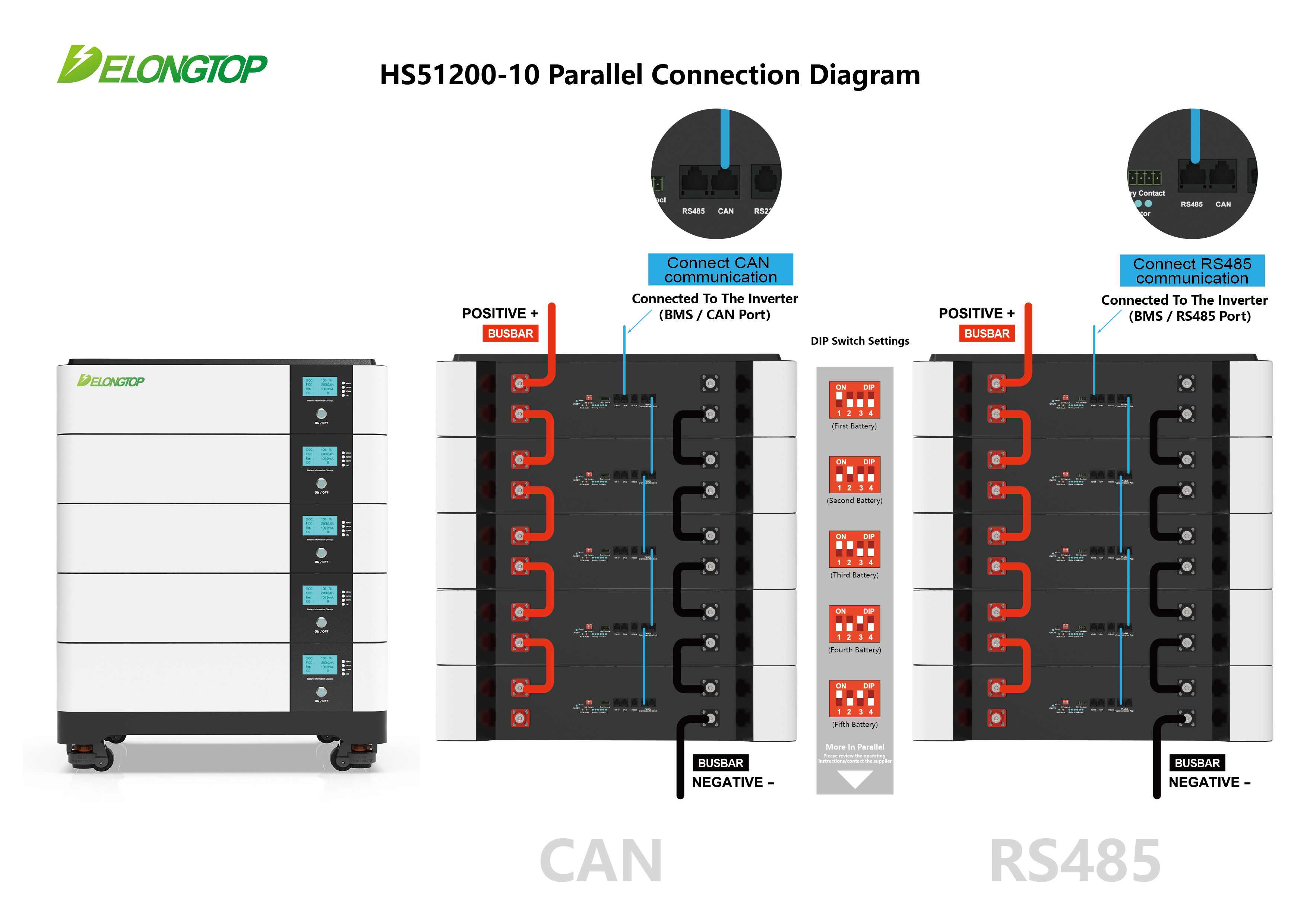

1>One module 10KWH 51.2V 200AH LiFePO4 battery, 2 stackable modules in parallel will get 20KWH, 3 stackable modules in parallel will get 30KWH... Each cabinet contains up to 5 pcs (50kwh)

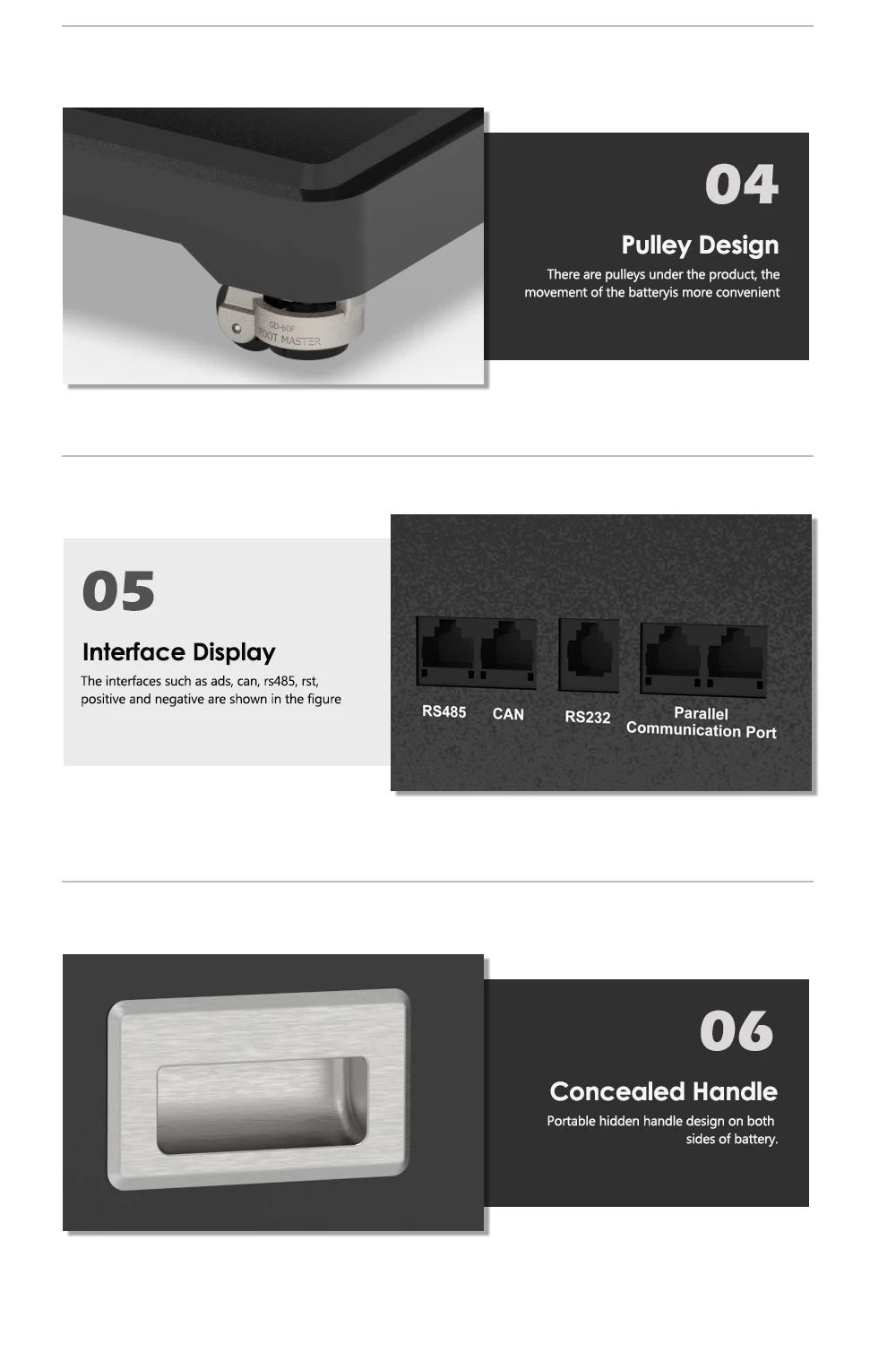

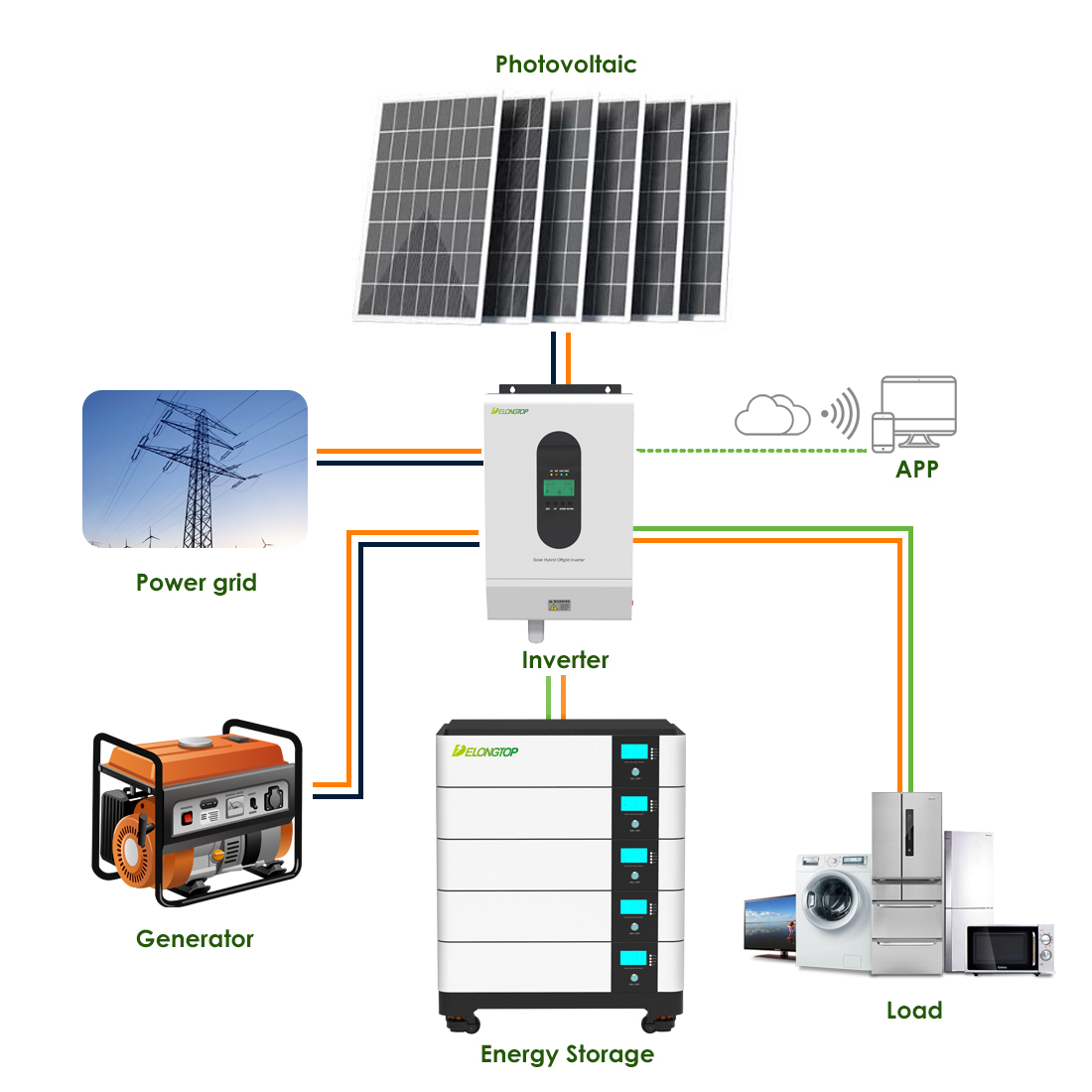

2> The battery supports RS485/RS232/CANbus intelligent communication functions and is compatible with most well-known hybrid off-grid inverters/MPPT controllers

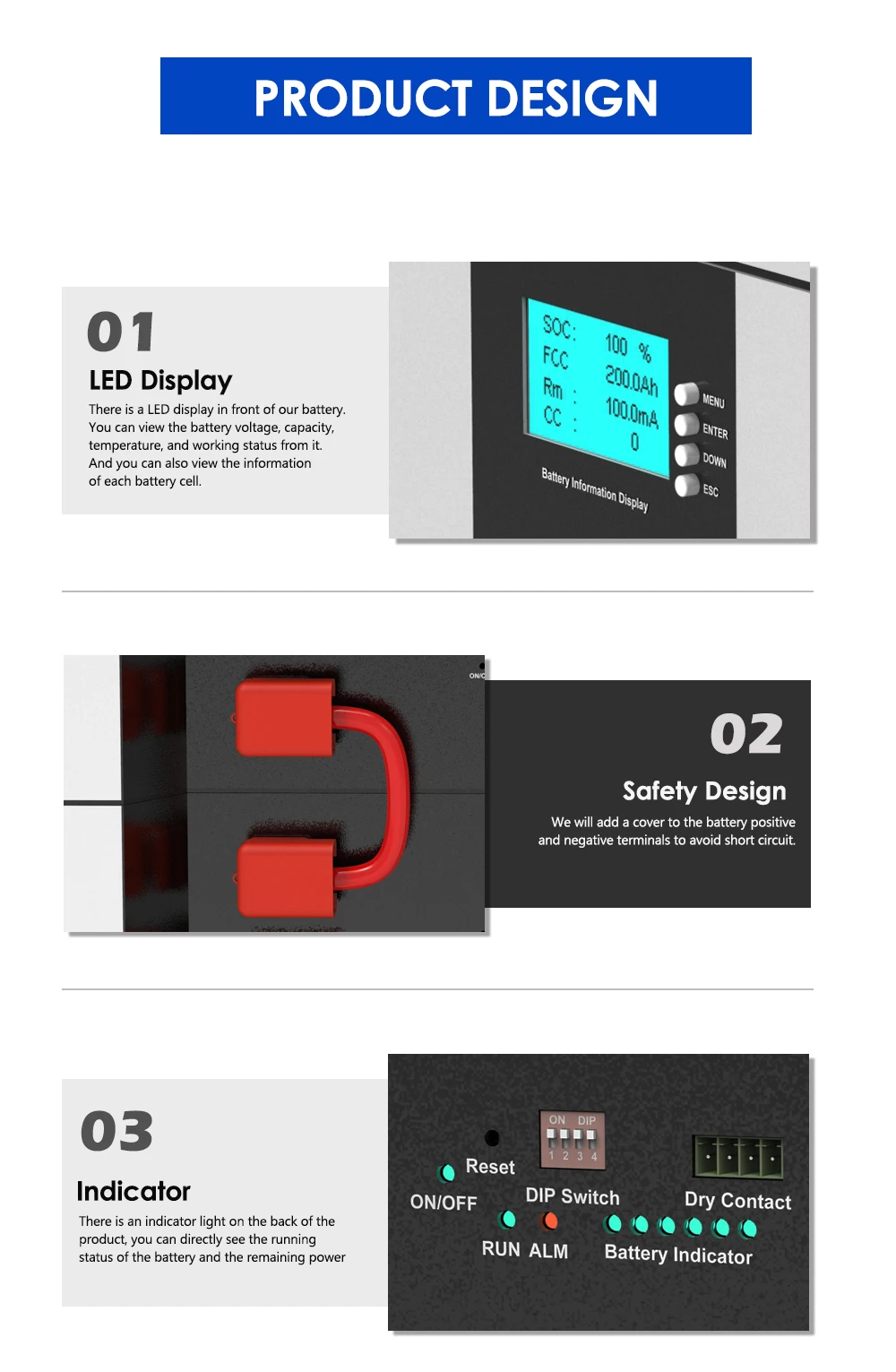

3> Built-in accurate coulomb counter (LCD display), ON/OFF switch, handle, stand and removable base.

4> For the bracket, we customized a high-quality unique metal bracket, which is more stable, safe and very strong, and can install the power wall lithium iron phosphate battery on the wall and the ground.
