1Mwh 2Mwh High Voltage 500kWH Battery, Lithium Ion Battery Energy Storage Battery Systems Container

Supplier: Hebei Ecube New Energy Technology Co., Ltd.
Region: Hebei, China
Contact: Mr Jude Zhu
Price: $0.56 / 350 - 499 pieces
$0.54 / >=500 pieces
Min. Order: 350 pieces

Click here to contact

Product details

Supply capacity:	3000 watts per month	application:	energy storage system
The output voltage:	380V/400V/415V	Function:	backup power
port:	Tianjin/Shenzhen Port	Installation Location:	outdoor
type of battery:	Lithium Ion Battery	model:	ZESS-350K
Service life:	10 years	Grid Type:	Hybrid support
battery capacity:	350kWh-1000kWh	place of origin; place of origin:	Hebei china
color:	custom made	brand:	Rubik's cube

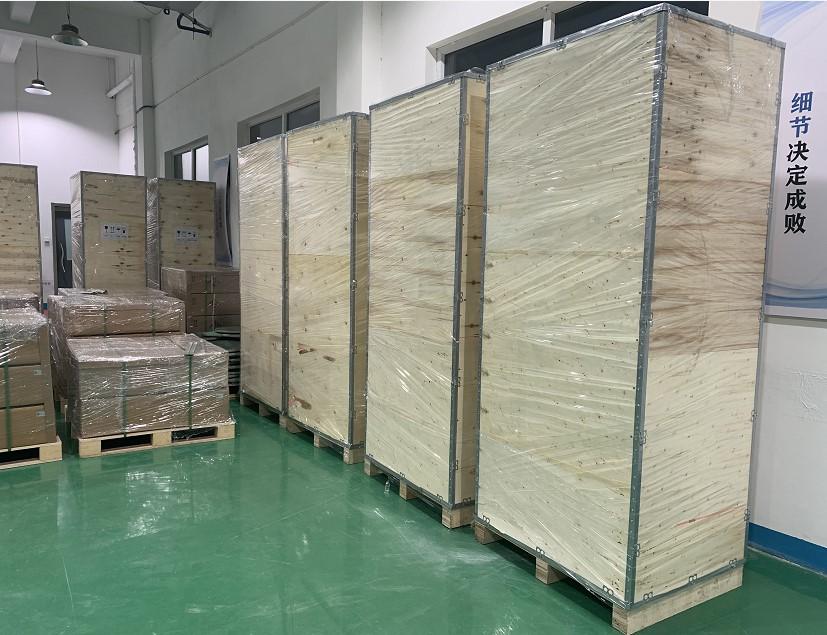

Packaging Preview:		Packaging Details:	1. The battery module adopts UN38.3 package. 2. The battery cabinet is packed in a wooden case.
payment terms:	wire transfer	PC power supply:	300kW-1MW
Production level:	IP65

Product Description

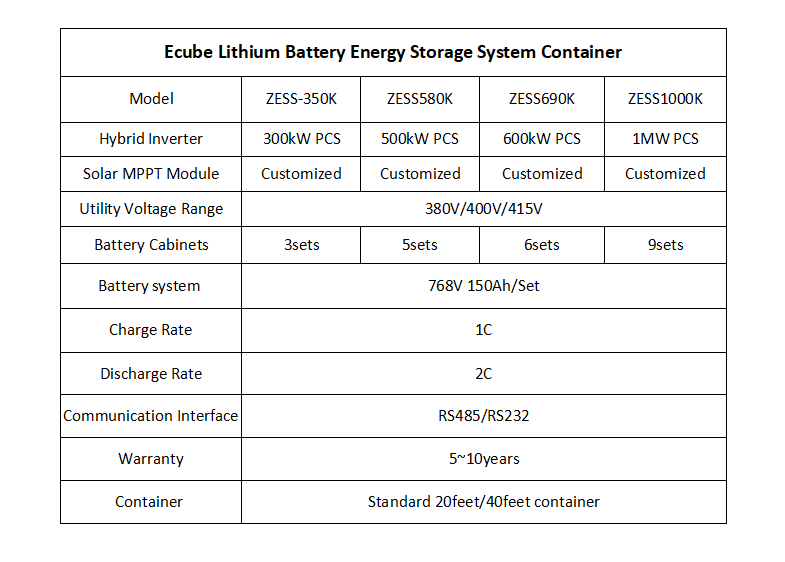

configure

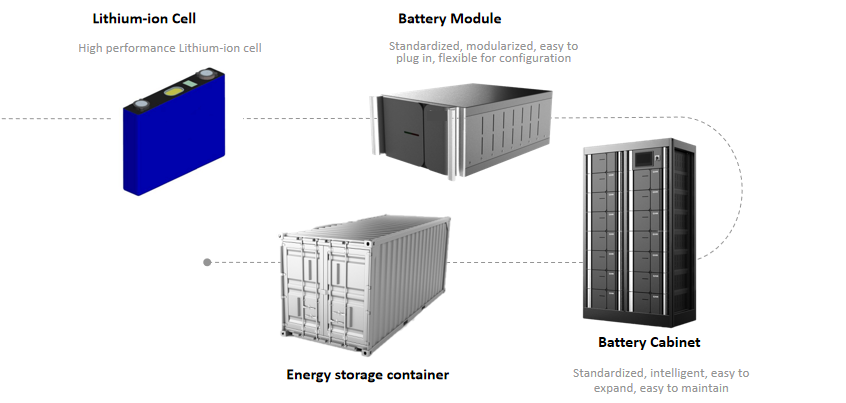

1MWh 2MWh high voltage 500kWh battery, lithium ion battery energy storage battery system container

The ECUBE battery system selects the highest performance cells in the international market to meet the needs of customers in different application scenarios. The battery module, bidirectional active balance BMS battery management system and electrical protection components are mainly installed inside. The cabinet has a scientific structure, high mechanical strength, and easy module installation and maintenance. The overall structure ensures the reliability and safety of the system to the greatest extent, and at the same time achieves aesthetics. The system is equipped with a visual human-machine interface, which can monitor the system running status and single battery status in real time.

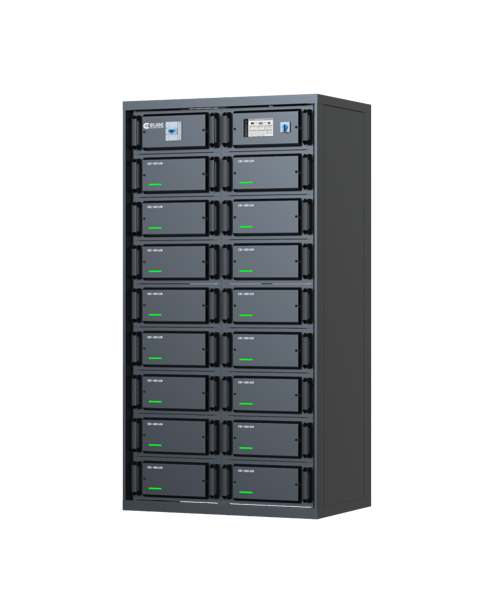

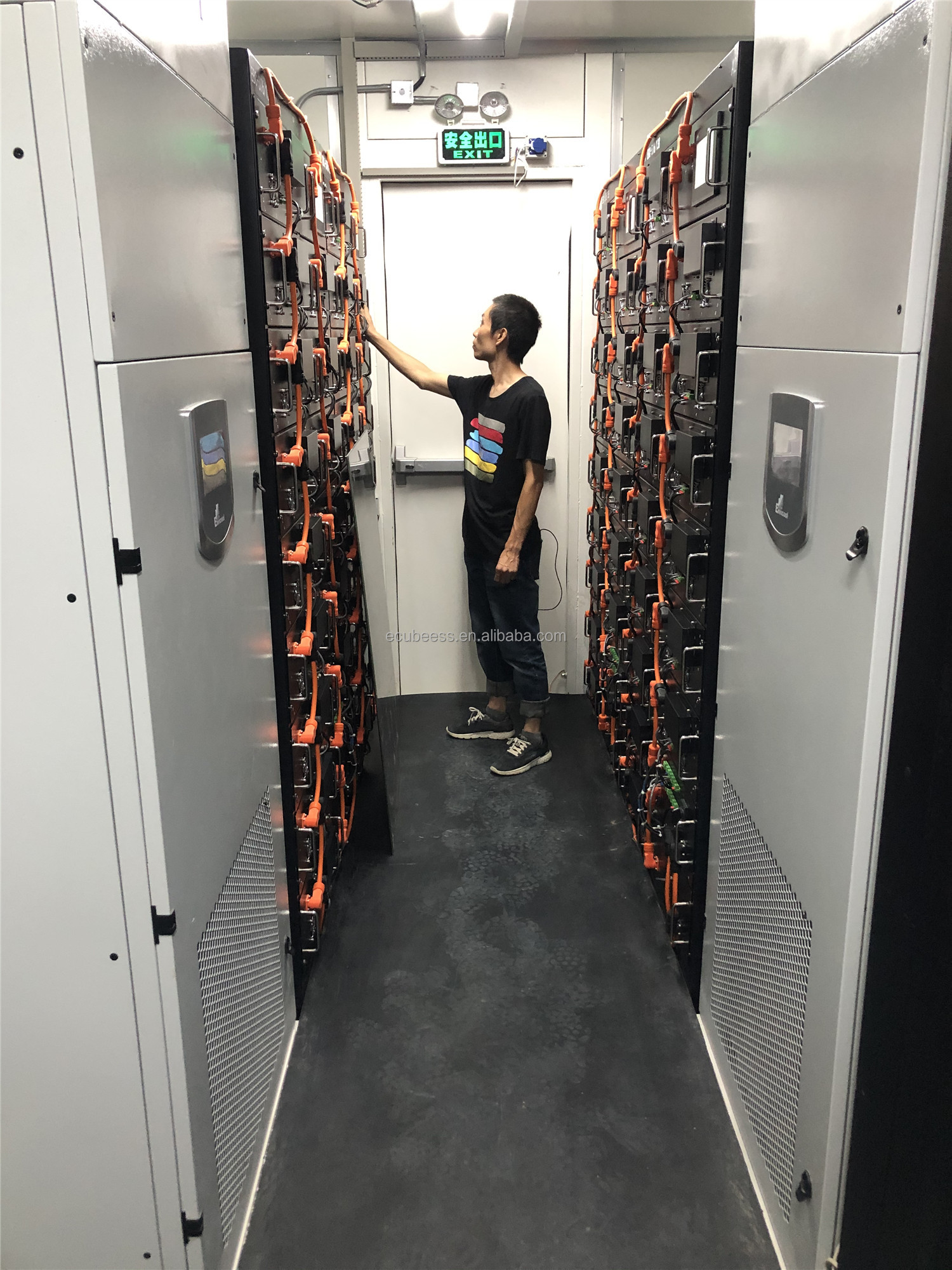

Lithium battery rack/system

1. The cabinet adopts a frame structure, the connection between the battery packs adopts the power line, and the high and low voltage and signal lines are connected with a unique connector

2. The structure is safe and reliable, and should have sufficient mechanical strength to ensure that the components will not shake or deform after installation and during operation. 3. The battery cabinet design fully considers the electrical clearance and creepage distance. In the design of clearance and creepage distance, the working voltage, overvoltage, pollution level and insulating material of the system are fully considered.

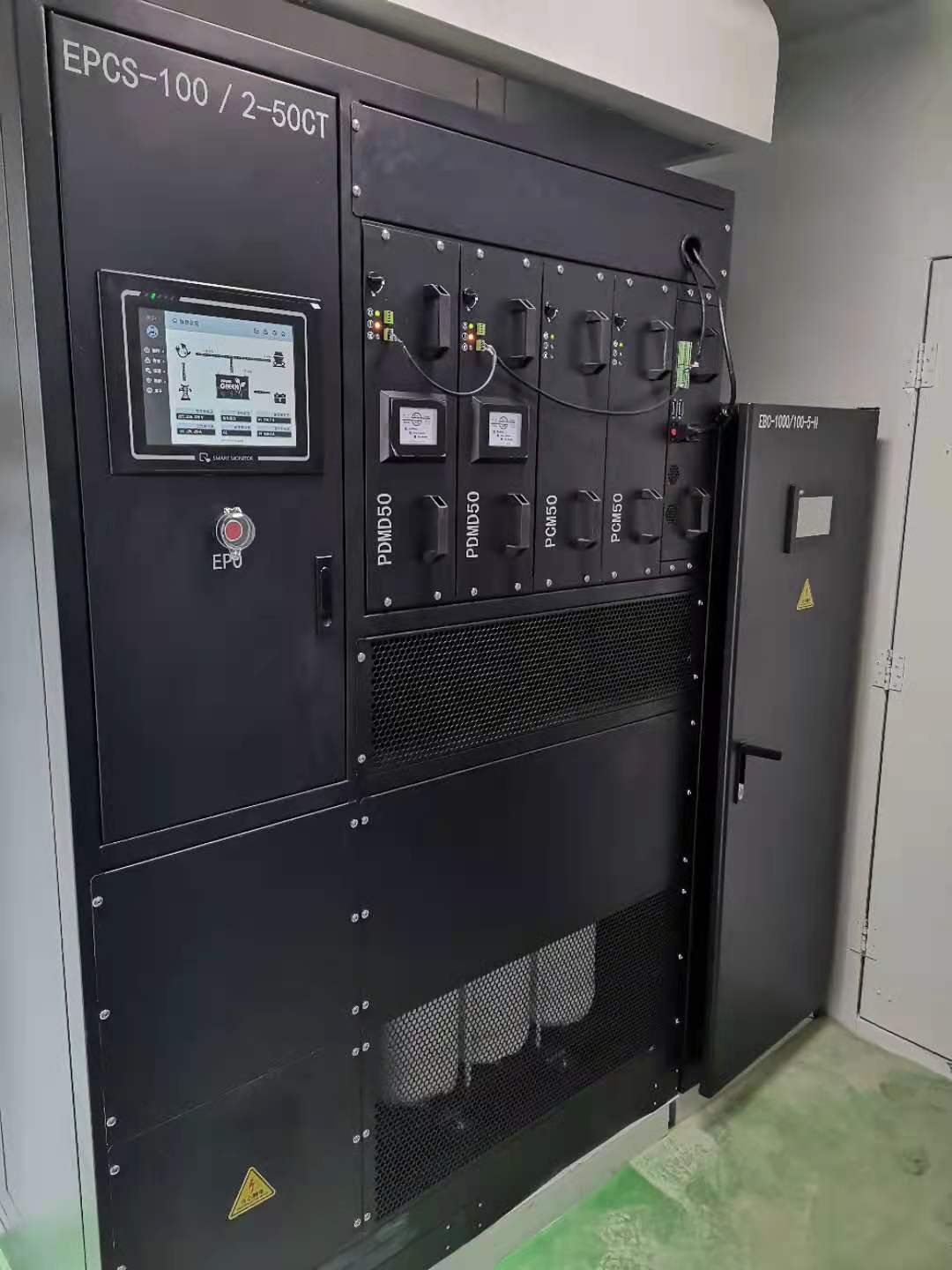

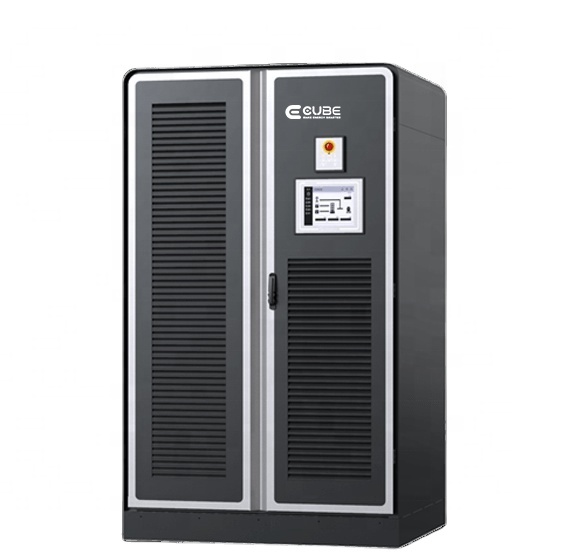

PCS power converter system

The multifunctional bidirectional converter can realize bidirectional conversion of DC to AC and AC to DC. It can not only convert alternating current into direct current to charge the battery, but also convert direct current into alternating current to supply power to the load or feed back to the grid. The system adopts advanced digital control technology, which optimizes the control performance and improves the reliability of the system. It can realize seamless switching of grid-connected discharge, grid-connected charging, and off-grid operation modes.

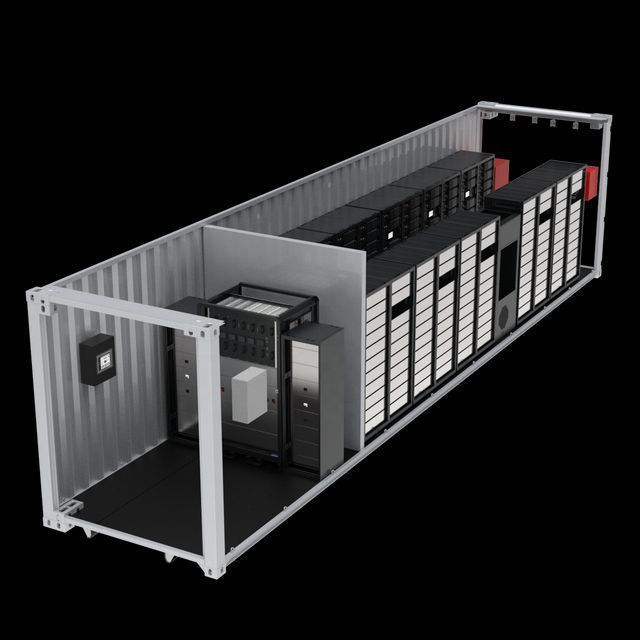

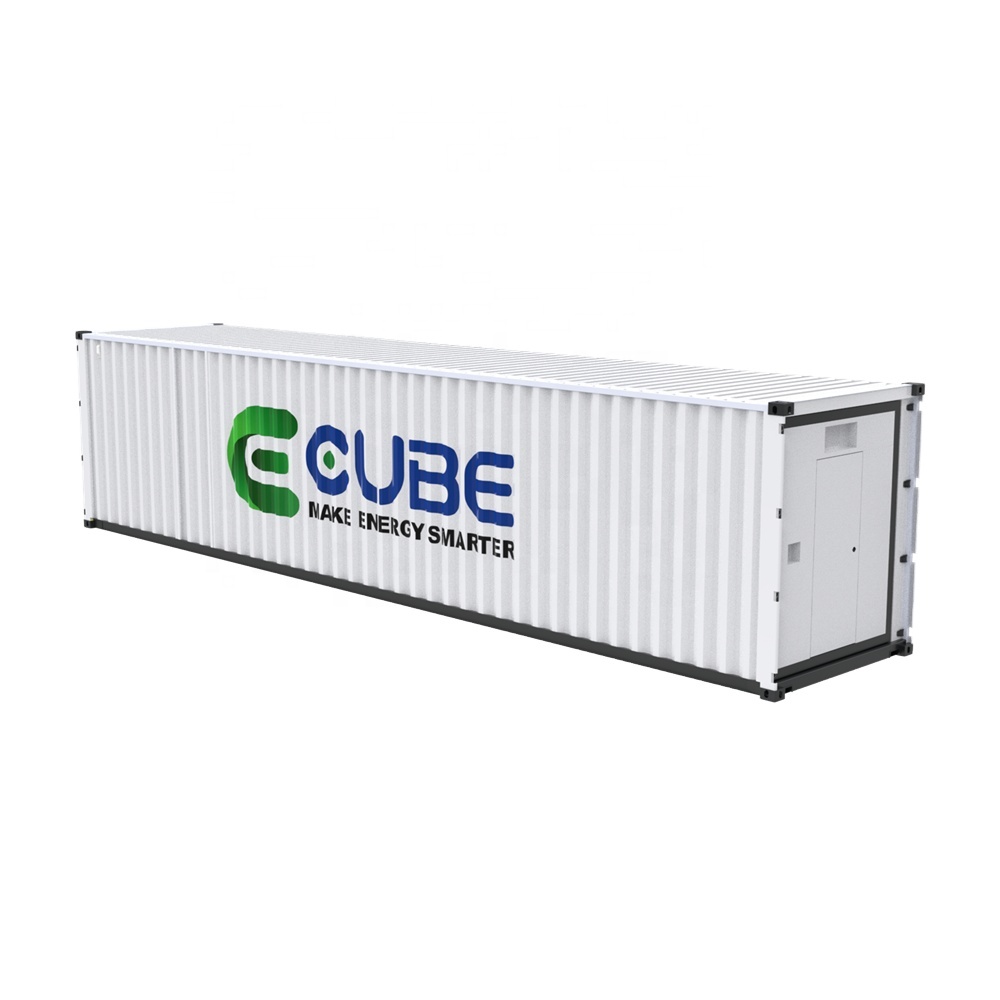

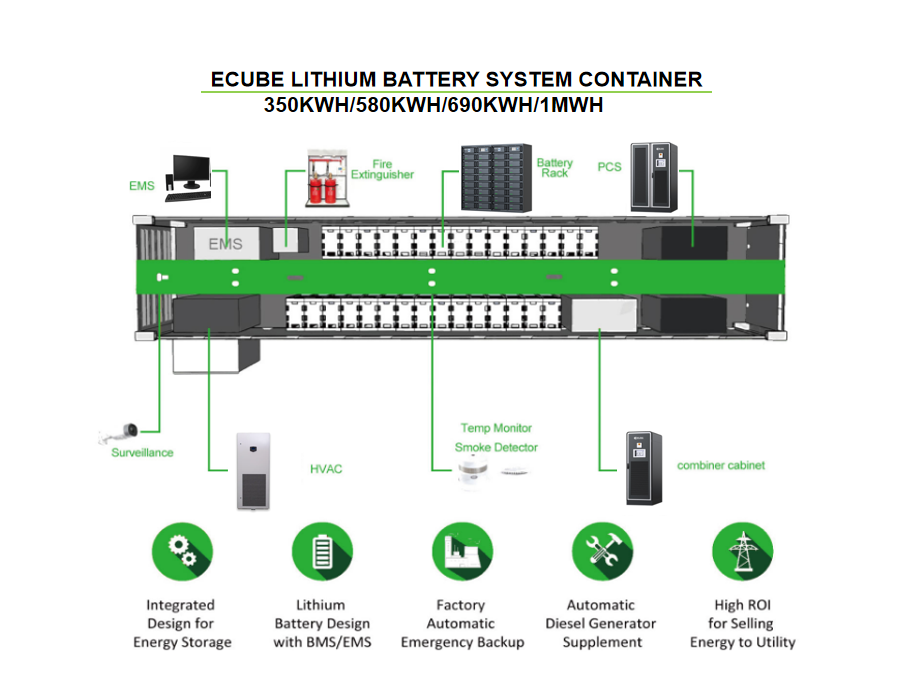

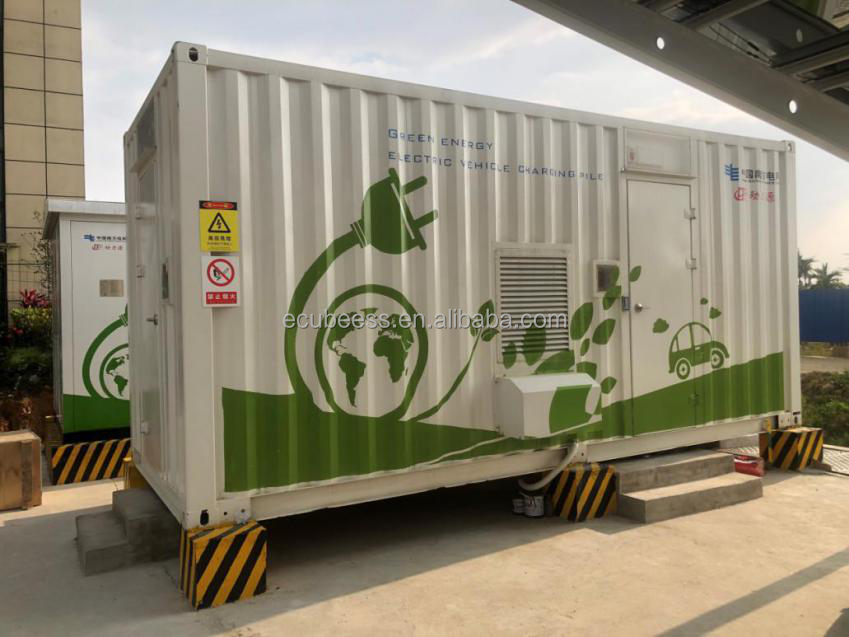

battery system container

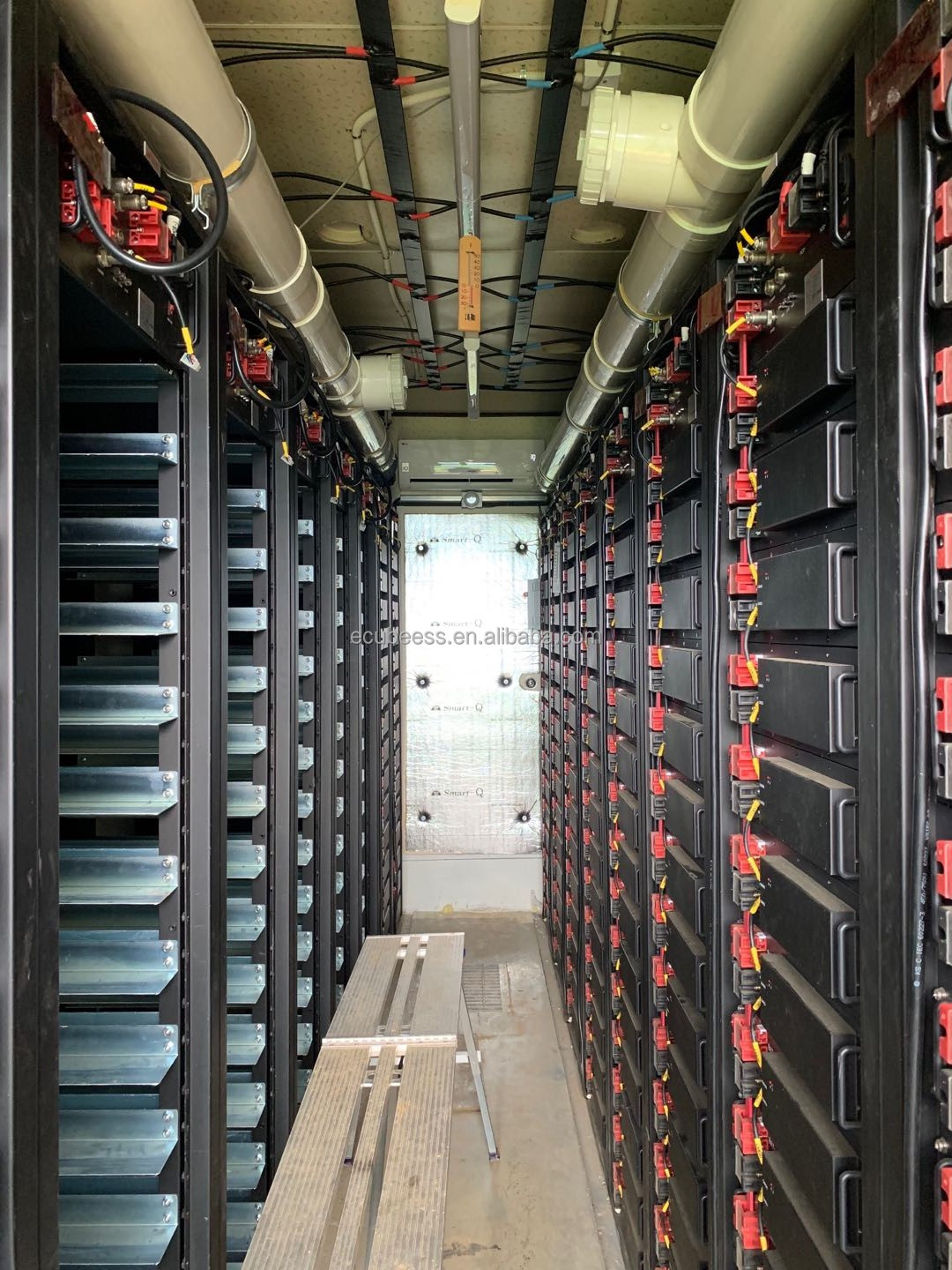

The container is mainly composed of double-layer thermal insulation system, monitoring system, fire protection system, access control system, lighting system construction wiring, equipment frame and other load-bearing frames and bridges; it can be installed with suspended ceilings, reserved suspended ceilings and box link fixed installation positions, overall design, on-site Assembly; the equipment is installed on the load-bearing frame, and the load-bearing frame is installed (welded) on the steel base plate, and the fixed installation position of the surveillance camera can be reserved.

product photo
