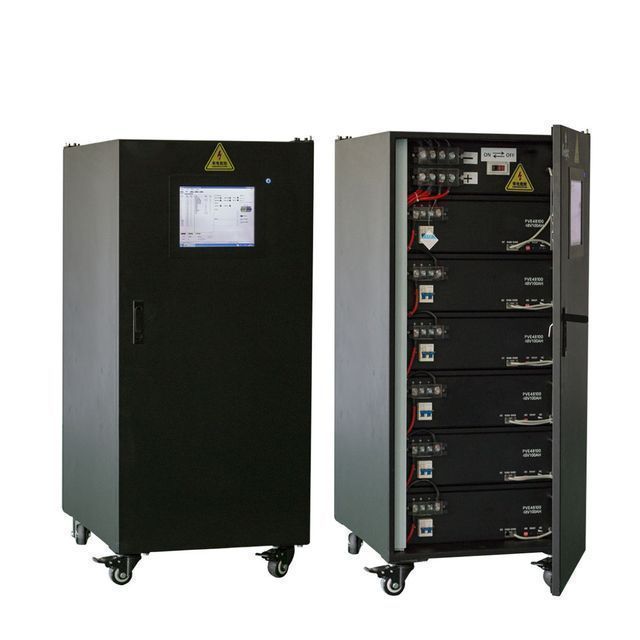

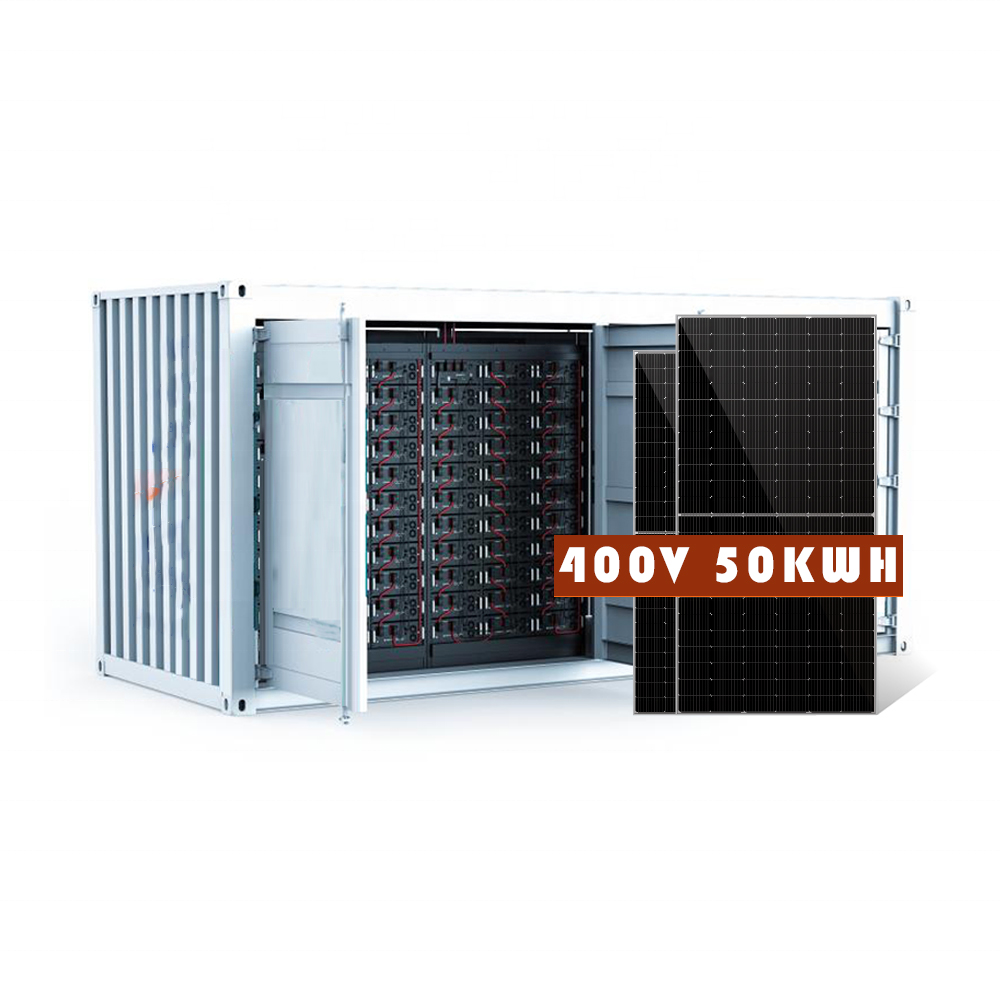

50KWh 400V Lithium-ionen Lifepo4 Pack Battery Lithium Phosphate Battery Products from Shenzhen Xianghao Industrial Co., Ltd.

Product Details

weight:	<420Kg	Recommended depth of discharge:	90%
payment terms:	L/C, D/P, T/T	model:	400v 50kwh
Configuration:	108S7P	Ingress Protection:	indoor
place of origin; place of origin:	Guangdong, China	Continuous charging:	120A
brand:	Xiang Hao	Nominal capacity:	126Ah
Continuous discharge:	120A	type of battery:	lithium battery
Storage temperature:	-20℃~40℃	Nominal energy:	50.3 kWh
port:	Shenzhen Yantian	cool down:	natural cooling

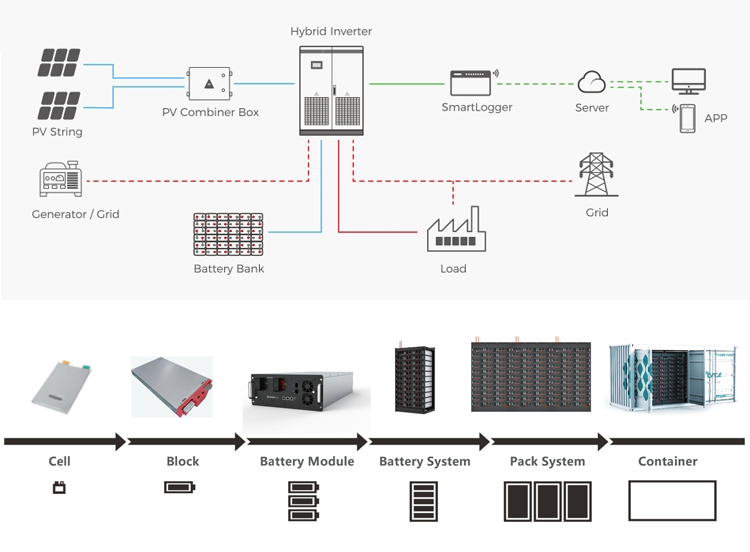

complete solar system

thing			50KWh product	Comment
Nominal energy			50.3 kWh	---
Nominal capacity			126Ah	±5% @25℃
Q			400V	---
absolute maximum voltage			453.6V	---
cut-off voltage (discharge)			324V	---
configuration			108S7P	---
continuous charging			120A
continuous discharge			120A
Recommended Depth of Discharge			90%	---
Maximum depth of discharge			100%	---
weight			<420Kg	---
cool down			natural cooling	---
ingress protection			indoor	---
storage humidity			25% ~ 95%RH
Working humidity			0 – 90% relative humidity
Storage temperature			-20℃~40℃	SOC>30%, once full every two months
Storage temperature	freed	-20℃~60℃	Long-term use below 0°C, can Select Electric Assisted Heating Function.
Storage temperature		TOLL		0℃~55℃

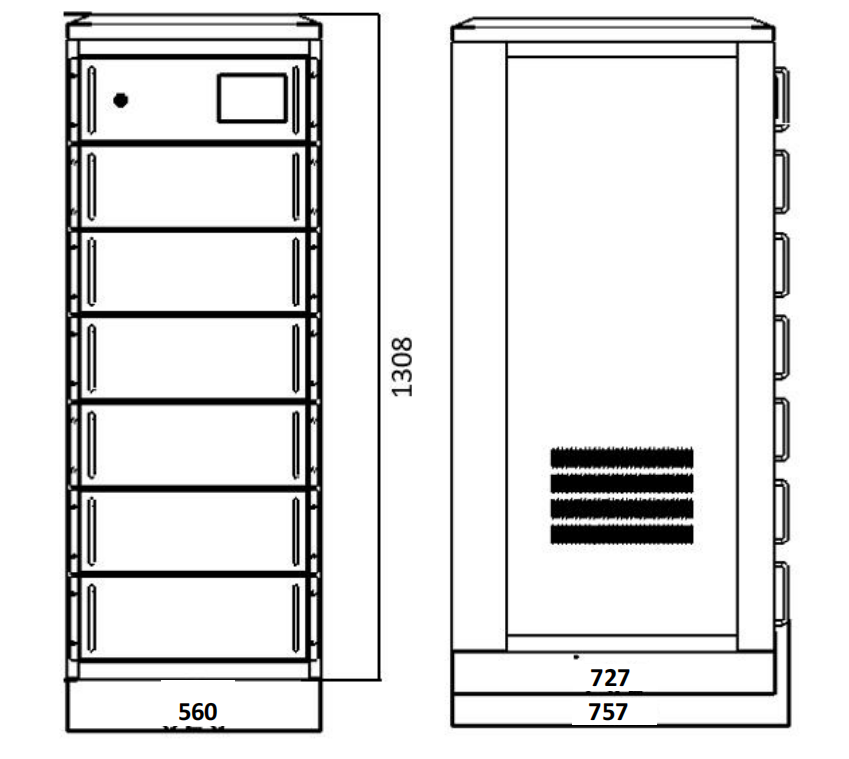

Product drawings

components

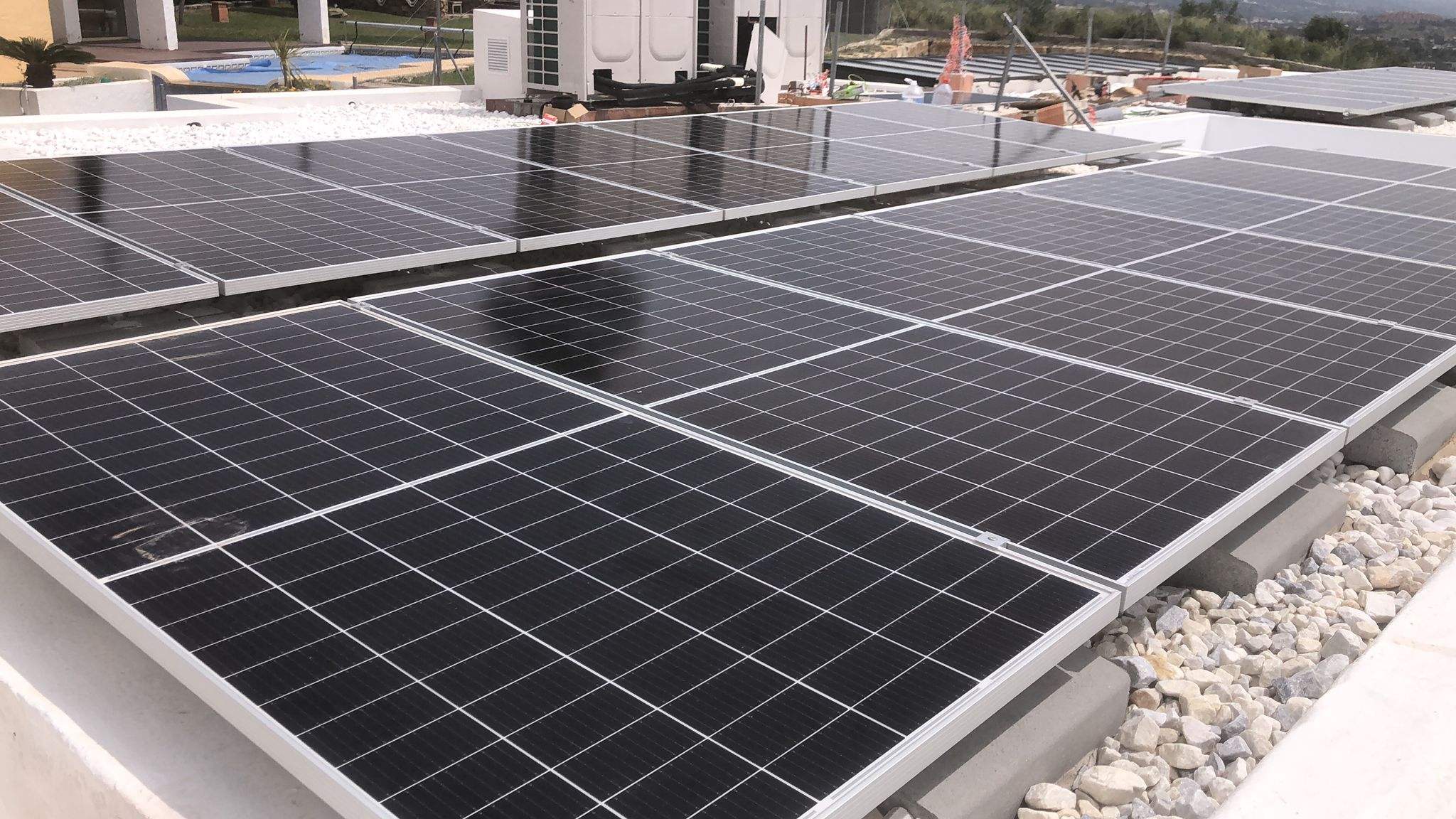

Solar panels

* PID Free PV Module * 0-5W positive power output guarantee * 25 years power output guarantee * 100% double full EL detection

hybrid inverter

*Automatically switch to load, battery charging or charging from backup grid with priority setting function; *Lithium battery and gel battery are compatible with almost all types of inverters; *Comprehensive WIFI monitoring

Solar battery

Lithium battery and gel battery are optional; 100Ah/150Ah/200Ah, capacity 100kwh/300kwh/500kwh; BMS Communication matches almost all types of hybrid energy inverters; easy installation, cables, racks and other accessories are ready.

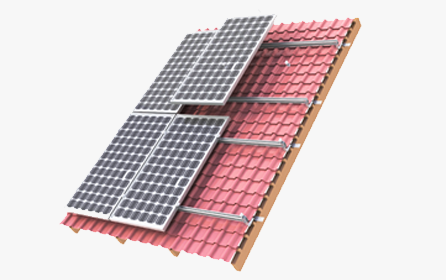

installation structure

Free Design Customization Using CAD Drawings For: Roof (flat/sloped), Ground, Parking Adjustable tile angle from 0 to 65 degrees Compatible with all solar modules.

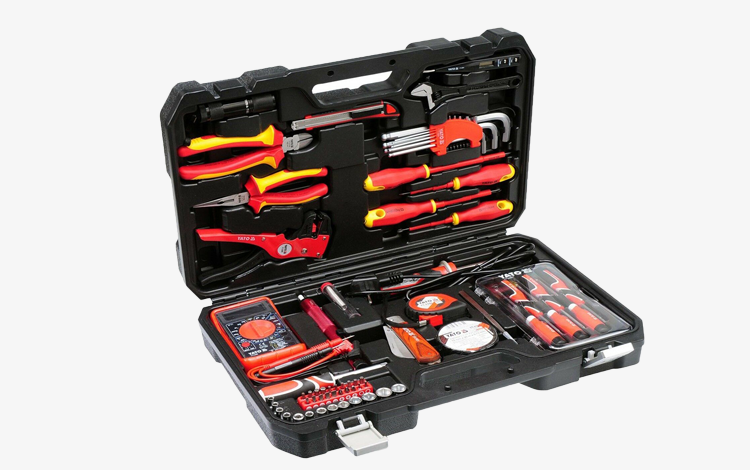

installation toolbox

*Includes all tools required for installation*Connector wrench, crimping pliers photovoltaic combiner box, photovoltaic cable installation tools, etc.
