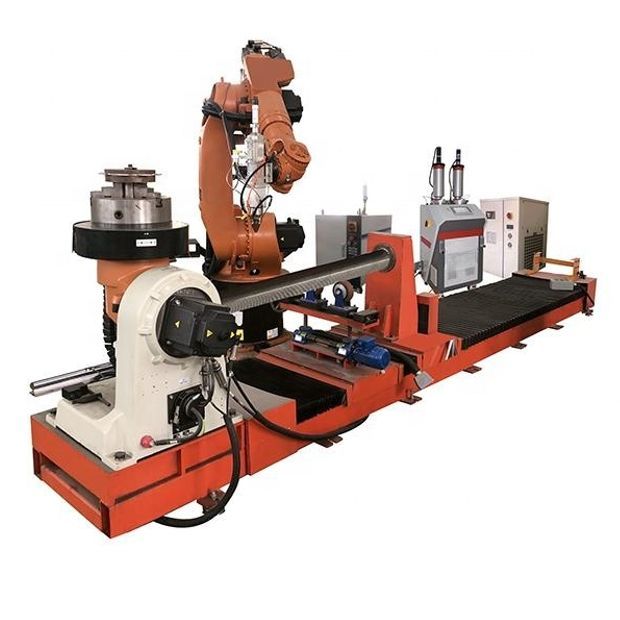

Best Selling High Speed Laser Cladding Machine Multi-Axis Robotic Laser Cladding Machine

Supplier: Sunrise Mechatronic Technology Co.,Ltd
Region: Jiangsu, China
Contact: Ms Sherry Qiao
Price: $30000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Core components:	PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump	Fiber length:	20m
Material:	custom made	application:	Laser heat treatment
Laser head brand:	sunrise	Mechanical test report:	if
payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram	cooling method:	air cooling
Place of origin:	Jiangsu, China	Guide rail brand:	sunrise
Turntable load:	custom made	Applicable materials:	Metal
Showroom location:	Canada, Turkey, France, Vietnam, Saudi Arabia, Pakistan, India, Russia, South Korea, Kazakhstan	Core component warranty:	1 year
Video outbound inspection:	if	Voltage:	360-480V
Control system brand:	Siemens	Main selling points:	High accuracy
Marketing type:	New products for 2023	Core diameter:	600μm
Weight (kg):	6500kg	Package preview:
Packaging details:	1. Outer packaging: standard sea export plywood box 2. Inner packaging: stretch film and moisture-proof plastic film 3. We can package according to your requirements	brand:	Haiti
Applicable industries:	Hotels, clothing stores, building materials stores, manufacturing plants, machinery repair shops, printing shops, construction projects	Laser type:	fiber-optic laser
port:	Shanghai	Key words:	Laser cladding machine
Turntable rotation diameter:	custom made	Center wavelength:	1080±10nm
product name:	Robot laser cladding machine	Laser source brand:	Raycus
Laser source:	3000W/6000W/12000W	Health status:	new
Warranty:	1 year	robot:	ABB, FAUNC, customization
Supply capacity:	100 sets per month

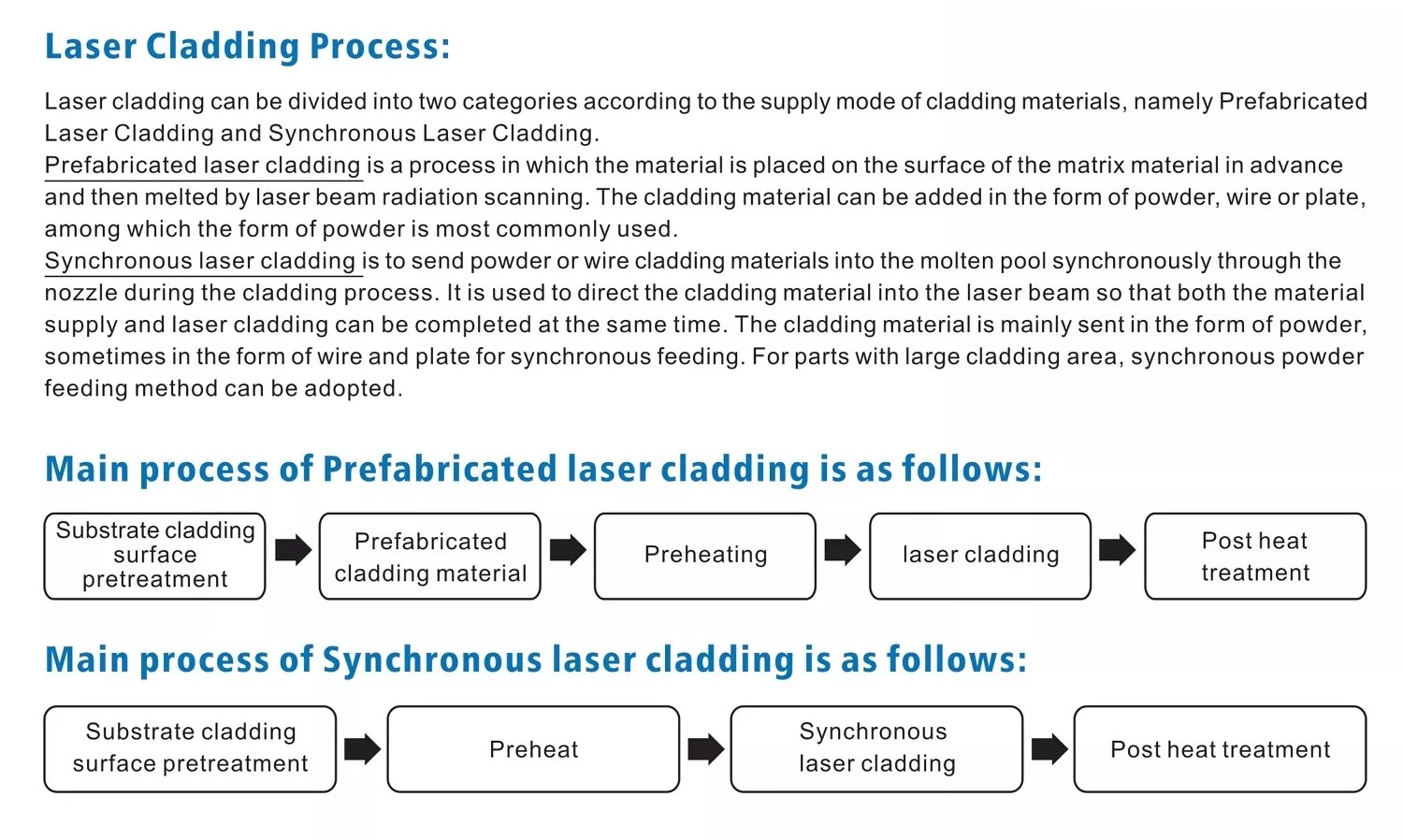

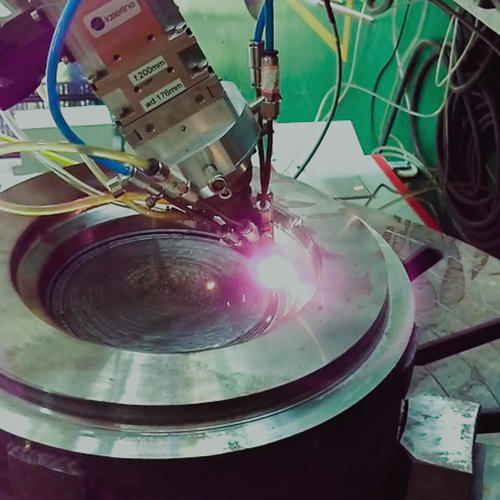

What is laser cladding

Best Selling High Speed Laser Cladding Machine Multi-Axis Robotic Laser Cladding Machine

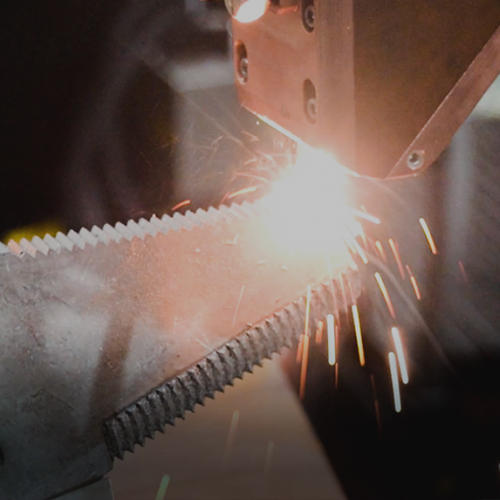

What is laser cladding technology?Laser cladding is a new surface modification technology. It adds cladding material to the surface of the substrate and uses a high-energy-density laser beam to melt it together with the thin layer on the surface of the substrate to form a metallurgical bond on the surface of the substrate. Add cladding.

Characteristics of laser cladding

The metallurgical combination of the cladding layer and the base material can significantly improve the wear resistance, corrosion resistance, heat resistance, oxidation resistance or electrical properties of the base material surface, thereby achieving the purpose of surface modification or repair. Meet specific performance requirements for material surfaces. At the same time, a lot of material costs can be saved.Advantages of laser cladding:1. Wear-resistant and corrosion-resistant. It can coat the surface of ordinary carbon steel workpieces with a corrosion-resistant, wear-resistant, high-performance alloy layer to extend the service life of the workpieces. 2 The cladding quality is high. Small deformation, good mechanical repeatability, dense interface structure, fine grains, no holes, inclusion cracks and other defects 3. Can achieve local fine cladding on the surface of the workpiece. 4. The powder material system has strong adaptability, and most conventional and special metal powder materials can be clad onto the surface of metal parts.

Main ingredients

laser source

Laser power: 10~3000W continuously adjustable, QBH interface, core diameter 600um, length 20m.

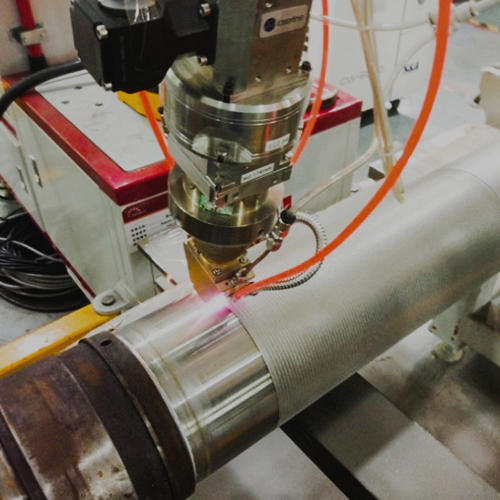

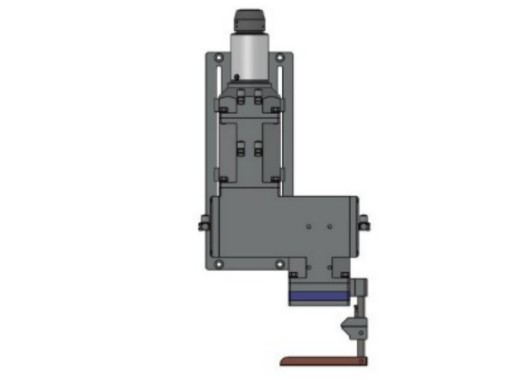

laser head

1. Collimation focal length: 100mm, focusing focal length: 300mm
2. Applicable wavelength: 900-1100nm
3. The powder feeding nozzle contains a water-cooled base
4. Optical fiber interface: QBH

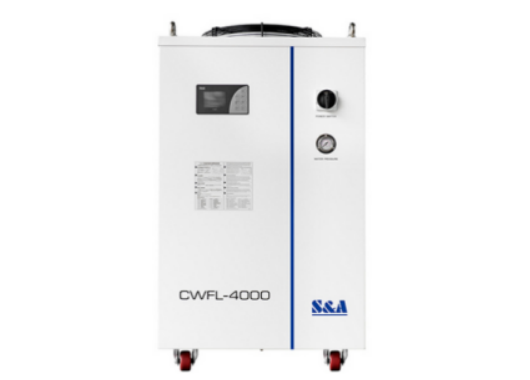

Chiller

Dual temperature controls provide cooling water for lasers, processing heads, optical fibers, etc.

PLC master control system

The laser, water cooler and protective gas are integrated and controlled by PLC. The lights can be controlled and turned off via programming through the robot interface.

Free powder box

Powder box volume: 1.5 liters Powder feeding particle size: 20~200μm Powder feeding speed: 0~2 (6) (10) rpm, stepless speed adjustment powder feeding repeatability: ≤±2%

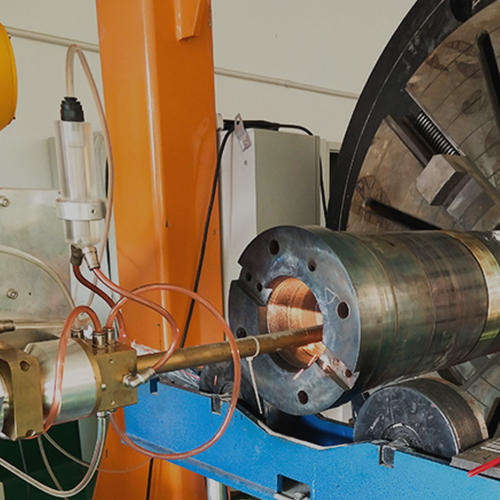

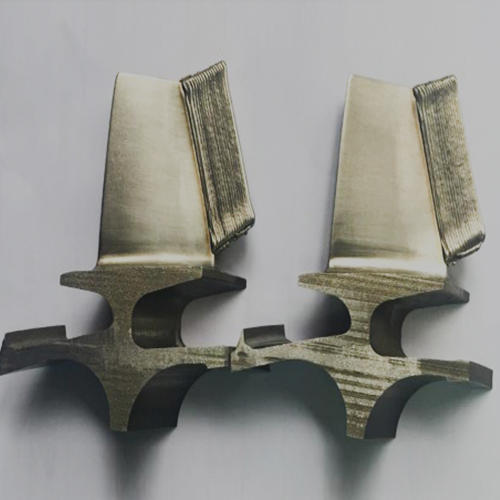

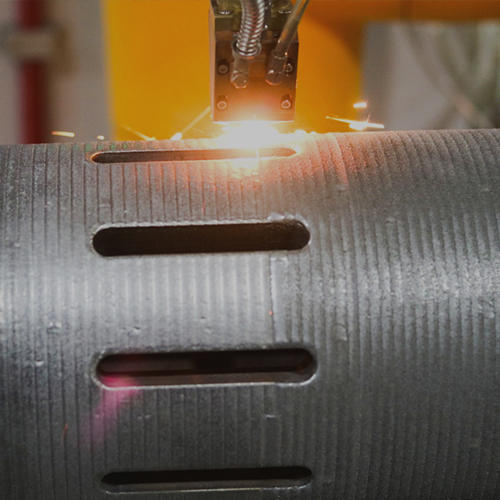

application

Cutter

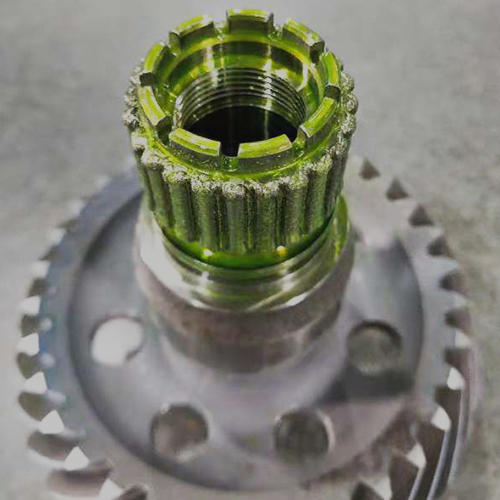

external splines

Dry

Large bearings

hydraulic column

stamping die

Knives

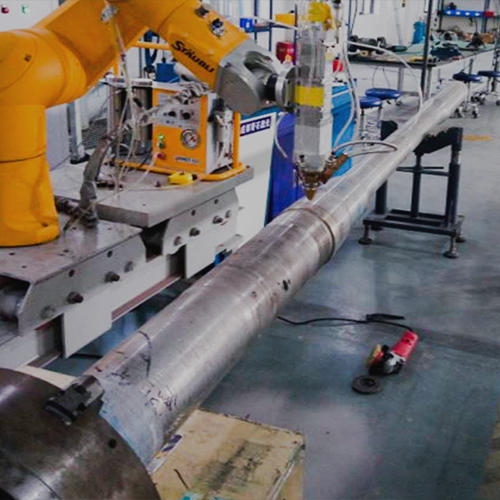

big shaft

CNC milling machine spindle

Product display

content	parameter
laser	3-20kW, optical fiber, semiconductor, disk, etc.

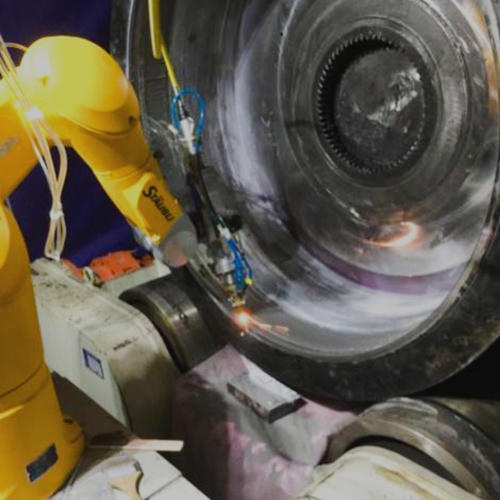

robot	Clamping weight 16-150kg, wingspan 1600-3700mm, KUKA, ABB, FANUC, YASKAWA, etc.
Laser processing head	0.8-50mm round, square light spot, size can be customized, coaxial, coaxial powder feeder
Powder feeder	Airborne, gravity conveying, powder feeding accuracy ≤ soil 2%, powder feeding amount 10-150g/min, single machine or double machine
Cooling water machine	Single temperature, dual temperature and cooling capacity are selected according to the laser
Optional accessories	Internal hole cladding head, temperature closed loop, online detection, distance detection, offline programming, molten pool monitoring, etc.
Input voltage	360-480V three-phase five-wire system @50 60Hz
The main components	Laser, cooling device, powder feeding mechanism, processing table, etc.
Laser selection	CO2 laser, solid laser, fiber laser, semiconductor laser
