Laser hardening machine with high efficiency 360-480 volts laser surface hardening

Supplier: Sunrise Mechatronic Technology Co.,Ltd
Region: Jiangsu, China
Contact: Ms Sherry Qiao
Price: $8000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Video external inspection:	if;	Health status:	new;
Marketing Type:	New Products 2022;	Voltage:	360-480V;
Laser source brand:	Rex;	Input voltage:	360-480V three-phase five-wire system@50-60Hz;
Showroom location:	India;	Applicable industries:	Building material stores, manufacturing plants, machinery repair shops, construction works;
place of origin; place of origin:	Jiangsu, China;	laser:	2-6kW, optical fiber, semiconductor, disc, etc.;
Laser Type:	fiber-optic laser;	product name:	Laser mold hardening machine;
Core components:	PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump;	Main selling point:	high efficiency;
Laser processing head:	3-25mm round and square spot, the size can be customized;	payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram;
application:	laser heat treatment;	Warranty:	1 year;
Core Components Warranty:	1 year;	Weight (kg):	5000 kg;
Applicable materials:	Metal;	Mechanical test report:	if;

Product display

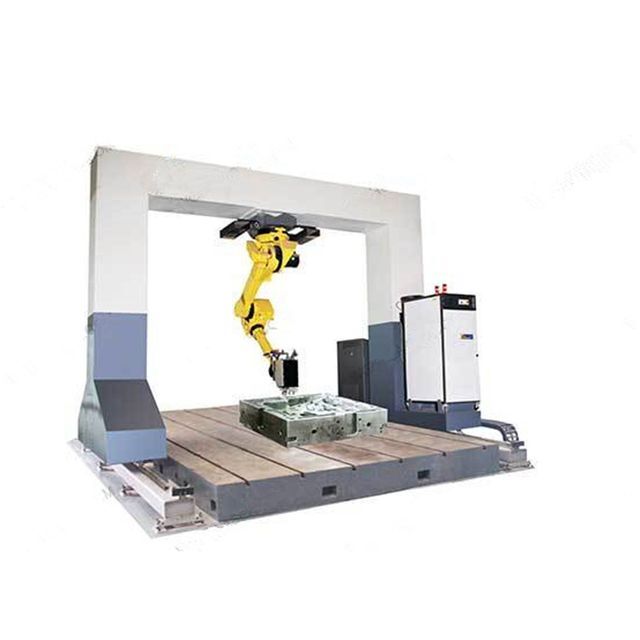

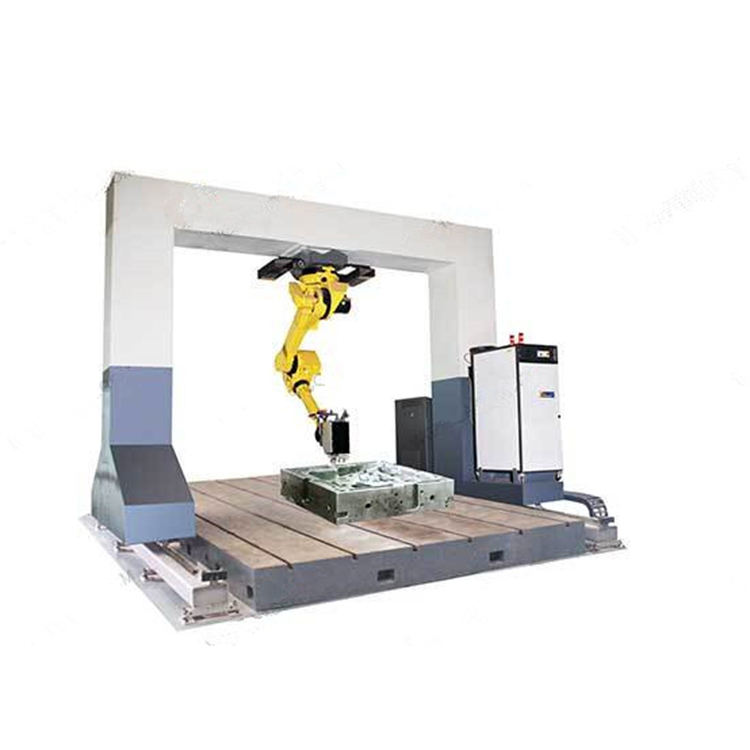

Advanced lasers, advanced industrial robots and control systems are used to form a multi-axis linkage flexible laser processing system. According to the shape and process requirements of the mold industry. The equipment can directly generate the quenching head trajectory through the introduction of digital and analog, and the closed-loop precise control of the quenching temperature and quality. It can carry out laser quenching and repair processing on complex surfaces of large molds.

Machine features: 1. High efficiencyLaser quenching and repairing of complex surfaces of large molds2. High qualityAccurate control of quench temperature and quality in a closed-loop fashion.3. High intelligenceThe equipment can directly generate the quenching head trajectory through digital-analog import

Product parameters

content	parameter
laser	2-6kW, optical fiber, semiconductor, disc, etc.
robot	Weight 16-150kg, wingspan 1600-3700mm, KUKA, ABB, FANUC, YASKAWA, etc.
Laser processing head	3-25mm round, square spot, size can be customized
chiller	Single temperature, dual temperature, and cooling capacity are selected according to the laser
Optional accessories	Temperature closed loop, online detection, distance detection, offline programming, temperature monitoring, etc.
Input voltage	360-480V three-phase five-wire system@50-60Hz
