CNC laser quenching machine/robot laser quenching machine

Supplier: Sunrise Mechatronic Technology Co.,Ltd
Region: Jiangsu, China
Contact: Ms Sherry Qiao
Price: $9999.00 /set
Min. Order: 1 set

Click here to contact

Product details

Health status:	new;	Weight (kg):	30,000 kg;
Applicable materials:	Metal;	place of origin; place of origin:	Jiangsu, China;
Core components:	PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump;	application:	laser heat treatment;
Showroom location:	Turkey, Vietnam, India;	Video external inspection:	if;
Warranty:	1 year;	payment terms:	wire transfer;
Laser source:	10-2000W;	cooling method:	water cooling;
Applicable industries:	Building material stores, manufacturing plants, machinery repair shops, construction works, other, hand tools;	Mechanical test report:	if;
Laser Type:	fiber-optic laser;	Core Components Warranty:	1 year;
Laser source brand:	Raycut/Max/IPG;	Main selling point:	automatic;
Marketing Type:	New Products 2021;

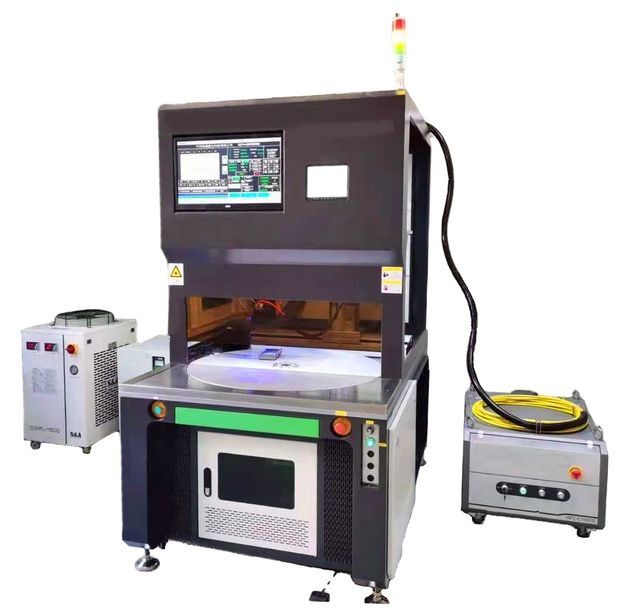

Product display

Machine Features: 1. Automatic 4-axis system4-axis automatic machine, which can realize automatic and high-precision laser spot positioning

2. Intelligent integrated control systemAll system functions can be realized, such as motion system, laser system, cooling system work monitoring, etc.

3. Process data storageProduction data can be saved, and quenching parameters can be recalled according to different workpieces

4. High precision turntableThere are turntables with clamps for quick loading and unloading of workpieces.

5.monitoring system

The machine is equipped with a laser quenching monitoring system, and the operator can easily check the quenching status.

6. Dust-free designThere is an air purification system to avoid laser hardening fumes.

7. Small and beautiful design cover.4-axis automatic machine, which can realize automatic and high-precision laser spot positioning

thing	describe
laser source	Laser power: 10~2000W continuously adjustable.
fiber optic system	Core diameter 600um, length 15m
Laser alignment head	Collimation focal length: 100mm, focusing focal length: 300mm
Laser Focusing Module	Ensuring speckle effect and heat treatment consistency
chiller	Dual temperature control provides cooling water for laser and external optical path
Multi-station four-axis system	Professional laser numerical control system, equipped with industrial computer, realize XYZ movement, stroke X: 500mm, Y: 400mm, Z: 300mm (the specific stroke depends on the workpiece); Positioning accuracy: W±0.035mm Repeated positioning accuracy: Width ±0.01mm. A-axis and XYZ form a four-axis linkage

Smoke purification system	Smoking and dust removal in the work area (to prevent pollution)
Refrigeration dryer	10HP, 1.5M3 filter and dry compressed air
Fixture	custom made
