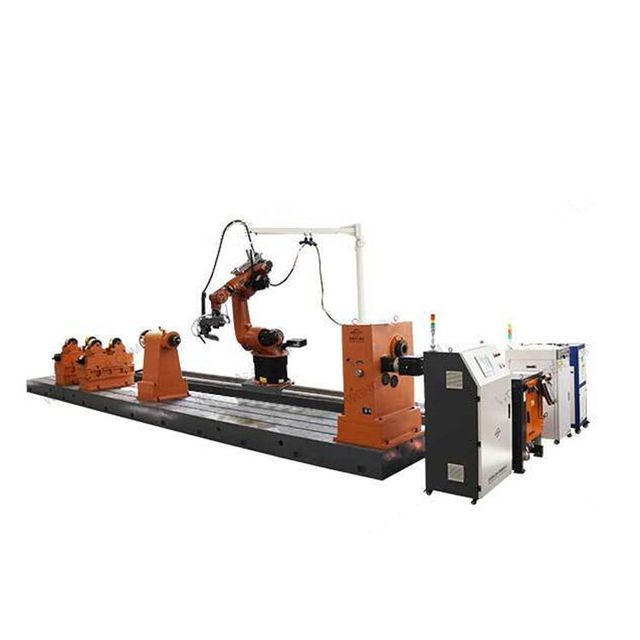

High-energy laser multi-axis linkage flexible CNC laser cladding machine

Click here to contact
Product details
Voltage:360-480Vlaser:0.5-20kW, optical fiber, semiconductor, disc, etc.
Laser type:fiber-optic laserMain selling points:Multi-axis linkage flexibility
Warranty:1 yearcooling method:water cooling
Applicable materials:MetalMechanical test report:if
Core components:PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pumpLaser source brand:Raycus
Health status:newApplicable industries:Building material stores, manufacturing plants, machinery repair shops, construction projects
application:laser heat treatmentWeight (kg):6500 kg
Core component warranty:1 yearpayment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGram
Input voltage:360-480V three-phase five-wire system @50-60HzVideo shipment inspection:if
Marketing Type:New Products 2022Showroom location:India
Origin:Jiangsu, China
product display
Advanced laser, six-axis robot and control system, multi-axis linkage flexible processing system, to meet the requirements of laser quenching, laser alloying, laser cladding/remanufacturing of metal workpiece surface (ultra-high speed laser cladding, conventional laser cladding, wide spot laser Cladding, inner hole laser cladding), laser additive manufacturing (laser 3D printing) and other advanced manufacturing process requirements. General equipment for laser surface strengthening and remanufacturing of parts such as metallurgy, automobile molds, mining machinery, coal machinery, petrochemical machinery, and generator sets.
application:
Metallurgy, mould, machinery manufacturing, petrochemical industry, light industry, energy, transportation, automobile, hardware tools, military industry and other industries.
Machine Features:
1. Using high-energy laser 2. Stable and reliable 3. Flexible multi-axis linkage 4. Good function openness
Advanced laser, six-axis robot and control system, multi-axis linkage flexible processing system, to meet the requirements of laser quenching, laser alloying, laser cladding/remanufacturing of metal workpiece surface (ultra-high speed laser cladding, conventional laser cladding, wide spot laser Cladding, inner hole laser cladding), laser additive manufacturing (laser 3D printing) and other advanced manufacturing process requirements. General equipment for laser surface strengthening and remanufacturing of parts such as metallurgy, automobile molds, mining machinery, coal machinery, petrochemical machinery, and generator sets.
Product parameters
content
parameter
laser
0.5-20kW, optical fiber, semiconductor, disc, etc.
robot
Weight 16-150kg, wingspan 1600-3700mm, KUKA, ABB, FANUC, YASKAWA, etc.
Laser processing head
0.8-50mm circular, square spot, size can be customized, coaxial, parallel axis powder feeder
powder feeder
Airborne, gravity conveying, powder feeding accuracy ≤ ± 2%, powder feeding volume 10-150g/min, single machine, double machine
Cooling water machine
Single temperature, double temperature, cooling capacity is selected according to the laser
optional accessories
Inner hole cladding head, temperature closed loop, online detection, distance detection, offline programming, molten pool
Monitoring, etc.
Input voltage
360-480V three-phase five-wire system @50-60Hz
