DC motor high power motor 12-24V 550/555/775/795/895

Supplier: Shenzhen Xinke Xincheng Technology Co., Ltd.
Region: Guangdong, China
Contact: Mr Lin Ken
Price: $1.89 / 5 - 14 pieces
$1.13 / 15 - 29 pieces
$0.12 / >=30 pieces
Min. Order: 5 pieces

Click here to contact

Product details

model:	MLX90614ESF DCI	Reversal:	brush
put up:	permanent magnet, permanent magnet	port:	Shenzhen
Torque:	big	Speed (rev/min):	3000--15000
type:	DC motor 775 12v 24v	type:	Micro-motor
Warranty:	3 months	Certification:	CE
usage:	Boats, cars, general purpose, automobiles, electric bicycles, home appliances	payment terms:	L/C, Western Union, D/P, D/A, T/T
Supply capacity:	9999 pieces per month	Continuous current (A):	0.2-1.6A
efficiency:	other	Place of origin:	Guangdong, China
brand:	original brand	Part Number:	775 motor
Packaging details:	Box	Protective function:	other

DC motor high power motor 12-24V 550/555/775/795/895

Specification:

This is a DC motor and cannot directly use 220V household AC power. Please use switching power supply or battery power supply. It is recommended to use a 12-24V power supply with a current of more than 10A. For motors with less than 5 strings, it is recommended to use an adapter of about 4A or a power supply of lithium battery or above.

Ball bearings, cooling fan, long life guarantee

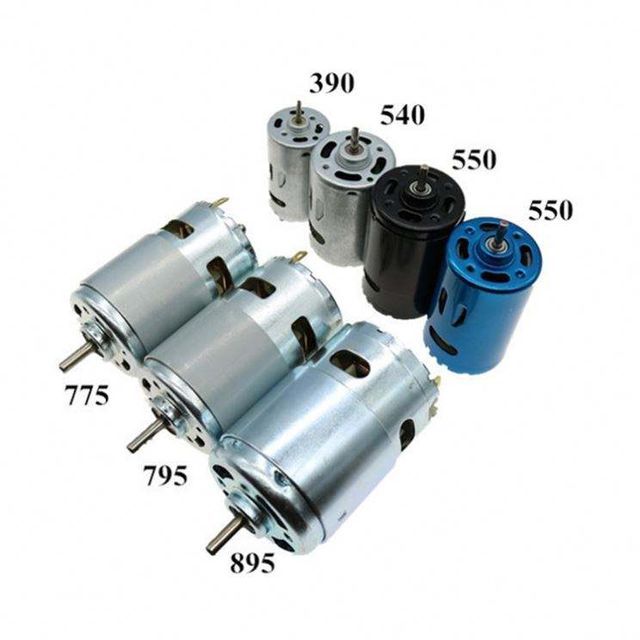

895, 795, 775, Black 550, and Blue 550 are all equipped with ball bearings and cooling fans, which can automatically reduce heat and ensure long service life. (Strong magnetic 550, 540, and 390 motors have a copper sleeve structure, without fans and ball bearings)

motor model	Motor characteristics	Rated speed	Applicable voltage	Maximum torque	No load current
895 low speed version	Double ball, round shaft	12V 3000 rpm	12V-24V	10kg/cm	1A
895 high speed version	Double ball, round shaft	12V 6000 rpm	12V-24V	8kg/cm	1.1A
795 (round shaft 12V)	Double ball, round shaft	12V 12000 rpm	12V-24V	6.5kg/cm	1.1A
795 (d-axis 12V)	Double sphere, d-axis	12V 12000 rpm	12V-24V	6.5kg/cm	1.1A
795 (d-axis 24V)	Double sphere, d-axis	24V 12000 rpm	12V-24V	6.5kg/cm	1.1A
795 (dual output shaft 12V)	Double ball, double output shaft	12V 12000 rpm	12V-24V	6.5kg/cm	1.1A
775 (round shaft 12V)	Double ball, round shaft	12V 12000 rpm	12V-24V	4.5kg/cm	1A
775 (d-axis 12V)	Front ball, d-axis	12V 12000 rpm	12V-24V	4.5kg/cm	1A
775 (round shaft, 24V)	Front ball, round shaft	24V 8000 rpm	12V-24V	4.5kg/cm	1A
775 (dual output shaft 12V)	Front ball, twin output shafts	12V 12000 rpm	12V-24V	4.5kg/cm	1A
Strong magnet 555	Double ball, round shaft	12V 12000 rpm	12V-24V	2.5kg/cm	0.2A
Strong magnet 550	Copper sleeve, round shaft	12V 10000 rpm	12V-24V	2.5kg/cm	0.2A
No. 1 black 550	Front ball, d-axis	7.4V 10400 rpm	12V-24V	42.4kg/cm	1A
No. 2 black 550	Front ball, round shaft	12V 13200 rpm	12V-24V	42.6kg/cm	1.6A
No. 3 black 550	Front ball, round shaft	7.4V 10400 rpm	6V-18V	42.4kg/cm	1A
NO.4 Black 550	Front ball, d-axis	7.4V 13200 rpm	6V-18V	42.6kg/cm	1.6A
Blue 550	Front ball, round shaft	12V 15000 rpm	6V-18V	42.6kg/cm	1.3A
Chapter 540	12 copper sleeves, round shaft	7.4V 10000 rpm	12V-24V	2.5kg/cm	0.4A
390	Copper sleeve, round shaft	12V 13000 rpm	6V-18V	1.5kg/cm	0.2A
