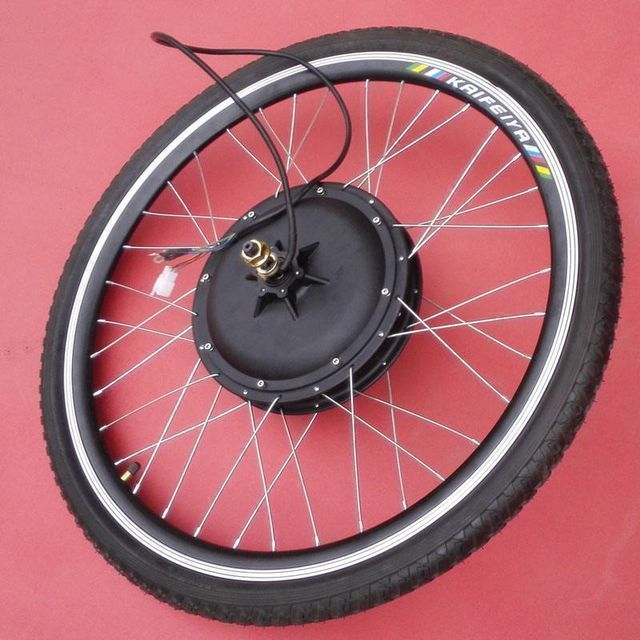

1000W 48V Electric Bike Brushless Hub Motor

Click here to contact

Product details

place of origin; place of origin:	China	drive:	precursor
usage:	Electric bicycles, home appliances, scooters	maximum. speed:	45 km/h
Gear Type:	Brushless and gearless	type:	DC hub motor
Certification:	ce	brand:	Do not
Torque:	20-40Nm	Packaging Details:	4 In the foam former, in the carton.
Continuous current (A):	15-20A	payment terms:	wire transfer
port:	Hong Kong, Lo Wu	Warranty:	3 months - 1 year
Speed (RPM):	400-500RPM	Supply capacity:	5000 sets per month
model:	F205-S2	Protective function:	waterproof
Commuting:	brushless	efficiency:	83%
Fork size:	100mm	weight:	6.5kg

Specification:

7) The surface is cut quickly, pure metal is bright, no need to paint

8) Brushless, long life (bearing life), maintenance free

9) Small size, light weight, high power and simple structure

10) Excellent starting, no hysteresis damping energy consumption, strong climbing ability

11) High efficiency, wide range of high efficiency, low power consumption, long driving distance

12) Excellent water resistance

attention:

1) The motor should be stored in a dry and ventilated room to avoid humidity, acid and alkali. Do not place motors with magnetic products.

2) The product should not be overloaded for a long time, and the current limit of the controller is less than 10A.

3) There should be no water when the motor is working.

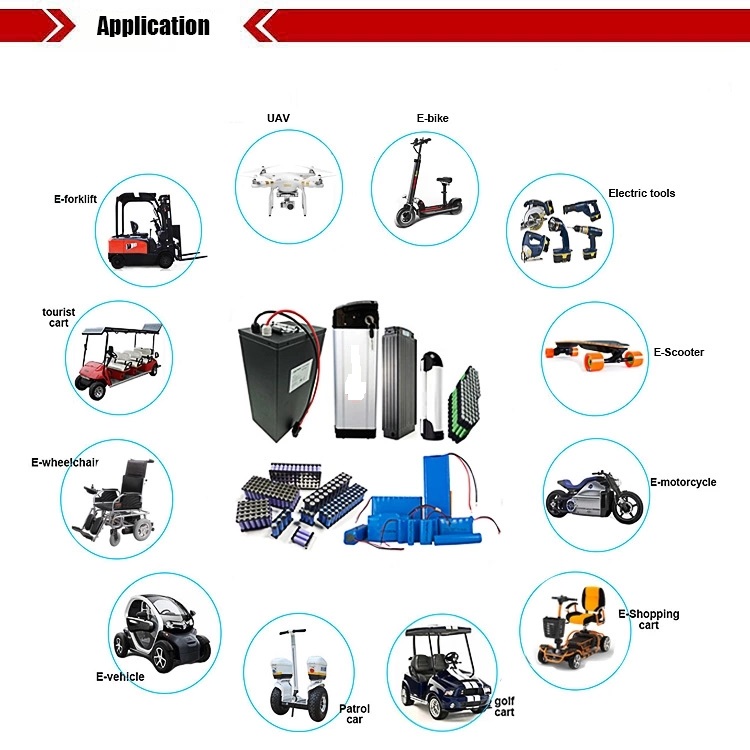

Product Usage
