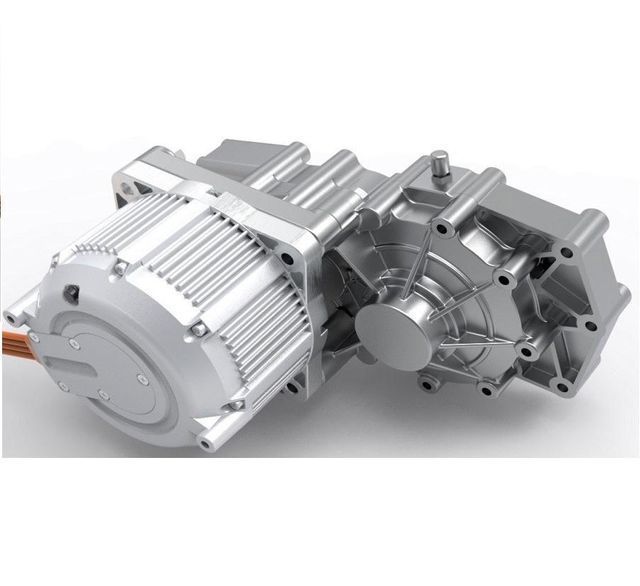

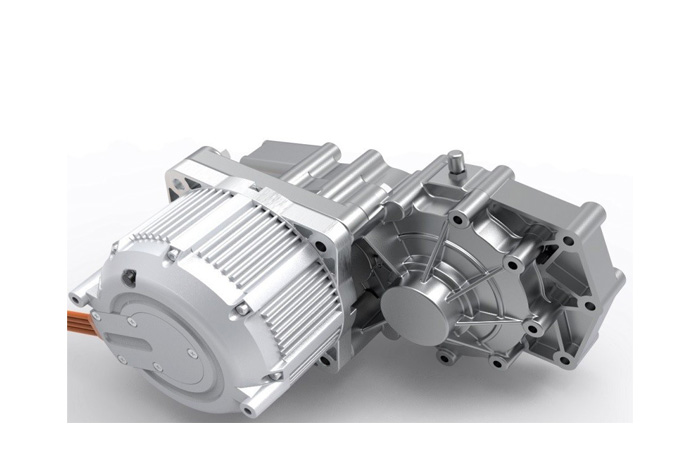

Electric High Speed ​​10 Kw Bldc Brushless DC Motor for EV Auto Commercial Vehicle

proud eagle

feature

1. Comfortable 2. Powerful function 3. Strong adaptability

Model name: PEEV160-72

parameter configuration

Model classification 3KW40H 4KW50H 5KW65H 10KW100H

Motor-mounted independent suspension rear axle

Motor operation type Permanent magnet synchronous motor

Rated bus voltage (V) DC 72V

Rated current (a) 52 69 86 112

Rated power (kw) 3 4 5 10

Rated torque (Nm) 5 6 10.5 21.5

Rated speed (RPM) 5800 5900 4500 4500

Peak power (kW) 6 8 10 20

Peak torque (Nm) 28 32 40 80

Peak speed (RPM) 6200 6500 5000 5000

Maximum efficiency (%) ≥85

Phase resistance (mΩ) 13 4 3 7.5

Inductance (μ h) 55 56 52 75

Motor size (mm) 366*298*209 366*298*209 366*313*209 366*328*209

Motor weight (kg) 26 27 29 36

Motor cooling method natural cooling

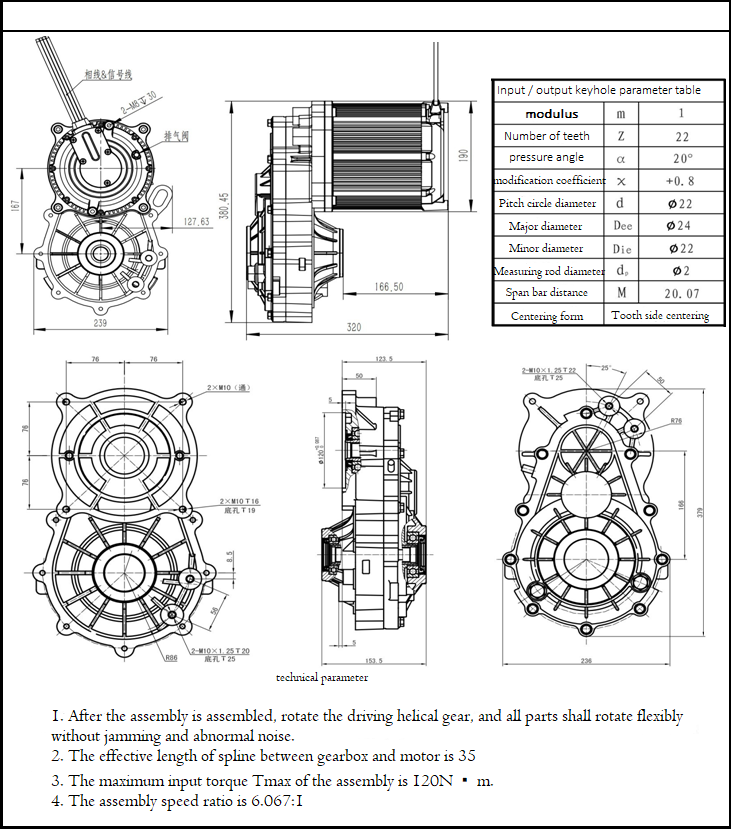

External connection of reducer structure

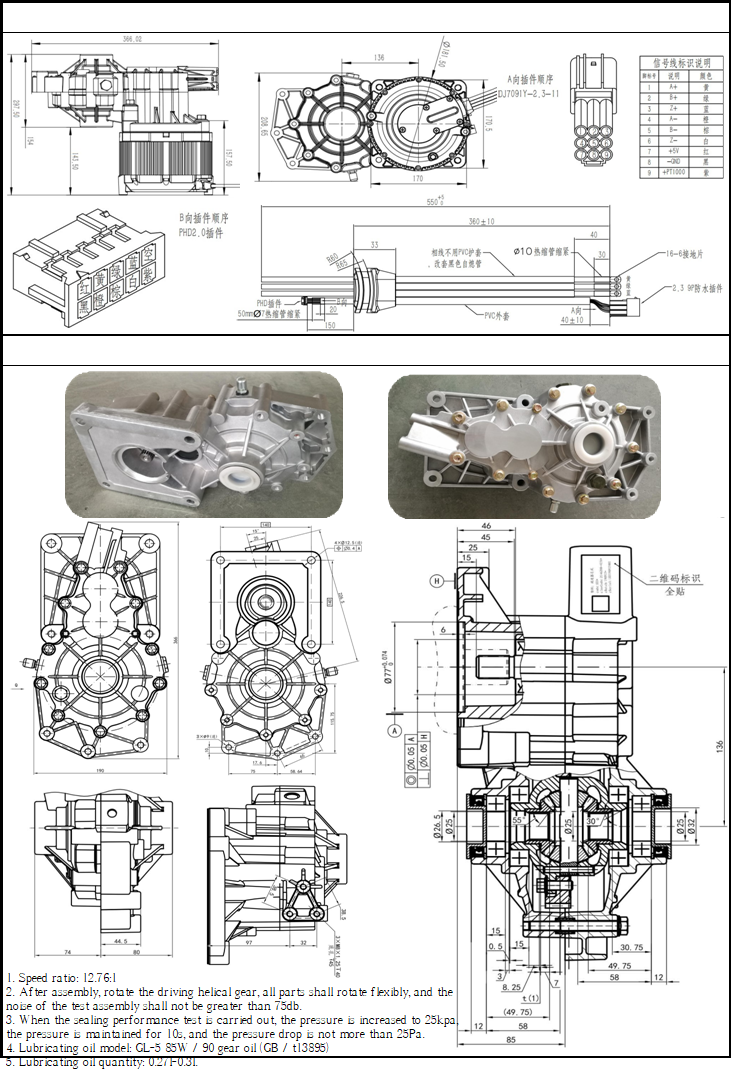

Transmission ratio 1:12.76 & 1:8.15 1:6.067

Position Sensor Type Magnetic Encoder

10 pole pairs

Protection class IP65

Transmission form gear transmission

Temperature sensor PT 1000
