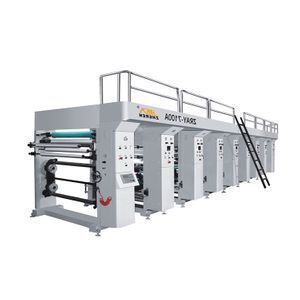

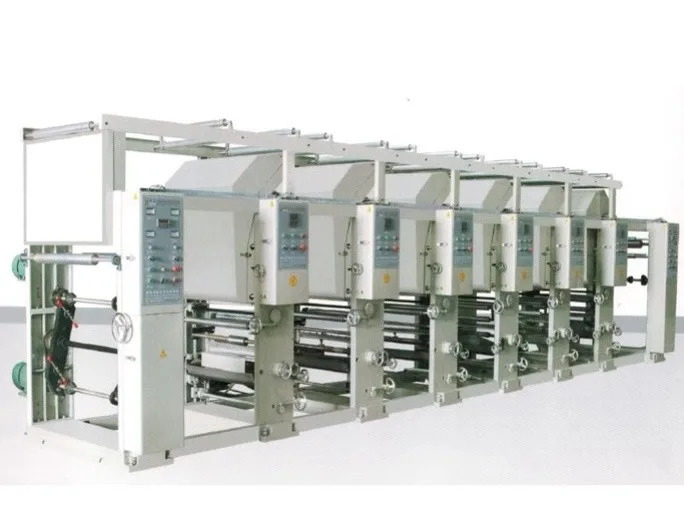

ZRAY-A aluminum foil printing machine

Product details
Type:Rotogravure Printing Machine;type:ZRAY-A6 600-800;
max width of material:620-820mm;diameter of printing cylinder:170-300mm;
Condition:New;Certification:CE;
Supply Ability:50 Set/Sets per Year;Color & Page:Multicolor;
useful width of printing:600-800mm;After-sales Service Provided:Online support,Field installation, commissioning and training,Field maintenance and repair service,Video technical support;
highest machinery speed:120m/min;Voltage:380-450V;
Applicable Industries:other;Payment Terms:L/C,D/P,T/T;
Packaging Detail:plastic film and export wooden case, or wooden pallet;max diameter of unwinding and rewinding:600mm;
Place of Origin:Zhejiang China (Mainland);Usage:aluminum foil;
Port:NNGBO OR SHANGHAI;Dimensions(L*W*H):10700x2600x2500;
Warranty:1 Year;Automatic Grade:Automatic;
register precision:±0.2mm;highest printing speed:80m/min;
Brand Name:BDTECH;Weight:11500kg;
Ruian Toyo

Product Description



Product Application:

This machine is suitable for roll type aluminum foil and plastic film, oter roll type material,it is a satisfying device to print wine case,shoe's bag and other bags

Type
ZRAY-A6600
ZRAY-A6800
Useful width of printing
600mm
800mm
Max width of material
620mm
820mm
Highest printing speed
80m/min
80m/min
Highest machinery speed
120m/min
120m/min
Max diameter of unwinder/rewinder
Φ600mm
Φ600mm
Diameter of printing cylinder
Φ170~Φ300mm
Φ170~Φ300mm
Register precision
±0.2mm
±0.2mm
Total power
70kw
75kw
Weight
10500kg
11500kg
Overall dimensions(mm)
10700×2400×2500
10700×2600×2500

Main Features:

1)new type developed gear box,cluth gear box no stop to do register device,closed gear box
2)double layers,close heat oven,auto constant temperature system
3)unwinding use powder brake,auto tension control
4)rewinding and rewinding traction use powder cluth
5)rotary type double shaft in rewinding,automatic receiving and changing material,no stop
6)unwinding and rewinding use airshaft
7)pneumatic embossing system
8)traction press roll is pneumatic control type
9)main motor use inverter control
10)shaft type loading cylinder

More Products

About Us



Our Advantage



Packing&Transport



Production Process



FAQ

1. your company is a manufacture or a trading company?
We are a manufacture. We also have a trading company to do export work.



2. What is the terms of payment you accept?
We can accept the T/T payment, we need 30% of total amount as deposit,pay the 70% balance before delivery, we can also accept the L/C,western union,paypal,private account,cash and others.

3. Where is your factory located ? How can I visit there?
Our factory located in ruian city, the nearest airport is WENZHOU airport, the nearest train staion is RUIAN station. If you need, we can we pick you up from airport or train station.



4,What about the warranty?
All of our machines have 1 year warranty, if need we send engineer to install and test, buyer pay for the round air-tickets, food, hotel and transport, pay our engineer 100usd / day / person as salary.

In warranty period, if spare parts broken, we exchange for free. after the warranty period, we supply the machine’s full life service, buyer pay for the material cost of exchanging spare parts and repairing.
