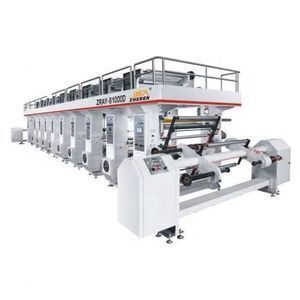

ZRAY-D 8 color plastic film printing machine

Supplier: Ruian Toyo Imp And Exp Co., Ltd.
Region: Zhejiang, China
Contact: Ms lily peng
Price: $128580.00 /set
Min. Order: 1 set

Click here to contact

Product details

Max.Diameter Material Roll:	600mm;	Certification:	CE;
Brand Name:	BDTECH;	Warranty:	1 Year;
After-sales Service Provided:	Online support,Field installation, commissioning and training,Field maintenance and repair service,Video technical support;	Dimensions(LWH):	18500x3000x3050mm;
Register accuracy:	±0.1mm;	Color & Page:	Multicolor;
Payment Terms:	L/C,D/P,T/T;	Condition:	New;
Diameter of Roll Core:	76mm;	Packaging Detail:	1.plastic film and export wooden case 2.plastic film and export wooden pallet;
Max width:	830mm-1230mm;	Diameter of Printing Cylinder:	100-350mm;
Weight:	27000kg;	Type:	Rotogravure Printing Machine;
Print Material:	all kinds of plastic film, paper and other roll type material;	Applicable Industries:	other;
Place of Origin:	Zhejiang China (Mainland);	Supply Ability:	3 Set/Sets per Month;
Usage:	Paper Printer,plastic film,;	Voltage:	380-450V;
Automatic Grade:	Automatic;	tension Control Range:	3~30kg/Full Width;
speed:	150m/min;	Port:	NINGBO OR SHANGHAI;

Ruian Toyo

Product Description

Product Application:

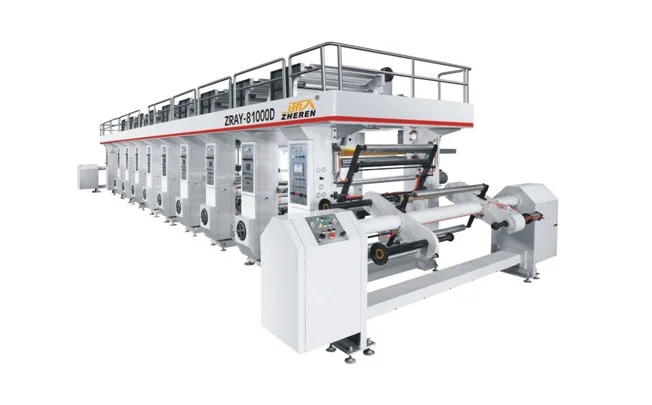

This rotogravure printing machine is designed and developped by ourselves, high speed computer auto register gravure machine, it is suitable for all kinds of plastic film, paper and other roll type material color printing.used in biscuit bag,industrail bag,food package,water package or any other soft-package area. with reasonable design, beautiful surface, realiable quanlity, high automatically, actually register, high yield, it is the high cost-effective printing device in china nowaday.

Type	ZRAY-8800D	ZRAY-81000D	ZRAY-81200D
Max width	830mm	1030mm	1230mm
Max.Printing Speed	150m/min	150m/min	150m/min
Max Mechanical Speed	180m/min	180m/min	180m/min
Max.Diameter Material Roll	Φ600mm	Φ600mm	Φ600mm
Diameter of Roll Core	Φ76mm	Φ76mm	Φ76mm
Diameter of Printing Cylinder	Φ100~Φ350mm	Φ100~Φ350mm	Φ100~Φ350mm
Accuracy of Computer Regist	±0.1mm	±0.1mm	±0.1mm
Tension Control Range	3~30kg/Full Width	3~30kg/Full Width	3~30kg/Full Width
Total Power	190kw	210kw	240kw
Weight Mchine	25000kg	27000kg	30000kg
Overall Dimension	16500×2800×2800mm	16500×3000×2800mm	16500×3200×2800mm

Main Features:

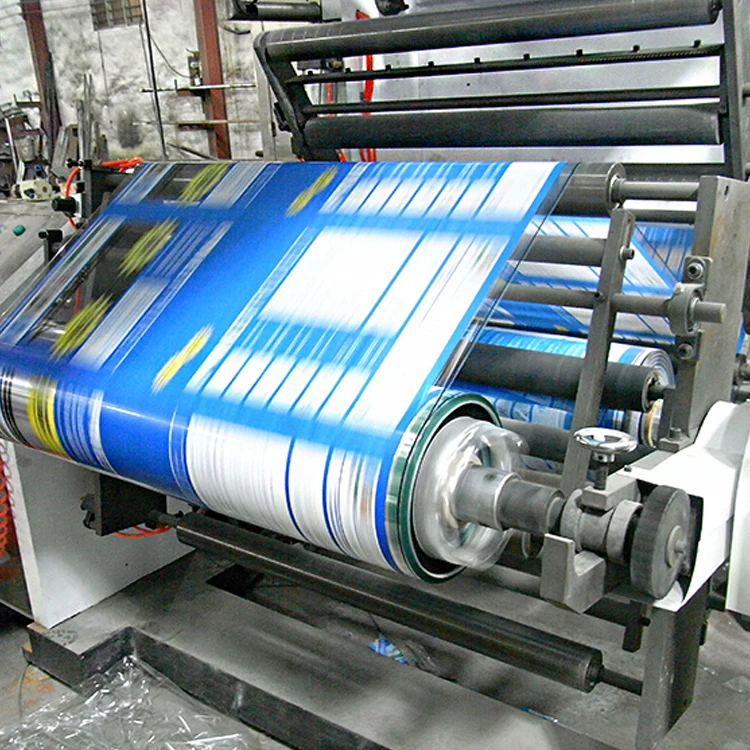

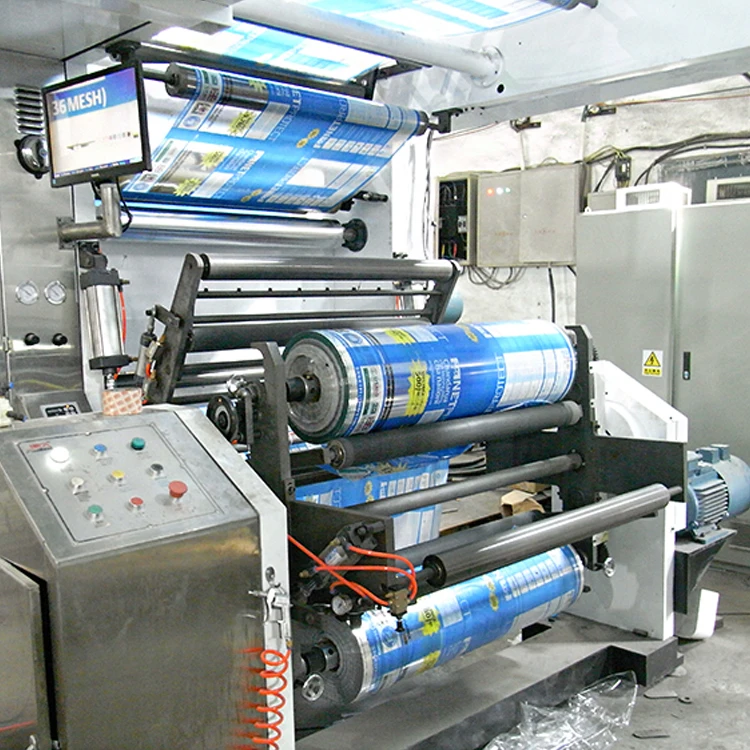

1)Unwinding and rewinding high speed change material,no stop
2)Four float roll seven motor synchronous tension close loop control

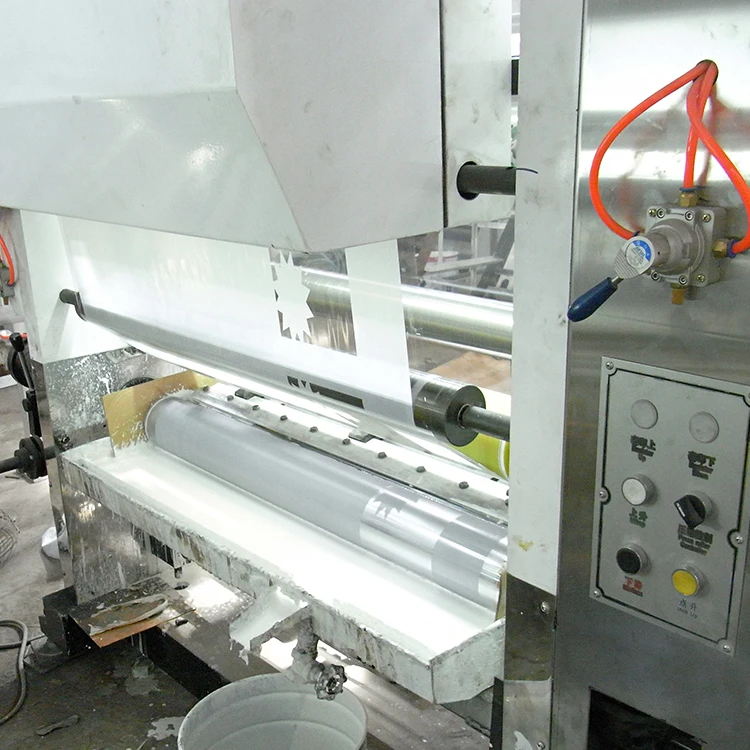

3)Three-position pneumatic double-shaft blade, movement:6mm
4)Double leadscrew longitudinal auto color register structure
5)Outside separate type heating system
6)Shaftless type,embossing rubber roll inch up and down,and auto lock of cylinder
7)JAPAN Fujikura low friction cylinder control tension float roll
8)Japan yaskawa inverter and ABB motor
9)High static picture and precision overprint system(brand is optional)

More Products

About Us

Our Advantage

Packing&Transport

Production Process

FAQ

1. your company is a manufacture or a trading company?
We are a manufacture. We also have a trading company to do export work.

2. What is the terms of payment you accept?
We can accept the T/T payment, we need 30% of total amount as deposit,pay the 70% balance before delivery, we can also accept the L/C,western union,paypal,private account,cash and others.

3. Where is your factory located ? How can I visit there?
Our factory located in ruian city, the nearest airport is WENZHOU airport, the nearest train staion is RUIAN station. If you need, we can we pick you up from airport or train station.

4,What about the warranty?
All of our machines have 1 year warranty, if need we send engineer to install and test, buyer pay for the round air-tickets, food, hotel and transport, pay our engineer 100usd / day / person as salary.

In warranty period, if spare parts broken, we exchange for free. after the warranty period, we supply the machine’s full life service, buyer pay for the material cost of exchanging spare parts and repairing.
