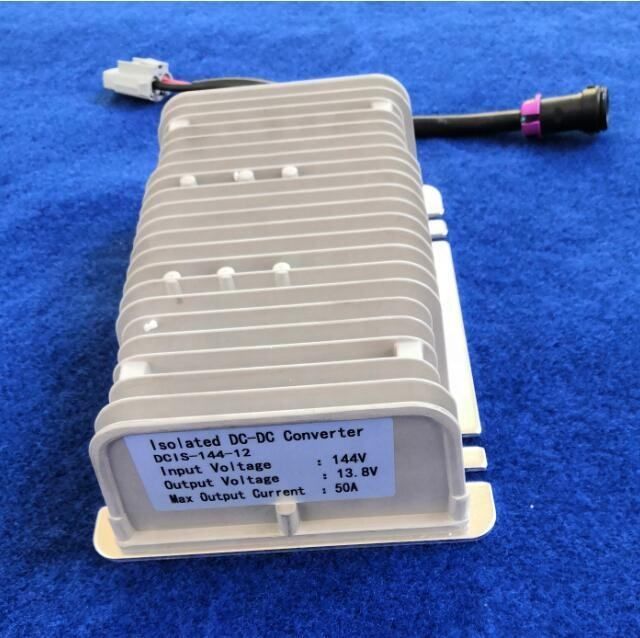

Converter 144V to 12v 50A DC DC 500w 600w

DCIS series isolated DC-DC converters adopt advanced high-frequency power conversion technology, aiming to convert power battery voltage to 12V/24V voltage to supply power for car lights, audio systems and other on-board equipment. Its features include small size, high efficiency, stable output voltage, and complete protection functions.

DCIS series isolated DC-DC converters are completely electrically isolated from input to output to ensure safe use; the output voltage is stable and can charge 12V batteries; multiple DC-DC converters can be directly used in parallel to increase the output current.Specification

Input voltage: 48V/60V/64V/72V/80V/84V96V/108V/120V/144V

Output voltage: 12V/24V

Output voltage (no load) 13.8V/24.5V

Maximum output current: 50A

Maximum efficiency: ≥88%

Environmental protection level: IP65

Working temperature: -20℃-+60℃

 Safeguard& Function

Waterproof and shockproof: all sealed with silicone to prevent water

and anti-vibration, which is

Suitable for all environments.

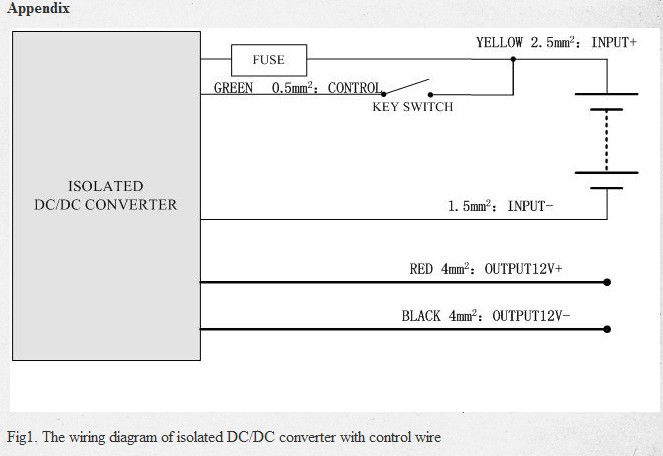

Keyswitch Control: The converter can be controlled via a keyswitch control line instead of an input relay. (option)

Overheating protection: When the temperature exceeds 65°C, the output current will be automatically reduced, but the power will not be turned off to ensure continuous power supply for the car.

Safeguard

Waterproof and shockproof: All are sealed with silicone, waterproof and shockproof, suitable for various working conditions.

Input reverse polarity protection: shutdown, automatic reset.

Waterproof fuse: input or output fuse, simple wiring.

No arc: input without arc, can be directly controlled by key switch without contactor

Short circuit: small positive current shutdown, automatic reset, to ensure the safety of the line.

Overheat suppression: Reduces the output current when the temperature exceeds 65°C to ensure continuous power supply to the car.

Input reverse polarity: Electronic protection, automatic reset.

Input low protection: shutdown, automatic reset, prevent battery over-discharge
