DC DC Converter 18~72vdc to 5vdc 1A 5W
-
Supplier: HenLv Technology(Shanghai) Co.,Ltd. -
Region: Shanghai, China -
Contact: Ms HenLv Zhang -
Price: $5.00 /piece -
Min. Order: 1 piece
Product details
| aspect: | 31.75x20.32x10.16mm | Supply capacity: | 10000 pieces per month |
| Warranty: | 2 years | Operating temperature: | -40~85℃ |
| strength: | 20W | Minimum order quantity: | 1 |
| Packaging Preview: | The output voltage: | 12VDC | |
| Certification: | ROHS | title: | URTD24S05-5W |
| port: | Ningbo | model: | URTD24S05-5W |
| Packaging Details: | carton, inner PE bag or customized, | product name: | 5W DC DC Converter |
| brand: | Henglu | Material: | Plastic/Metal |
| payment terms: | Western Union, wire transfer | place of origin; place of origin: | Zhejiang, China |
Product Description

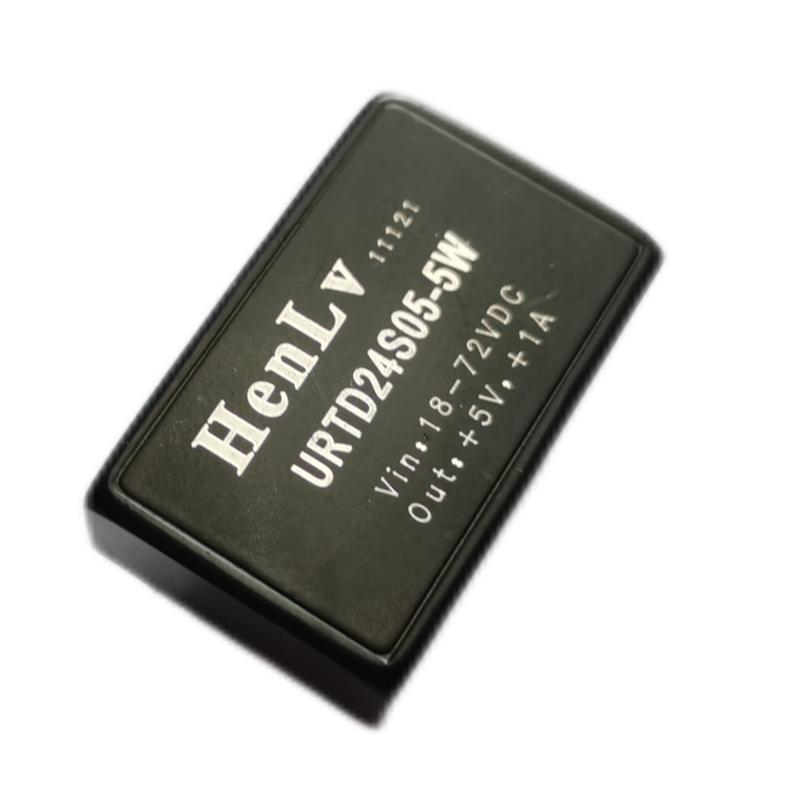

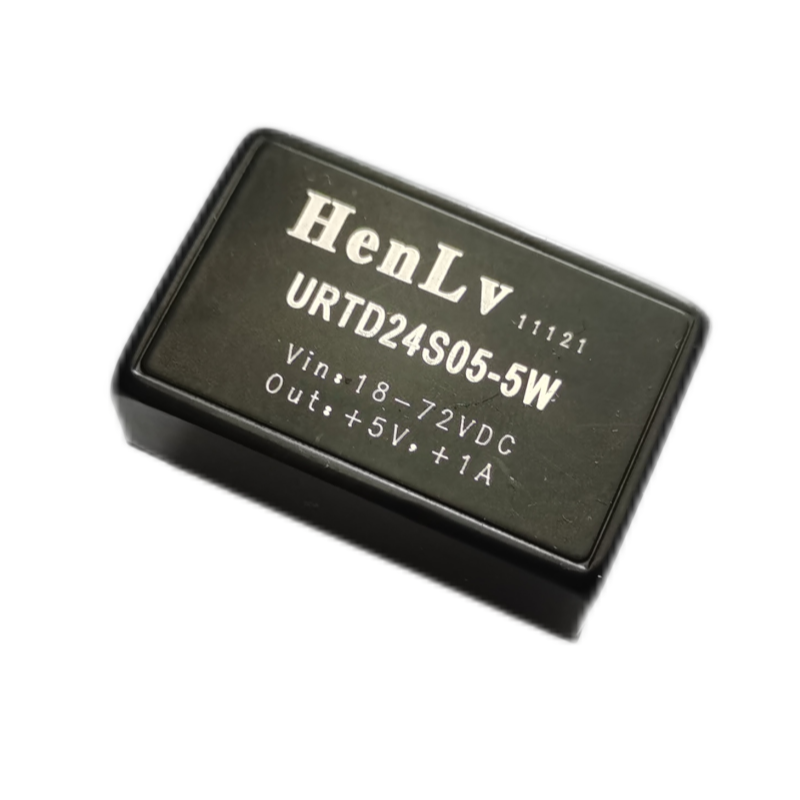

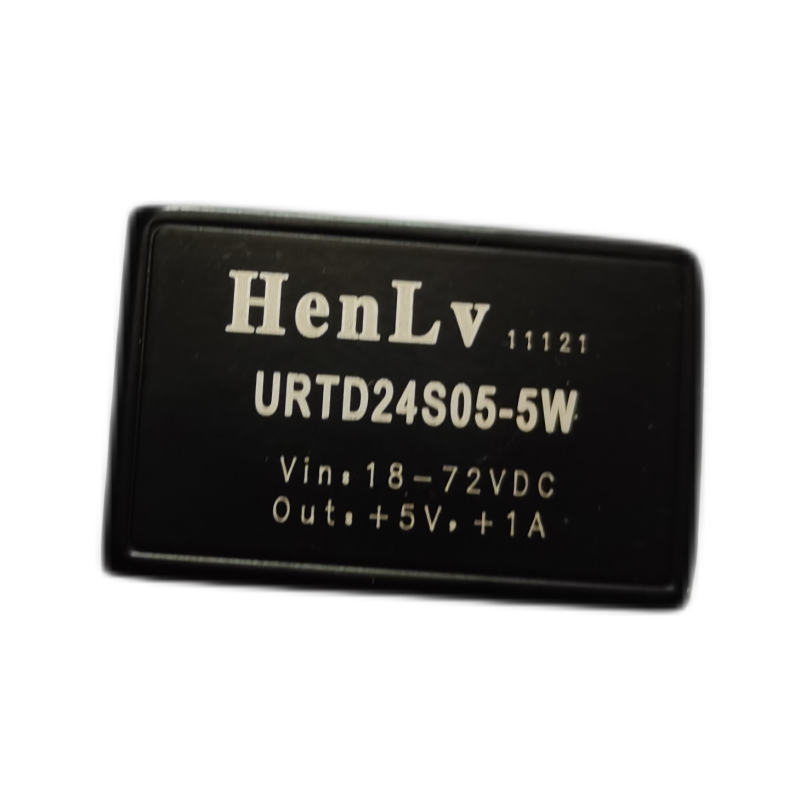

18~72vdc to 5vdc 1A 5W DC DC Converter
Name | DC to DC Converter Modules |
model | URTD24S05-5W |
Isolation withstand voltage | 1500VDC |
Input voltage | 18-72VDC |
The output voltage | 5VDC |
Output current | 1A |
Operating temperature | -40~+85℃ |
package | dip |
Warranty | 2 years |
Protect | Short circuit protection for short time and automatic recovery |
size | 31.75x20.32x10.16mm |
18~72vdc to 12vdc 1A 12W dc DC converter isolation | ||||||||||
thing | Input voltage | The output voltage | full load current | efficiency | size | |||||
URTD24S05-5W | 18~72VDC | 5VDC | 1A | More than 80% | 31.75x20.32x10.16mm | |||||
URTD24S12-5W | 18~72VDC | 12VDC | 0.416A | More than 80% | 31.75x20.32x10.16mm | |||||
URTD24S24-5W | 18~72VDC | 24VDC | 0.208A | More than 80% | 31.75x20.32x10.16mm | |||||
URTD24S48-5W | 18~72VDC | 48VDC | 0.104A | More than 80% | 31.75x20.32x10.16mm | |||||
Specification
application:
Railway communication, display screen, monitoring equipment, petrochemical industry, industrial control, long-distance DC power supply system, switch system and other communication equipment,automation industry,mechanical control system,Electrical Equipment,Security monitoring electronic equipmentand many more
Comment:
Customization has been approved. If you have special requirements, welcome to inquire.
