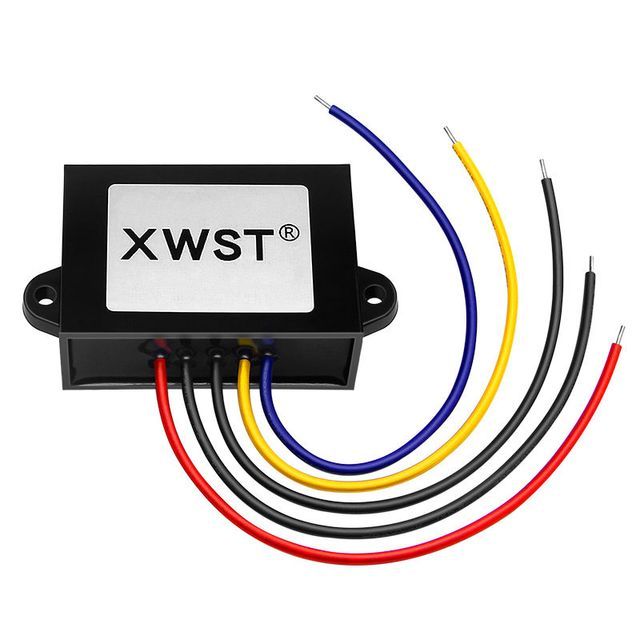

30-85V to 24V Voltage Regulator Customizable 36V48v60V72V to 24V Buck Converter with ACC Controller 24V Power Supply

Supplier: Huizhou Xinwei Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms Kaylee Chan
Price: $4.84 / >=10 pieces
Min. Order: 10 pieces

Click here to contact

Product details

Material:	plastic	efficiency:	>93%
brand:	west west	Packaging details:	Packing: anti-static bag/carton
Warranty:	12 months	Place of origin:	Guangdong, China
Certification:	CE/RoHs	Waterproof rate:	IP67 rating
Package preview:		payment terms:	Western Union, Wire Transfer, MoneyGram
Health status:	new	OEM:	accepted
type:	DC regulated switching power supply DC 30-85v to 24v	Output Power:	24-96W
Operating temperature:	-40℃～+85℃	model:	XW-3085-24-ACC
No-load current:	3.5mA	Purpose:	for retrofitting/upgrading
Supply capacity:	100,000 pieces per month

Company Profile

feature:

1. 100% full power, stable current output. 2. 100% imported components. 3. 100% waterproof and shockproof protection, ultra-compact size and light weight. 4. The efficiency of industrial-grade golf cart voltage regulator is as high as 96%. 5. Certificate: CE/RoHS. 6. Waterproof level: IP68. 7. Aluminum shell, epoxy resin potting, natural convection cooling. 8. Protection functions: overcurrent, overvoltage, overtemperature. 9. Overload and short circuit, the device will automatically recover after returning to normal operation. 10. Non-isolated module. 11. 1-year warranty, service life up to 100,000 hours. 12.Constant voltage design.

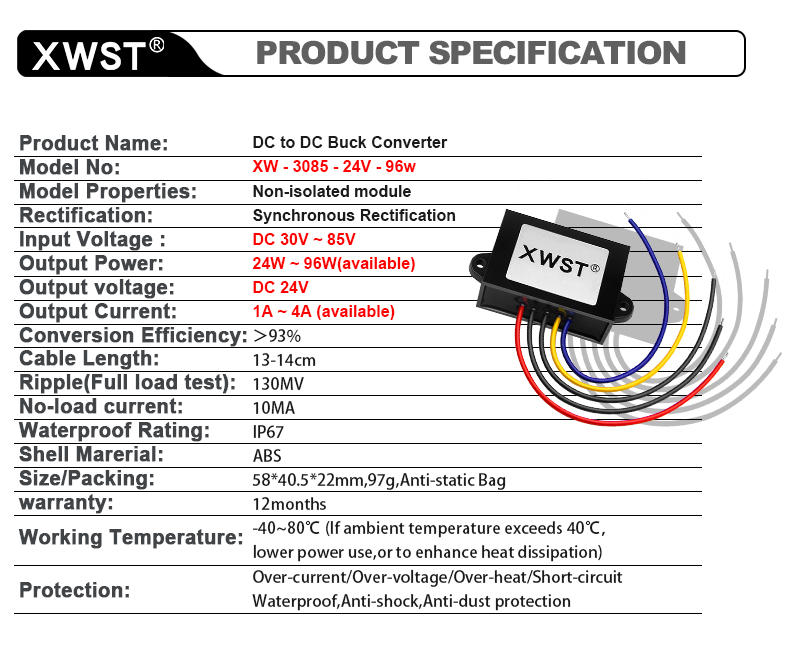

Specification

product name	DC to DC Buck Converter
model.	XW-3085-24-24W~48W-ACC
module properties	Non-isolated module
Rectify	Synchronous rectification
Input voltage range	DC 30-85V
The output voltage	DC 24V
Output current	1A/2A/3A/4A
Output Power	24W/48W/72W/96W
Conversion efficiency	>93%
cable length	13-14cm
Ripple (full load test)	40 millivolts
No-load current	3.5mA
Operating temperature	-40~80℃ (When the ambient temperature exceeds 40°C, reduce power consumption or enhance heat dissipation)

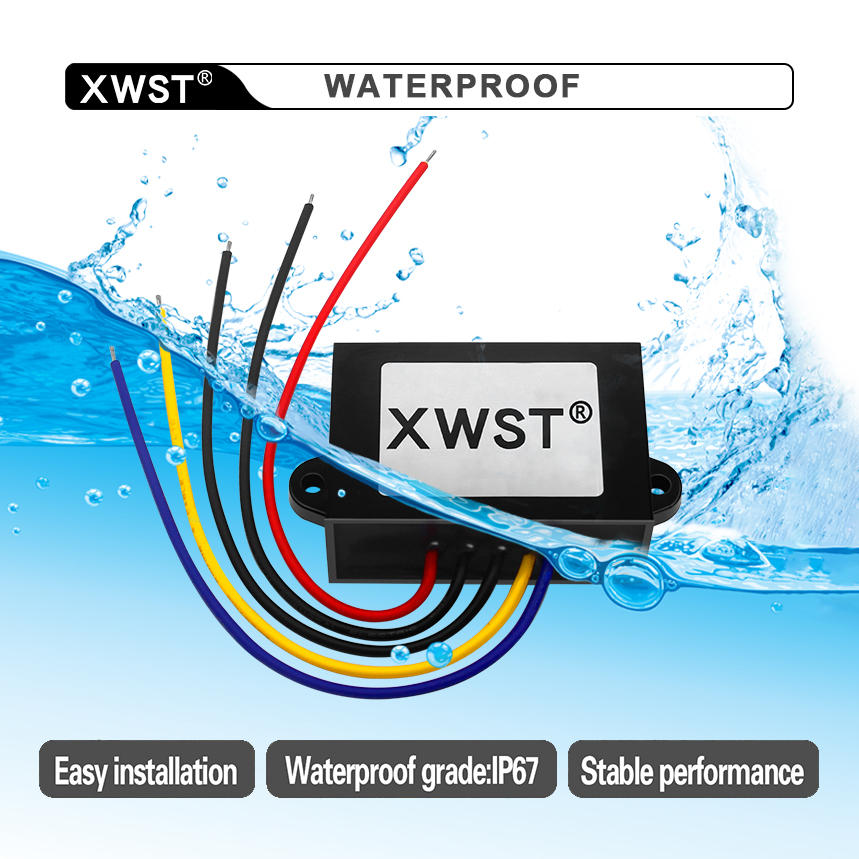

waterproof level	IP67 rating
Protect	Overcurrent/overvoltage/overheating/short circuit Waterproof, shockproof, dustproof

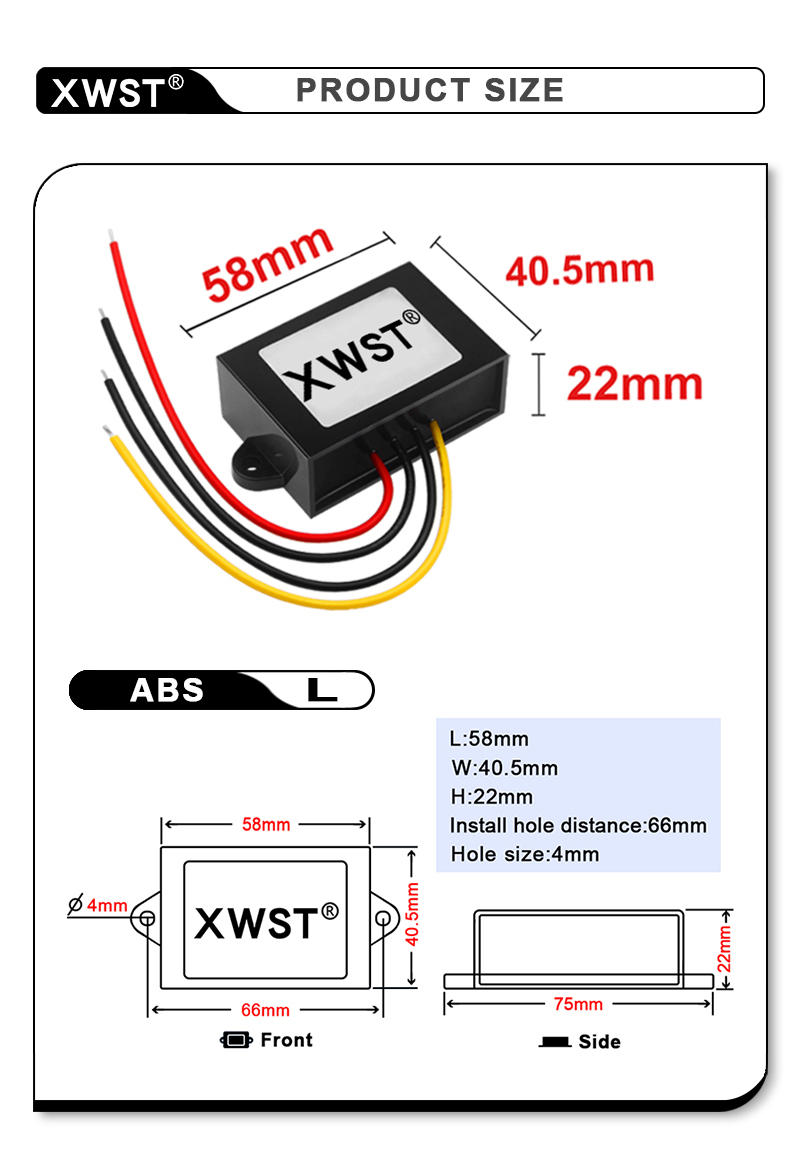

Shell/Packing	ABS plastic 5840.522mm, 95g, anti-static bag
Warranty	12 months
