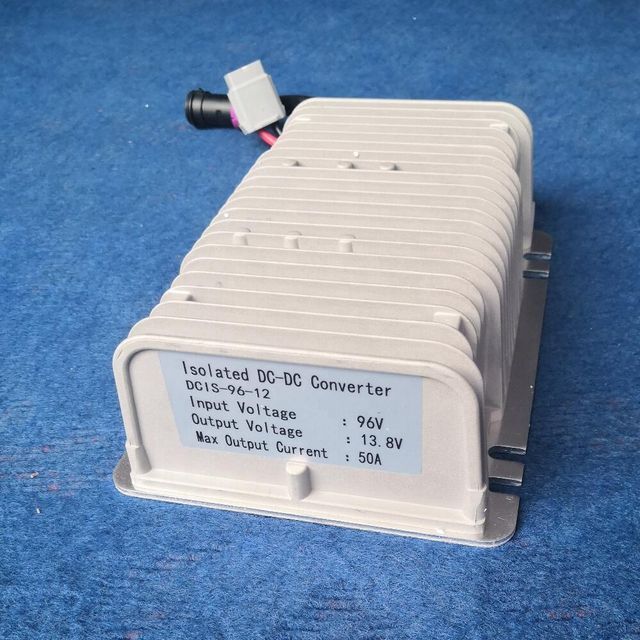

Insulated DC-DC converter 96v to 12v, 50A 500W / 600W

Supplier: Qingdao Greatway Technology Co., Ltd.
Region: Shandong, China
Contact: Ms Angela Zhang
Price: $59.98 / 1 - 19 pieces
$58.98 / 20 - 49 pieces
$56.98 / 50 - 99 pieces
$53.98 / >=100 pieces
Min. Order: 1 piece

Click here to contact

Product details

Sales unit:	single product	Input voltage range:	72v-120v
Packaging Details:	carton	place of origin; place of origin:	China
Maximum output current:	50A	Certification:	Chief Executive
Maximum power:	600w	rated power:	500w
Single package size:	31X21X15 cm	Output voltage (no load):	13.8v
Gross weight per piece:	2.200 kg	model:	DCIS-96-12

describe
DCIS series isolated DC-DC converters use advanced high-frequency power conversion technology to convert the power battery voltage into 12V/24V voltage to supply power for on-board equipment such as lamps and audio systems. Its features include small size, high efficiency, stable output voltage, and complete protection functions.
DCIS series isolated DC-DC converters are completely electrically isolated from input to output to ensure safe use; stable output voltage can charge 12V batteries; multiple DC-DC converters can be directly used in parallel to increase output current.

Specification

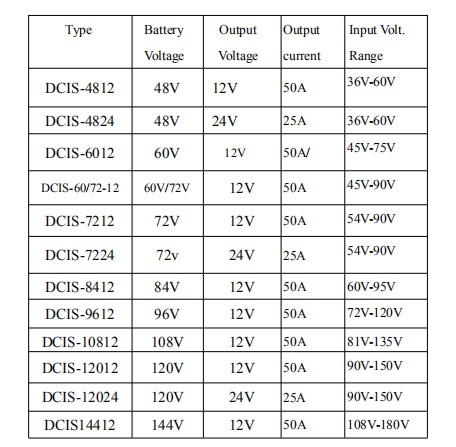

Input voltage: 48V/60V/64V/72V/80V/84V96V/108V/120V/144V
Output voltage: 12V/24V
Maximum output current: 50A
Maximum efficiency: ≥88%
Environmental enclosure: IP65
Working temperature: -20℃-+60℃

Protect
Waterproof and shockproof: All are sealed with silicone, waterproof and shockproof, suitable for various working conditions.

Waterproof and shockproof: All are sealed with silicone, waterproof and shockproof, suitable for various environments.
Key switch control: The converter can be controlled via the key switch control line instead of the input relay. (option)
Overheating Protection: If the temperature exceeds 65°C, the output current is automatically reduced, but not shut down to ensure continuous power to your car.
Short circuit protection: small pulse current shutdown automatically reset to ensure line safety.
Under-voltage protection: shutdown when the power battery voltage is too low to avoid battery over-discharge
