Continuous Ink Jet Ink System Filtration, Main Ink Filter 5 um For CIJ Printer System

Supplier: Hangzhou Tianshan Precision Filter Material Co., Ltd.
Region: Zhejiang, China
Contact: Ms Fiona Li
Price: $1.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Use:	For Man Roland Printer;	Certificates:	SGS, ISO9001;
Application 1:	CIJ Printers;	Payment Terms:	L/C,T/T,Western Union,MoneyGram,Paypal;
Length:	2.5 inch;	Type:	Print Head;
Supply Ability:	5000 Piece/Pieces per Month;	Connection:	6 mm Jaco connector(straight or elbow);
Delivery Detail:	Shipped in 8 days after payment;	Filter Type:	Main Ink Filter;
Filter Media:	PP;	Place of Origin:	Zhejiang China (Mainland);
Micron:	1.0, 5.0, 10, 20, 50 um;	Port:	Shanghai or Ningbo;
Housing Material:	PP;	Applicaton 2:	UV and Solvent Inks;
Printing Type:	Inkjet Printer;	Model Number:	Main Ink Filter;
Brand Name:	TS Filter;	Filtration Area:	450 cm2;
Packaging Detail:	2pc in one 1 small carton; 24/50 pcs in one big carton;

Continuous Ink Jet Ink System Filtration, Main Ink Filter 5 um For CIJ Printer System

Product Description

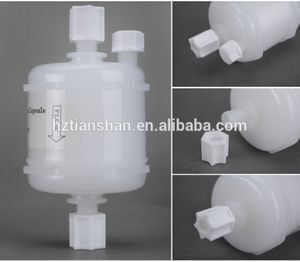

These capsules are self contained, ready to use, disposable devices, specifially designed for the requirement of digital inkjet printer fitration. The fiter body is constructed with natural or opaque black housing and available with a wide range of connector confiurations to suit different systems. All-polypropylene construction with no binding agents, to give low extractables and ensure 100% compatibility with inkjet fluids.

All capsules will provide consistent, reliable printing performance with maximised print head protection.

Each unit is pressure tested to guarantee capsule integrity.

Features and Benefits

1. Capsule filters are kind of self contained, ready to use, disposable filters;

2. Made up of polypropylene cage and pleated membrane filter inside by thermal bonding,free of adhesives, binders and other chemicals;

3. Available with a wide range of connectors and filter medias for options to meet various filtration requirements;

4. UV and Solvent inks compatible;

5. Excellent particles retention;

6. Fully integrity tested before release from manufacture;

Specifications

Materials Of Construction	Filter Media:	Polypropylene/Glass Fiber Membrane
	Support Layers:	Polypropylene
	Micron:	1, 3, 5, 10, 20, 50, 60 µm (absolute)
	Outer Cage, Core:	PP
Cartridge Dimensions	Outer Diameter	60mm
	Length	2.5"
	Connectors:	6 mm Jaco connector(straight or elbow)
	Filtration Area(m2)	450 cm²
Operating Conditions	Normal Operating Temperature:	Up to 50℃ (122℉)
	Normal Operating Pressure:	5.5 bar (79.8 psi) at 25℃ (77℉)
	Sterilization:	Autoclave sterilization at 120 ℃, 30 minutes (max. 10 circles)
