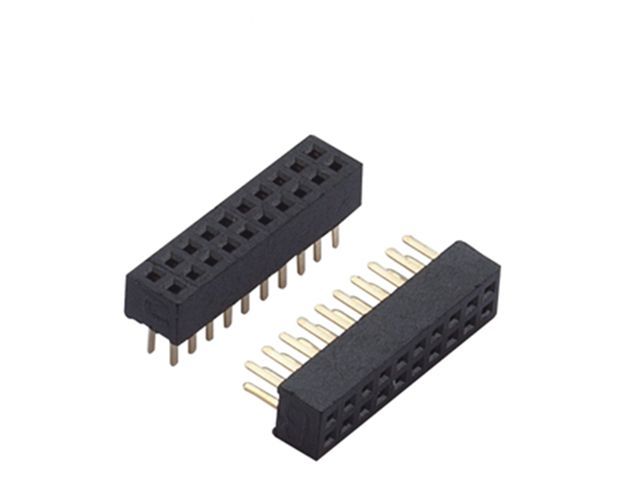

2.54mm pitch female header 2*10P straight U-shaped H8.5 PC3.0 PA6T Solin Shenzhen factory
-
Supplier: Shenzhen Soulin Electronics Technology Co., Ltd. -
Region: Guangdong, China -
Contact: Ms timana CAI -
Price: $0.11 / >=1000 units -
Min. Order: 1000 units
Product details
| Supplier type: | original factory | gender: | A printed circuit board |
| Position/Space/Number of Rows: | 2 | Operating temperature: | -40℃~+105℃ |
| color: | black and white | application: | A printed circuit board |
| Packaging Details: | The packaging method is chosen by the customer | Contact materials: | gold plated brass |
| Center Contact Plating: | 0.6U | Sales unit: | single product |
| Package preview: | Material: | Polyamide 6T | |
| delivery time: | 21 days | Insulation resistance: | Minimum 1000M |
| Pay: | 100% wire transfer | Single pack size: | 30X26X12 cm |
| Port direction: | straight | Rated voltage: | AC 500V min/min |
| Origin: | China | Plastic material: | PA6T/PA9T/LCP+30%GF |
| type: | Headers and PCB Sockets | asphalt: | 2.54 |
| Package: | tube | Number of columns: | 10 |
| Number of positions/contacts: | 20 | Pressure resistance: | AC 500V min/min |
| brand: | Surin | Rows: | 2 |
| shell material: | plastic | Number of positions: | 20 |
| Rated voltage: | AC 500V min/min | Specification: | FH2.54 2*10P straight U-shaped PA6T |
| Rated current: | 3A | Gross weight per piece: | 0.001 kg |
| Contact resistance: | Maximum 20M | Connector use: | A printed circuit board |
| Voltage: | AC 500V min/min | Rated Current (Amps): | 3A |
| describe: | 2.54mm pitch female header | current: | 3A |
| MOQ: | 1000 pieces | Approved countries: | China |
| Interface Type: | straight | Pin or socket: | female |
Product Description
| Specification | |
| asphalt | 1mm, 1.27mm, 2mm, 2.54mm, 3.96mm, 5.08, 1.778mm |
| Material | PA6T, PA9T, LCP |
| Insulation Materials | Polyester fiber (UL94V-0) |
| contact material | brass |
| Contact Plating | AU or SN over 40u" NI |
| current rating | 1.5 amps |
| withstand voltage | AC 500V min/min |
| Insulation resistance | Minimum 1000M |
| Operating temperature | -40°C to +150°C |
| pack | Bag packaging, tube packaging, tape and reel packaging |
| application | circuit board |
| Position | 1-40 stitches |
| sample | if |

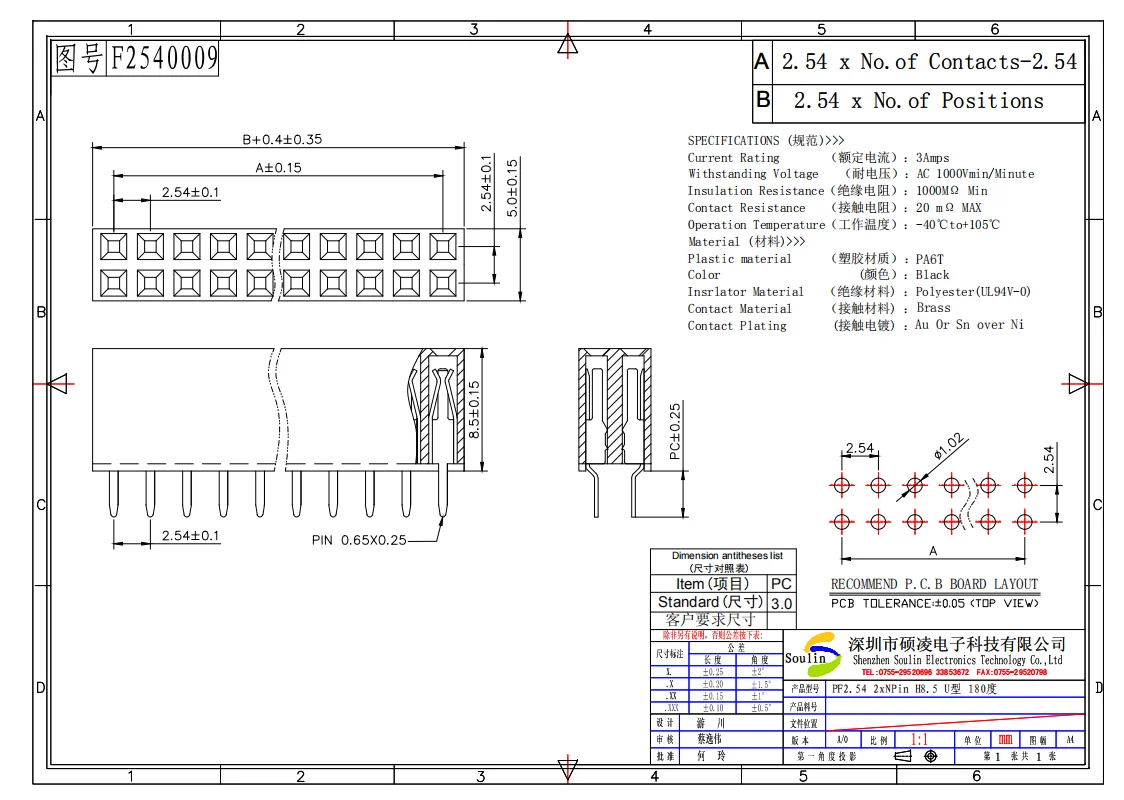

| confirm | Drawings will be provided before production |
Please feel free to contact us, we will send you the drawings you need
