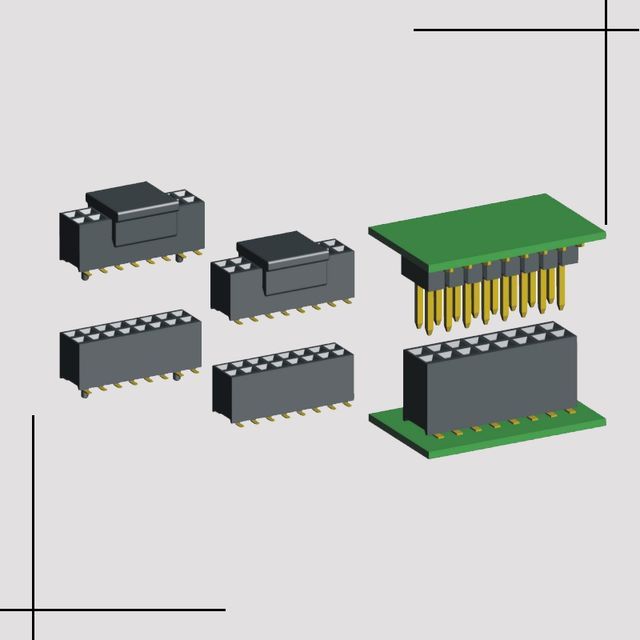

SMT SMD connector 1.27mm (0.05") female, capped 2X9 2X10 pins
- 0.15 >=1000 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Contact information: | Phosphor bronze | Place of origin: | China |
| thing: | 1.27mm female header 2X10 pins | Supply capacity: | 20,000 pieces per day SMT SMD Connector 1.27mm (0.05") Capped Female 2X9 2X10 |
| brand: | Hoyatong | Insulation resistance: | 1000M ohms/minute |
| application: | A printed circuit board | Contact plating: | gold plated |
| Rated voltage: | 50V AC/DC | Pin: | 4-80P |
| Pressure resistance: | 1000V/1 minute | Operating temperature: | -25℃ to +105℃ |
| gender: | female | Current rating: | 1.0 amp |
| payment terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, PayPal | Contact resistance: | Maximum 20m ohm |
| type: | socket | Insulator material: | LCP(UL94V-0) |

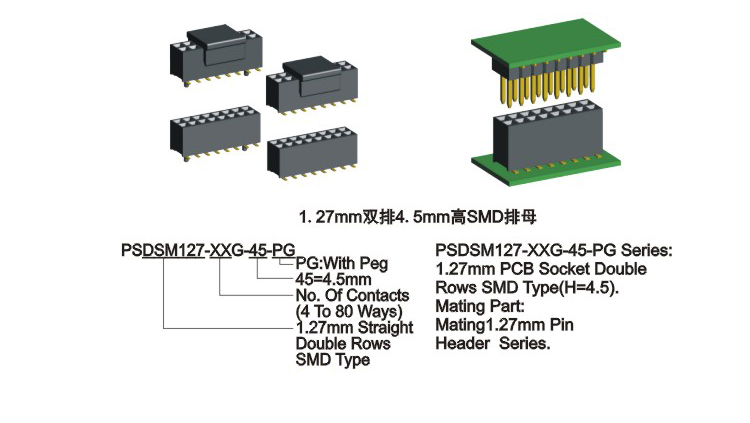

| model: | PSDSM127-XXG-45 |
SMT SMD connector 1.27mm (0.05") female, capped 2X9 2X10 pins
| manufacturer | Number of lines | quality inspection | contact information | Contact information(2) | Main business |
| Yes | 18-30AWG | 100% | Skype:catherine.peng888 | What to apply: +86 18692238587 | Connectors and cable assemblies |

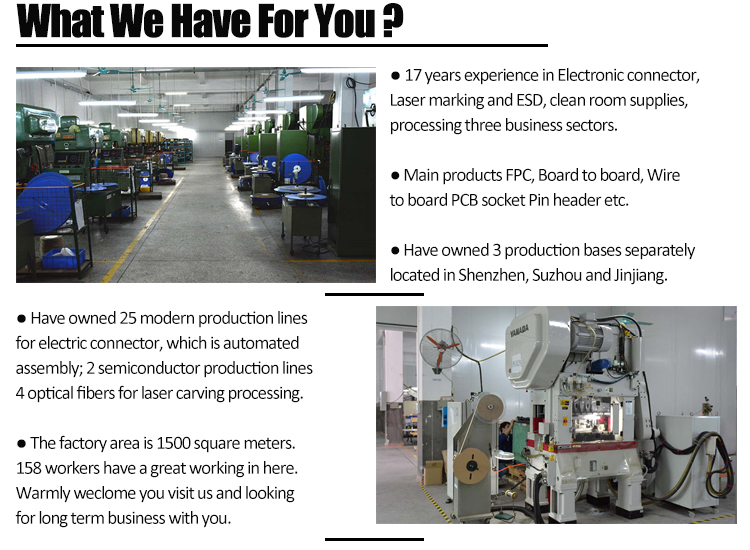

We are connector supplier in Dongguan, China, with more than 10 years of experience, providing different types of connectors and can alsocustomized productAccording to your request, acceptOEM/ODM, so if possible, please send me an email about your inquiry, we will provide the most competitive price, high quality and best service, thank you!
