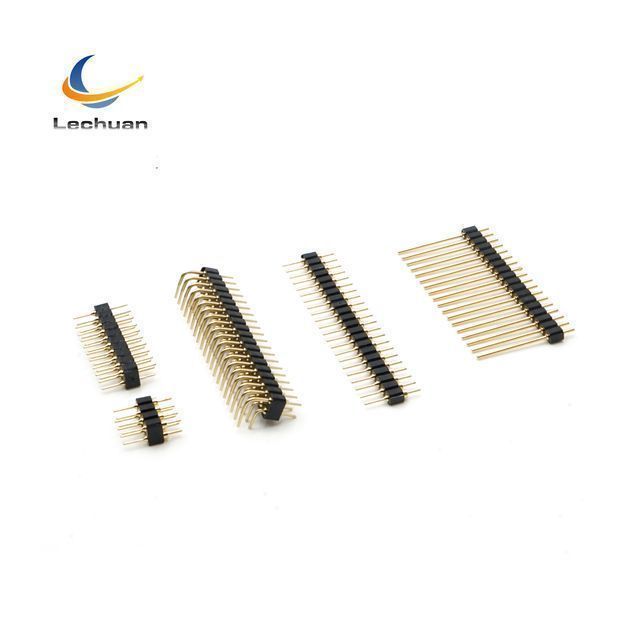

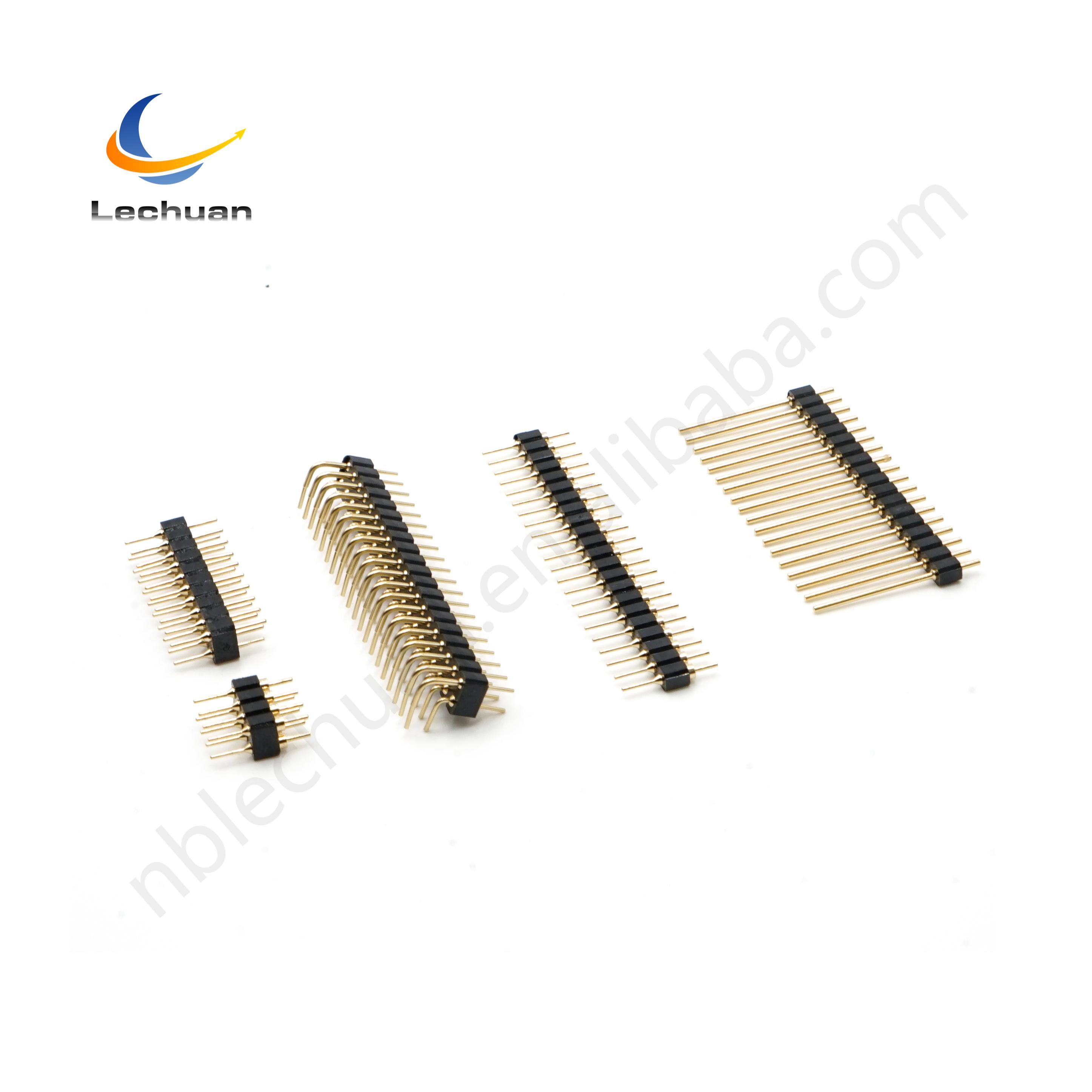

Machined pin row pin
- 0.10 >=50 units
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| application: | circuit board | gender: | female |
| Packaging Details: | Blister card with inner box and outer master carton | Origin: | Zhejiang, China |
| brand: | Lechuan | payment terms: | L/C, Western Union, T/T |
| model: | LC-HDB | type: | processing contact |
| color: | black/blue/white | port: | Ningbo |
| Supply capacity: | 3000 pieces per day |

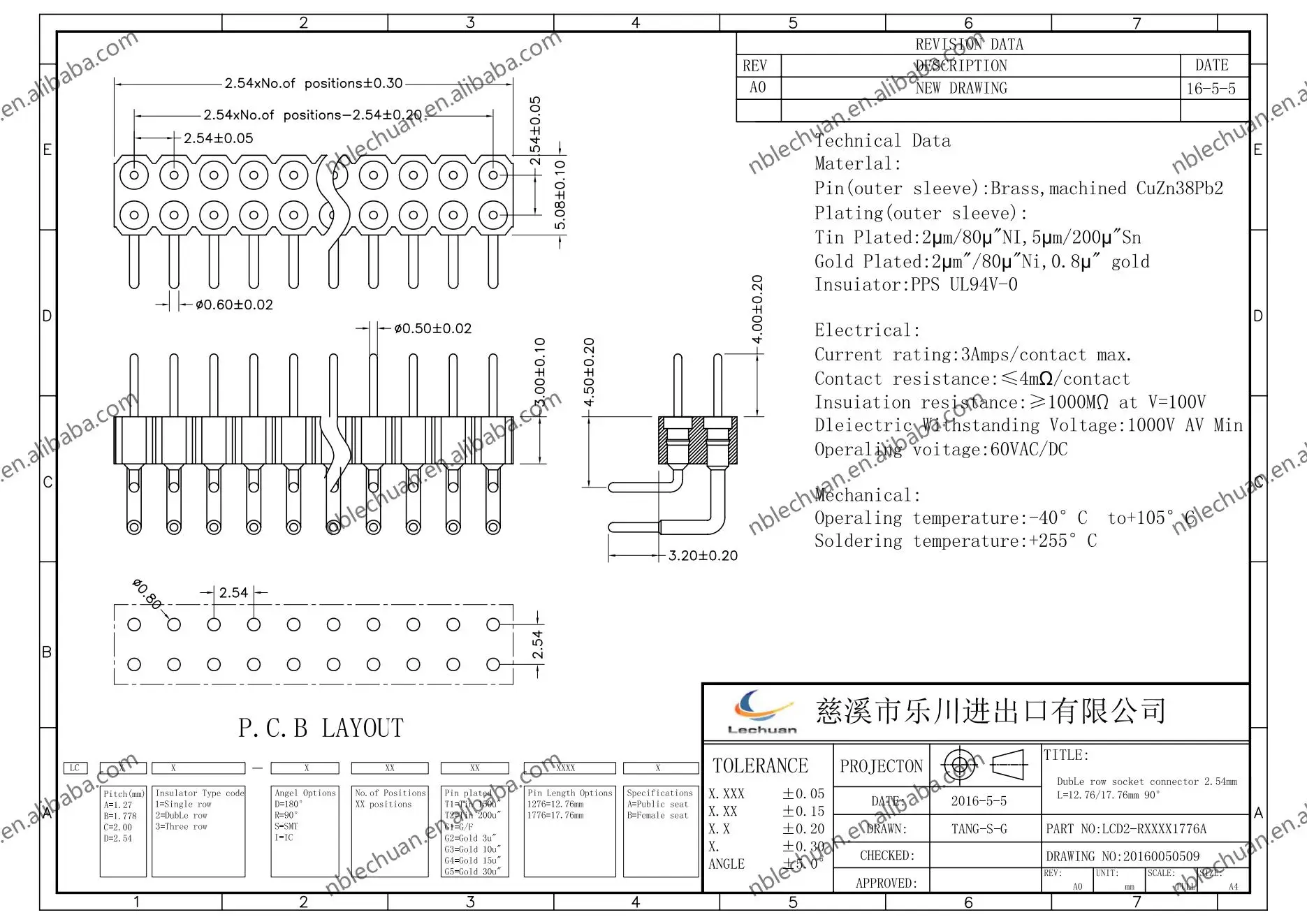

Material | Pin (outer sleeve): Brass, machined CuZn38Pb2 |
Plating (outer casing): Tin Plated: 2μm/80μ"NI, 5μm/200μ"Sn | |
Gold Plating: 2μm"/80μ" Nickel, 0.8μ" Gold | |
Insulator: PPS UL94V-0 | |
electric | Rated current: 3Amps/contact max. |
Contact resistance: ≤4mΩ/contact | |
Insulation resistance: ≥1000MΩ at V=100V | |
Dielectric withstand voltage: 1000V AV min. | |
Working voltage: 60VAC/DC | |
Mechanical | Operating temperature: -40°C to +105°C |
Soldering temperature: +255°C |
