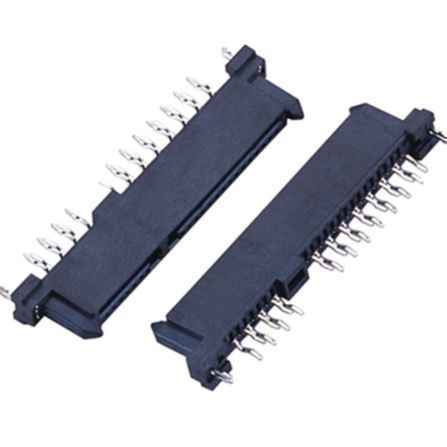

High Quality 1.27mm SMT DIP PCB SATA Power Socket SATA HDD Connector
- 0.01 >=1000 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| payment terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram | Specification: | SATA connector |
| Area of use: | the word | Supplier Type: | original manufacturer |
| Insulation resistance: | 1000M minutes | describe: | SATA connector |
| Card: | Surin | Operating temperature: | -25℃~+85 |
| Contact material: | Phosphor bronze | port: | Shenzhen |
| PEG plating: | brass | Material: | Pa 6 tons |
| Pressure resistance: | AC 500Vmin/min | application: | circuit board |
| Approved countries: | China | type: | PCB connector |
| place of origin; place of origin: | Guangdong, China | Bale: | tube |
| Packaging Details: | PE bag, tube, tube+cap, tray, tape and reel, plastic box | asphalt: | 1.27 |
| Plastic material: | LCP+30%GF | Instrument material: | Polyester (UL94-0) |
| Connector use: | circuit board | model: | SATA 7+15PIN SMD |
| gender: | circuit board | Contact resistance: | up to 30m |
| Installation type: | circuit board | Available media: | Surin |
| Current rating: | 1.5 amps | color: | black, black |

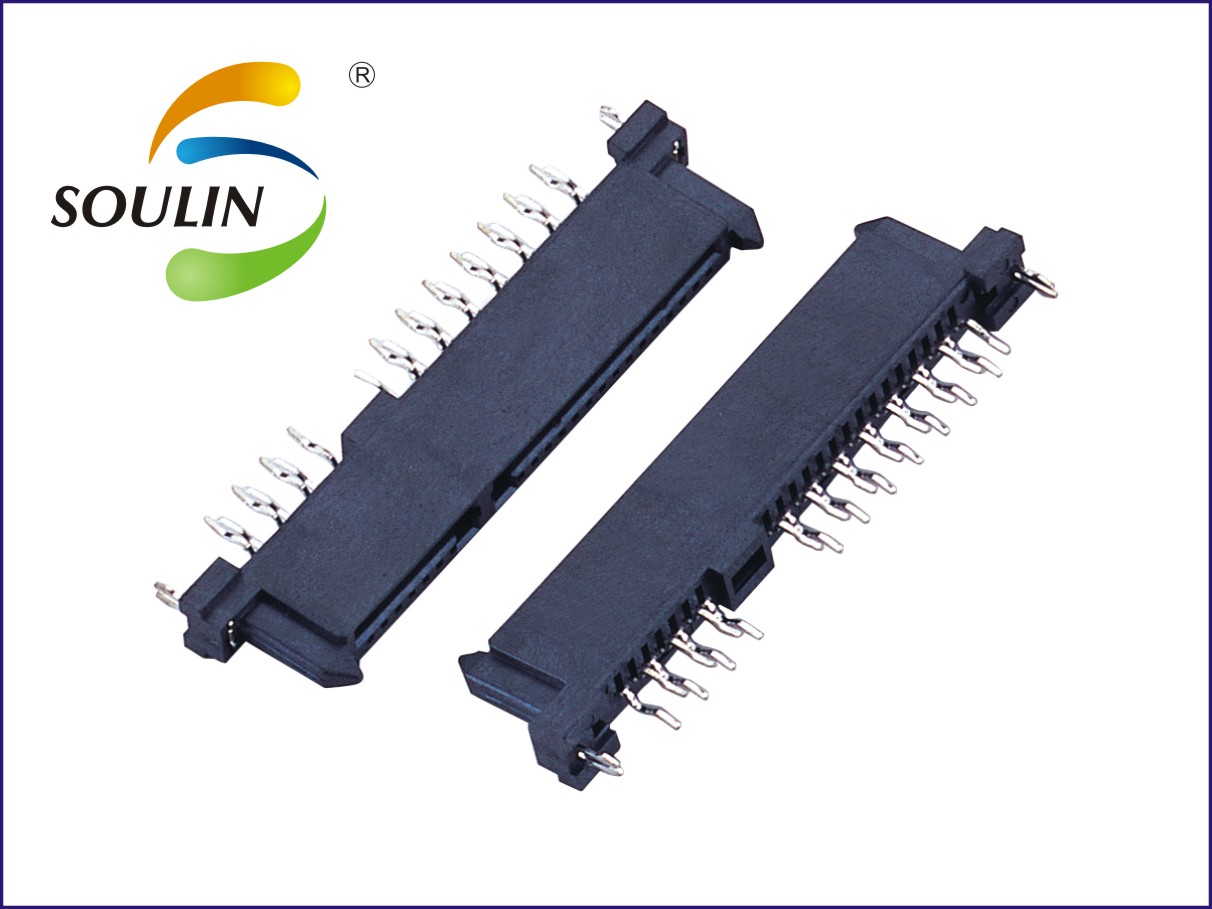

High Quality 1.27MM SMT DIP PCB SATA Power Socket HDD SATA Connector
Product Description
| Specification | |
| polyethylene glycol | brass |
| Material | LCD panel |
| Instrument material | Polyester (UL94V-0) |
| Contact material | Phosphor bronze |
| current rating | 1.5 amps |
| Withstand voltage | AC 500Vmin/min |
| Insulation resistance | 1000M minutes |
| Operating temperature | -25°C to +85°C |
| pack | Bag, Tube, Tape and Reel |
| application | circuit board |
| Position | 22 pins |
| sample | if |

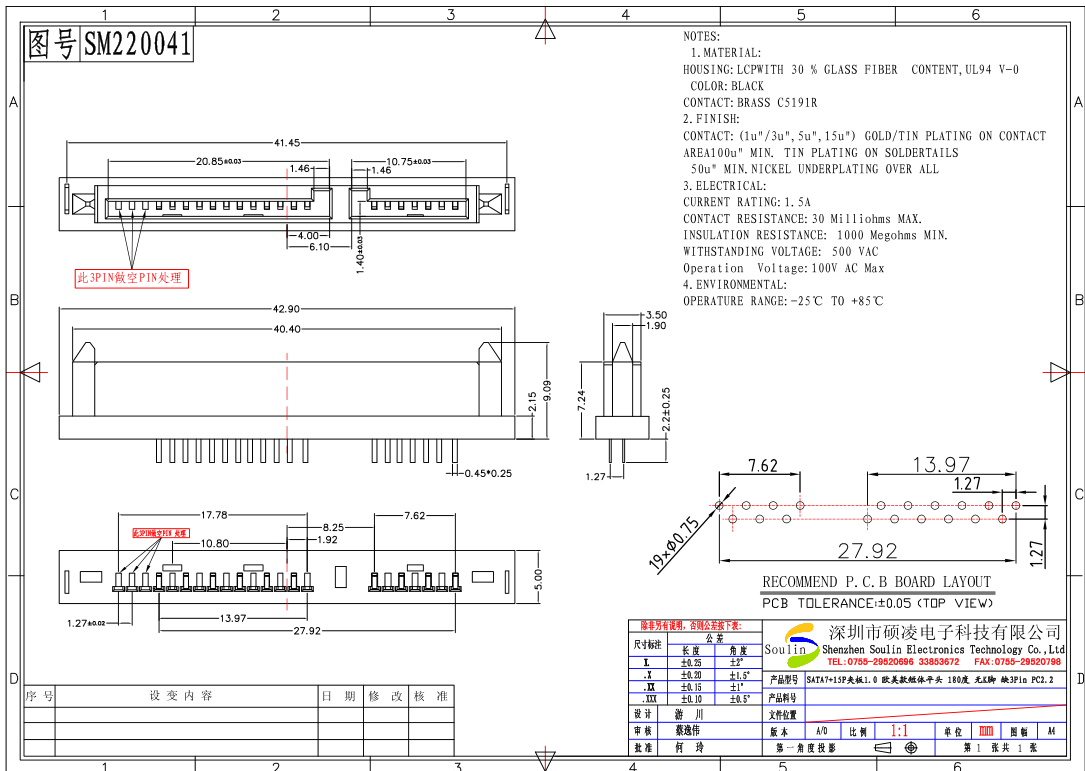

| confirm | Drawings will be provided before production |
Please feel free to contact us and we will send you the drawings you need
