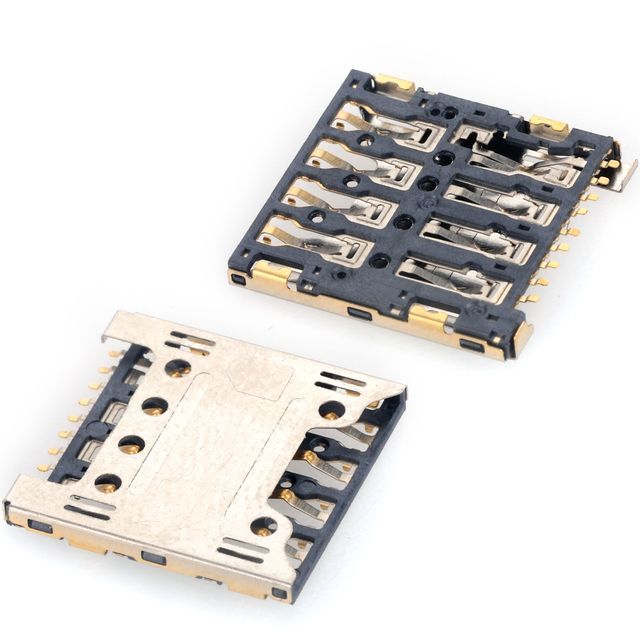

MUP SMT TYPE 8P Push-Pull Micro SIM Card Socket Connector Clamshell GSM/GPRS
-
Supplier: Shenzhen Mup Industrial Co., Ltd. -
Region: Guangdong, China -
Contact: Ms MUP Sales -
Price: $0.10 / >=2000 pieces -
Min. Order: 2000 pieces
Product details
| payment terms: | Western Union, T/T | port: | Shenzhen/Hong Kong |
| plating: | gold, nickel, tin | Origin: | Guangdong, China |
| describe: | Connector | Metal: | Stainless steel |
| Package preview: | gender: | female | |
| brand: | Mobile version | aspect: | 13.90LX16.30WX2.20H mm |
| model: | C793 | Card Size: | 15.0*12.0*0.76mm |
| Terminal pins: | Phosphor bronze | Contact Principles: | friction technology |
| Packaging Details: | 1. Reel packaging 2.1500PCS/roll, 10 rolls/box, 15000PCS per box. 3. The size of the carton is 36.00 L*33.00 W*36.00 H CM 4. The gross weight of a box is 10.0KG, the net weight is 8.0KG 5. The volume of a box is 0.05CBM, 20 boxes of 1 CBM | Plastic material: | LCD Monitor |
| Durability: | 2,000 cycles minimum | Supply capacity: | 16000 pieces per day |
| Package: | Tape | type: | Adapter, SMT |
MUP Best Sellers Micro SIM Card Connector 8P PCB Sim Card Holder Smart Socket
Dear, hello, the price we set is for reference only, the exact price is determined according to your specific requirements, so please don't leave directly because of the price. If you have any requirements, please contact us, the products you need and the best price you want are waiting for you.
Product Description
Specification
general characteristics | ||||||
No. | project | standard | illustrate | |||
1 | aspect | 13.95LX13.30WX1.50H mm | ||||
2 | weight | About 0.50±0.20g | ||||
3 | card size | GSM11.11 | 15.0×12.0×0.76mm | |||
4 | link principle | friction technology | ||||
5 | install the system | Mounter | ||||
6 | durability | 2,000 cycles minimum | ||||
Material | ||||||
1 | insulator | Thermoplastic UL94V-0 | ||||
2 | shell | Stainless steel | ||||
3 | touch | Phosphor bronze | ||||
4 | plating | gold over nickel | ||||
information contact | ||||||
1 | number of contacts | 8 pins | ||||
2 | contact height | 0.50±0.20mm | ||||
3 | Insulation resistance pin | IEC512-2-3a | >1000 MΩ/500 VDC | |||
4 | Rated voltage | 50V max | ||||
5 | rated current | 1A max, 10μA min | ||||
6 | Contact resistance | IEC512-2-2a | 50 mΩ typical, 100 mΩ maximum. | |||
7 | Dielectric withstand voltage | IEC512-2-4a | 500V AC RMS for 1 minute. | |||
