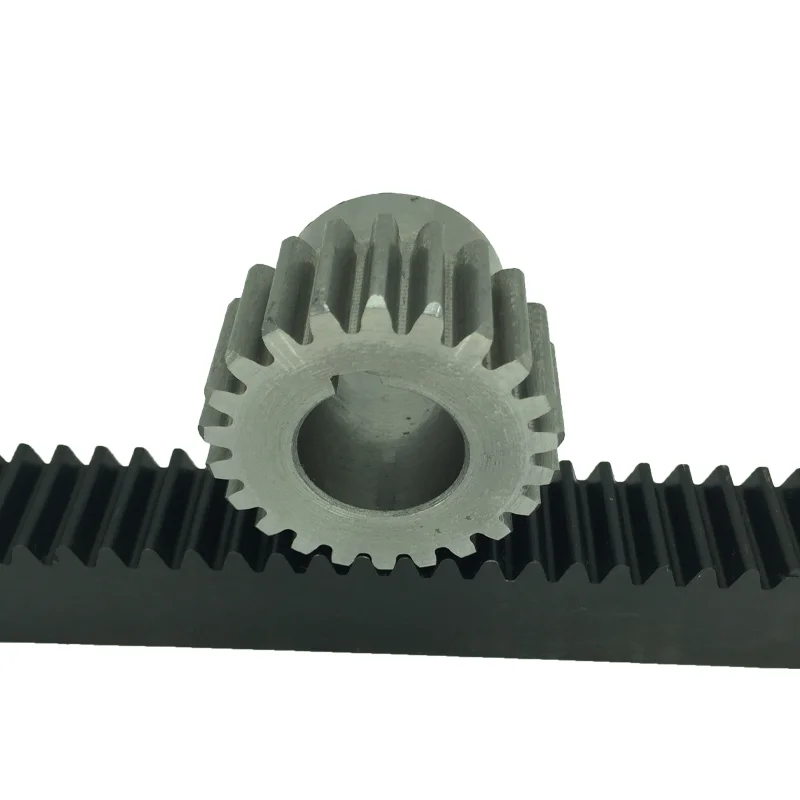

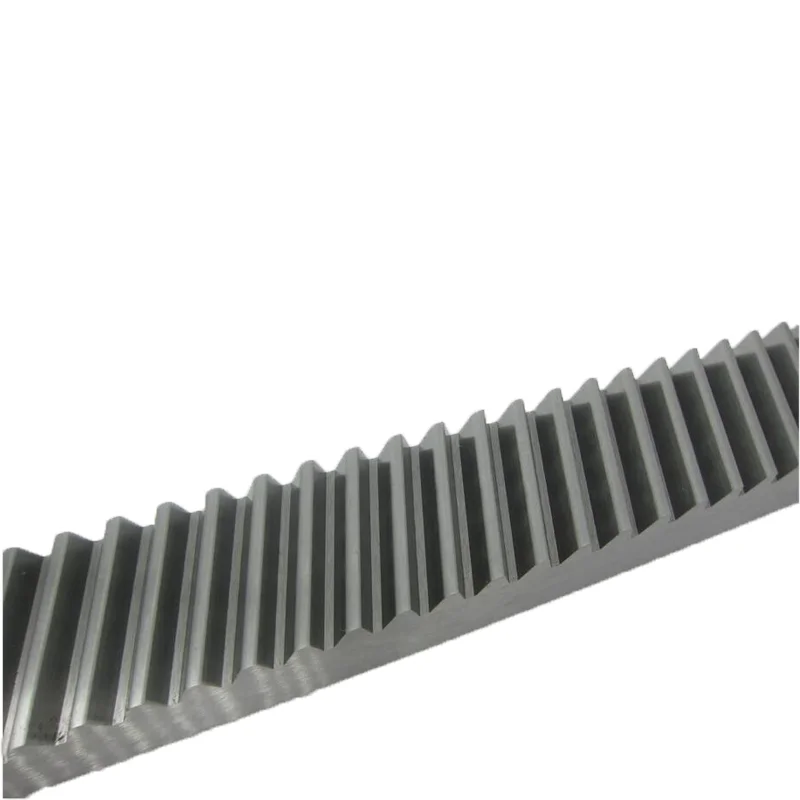

Spur cnc mold flexible gear rack and pinion

Supplier: Tianjin Ounaida Transmissions Machinery Trading Co., Ltd.
Region: Tianjin, China
Contact: Ms Jessie Lee
Price: $10.00 / >=5 pieces
Min. Order: 5 pieces

Click here to contact

Product details

Pressure angle:	20 degree;	Supply Ability:	10000 Piece/Pieces per Month;
Processing:	Precision Casting;	Shape:	Rack Gear;
Packaging Detail:	Carefully package with cartoon box when small quantity, and wooden box when large quantity.;	Place of Origin:	Tianjin China (Mainland);
Material:	Steel;	Product name:	Gear rack;
Bore:	As demands;	Payment Terms:	L/C,Western Union,Paypal;
Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;	Teeth Type:	Straight teeth;
Color:	Natural;	Port:	Tianjin Xingang;
Treatment of teeth:	Milled;	Application:	CNC Machine;
Model:	M1-10;	Standard or Nonstandard:	Standard;
Presicion grade:	DIN7;	Model Number:	OEM;
Brand Name:	OND;	Size:	as your demands;

Gear rack

Product	Gear rack
Precision grade	DIN6, DIN7, DIN8, DIN10
Application	Precision cutting machines. Lathes. Milling machines. Grinders. Automated mechanical systems. Automated warehousing systems.
Material	C45 steel, Stainless steel 304, Plastic,20CrMo,40Cr and so on
Heat treatment	High frequency,Quenching/Carburization,improve the hardness
Surface treatment	Zinc-plated,Nickle-plated,Chrome-plated,Black oxide or as you need
Machine	CNC engine lathe, milling machine, drilling mchine, gear shaper, grinder, testing center. planer, precision CNC machining centers like Mazak, CNC lathes, DMG etc.
Workstyle	Execution is more preferred than empty talk.

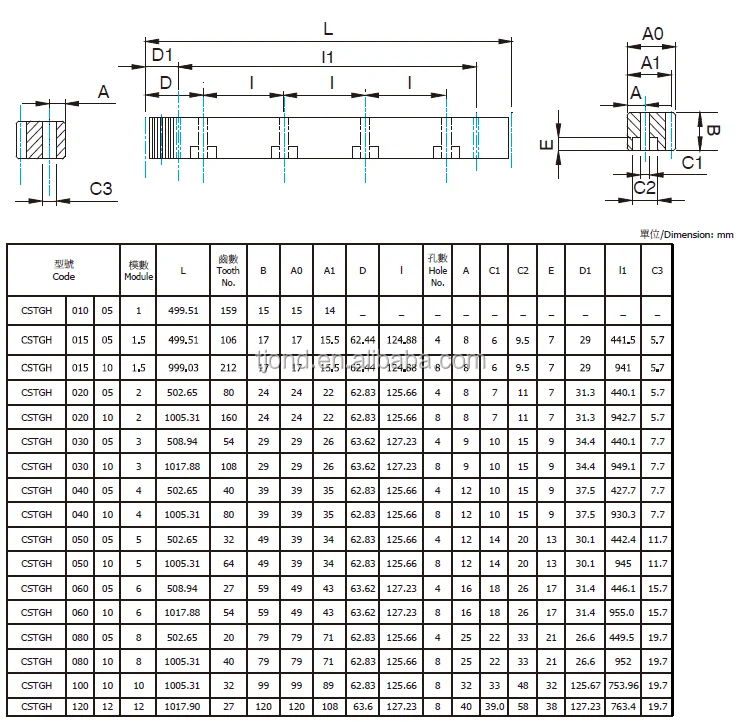

IN STOCK RACK

Rack type	Teeth type	Color	Precision grade
M 11515*1000mm	Straight teeth	Black	DIN7
M 1.51717*1000mm	Straight teeth	White	DIN7
M 22020*1000mm	Straight teeth	White	DIN7
M 1.51919*1000mm	Helical teeth	White	DIN7
M 22424*1000mm	Helical teeth	White	DIN7

Straight gear rack

Helical gear rack

Round gear rack

Engraving machine rack

Sliding gate gear rack

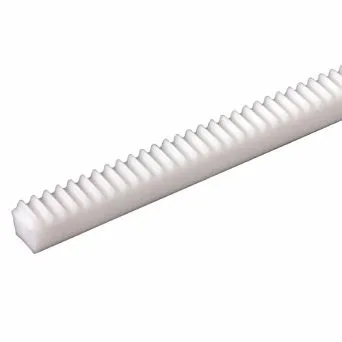

Plastic gear rack

Instruction Of Rack Assembly Steps

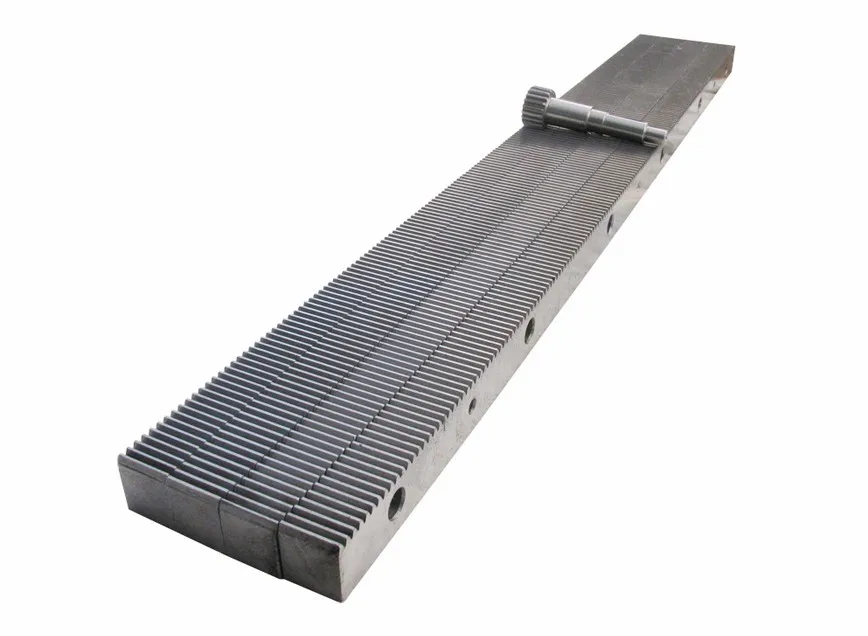

To assemble connected racks more smoothly, 2 ends of a standard rack would add half tooth which is convenient for next half tooth of next rack to be connected to a complete tooth. The following drawing shows how 2 racks connect and tooth gauge can control pitch position accurately.

With regards to connection of helical racks, it can be connected accurately by opposite tooth gauge.

1. When connecting racks, we recommend lock bores on the sides of rack first, and lock bores by the sequence of the foundation. With assembling the tooth gauge, pitch position of racks can be assembled accurately and completely.

2. Last, lock the position pins on 2 sides of rack; the assembly is completed.

Package

Factory And Services

Our company--Tianjin OND

Tianjin OND Transmissions Machinery Co., Ltd. has manufactured gear pinions, gear racks, timing pulleys, belt pulleys, roller chain, sprockets for years. We have our own factory and professional team.

You will get from our company:
1. Stable Quality.
2. Lower price-Not cheapest but the lowest at the same quality.
3. Good service-Satisfactory service before and after sale.
4. Professional design team and sales department for your service.
5. Direct manufacturers.
6. OEM & ODM available.
7. The punctual delivery of goods,quality and quantity guaranteed.

Our services:
1. Reply your inquiry in 24 working hours.
2. Experienced staffs answer all your questions in fluent English.
3. We are the factory,so we will give you our competitive price for reference and satisfactory services.
4. OEM,buyer design,buyer label services provided.
5. Exclusive and unique solution can be provide to our customer by our well-trained and professional engineers and staffs.
6. 7 days 24 hours online service.

Our Main Products

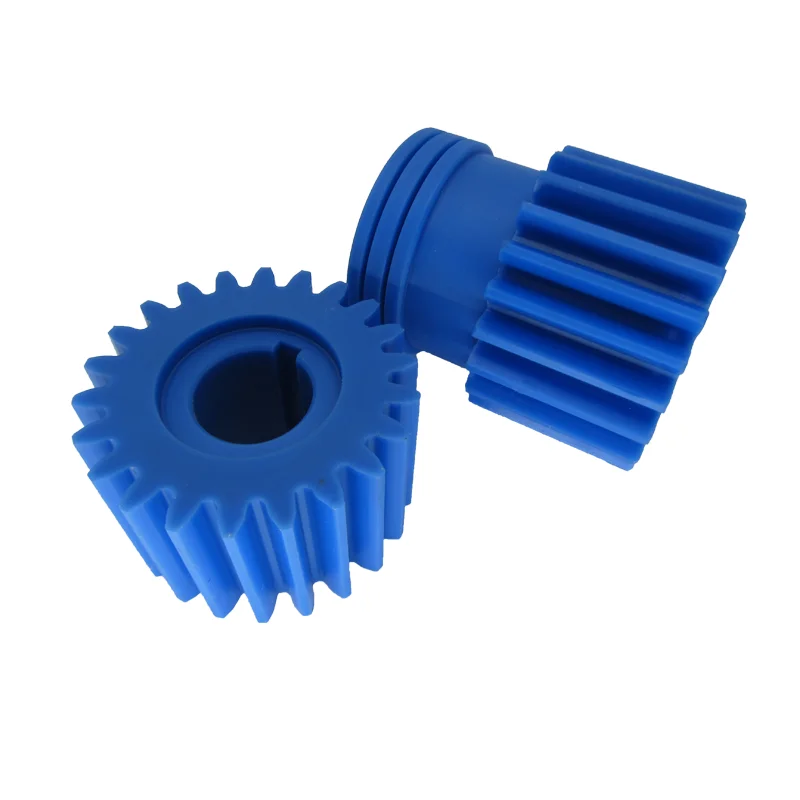

Gear

Gear Rack

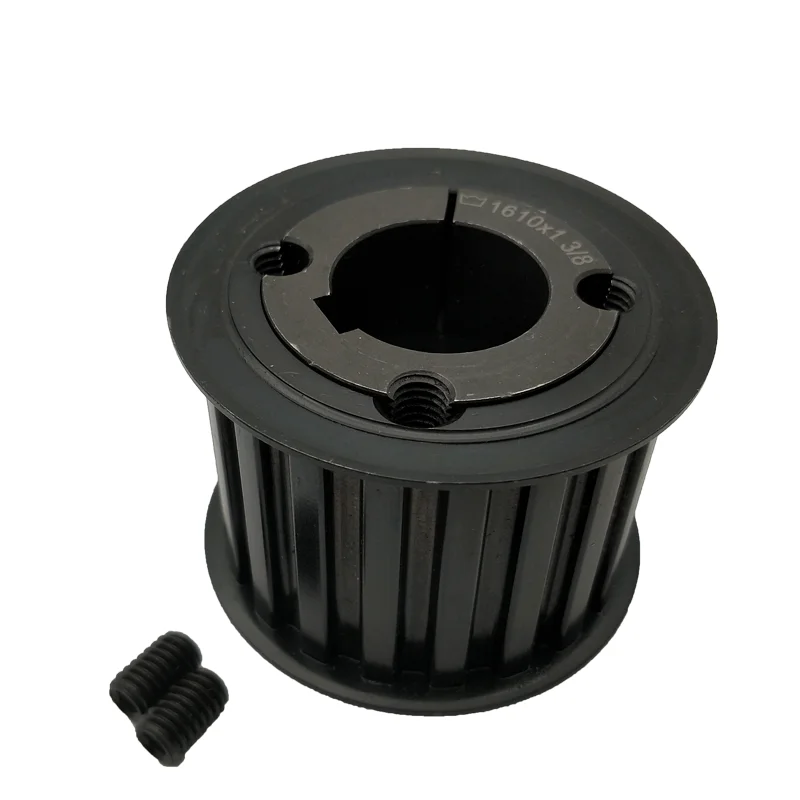

Timing Belt Pulley

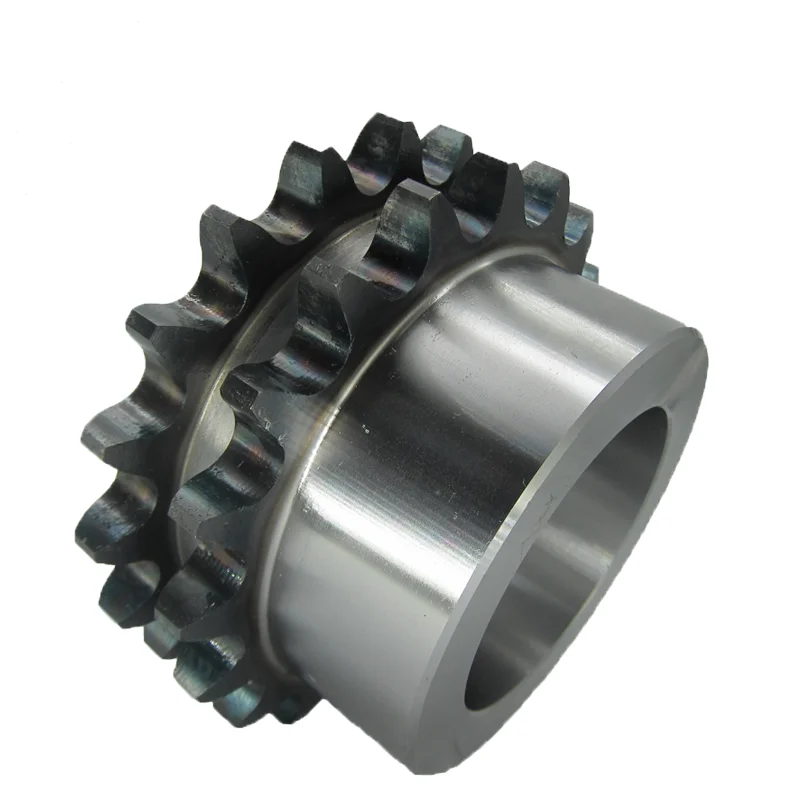

Sprocket

Roller Chain

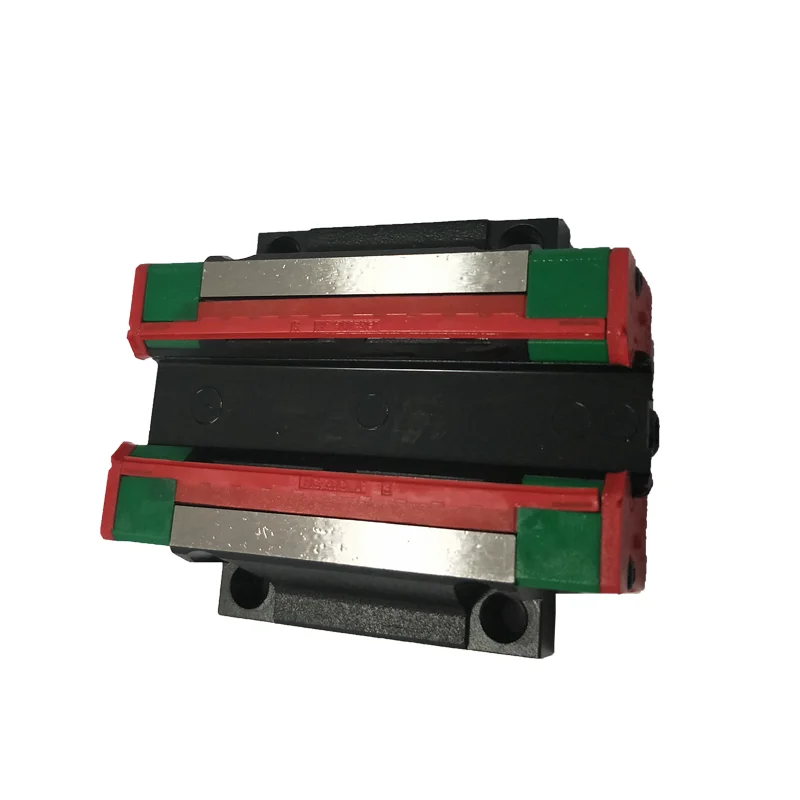

Linear guide and blocks

FAQ

1.Q: Are you a factory or trade company?
A: We have our own factory, our type is factory + trade.

2.Q: When can I get the quotation?
A: We are usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price. Please call me or tell me in your email so that we will regard you are inquiry priority.

3.Q: Do you like to serve the client only with small order?
A: We enjoy to grow up together with our clients whatever big or small.

4.Q: Can you send me a free sample?
A: Yes. We can send you sample for checking our quality. You need pay sample fee, but we will refund you once you place bulk order from us.

5.Q: Could you tell me the packing of your goods?
A: Packaging products in plastic bags--> Fix the carton box with packing tape--> Orderly, array the products in the carton box--> Arrayed well now--> Seal the carton box--> Completed.

6. Q: What is your MOQ?

A: 1). In stock: MOQ is 1pcs.

2). Not in stock:

When the out diameter is less than 50mm, the MOQ is 100pcs;

When the out diameter is more than 50mm and less than 300mm, the MOQ is 50pcs;

When the out diameter is more than 300mm, the MOQ is 10pcs.

7. Q: What is your terms of payment?

A:1).100% Western Union or PayPal in advance ,specially for small amount.

2).100% T/T or western union in advance for small quantity order.
3).30% T/T in advance, pay the balance payment before delivery the goods.
4).100% payment in Alibaba.

8. Q: What are your terms of delivery?

A: EXW, FOB Tianjin or Shanghai.

9. Q: What is the shipment time?

A: 1).By air to air port: Fastest, usually 3 days or 4 days.
2).By sea to sea port: Cheapest, usually 15 days to 30 days.
3).By courier: DHL, FedEx, ..usually 5 days to 7 days.

10. Q: How to start an order with you?

A: You can send us an inquiry here, or send us an email, or direct call us!
