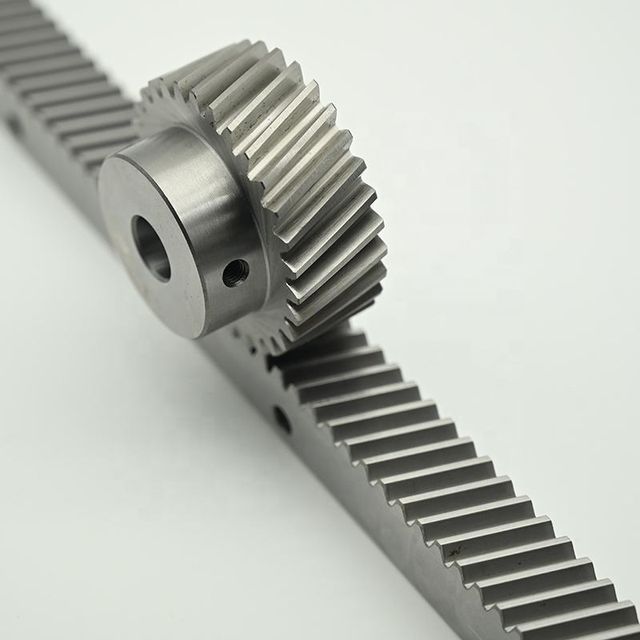

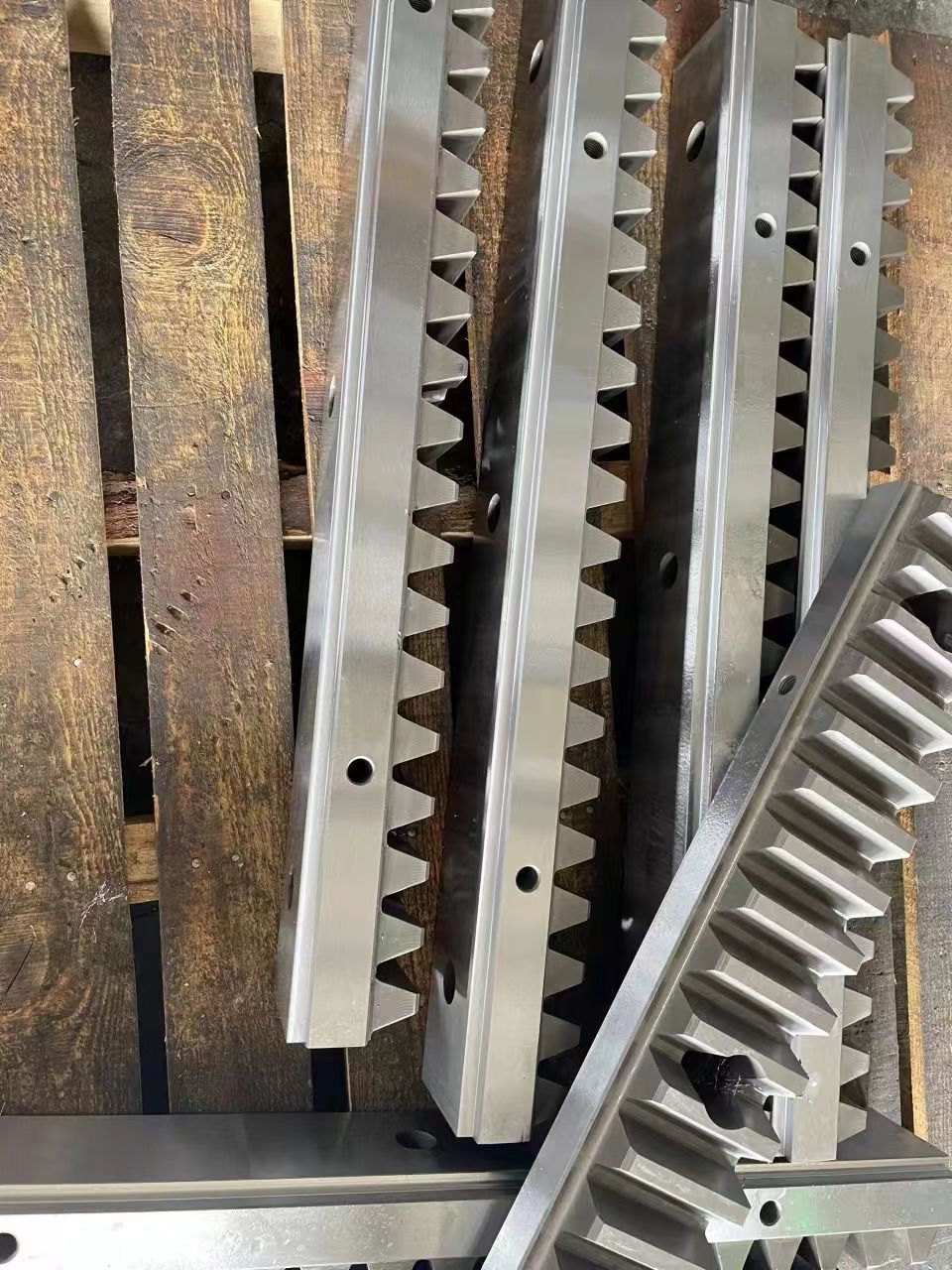

European Standard M1 M2 M3 M4 M5 M6 Custom CNC Machining Steel Helical Gear Rack and Pinion M1.25

Click here to contact
Product details
payment terms:L/C, Western Union, T/T, MoneyGram, PayPalTooth shape:spiral
width:twenty twohigh:twenty four
Origin:Tianjing, ChinaProcessing:gear hobbing
Weight (kg):2Supply capacity:10,000 specific discussions per week
Applicable industries:Building material stores, manufacturing plants, machinery repair shops, food and beverage plants, farms, retail, constructionCore component warranty:6 months
port:Shanghai/Tianjin/Dalian/Material:1045 steel, stainless steel, steel
shape:Square rackStandard or non-standard:standard
length:670/1400Marketing Type:Hot Products of 2019
Core components:gear, rackmodule:1.25
Warranty:6 monthsShowroom location:not any

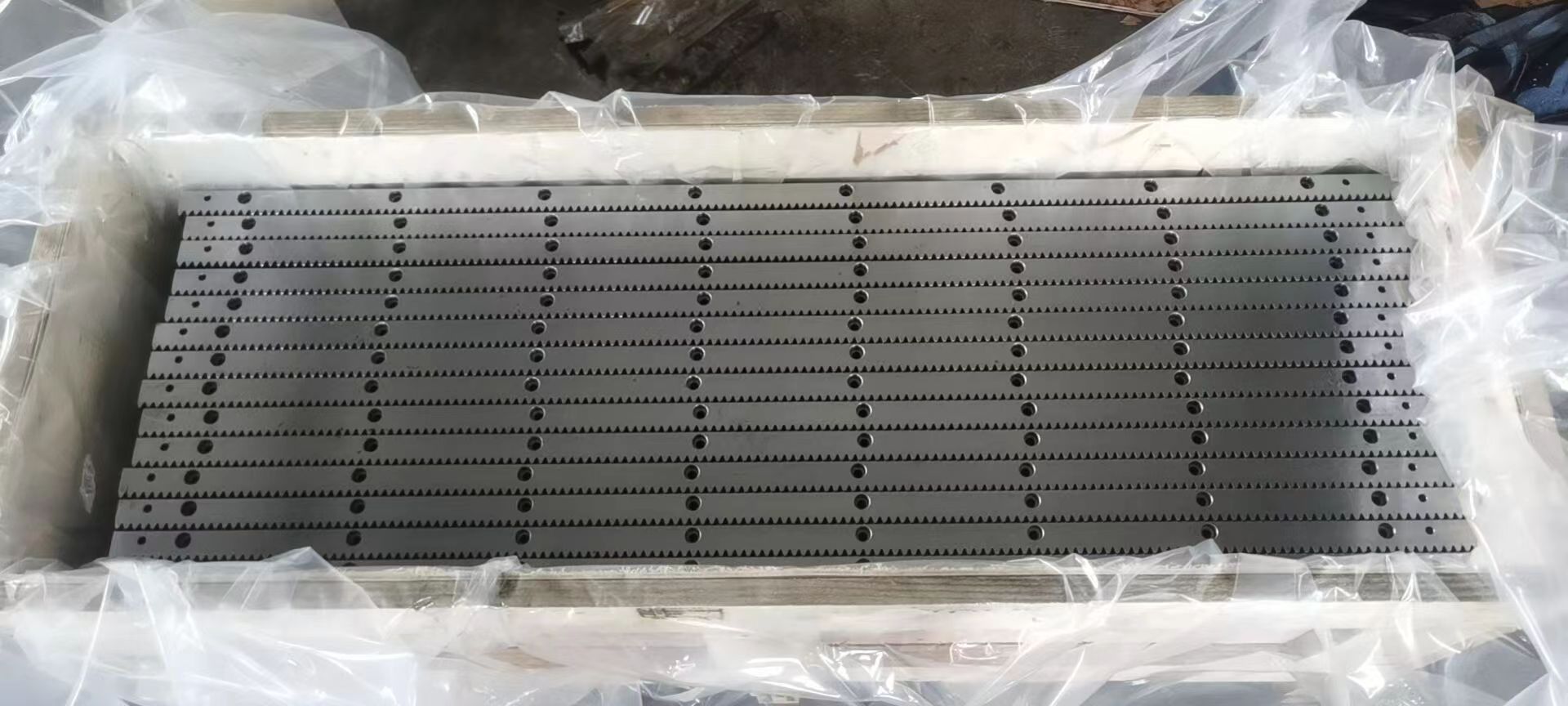

brand:HRSYPackaging Details:According to our customer's request
Video outbound inspection:ifaccurate:DIN6, DIN7, DIN8
Cave:andmodel:M1.25
Mechanical test report:if
Product Image
product
rack and pinion
Accuracy class
DIN5, DIN6, DIN7, DIN8, DIN10
Material
C45 steel, 304SS, 316SS, 40CrMo, nylon, POM
heat treatment
High Frequency, Quenching/Carburizing, Tooth Hardening
surface treatment
Zinc plated, nickel plated, chrome plated, black oxide or as your need
application machine
Precision cutting machine.
lathe
milling machine
grinder machine
Automated mechanical system
Automated storage system.
production machine
CNC engine lathe
CNC milling machine
CNC drilling machine
CNC grinder
CNC cutting machine
Machining Center
Way of working
Action speaks louder than words.

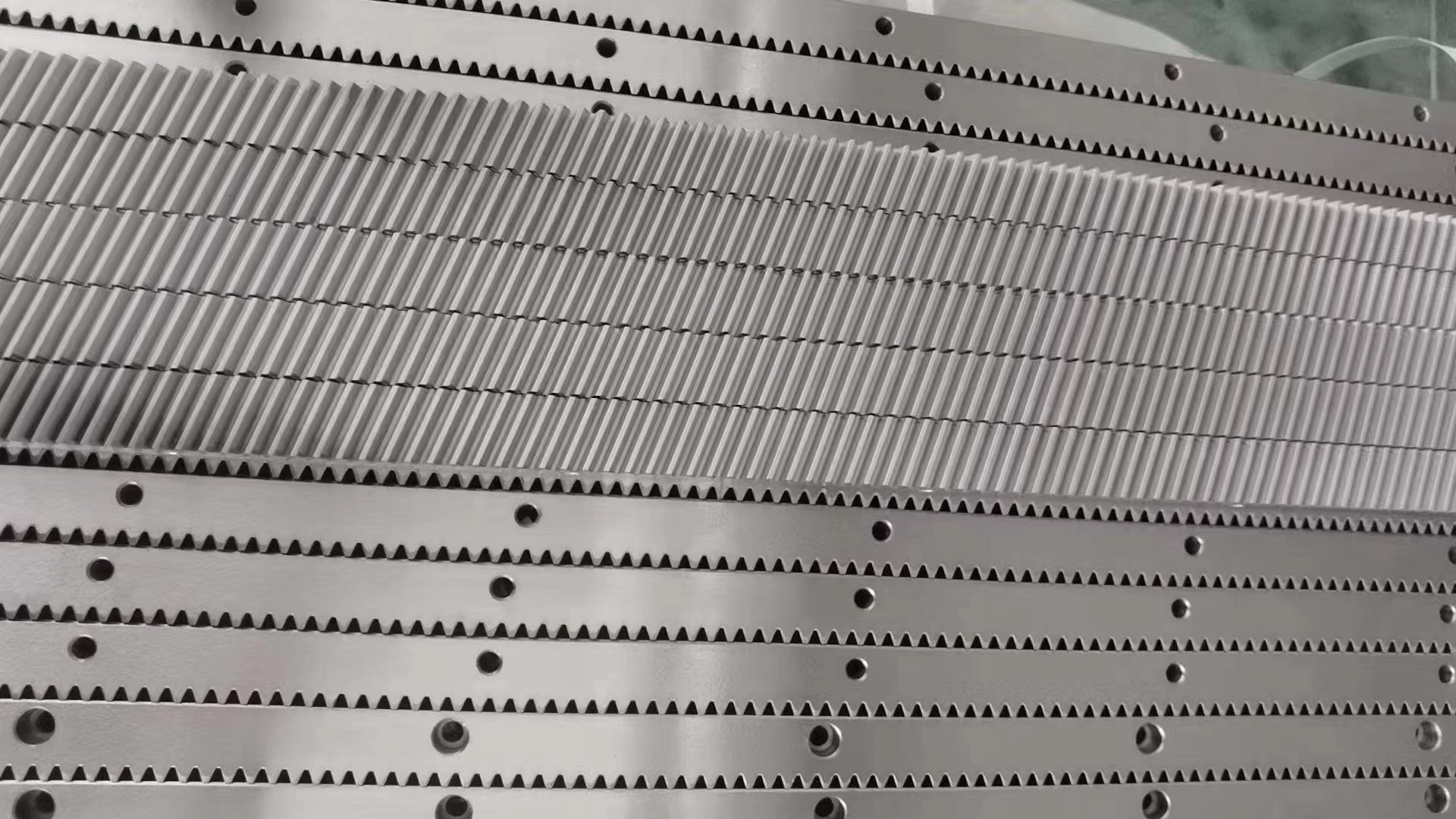

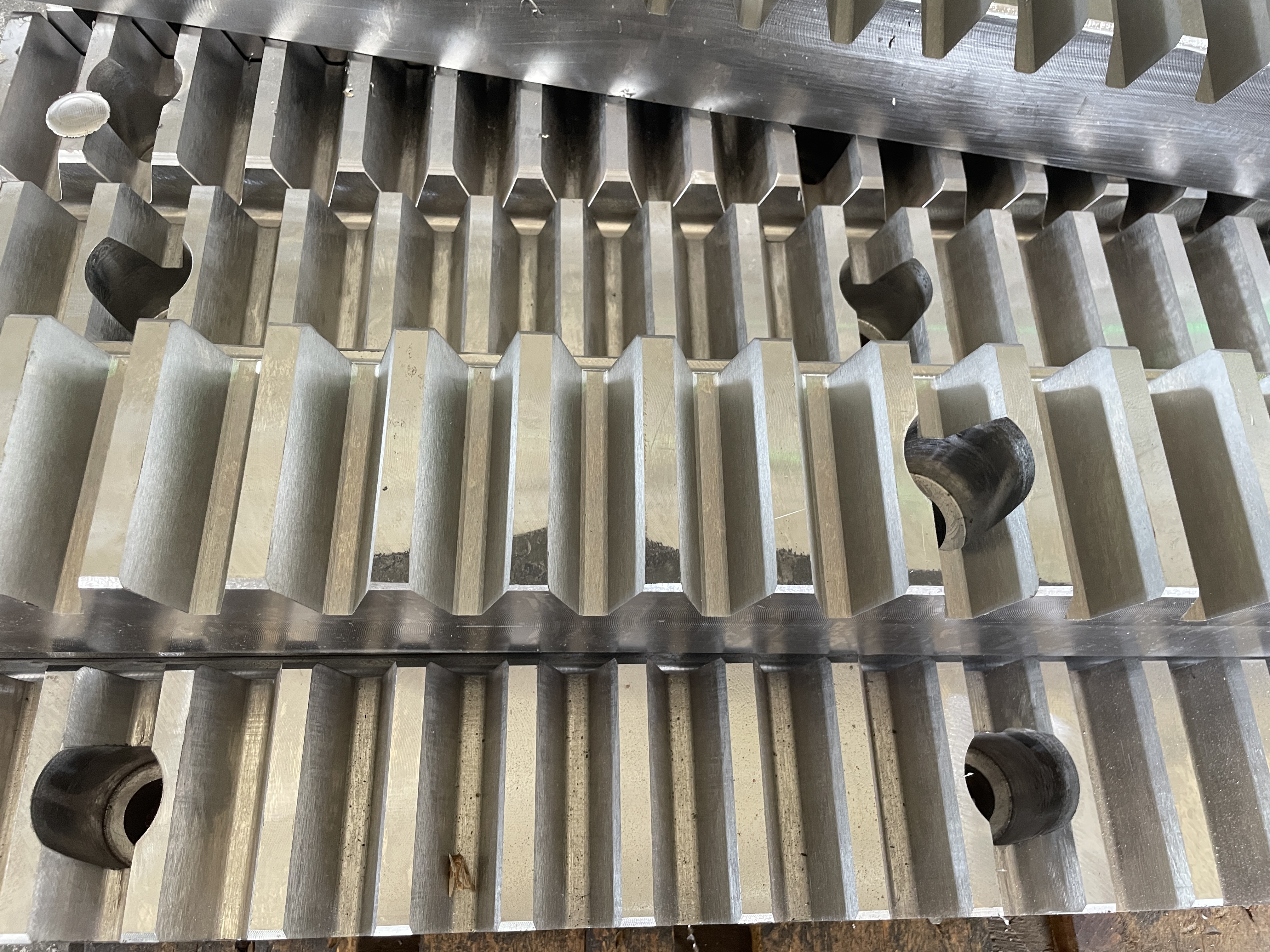

rack and pinion display
Stock Rack Dimensions
Rack type
Specification
color
Helical rack and pinion
M1 15*15*1000mm
white
M1.5 19*19*1000mm
white
Helical rack and pinion
M2 24*24*1000mm
white
M3 29*29*1000mm
white
M4 39x39x1000mm
white
Spur gear rack
M1 15*15*1000mm
Black
rack assembly

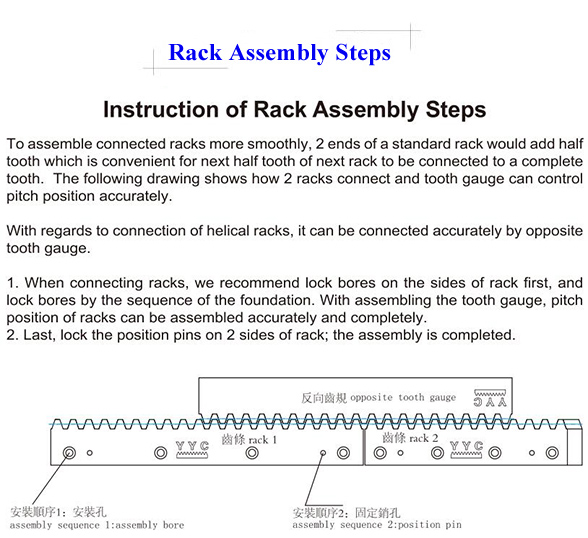

In order to make the assembly of the connected racks more smooth, half teeth will be added at both ends of the standard rack to facilitate the connection of the lower half teeth of the next rack with the full teeth. The figure below shows how the two racks are connected, and the tooth gauge can precisely control the pitch position.

For the connection of helical racks, it can be connected precisely by means of opposite tooth gauges.

1. When connecting the rack, it is recommended to lock the holes on the side of the rack first, and then lock the holes in the basic order. By assembling the tooth gauge, the pitch position of the rack can be assembled accurately and completely.

2. Finally, lock the positioning pins on both sides of the rack; the assembly is complete.
