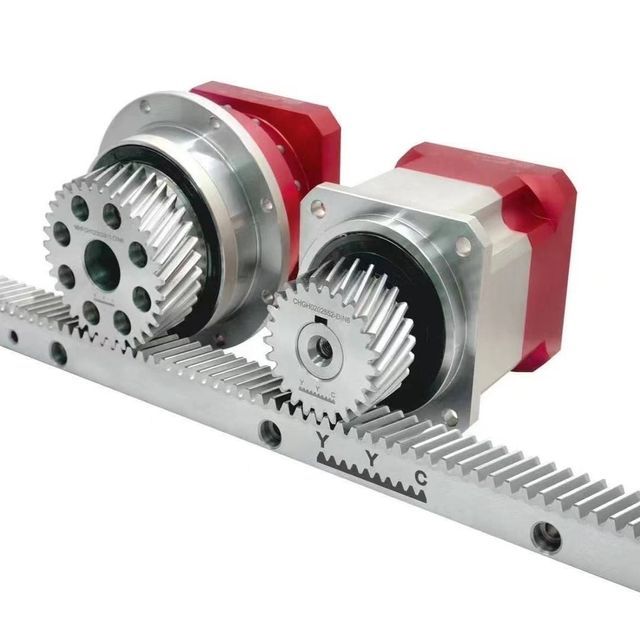

Famous Taiwan YYC rack and pinion
-
Supplier: Shandong Kunpengda International Trade Co., Ltd. -
Region: Shandong, China -
Price: $1.00 /piece -
Min. Order: 1 piece
Product details
| Material: | stainless steel, stainless steel | payment terms: | L/C, T/T |
| Warranty: | unavailable | Core components: | Bearings, gears |
| Tooth Hardness: | 50-55HRC | Right hand corner: | 19°31' 42" |
| size: | accept customization | heat treatment: | Tooth surface induction hardening |
| brand: | Kunpengda | product name: | CNC custom rack |
| Dental Treatment: | ground, milling | Marketing Type: | hot product |
| Showroom location: | not any | Applicable industries: | manufacturing plant |
| Weight (kg): | 1 | Standard or non-standard: | standard |
| Core component warranty: | not available | Module number: | M 1.25-M10 |
| Health status: | new | Video shipment inspection: | if |
| shape: | rack | Origin: | Shandong China |
| Tooth Angle: | 20° | Processing: | Heat treatment + CNC machining, precision casting |
| model: | rack | Mechanical test report: | if |
product display
1. High-precision rack, smooth and quiet operation. 2. The precision pinion is easy to install on the gearbox. 3. Can be combined and cut to any short length. 4. High stability and flexible customization. 5. High load capacity, more compact but less complicated. 6. Constant stiffness over the entire stroke length plus good system performance.

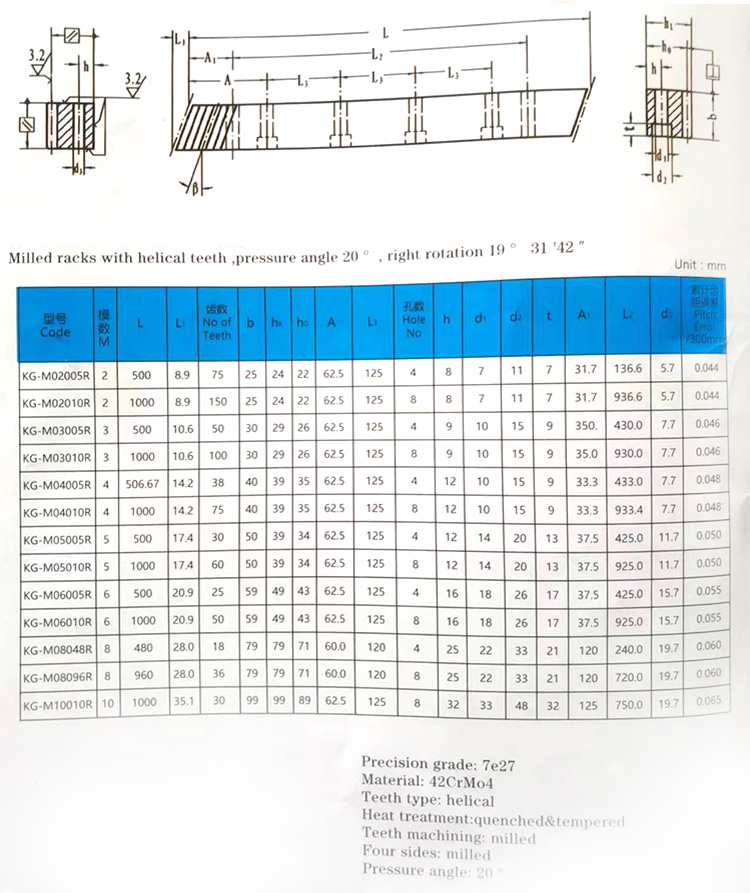

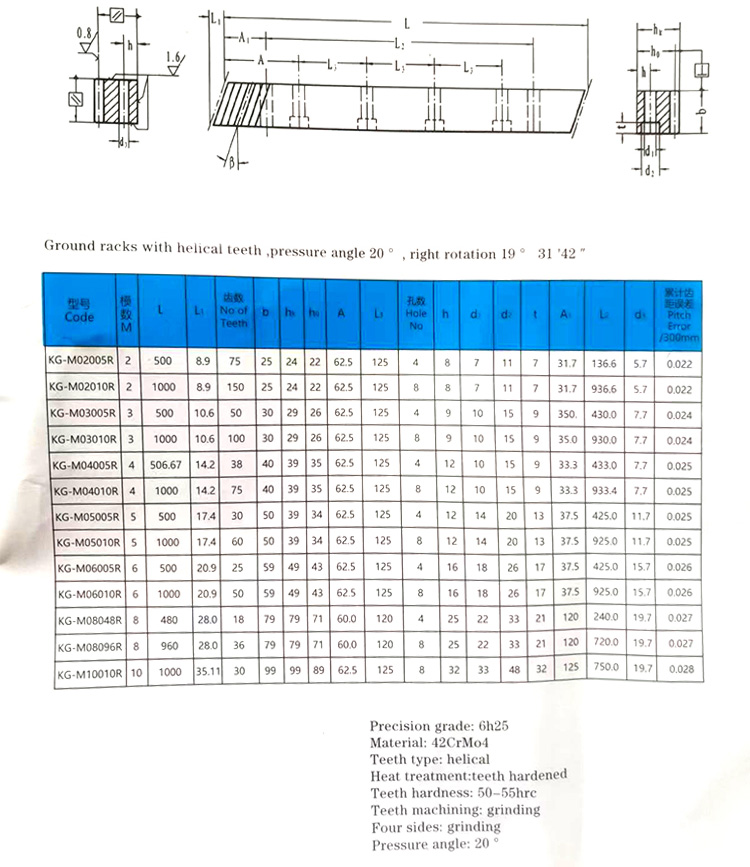

Product Description
product name | rack and pinion |
module number | M 1.25-M10 |
tooth hardness | 50-55HRC |
Material | S45C, SCM440 |
dental treatment | ground, milling |
OEM production | accepted |
hardness | quenching, hardening |
Tooth type | linear, spiral |
tooth angle | 20° |
right hand corner | 19°31' 42" |
heat treatment | Tooth surface induction hardening |
length | 1000mm, customized |
Pitch error/1000mm | 0.021 |
Applications
Food processing/sewage treatment plants/filling machinery/transportation equipment/electronics/medical equipment/glass machinery/aircraft parts/shipbuilding/household appliances/automotive/industrial equipment metal stamping hardware parts.
