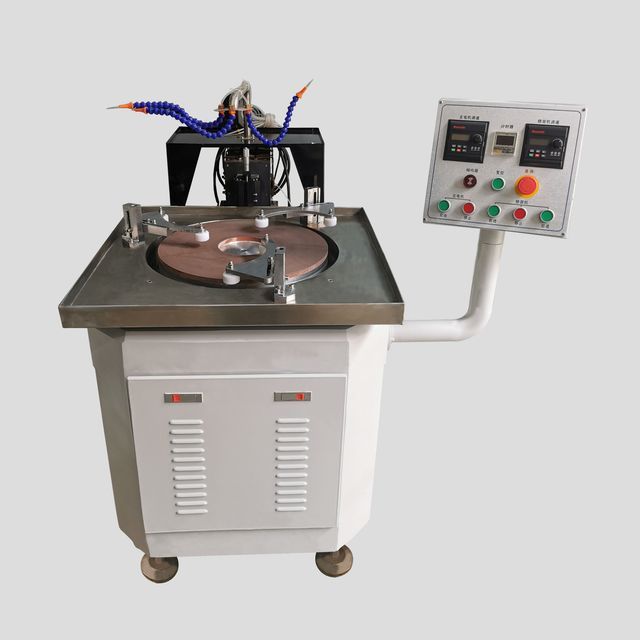

TY-24LX grinding and polishing machine

Supplier: Shenzhen Tengyu Grinding Technology Co., Ltd.
Region: Guangdong, China
Contact: Mr lua
Price: $15000.00 / 1 - 4 sets
$14500.00 / 5 - 9 sets
$14000.00 / >=10 sets
Min. Order: 1 set

Click here to contact

Product details

weight:	850 kg	Showroom location:	not any
Warranty:	1 year	Power (kW):	2.2
Supply capacity:	50 sets per month	Marketing Type:	normal product
Core component warranty:	1 year	Applicable industries:	Others, manufacturing plants, mechanical seals, semiconductor industry, aerospace, mobile phone accessories, communications and chips, ceramics, LED sapphire, optical glass, mechanical parts, metal surfaces
Package preview:		Origin:	Guangdong, China
Mechanical test report:	if	application:	610
size:	165011501450mm	Grinding speed:	0-80 rpm adjustable
Motor Power:	2.5 kW	Core components:	PLC, engine, bearing, gearbox, motor, pressure vessel, pump
Health status:	new	Timing range:	99 hours and 59 minutes
payment terms:	wire transfer	Key words:	grinder
port:	Shenzhen	Sheet flatness:	≤0.002
Main selling points:	high precision	workstation:	1-3
Weight (kg):	850	Video outbound inspection:	if
brand:	Tengyu	Packaging Details:	Wooden packing
Custom processing:	Yes

product description

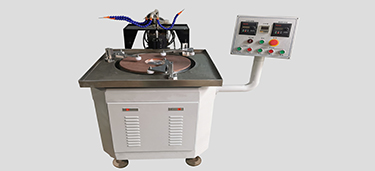

TY-24LX grinding and polishing machine

The main purpose:
Widely used for single-side grinding and polishing of workpiecesAlumina ceramics, zirconia (PSZ) ceramics, silicon carbide ceramics, optical glass wafers, quartz wafers, silicon wafers, germanium wafers, sealing rings, stainless steel, titanium alloys, hard alloys, tungsten steel, etc.
Working Standards:
1. TY-24LXGrinding and polishing machineIt is a high-precision surface grinder model. It can grind the workpiece by the following steps: We fix it on the grinding plate and increase the pressure by applying a heavy object on the workpiece. Then, we can grind the workpiece by the relative friction between the workpiece and the grinding disc.
2. The lap plate correction device moves forward and backward by hydraulic suspension guide rails. The surface of the plate is precisely machined with diamond tools to achieve high flatness.
(advantage:
1. The grinding plate can always maintain a high flatness, so as to ensure the flatness of the workpiece;
2. Improve the cutting rate;
3. Improve the stability of grinding performance;
4. Reduce the amount of slurry. )

feature:
* Interval automatic spraying device is adopted, and the spraying time and flow rate can be set according to needs.
* Lap plate flatness: ≤002mm.
* The equipment uses cylinders to lift heavy objects without manual handling.
* The equipment adopts a non-power-off button control system, and the lap time and lap speed can be set on the control panel.
* This equipment is equipped with a lapping plate correction device, which is mainly used to correct the flatness of the lapping plate, so that the groove of the lapping plate is even. The flatness of the lap joint plate after correction can reach 0.02mm, which plays a very critical role in the grinding of the product. The flatness of the processed workpiece can reach 0.001mm (φ10mm). (Different materials can achieve different accuracy, this data cannot be used for all products.)

List of functions

1. Improve product flatness to 0.002 (φ100mm) 2. Improve product roughness to Ra0.0004 (φ100mm)

stainless steel mirror polished

Glass Grinding + Polishing

Ceramic coarse grinding + fine grinding

product specification

No	thing	data
1	strength	2.2 kW
2	1-3 workstations	1-3
3	Disc speed	0-80 rpm adjustable
4	Equipment delivery date	20 working days
5	Disc flatness	≤0.002
6	roughness	Coarse grinding: 0.1, fine grinding: 0.02, polishing: 0.0004
7	weight	850 kg
8	size	165011501450mm

product configuration

grinding plate

Polishing fluid

polishing pad

successful project

Thailand project

japanese project

Indian project
