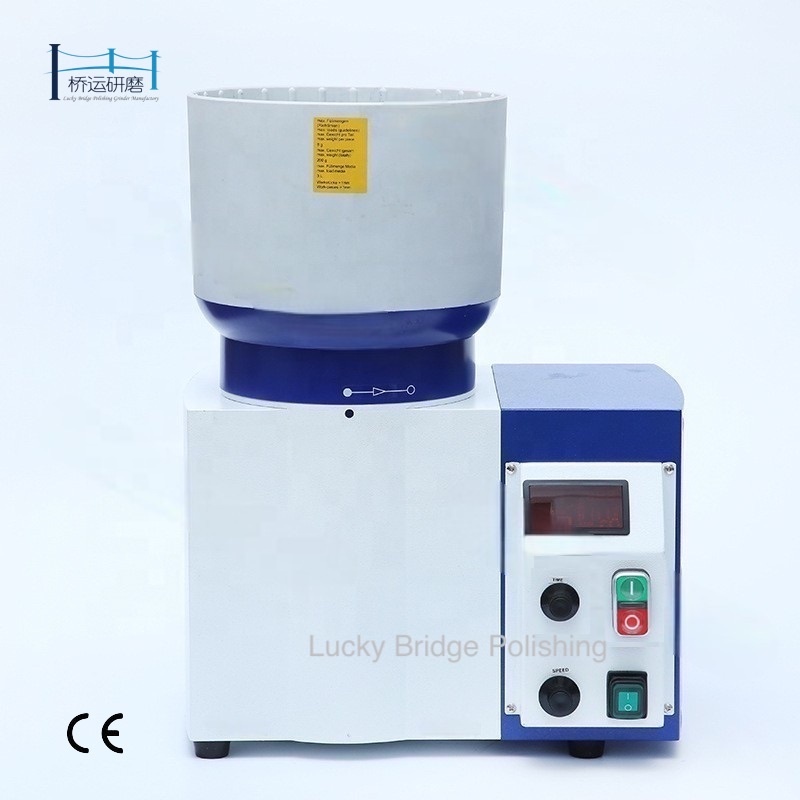

CE Approved Wet Dry Magnetic 3 in 1 Desktop Mini Jewelry Magnetic Tumbler Jewelry Polishing Tool

Supplier: Huzhou Lucky Bridge Polishing Co., Ltd.
Region: Zhejiang, China
Contact: Mr Dennis Qiu
Price: $1500.00 /set
Min. Order: 1 set

Click here to contact

Product details

payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram	Mechanical test report:	if
Package preview:		After-sales service:	On-site maintenance and repair services
Video shipment inspection:	if	Core component warranty:	1 year
Origin:	Zhejiang, China	port:	Shanghai, Ningbo, Qingdao
Marketing Type:	Hot Products of 2021	Power (kW):	0.8
After warranty service:	Video technical support, online support, spare parts	Main selling points:	easy to operate
Showroom location:	not any	Health status:	new
After-sales service provided:	Online support, free spare parts, video technical support	Packaging Details:	Wooden packing
Voltage:	AC220V 50HZ	Supply capacity:	30 sets per month
brand:	lucky bridge	Weight (kg):	40
Applicable industries:	home use, jewelry store	Local service location:	not any
application:	jewelry polishing	Core components:	Motor, Barrel
Warranty:	2 years

Product Description

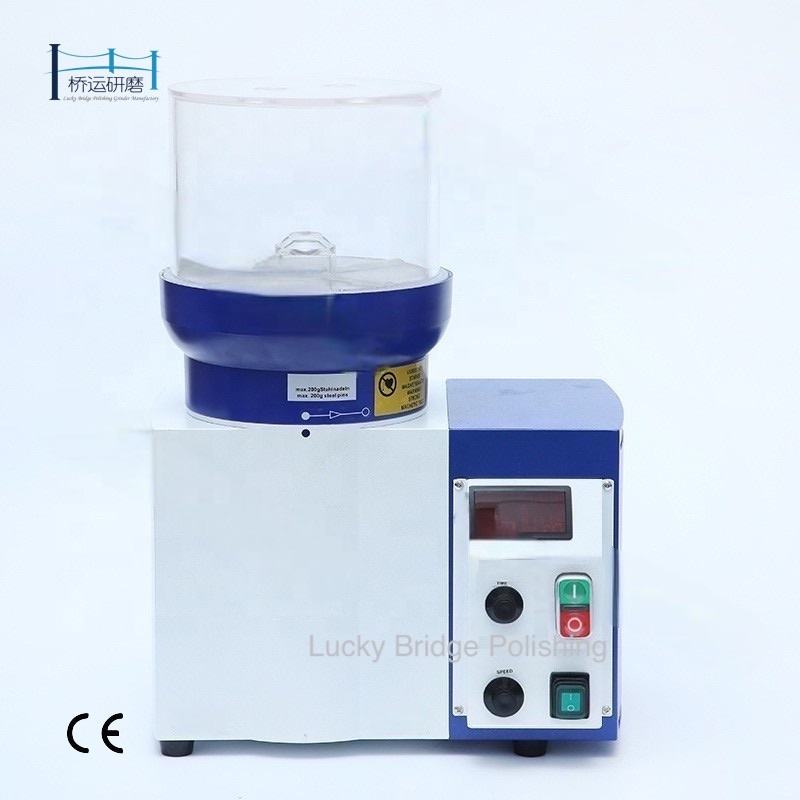

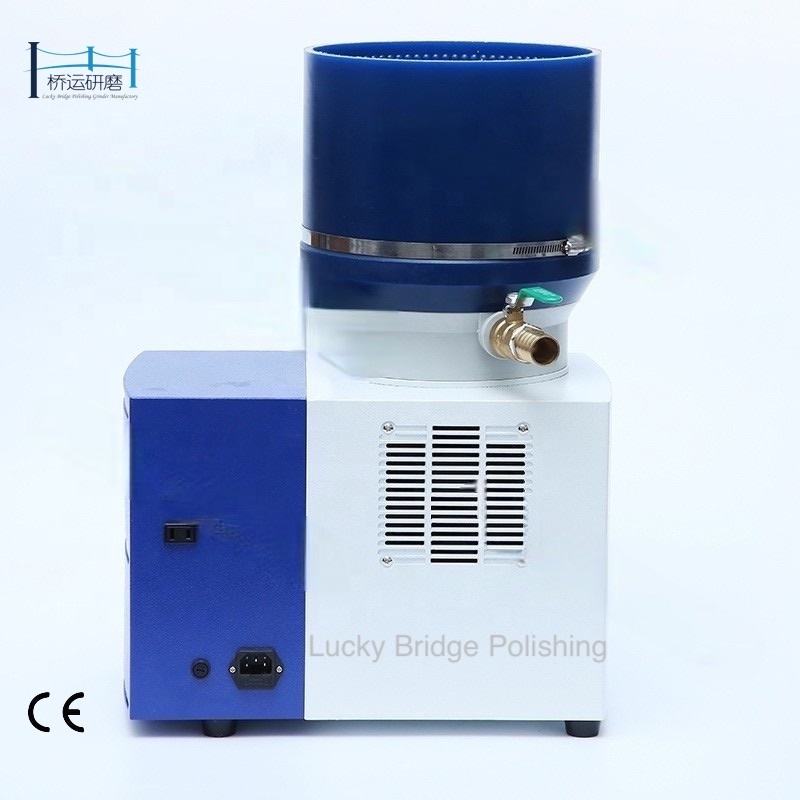

Economical Centrifugal Three-in-One--EC3 Series

The modular concept of the EC3 makes it ideal for small series production. Their high-tech design makes these machines very economical, saving up to 60% compared to the cost of traditional finishing. To meet the needs of specific applications, the EC3 is available in "Magnetic", "Wet" and "Dry" versions as well as the "Basic" model as a flexible all-rounder.

feature

* Clean and bright workpiece surface

Completely removes any traces of sanding/grinding and cast skin for a flawless finish.

* Surface finish comparable to hand polished quality
Shines even in inaccessible areas of complex workpieces and completely removes oxidation discoloration and any residual embedding material.

* Flexible use
This machine type is the first to use three independent or up to three different finishing processes on one machine.

technical details

Voltage	220V single phase 50-60Hz
Ability to work	6L/0.2CuFt per barrel
Drum size	240x200mm / 9.4" x 7.9"
speed	2800 rpm
delivery details	740x360x590mm / 29.1"x14.2"x23.2" 45 kg / 99.2 lbs

RieterREqualizeruIPMENT

* Speed control by inverter
* Container bayonet fitting
* LCD display speed and processing time
* Automatic container detection
* 6 liter process vessel for wet finishing including metering pump and waste water tank
* 6 liter process container for dry finishing
* 6 liter process container for magnetic polishing

Accessories

interchangeable container
magnetic polishing
6 liter interchangeable container with magnetic polishing media
Recommended Process Quantity*:
* Granules: 200g steel needle
* Workpiece: Approx. 300 grams

dry grinding
6 liter interchangeable container for dry grinding
Recommended Process Quantity*:
*Pellets: 2.2kg of walnut shell pellets
* Workpiece: Approx. 300 grams

wet grinding
6 liter interchangeable container for wet finishing

(5.5 kg)

Recommended Process Quantity*:
*Particles:
3 kg plastic abrasive
or 12 kg stainless steel polish
or 4 kg of porcelain polish
* Workpiece: Approx. 300 grams

---------------------------------------------------- --
Work with media sets
dry finishing
include:
* 5 kg of H1/100 walnut shell pellets for

pre-polished
* 5 kg of H1/500 walnut shell pellets for

fine polishing
* 1 kg of polishing paste P 6
* 1 scoop
* 1 scoop

wet finishing
include:
* 2 kg PA 10 plastic abrasive, red

(coarse grinding)
* 2 kg KA 10 plastic abrasive, red

(coarse grinding)
* 2 kg PX 10 plastic abrasive, white

(fine grinding)
* 2 kg KX 10 plastic abrasive, white

(fine grinding)
* 10 liters of Compound SC 13

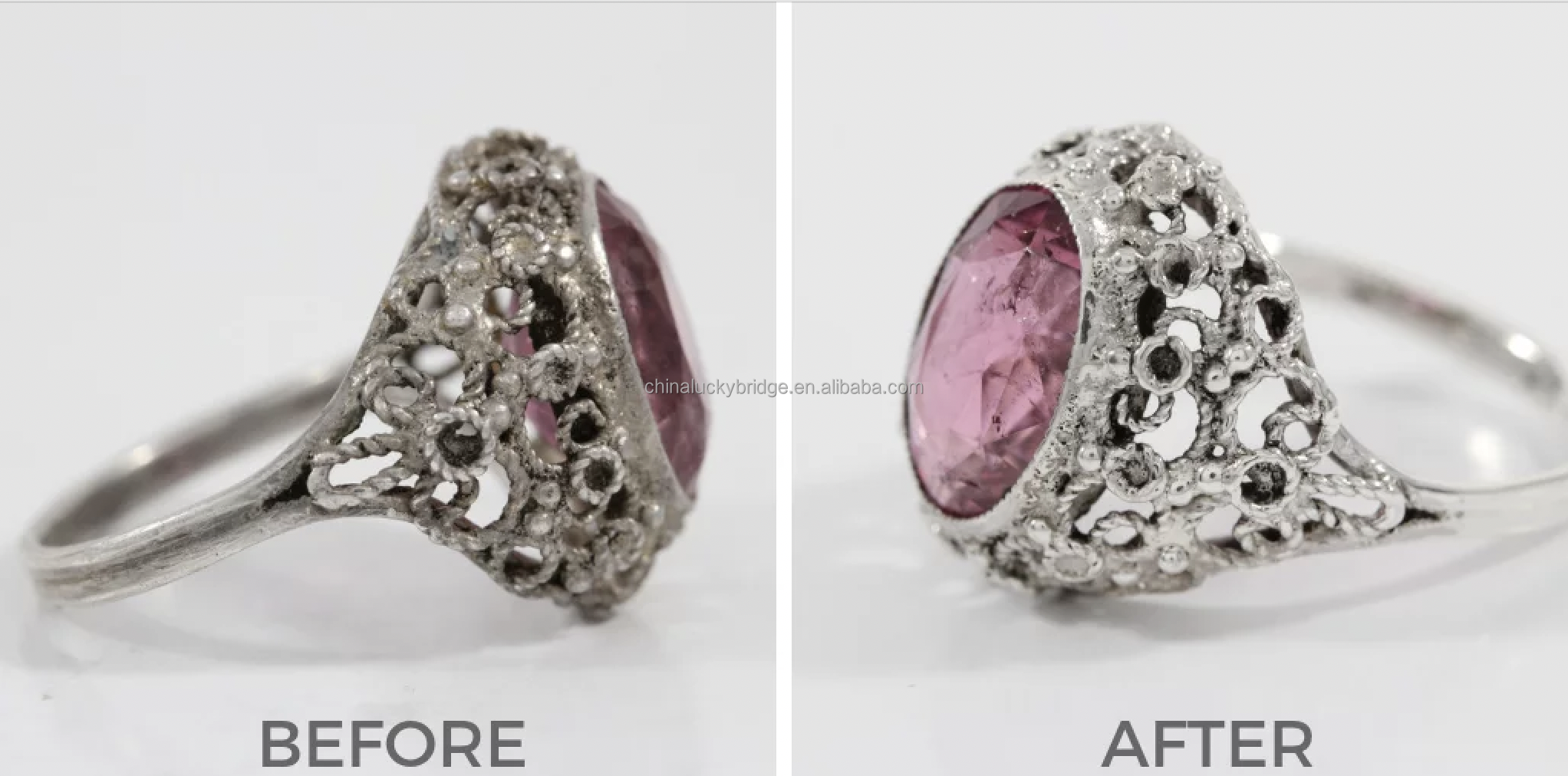

before and after
