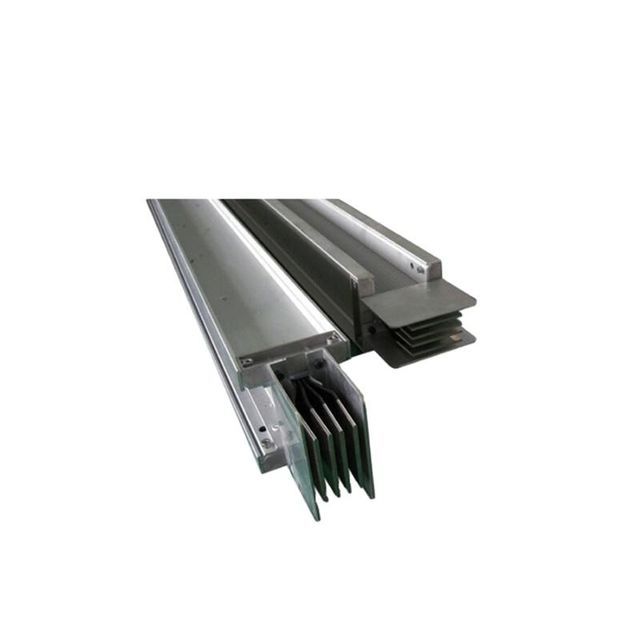

Electrical equipment compact aluminum busway trunking busway system

CM compact busway is suitable for AC three-phase four-wire or three-phase five-wire power distribution system with a rated current of 250A~5000A. It is a low-cost and high-efficiency solution with high environmental requirements for industrial plants, hospitals, shopping malls, and high-rise buildings. -Technology to achieve a good price/performance ratio.

Specification

- Current rating: 400 A to 6300 A (copper) or 100A to 4000A (aluminum)

- Protection class: IP54 or IP65

- Insulation rated current: [up to 1000 A]

- Standard length: 4m/3m/2m/1m

- System voltage: AC380/690V

- Conductor material: high conductivity copper or aluminum

- Halogen-free, flame retardant Class B epoxy resin insulation

- Tapping unit for MCCB or SDF or MCB

application:

- Residential apartment

-Business premises and commercial complexes

-Resorts and hotels

-Educational institutions

-shopping center

- assembly line

-industry

-Airport

-Hospital

-Oil and gas platforms

-power plant

Technical Parameters:

Rated current (A)	Ground Rod Resistance (10-6Ω/m)
Rated current (A)	copper conductor	aluminum conductor
100	368.3	404.7
160	368.3	404.7
200	368.3	404.7
250	368.3	404.7
400	248	306.8
500	213.6	248.8
630	213.6	210.3
800	168.2	163
1000	139.5	141
1250	112.3	112.5
1350	96.6	101.7
1600	82.8	90.8
2000	66.5	74.8
2300	54.6	66.6
2500	44.9	62.2
3150	34.5	40.2
3800	29.6	33.3
4000	27.9	31.1
4500	22.5	/
5000	20.5	/

Competitive Features:

- Small size, good flexibility.

- Convenient and easy to install.

- All-aluminum casing, dust-proof, ventilated, and conductive.

- High quality conductor and housing material

The main components:

Branch busway

Plug-in busway

joint block

Horizontal elbow

Horizontal Offset [Z] Elbow

vertical elbow

Vertical Offset [Z] Elbow

Vertical Tee Section

Standard flanged end

Flanged end boxes and end connection details

MCCB plug-in box

Detailed photos:

Discharge reference:

rated current	Width (mm)	Height (mm)	Weight (kg/m)
rated current	Width (mm)	Height (mm)	Four lines	five lines
250	128	77	9	9.5
400	128	87	11.5	12.3
630	128	92	12.5	13.4
800	128	102	15	16.2
1000	128	112	16.9	18.4
1250	128	127	20.9	22.7
1350	128	142	23.9	26.2
1600	128	157	27.7	30.4
2000	128	187	34.7	38.1
2300	128	222	42.7	47.1
2500	128	262	51.8	52.3
3150	128	Chapter 339	62.6	69.3
3800	128	Chapter 389	74.5	82.5
4000	128	409	79.3	87.9
4500	128	Chapter 499	99.9	110.8
5000	128	Chapter 539	109.6	121.6
