Aluminum bus duct Electrical bus duct Electrical copper bus
-
Supplier: Lanzhou Great Wall Electrical Power Equipment Co., Ltd. -
Region: Gansu, China -
Contact: Ms Cherry Ma -
Price: $142.00 / 1 - 19 sets
$140.00 / 20 - 49 sets
$136.00 / >=50 sets -
Min. Order: 1 set
Product details
| Warranty: | 1 year | standard: | GB 7251.2-1997 |
| brand: | GWE, GWE | Package preview: | |
| Packaging Details: | wooden box/pallet | Rated current: | 220A |
| OEM: | accept | Material: | copper, aluminum |
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram | port: | Shanghai or Tianjin |
| size: | According to configuration | Origin: | Tianshui, China, Gansu, China |
| model: | ccx18 | color: | custom made |
| Certificate: | ISO9001 CCC CE | Supply capacity: | 5000,000 m/m per month |
| Supply capacity: | 5 million sets per month |
Product Description
product description
overview

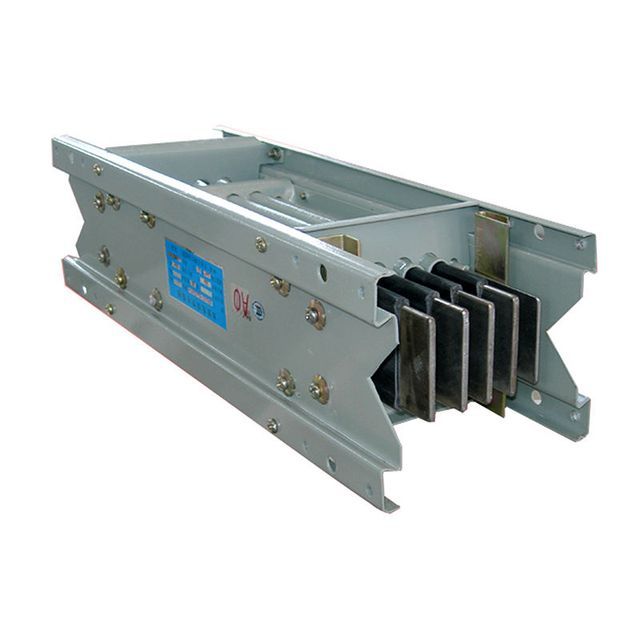

CCKX18 series busway is a high-strength fully enclosed reinforced insulation type. The product shell is made of galvanized steel rolled into a corrugated cover, and the busbar conductor is fixed by the corrugated cover, which can withstand thermal stress and electric power caused by large short-circuit current. CCKX18 aluminum alloy shell reinforced insulation type busway, anti-corrosion busway has the characteristics of general and reliable structure, beautiful appearance and light weight. Anti-corrosion busway is widely used in ideal power transmission and distribution equipment under severe working conditions such as petroleum and chemical industry. Standard: GB 7251.2-1997, JB/T 9662-1999, GB 7251.2-1997, GB 14048.1-2000, GB/T 4942.2-1993main technical data
CCKX18 series busway is a high-strength fully enclosed reinforced insulation type. The product shell is made of galvanized steel rolled into a corrugated cover, and the busbar conductor is fixed by the corrugated cover, which can withstand thermal stress and electric power caused by large short-circuit current. CCKX18 aluminum alloy shell reinforced insulation type busway, anti-corrosion busway has the characteristics of general and reliable structure, beautiful appearance and light weight. Anti-corrosion busway is widely used in ideal power transmission and distribution equipment under severe working conditions such as petroleum and chemical industry. Standard: GB 7251.2-1997, JB/T 9662-1999, GB 7251.2-1997, GB 14048.1-2000, GB/T 4942.2-1993main technical data
thing | parameter | ||||||
Power frequency (Hz) | 50(60) | ||||||
Rated insulation voltage (V) | AC660DC1000 | ||||||
Rated working voltage (V) | AC220/380/660DC800 | ||||||
Connection unit rated working voltage (V) | AC220/380 | ||||||
Rated current (A) | 100, 160 200, 250 | 400, 6300 800, 1000 | 1250, 1600 | 2000, 2500, 3150 4000, 5000 | |||

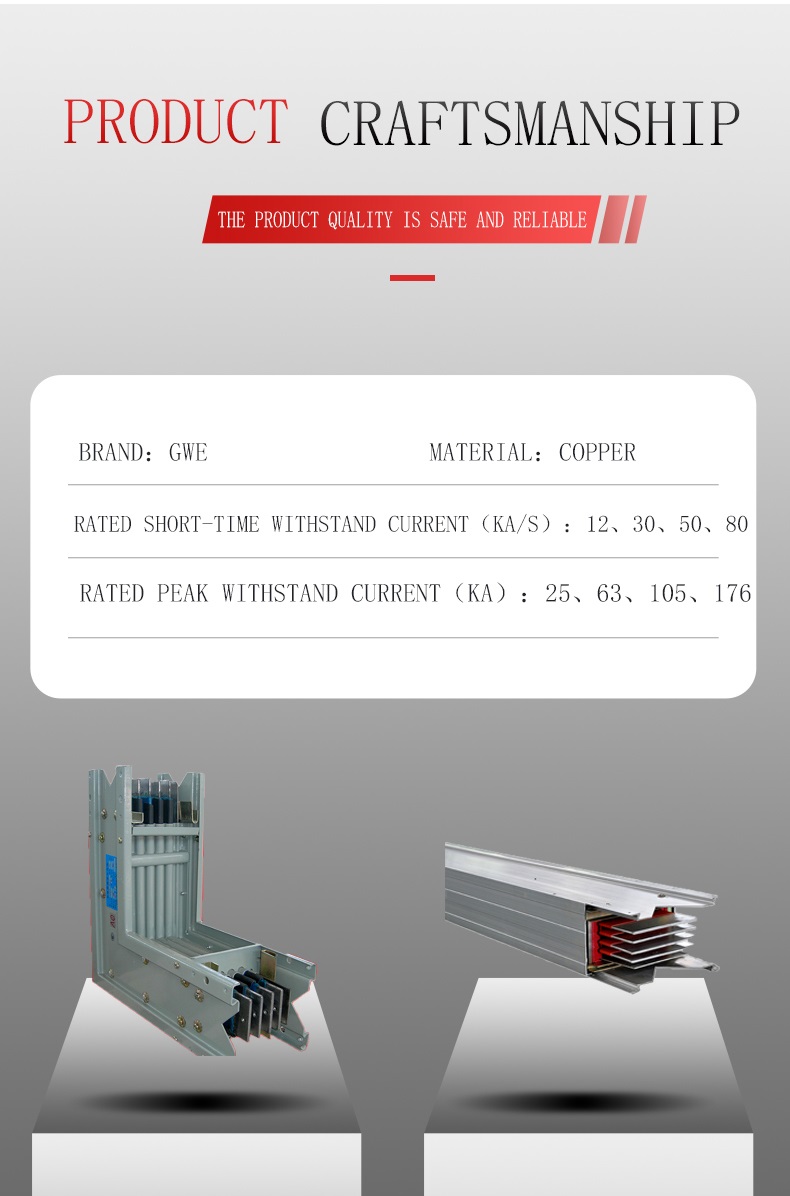

Rated short-time withstand current (kA/s) | 12 | 30 | 50 | 80 | |||
Rated peak withstand current (kA) | 25 | 63 | 105 | 176 | |||
wiring system | Three-phase three-wire, three-phase four-wire Three-phase five-wire | ||||||
Degree of protection | IP54 | ||||||
