bus crane PVC Electric compact Bus/Busbar
- 88.00 >=50 sets
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Warranty: | 1 year | size: | According to configuration |
| port: | Shanghai or Tianjin | Origin: | Gansu, China |
| brand: | GWE, GWE | Certificate: | ISO9001 CCC CE |
| OEM: | supply | model: | CCFX |
| usage: | Power Industry | payment terms: | L/C, T/T |
| Supply capacity: | 1 million sets per month | color: | customized, customized |
| Material: | aluminum or copper | Packaging Details: | wooden box/pallet |
| Protection class: | IP54 | Advantage: | Heat dissipation fast |
Product Description
overview

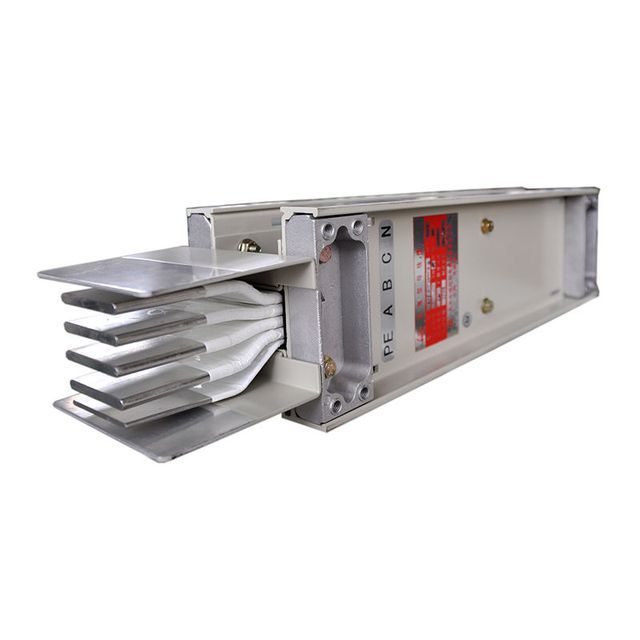

The insulation of CCFX series aluminum compact busway is wound by polyester film produced by American Durai, connected by external locking rivets, with high protection level, small size, fast heat dissipation, low loss and no chimney effect. There are three-phase three-wire system, three-phase four-wire system and three-phase five-wire system. Due to its small quality, light weight and good decorative appearance, it is mainly suitable for various large, medium and small building power transmission and distribution equipment in industrial and commercial enterprises.
main feature
⚫Small size, fast heat dissipation, low loss, no chimney effect ⚫Light weight, good decoration
main technical data
thing | parameter | ||||
Rated voltage (V) | 660 | ||||
Maximum working voltage (V) | 690 | ||||
Rated frequency (Hz) | 50(60) | ||||
Rated current (A) | 400, 630, 800, 1000, 1250 | 1600, 1800, 2000, 2500 | |||
Rated short-time withstand current (kA /S) | 30 | 50 | |||
Rated peak withstand current (kA) | 63 | 105 | |||
Power factor (KA) | 0.25 | 0.25 | |||
degree of protection | IP54 | ||||
