Single Pole 200A-2000A Aluminum/Copper Insulated Rail Bus for Crane
- 6.00 >=4 meters
| Insulation sheath material: | pvc | Heat resistance: | 70°C |
| Material: | Insulation sheath material | product name: | Single pole 200A-2000A aluminum/copper insulated rail bus for cranes |
| Rail length: | 4m/6m | application: | Crane Power Transmission |
| Conductor material: | aluminum | Packaging Details: | Single-pole 200A-2000A aluminum/copper insulated rail bus for cranes, packing: carton wooden box or according to customer requirements. |
| Rated current: | 40A-2000A | Voltage: | Not more than 690V |
| Rated current: | 40A -2000A | payment terms: | L/C, Western Union, T/T, MoneyGram |
| Origin: | Henan, China | model: | Unipolar |
| brand: | headquarters | color: | red or customized |
| pole: | Single/3P/4P/5P/6P |

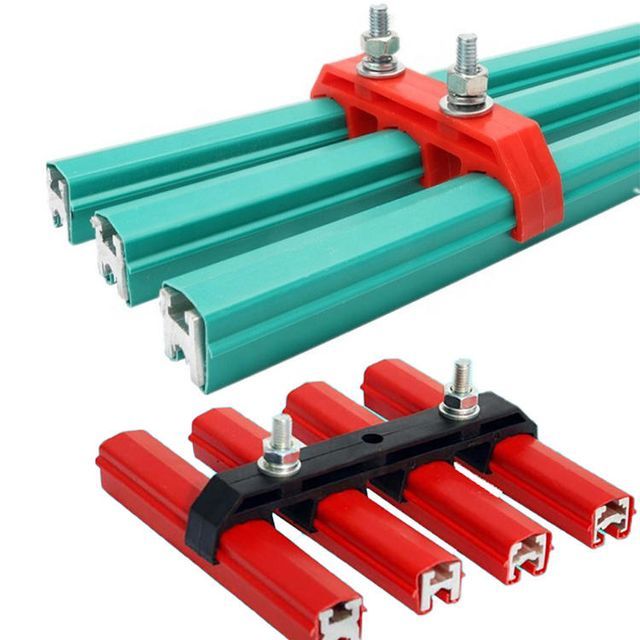

Single pole 200A-2000A aluminum/copper insulated rail bus for cranes
Crane bus, choose Hongqi Hoisting Machinery

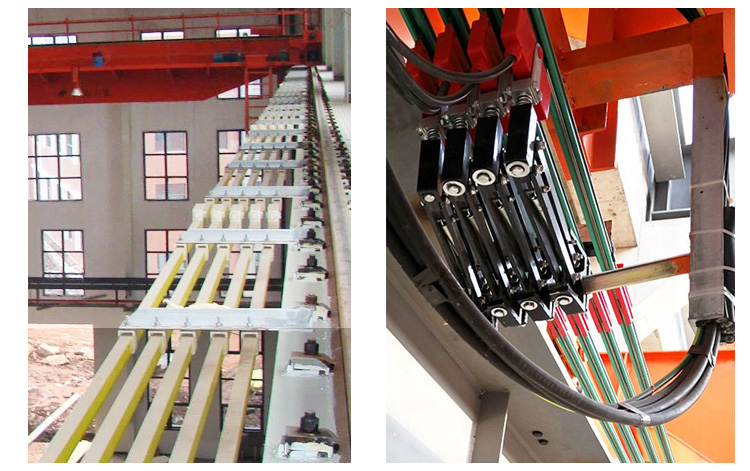

The single-pole trolley line of the H-type crane is made of aluminum alloy and PVC insulated shell, and the insulated bus bar has a simple structure and is easy to install and maintain. Widely used in power supply lines of mobile equipment such as mines, metallurgy, chemicals, machinery, docks, and freight yards
Ampacity :200A/250A/320A/500A/800A/1000A/1250A/1600A/2000A/2500A/3000A
Contact us for more information!
Crane aluminum conductor busbar specifications:
|
Track Model JDC |
I1 |
I2 |
I3 |
I5 |
I8 |
I12 |
I16 |
I20 |
|
rated current |
200A |
250A |
320A |
500A |
800A |
1250A |
1600A |
2000A |
|
Operating Voltage |
AC: 600V DC: 660V |
|||||||
|
Dielectric strength |
>5000V, no flashover for 1 minute |
|||||||
|
Operating temperature |
-30-60℃ |
|||||||
|
Rail length |
4m/6m |
6 meters |
6 meters |
6 meters |
6 meters |
6 meters |
6 meters |
6 meters |
|
hanger clip space |
1.5-2 meters |
3 meters |
3 meters |
3 meters |
3 meters |
3 meters |
2-3 meters |
2-3 meters |
|
hanger screw |
M8 |
M10 |
M10 |
M10 |
M10 |
M10 |
M10 |
M10 |
|
Size/mm |
20*28 |
32*42 |
32*42 |
32*42 |
32*42 |
32*42 |
52*67 |
58*78 |
| polish | Conductor cross section (mm2) | Maximum current (A) |
| 3 | 3*10mm2 | 50A |
| 3 | 3*15mm2 | 80A |
| 3 | 3*20mm2 | 100A |
| 3 | 3*25mm2 | 120A |
| 3 | 3*35mm2 | 140A |
| 4 | 4*10mm2 | 50A |
| 4 | 3*15mm2+1*10mm2 | 80A |
| 4 | 3*20mm2+1*10mm2 | 100A |
| 4 | 3*25mm2+1*12.5mm2 | 120A |
| 4 | 3*25mm2+1*15mm2 | 140A |
| 6 | 6*10mm2 | 50A |
| 6 | 6*15mm2 | 80A |
| 6 | 6*20mm2 | 100A |
Contact us for the latest quote!
